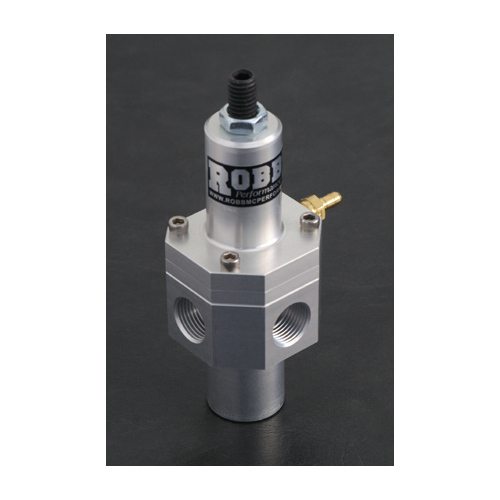

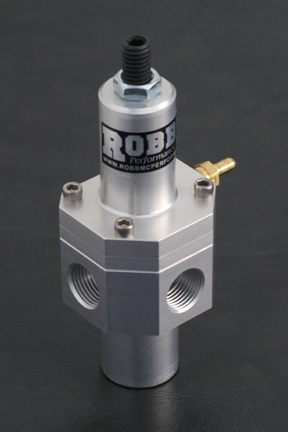

Fuel pressure regulator 3-10 psi, Dead Head type. Suits Carburetor pressure. Non Return type. Boost/vacuum port.

Dead Head / Non Return Fuel Pressure Regulator for Carburetor Systems.

Pressure Range: 3 to  10 PSI

For use with electric or mechanical fuel pumps

Dead–head (non–return) style regulator does not require a return line from the regulator

Large (.375" diameter) internal orifice reduces flow restriction

50% less pressure drop at full throttle than other popular regulators of similar size

Anodized housing and stainless steel plunger for corrosion resistance

Special diaphragm allows use of gasoline and/or alcohol

Boost/vacuum reference for supercharged/turbo applications

Adjusts from 3 to 10 psi

O–ringed plunger eliminates pressure creep

Small in size yet works with pumps up to 300 gph

Optional mounting bracket attaches to regulator in eight possible positions

Three 3/8 NPT outlet ports, one 1/2 NPT inlet port plus one 1/8 NPT gauge port

Easily convert from dead-head to bypass with optional conversion kit (PN 1052)
