SKU: SCAT-2-302-5400-2123-927

H BEAM FORGED CONNECTING CONRODS SBF FORD WINDSOR 347W 302W STROKER 5.400" 0.927" Pin 65400927

Windsor Bearings & Chevy 0.927 Gudgeon Pin

$1,009.62

or 4 payments of $252.41 with Info

In Stock

Description

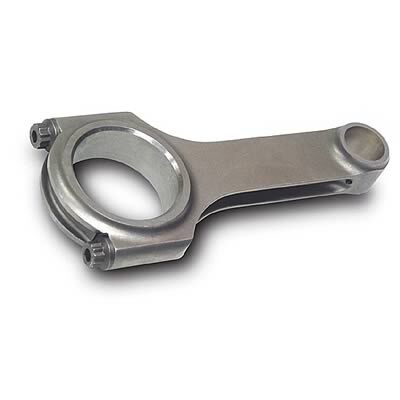

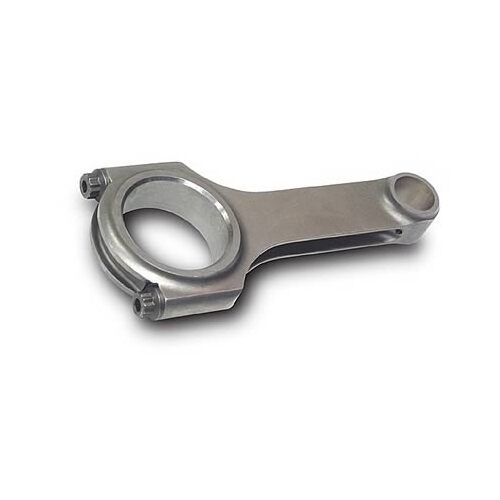

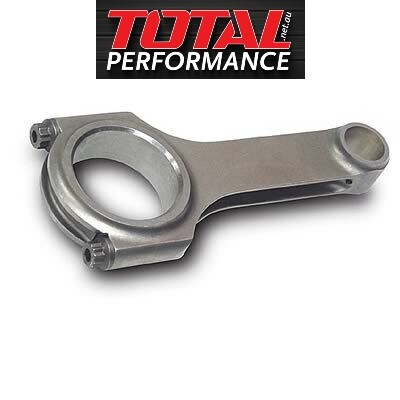

Scat H-Beam Stroker Connecting Rods - Ford 302 347 Windsor 5.400"

These Small Block Ford Scat H-beam connecting rods are the strongest Scat connecting rods available. These Scat H-beam connecting rods are perfect for supercharged and nitrous applications. These Windsor Stroker rods incorporate a special doweled cap for specific cap-to-rod alignment and are profiled with extra clearance for Windsor stroker applications.

Connecting Rod Length Center to Center (in.):  5.400 in.

Connecting Rod Beam Style:  H-beam

Connecting Rod Material:  Forged 4340 steel

Connecting Rod Finish:  Natural

Wrist Pin Style:  Floating

Big End Bore Diameter (in.):  2.1230 in.

Big End Width (in.):  0.830 in.

Pin End Bore Diameter:  0.927" (Chevy)

Cap Retention Style:  Cap screw

Connecting Rod Bolt Brand:  ARP

Connecting Rod Bolt Diameter:  7/16 in.

Connecting Rod Bolt Material:  8740 chromoly steel

Fastener Tensile Strength (psi):  180,000 psi

Connecting Rod Bolt Head Style:  12-point

Weight Matched Set:  Yes

Quantity:  Sold as a set of 8.

Specifications

SKU SCAT-2-302-5400-2123-927
Barcode # 846091010999
Brand SCAT
