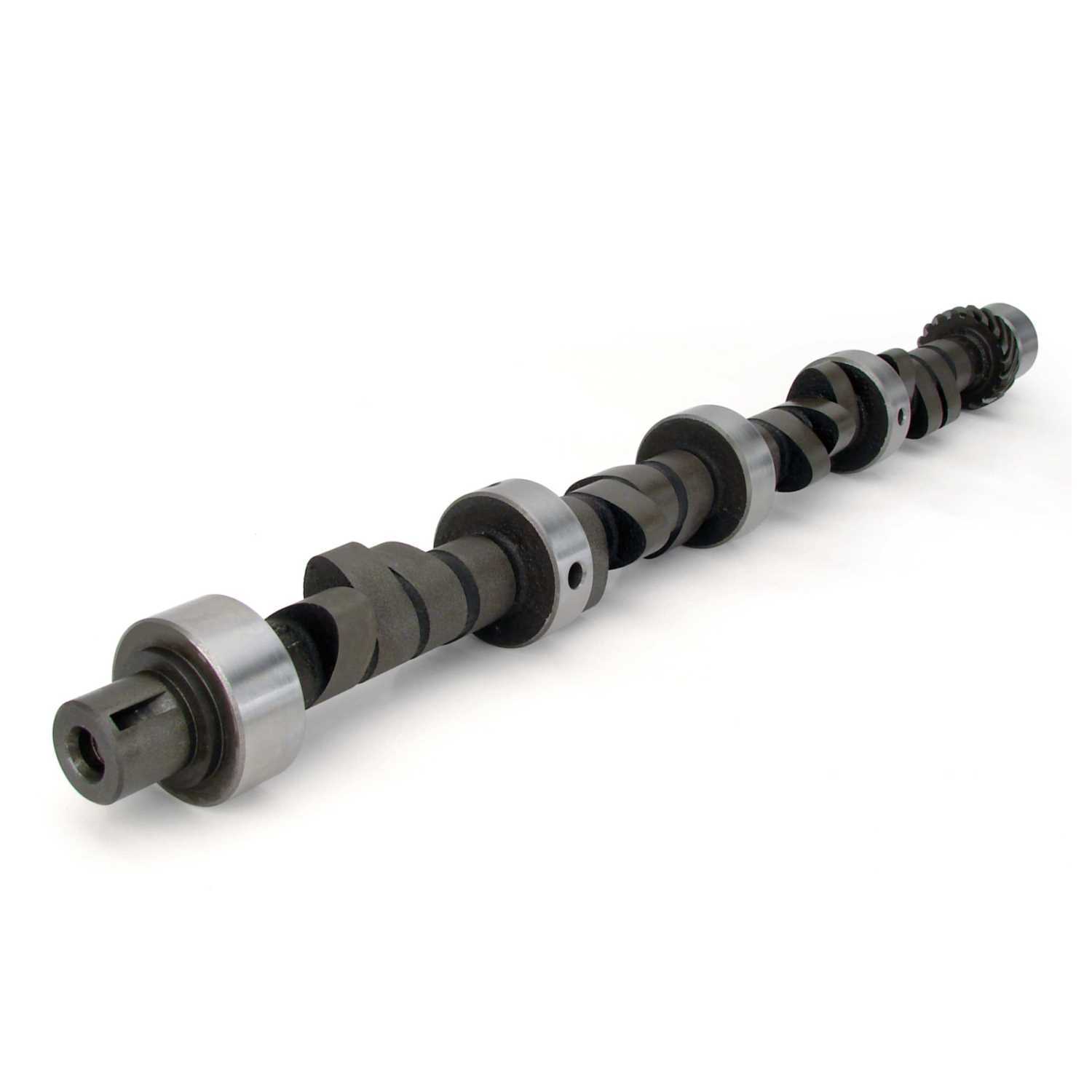

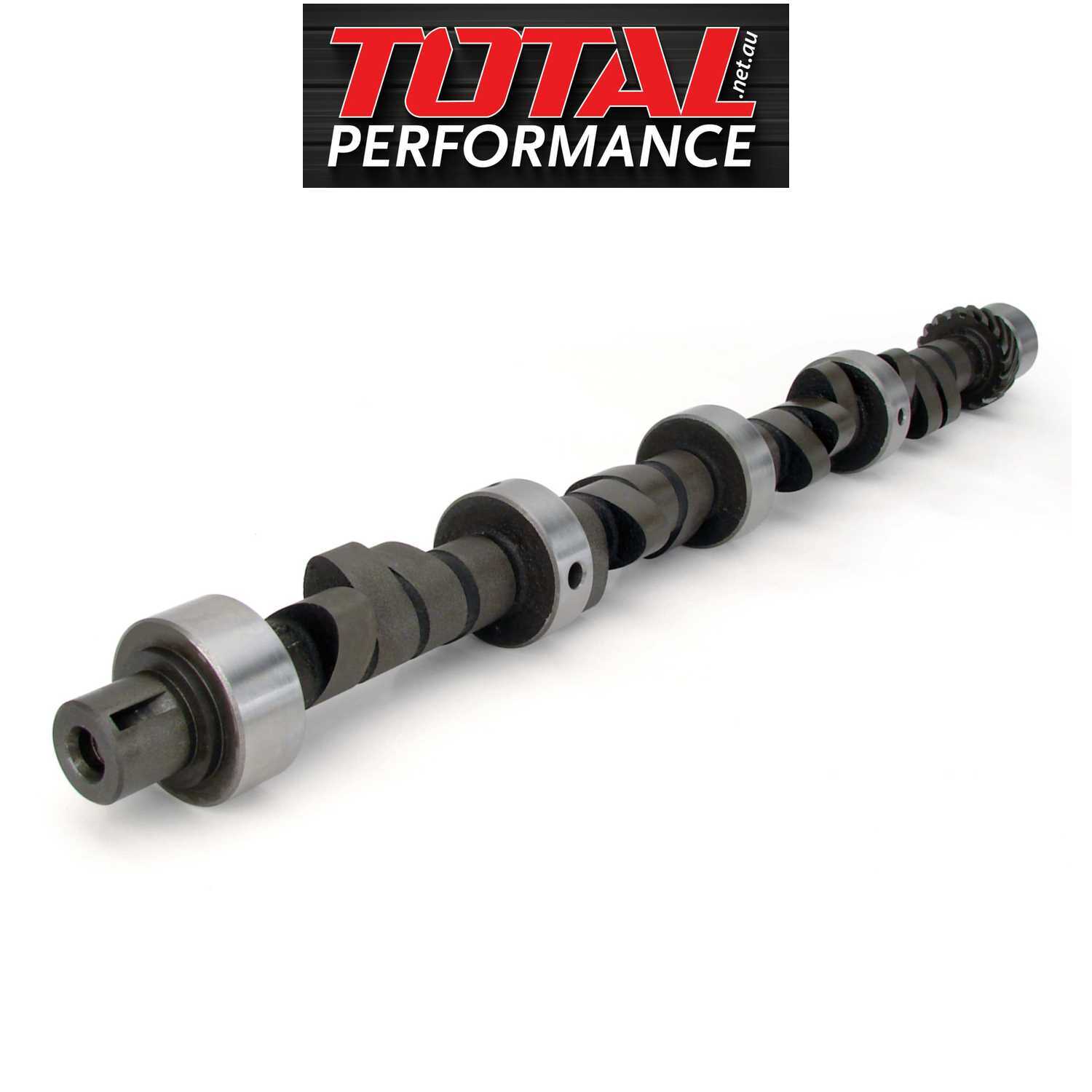

Drag Race/Oval Track 260/266 LSA 106, Solid Flat Tappet Camshaft, for Chrysler V8, 314, 340, 360

** FREE SHIPPING ON ORDERS OVER $200 **

Description

Best all around bracket cam. 4000+ converter in 360 or 4300+ stall in 340, min. compression ratio is 11:1. Strong mid-range and upper RPM power needs 11:1 compression with open carb and intake.

Specifications

SKU	20-633-5
Barcode #	036584080121
Brand	COMP CAMS
intake valve lift	0.558
Exhaust Valve Lift	0.555
Lifter Type	Solid Flat Tappet
Advertised Exhaust Duration	304
Advertised Intake Duration	290
Cam Type	Solid Flat Tappet
Exhaust Duration At .050 Inch Lift	266
Intake Duration At .050 Inch Lift	260
Lobe Separation	106
Camshaft Series	Oval Track
Grind Number	XTQ290S-6
Basic Operating Rpm Range	4,000-7,000
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	1-Bolt
Camshaft Material	Cast Iron
