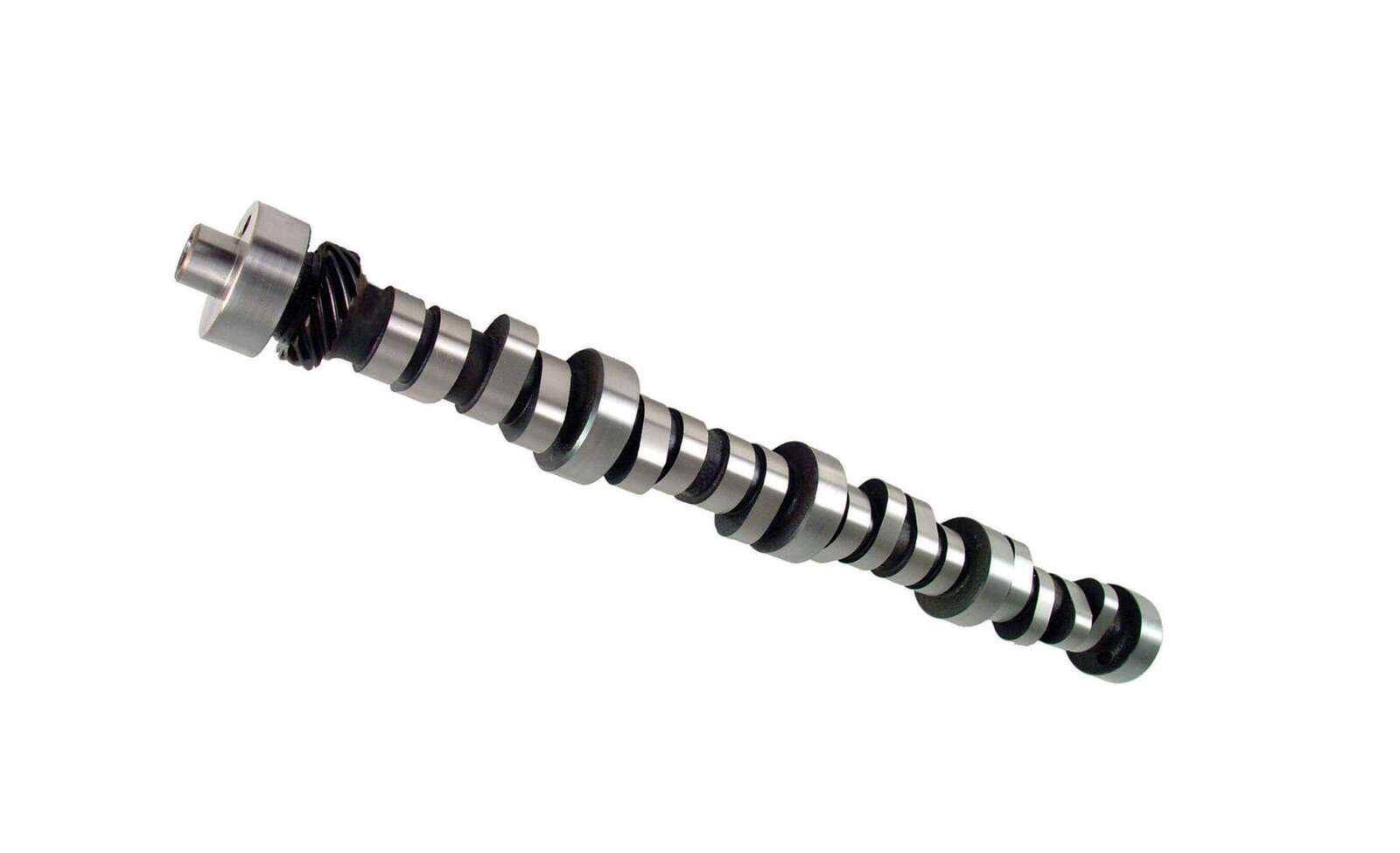

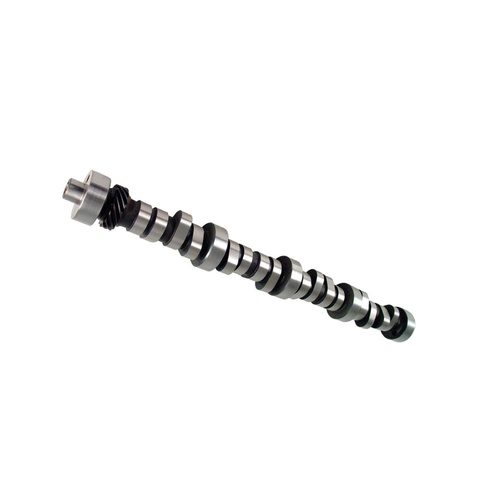

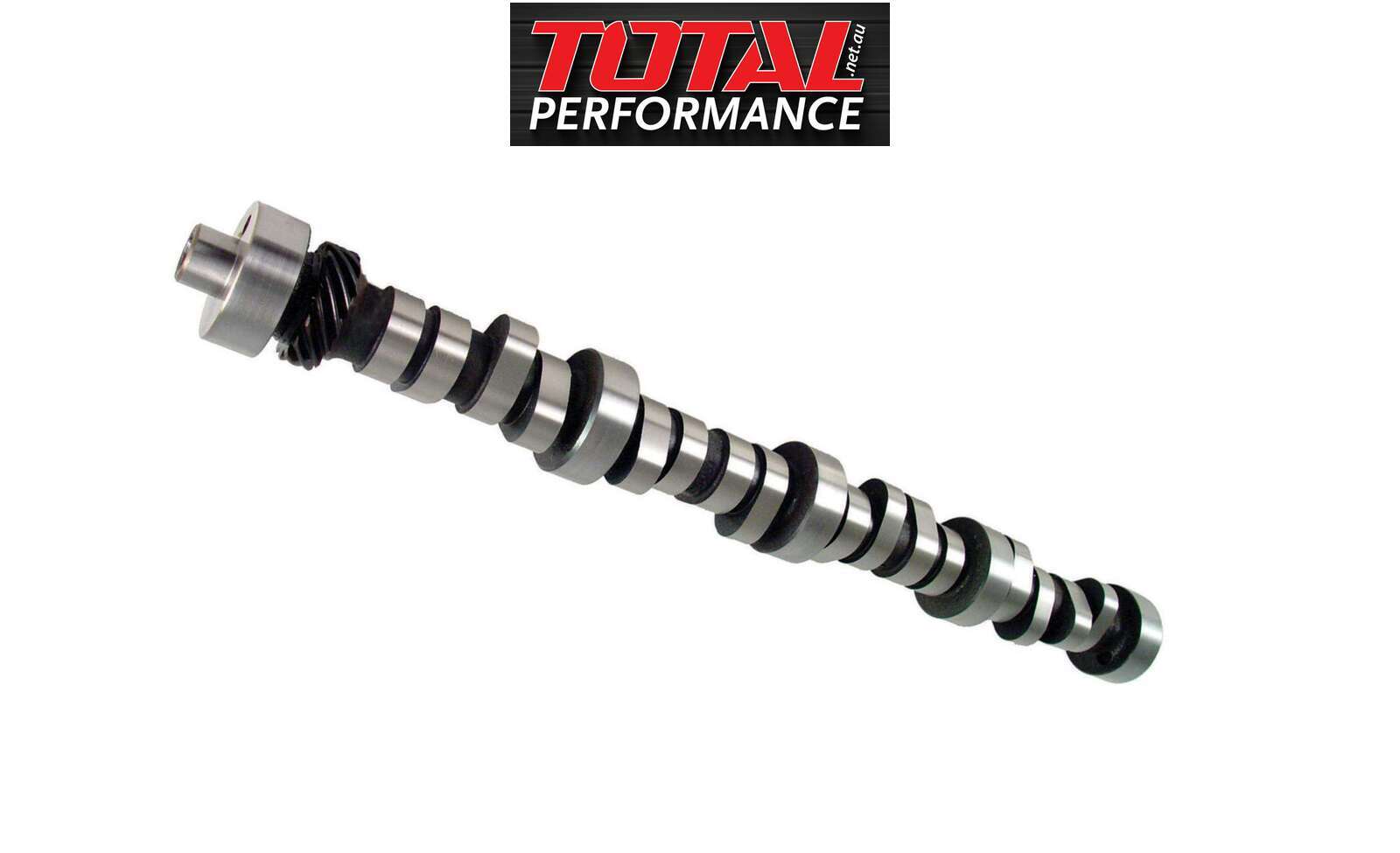

35-775-8 EFI 5.0L OEM Roller 236/248 LSA 114 XFI Hydraulic Roller Camshaft Ford 302W 351W Windsor Large base circle

**Free Freight on orders over $200**

Description

Comp Cams, Ford Windsor EFI camshaft.

347c.i. or larger. Super strong mid-range. Best w/ 9.5:1+ compression, aftermarket heads, intake, T-body and injectors. 3000+ stall or 5 speed. Computer mods a must.

Base Circle: Large

Firing Order: 351W

Specifications

SKU	35-775-8
Barcode #	036584117537
Brand	COMP CAMS
intake valve lift	0.579
Exhaust Valve Lift	0.579
Lifter Type	Hydraulic Roller
Advertised Exhaust Duration	300
Advertised Intake Duration	286
Cam Type	Hydraulic Roller
Exhaust Duration At .050 Inch Lift	248
Intake Duration At .050 Inch Lift	236
Lobe Separation	114
Camshaft Series	XFI
Grind Number	XFI236HR-14
Basic Operating Rpm Range	2,600-6,300
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	1-Bolt
Camshaft Material	Austempered Ductile Iron
