SKU: 35-518-8

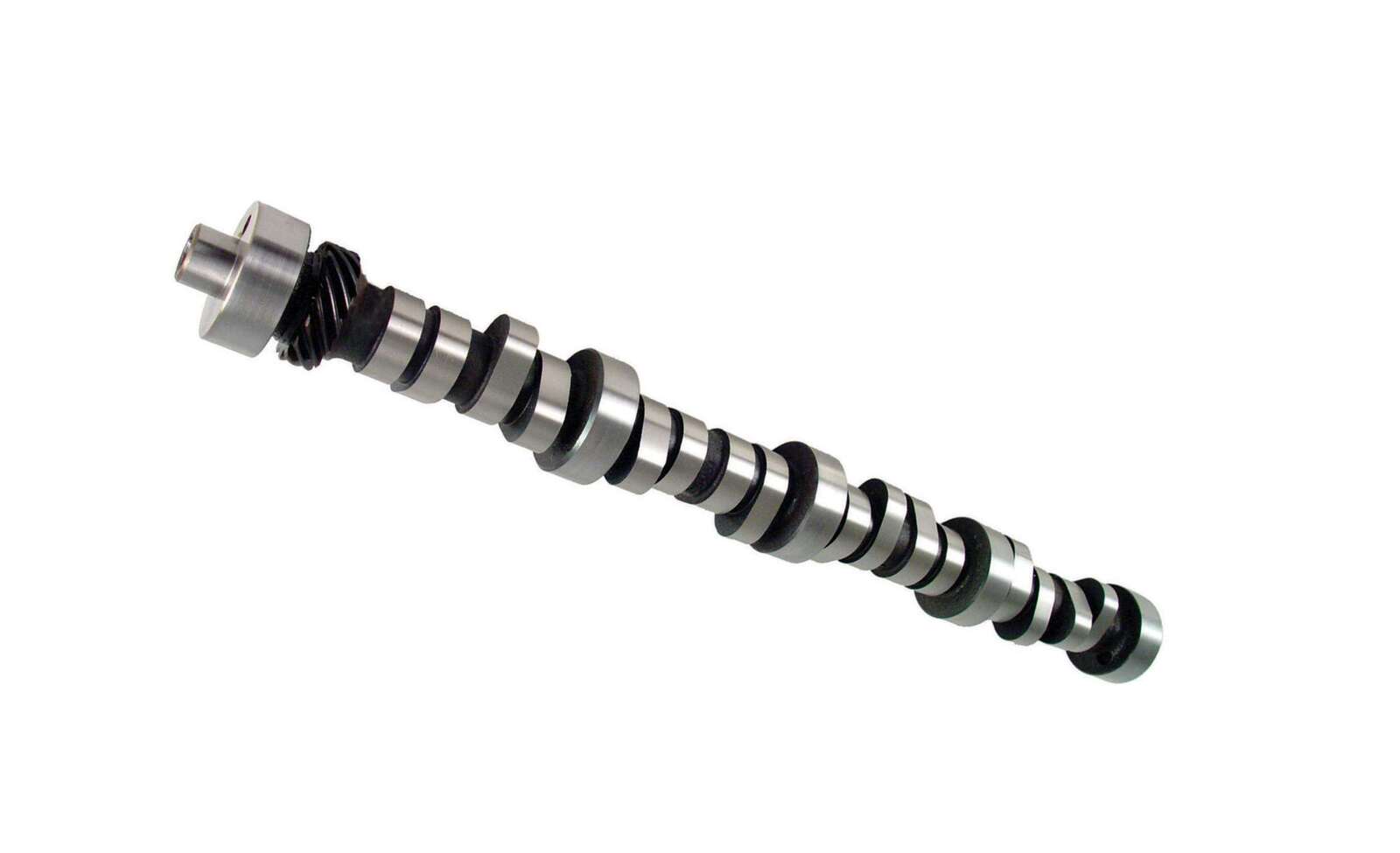

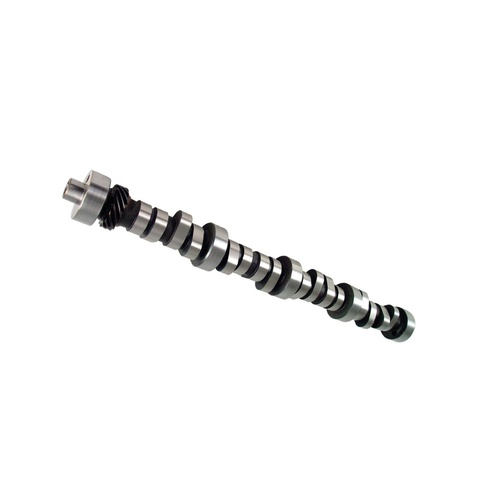

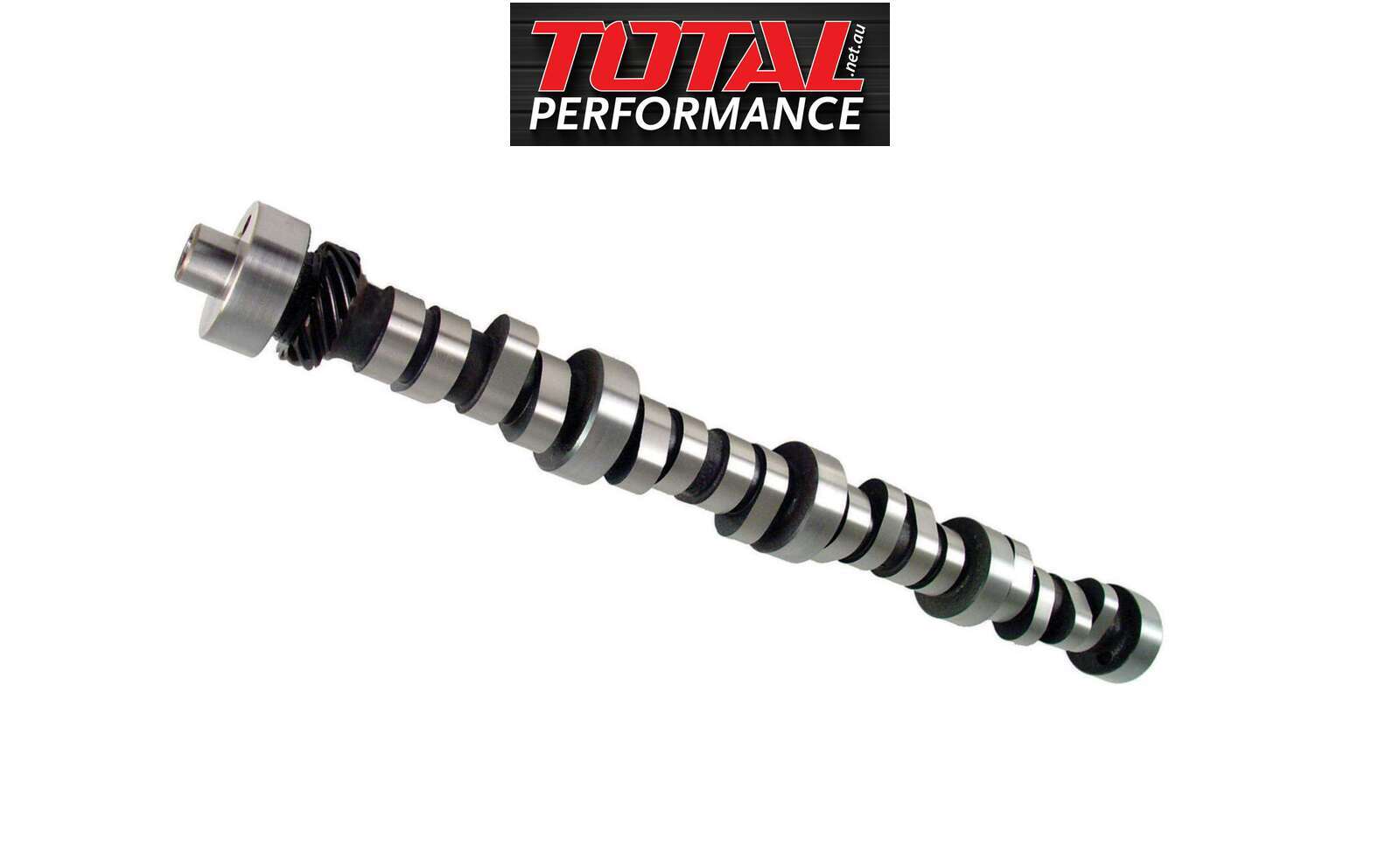

XE274HR Ford 5.0L Windsor 224/232 LSA 112 Hydraulic Roller Camshaft, large base circle Xtreme Energy Computer Controlled

RPM Range: 2200-6200 + OEM large base circle + EFI

$610.69

or 4 payments of $152.67 with Info

In Stock

Description

2500+ stall, 3.55-3.73 gears, better heads, intake and fuel system.

Specifications

SKU 35-518-8
Barcode # 036584031574
Brand COMP CAMS
Intake Valve Lift 0.555
Camshaft Gear Attachment 1-Bolt
Basic Operating Rpm Range 1,500-5,500
Lobe Separation 112
Cam Type Hydraulic Roller
Lifter Type Hydraulic Roller
Valve Springs Required Yes
Grind Number XE274HR
Intake Duration At .050 Inch Lift 224
Advertised Intake Duration 274
Exhaust Valve Lift 0.565
Camshaft Material Austempered Ductile Iron
Lifters Included No
Camshaft Series Xtreme Energy Computer Controlled
Exhaust Duration At .050 Inch Lift 232
Advertised Exhaust Duration 282
