SKU: 689-421-13

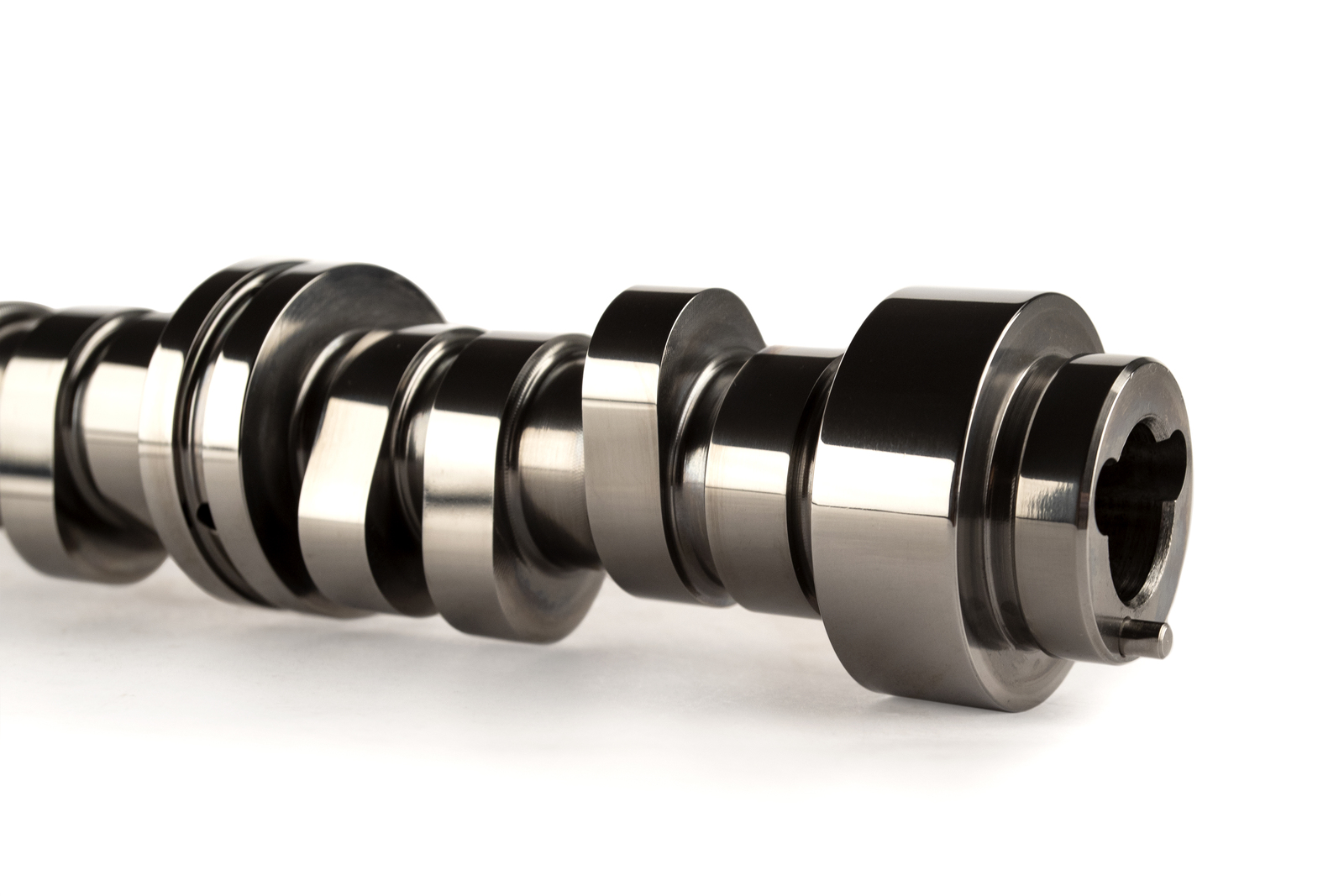

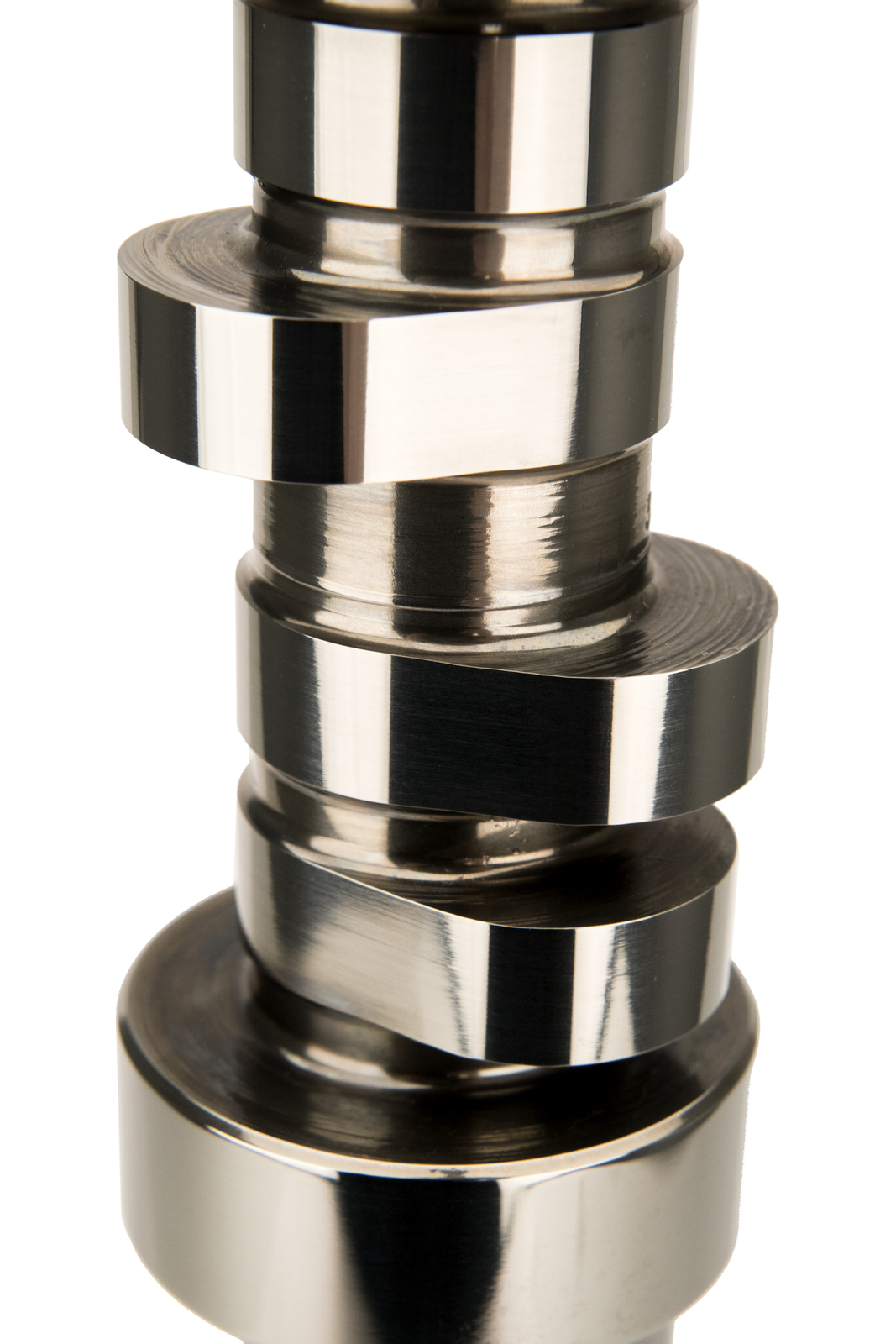

689-421-13 XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM LS GEN IV

$768.66

or 4 payments of $192.16 with Info

In Stock

Description

Excellent responsiveness and mid-range power w/ across the board gains. Best choice for heavy vehicles w/ stock gears.

Specifications

SKU 689-421-13
Barcode # 036584237907
Brand COMP CAMS
Lobe Separation 114
Exhaust Duration At .050 Inch Lift Deactivation Cy 228
Intake Duration At .050 Inch Lift Deactivation Cyl 216
Intake Valve Lift Non-deactivation Cylinders 0.5
Advertised Exhaust Duration Deactivation Cylinders 290
Camshaft Gear Attachment 1-Bolt
Grind Number 266PIIHR14
Exhaust Duration At .050 Inch Lift Non-deactivatio 226
Intake Duration At .050 Inch Lift Non-deactivation 214
Exhaust Valve Lift Deactivation Cylinders 0.5
Advertised Intake Duration Deactivation Cylinders 278
Valve Springs Required Yes
Camshaft Series XFI AFM
Advertised Intake Duration Non-deactivation Cylind 266
Advertised Exhaust Duration Non-deactivation Cylin 278
Exhaust Valve Lift Non-deactivation Cylinders 0.5
Intake Valve Lift Deactivation Cylinders 0.5
Camshaft Material Billet Steel
Lifters Included No
