SKU: 54-461-11

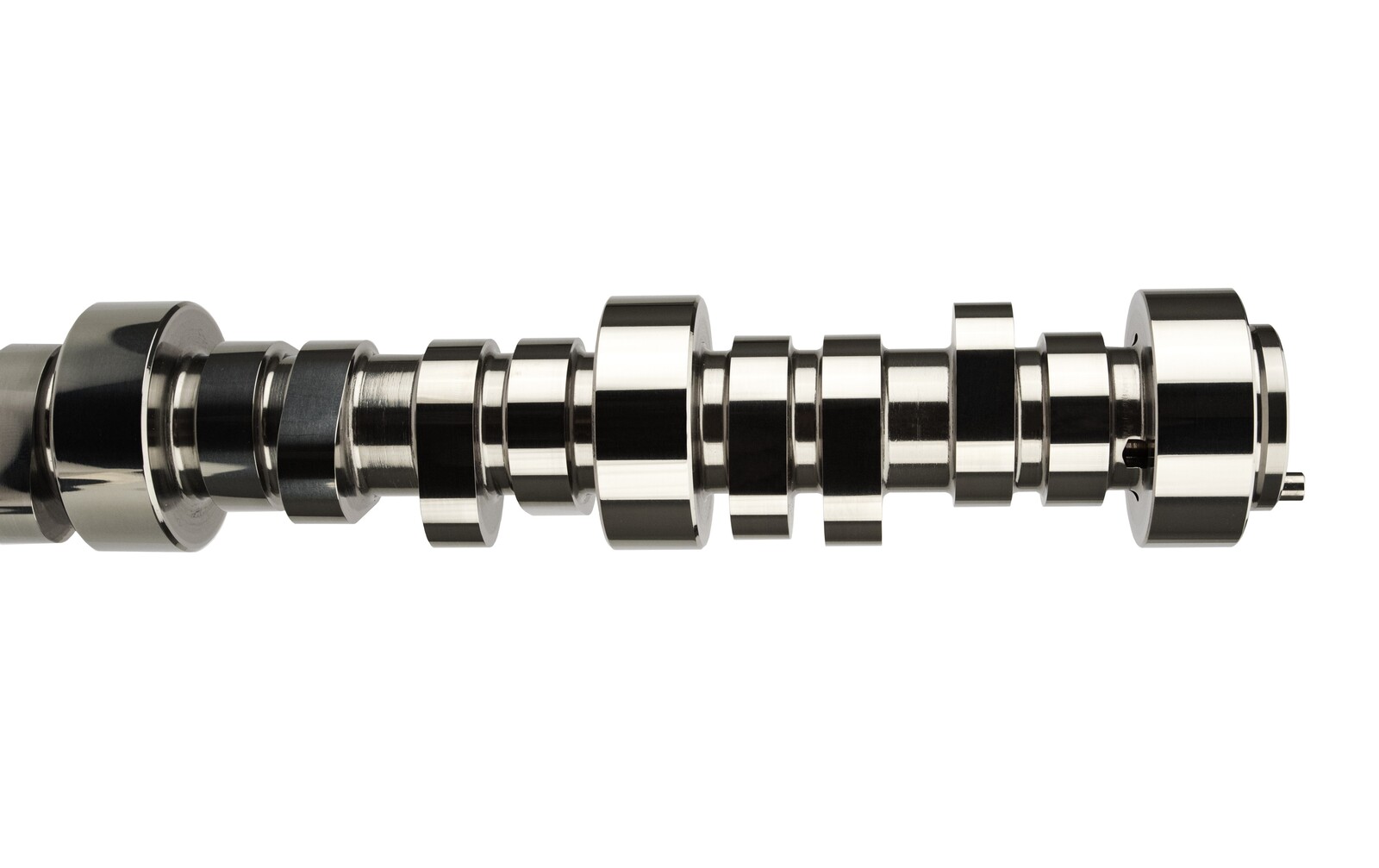

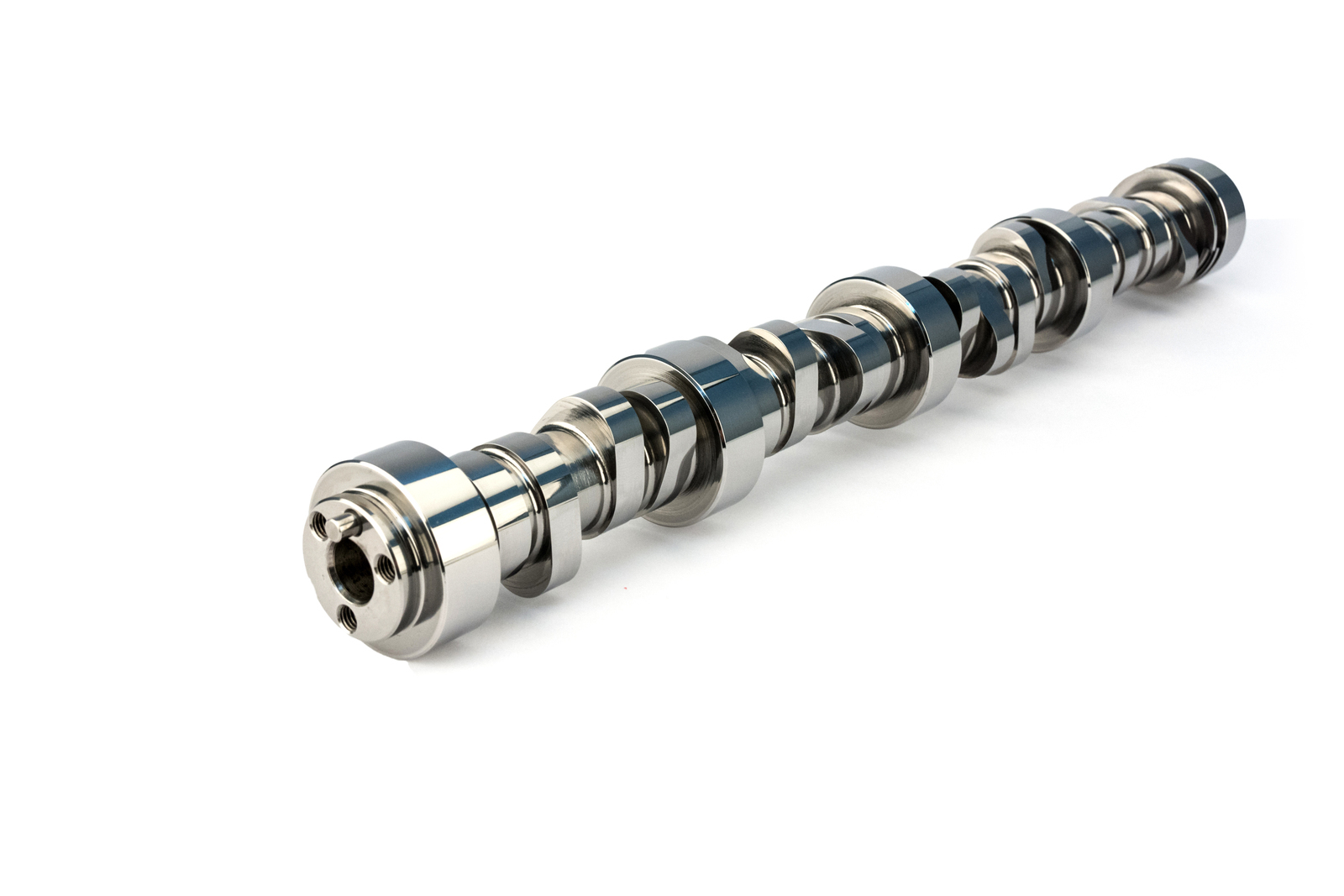

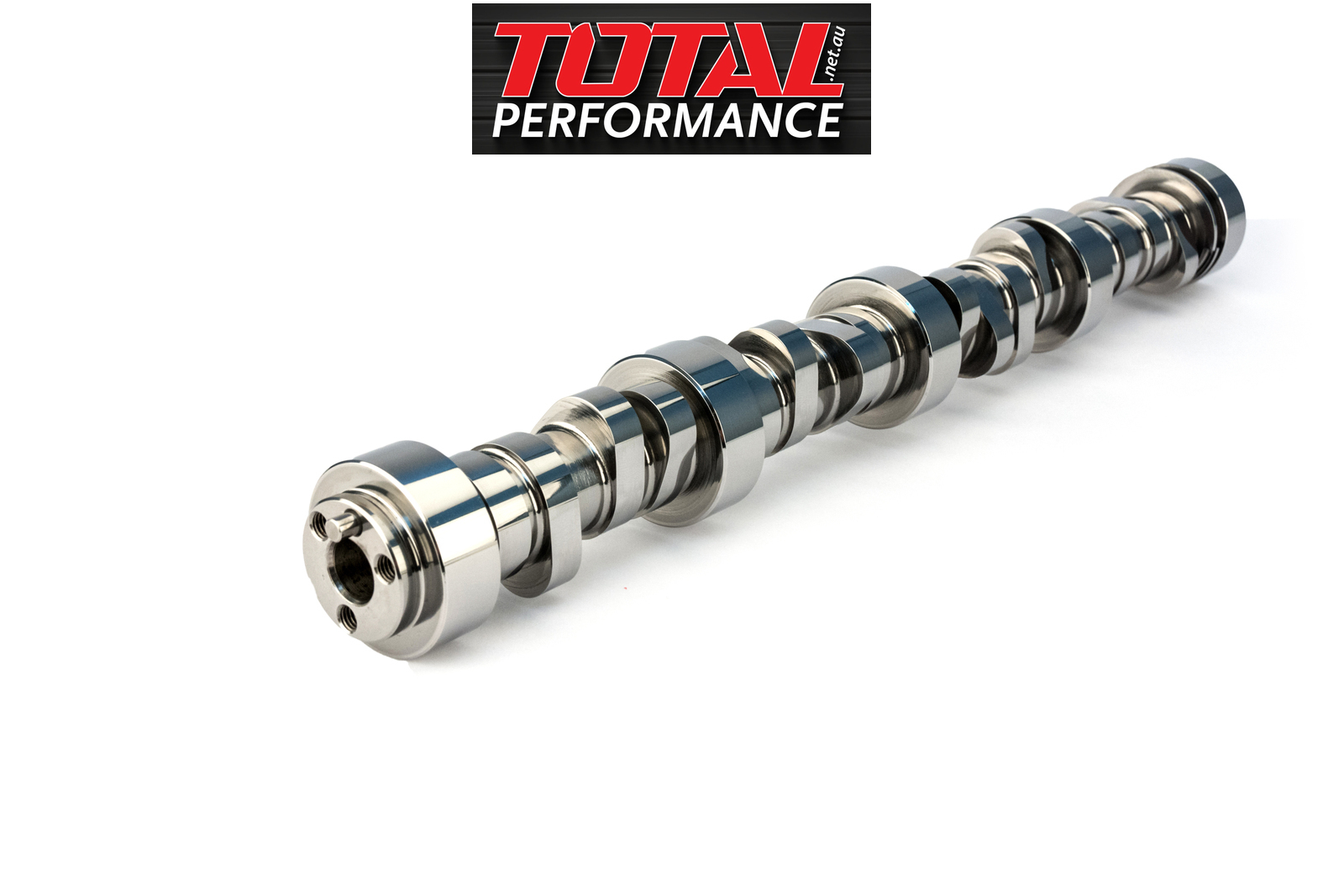

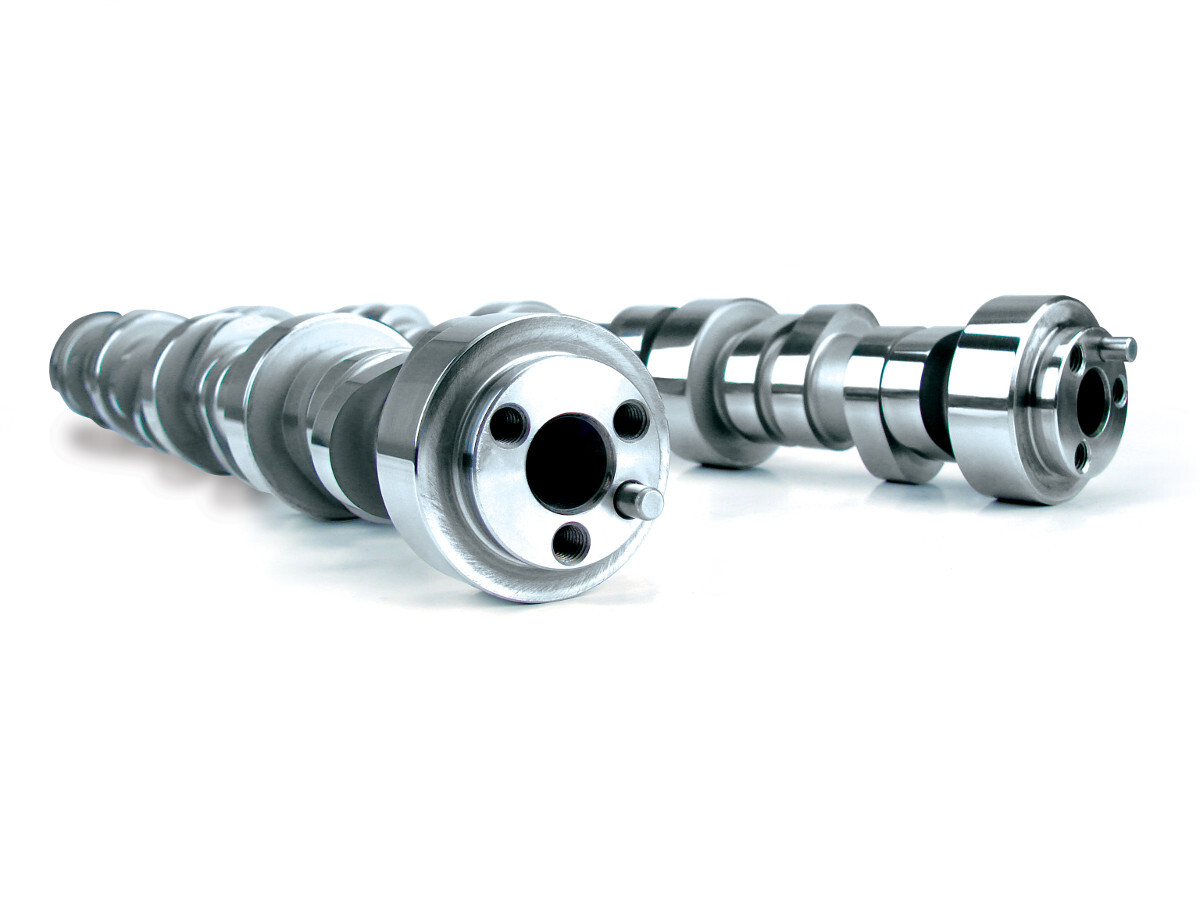

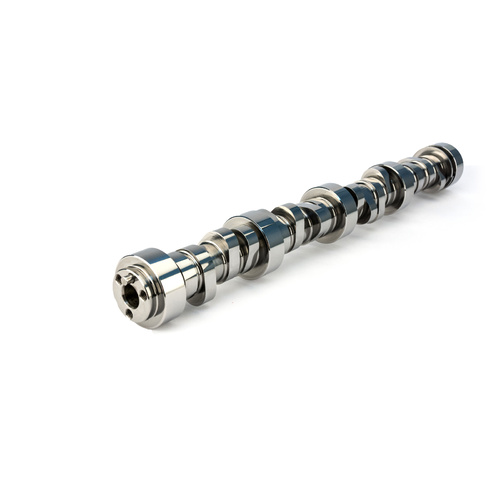

54-461-11 LSR Cathedral Port 239/247 LSA 114 Hydraulic Roller Cam for GM LS GEN III/IV

RPM Operating Range: 2,400-7,200

$734.40

or 4 payments of $183.60 with Info

SOLD OUT

Description

Broad top end power range for high RPM, race only LS engines with aftermarket cathedral port cylinder heads and higher compression.

Specifications

SKU 54-461-11
Barcode # 036584195252
Brand COMP CAMS
intake valve lift 0.624
Exhaust Valve Lift 0.624
Lifter Type Hydraulic Roller
Advertised Exhaust Duration 297
Advertised Intake Duration 289
Cam Type Hydraulic Roller
Exhaust Duration At .050 Inch Lift 247
Intake Duration At .050 Inch Lift 239
Lobe Separation 114
Camshaft Series LSR Cathedral Port All Out Power
Grind Number 289LR HR14
Basic Operating Rpm Range 2,400-7,200
Lifters Included No
Valve Springs Required Yes
Camshaft Gear Attachment 3-Bolt
Camshaft Material Billet Steel
