Ford Windsor 347 Stroker Conrods 347W 302W I Beam 5.400" 7/16 bolt Chevy 0.927" Pin Connecting Con Rods SBF (26540716)

Scat SCAT-2-ICR5400-716 Ford Windsor Stroker Conrods 5.400" with 7/16 Rod Bolts

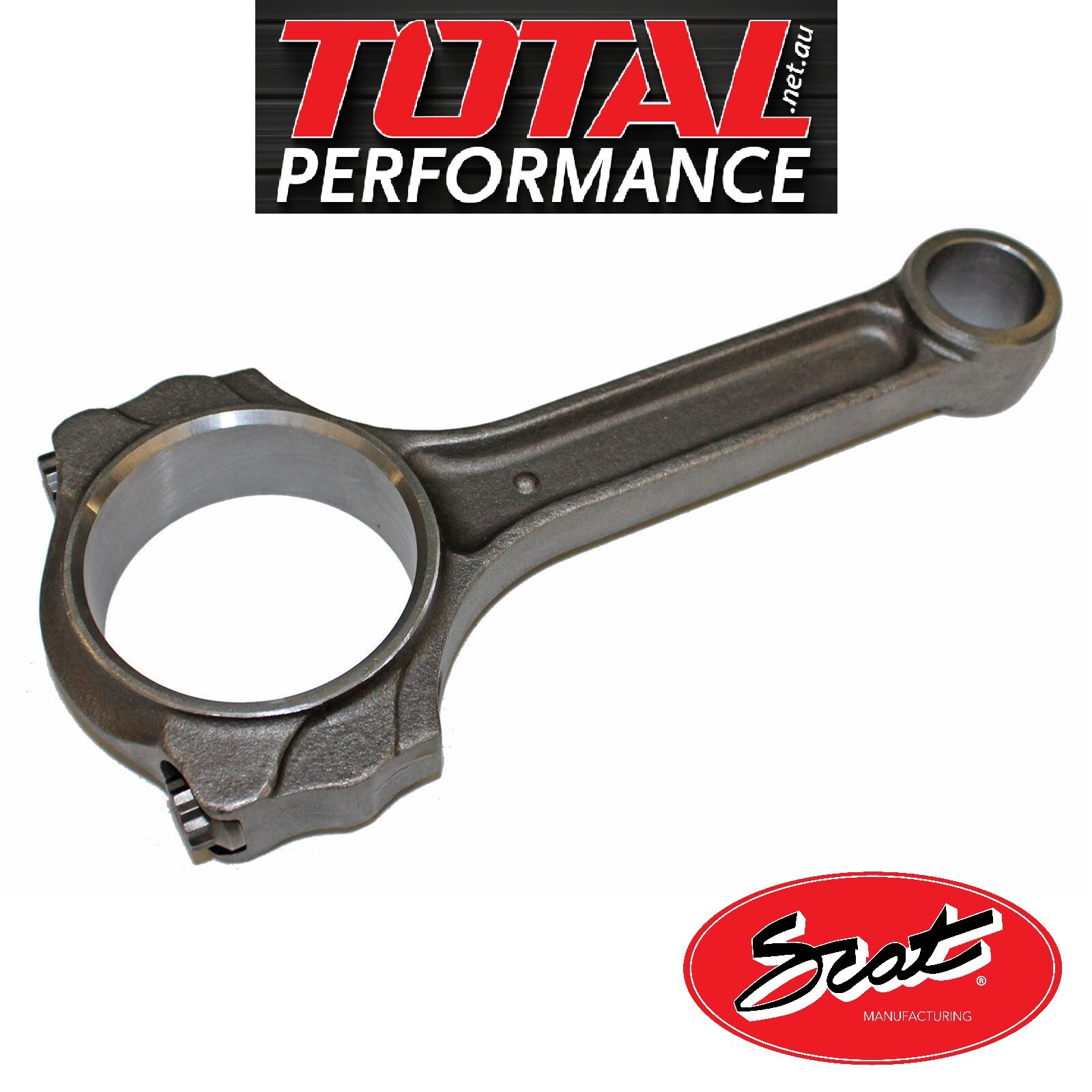

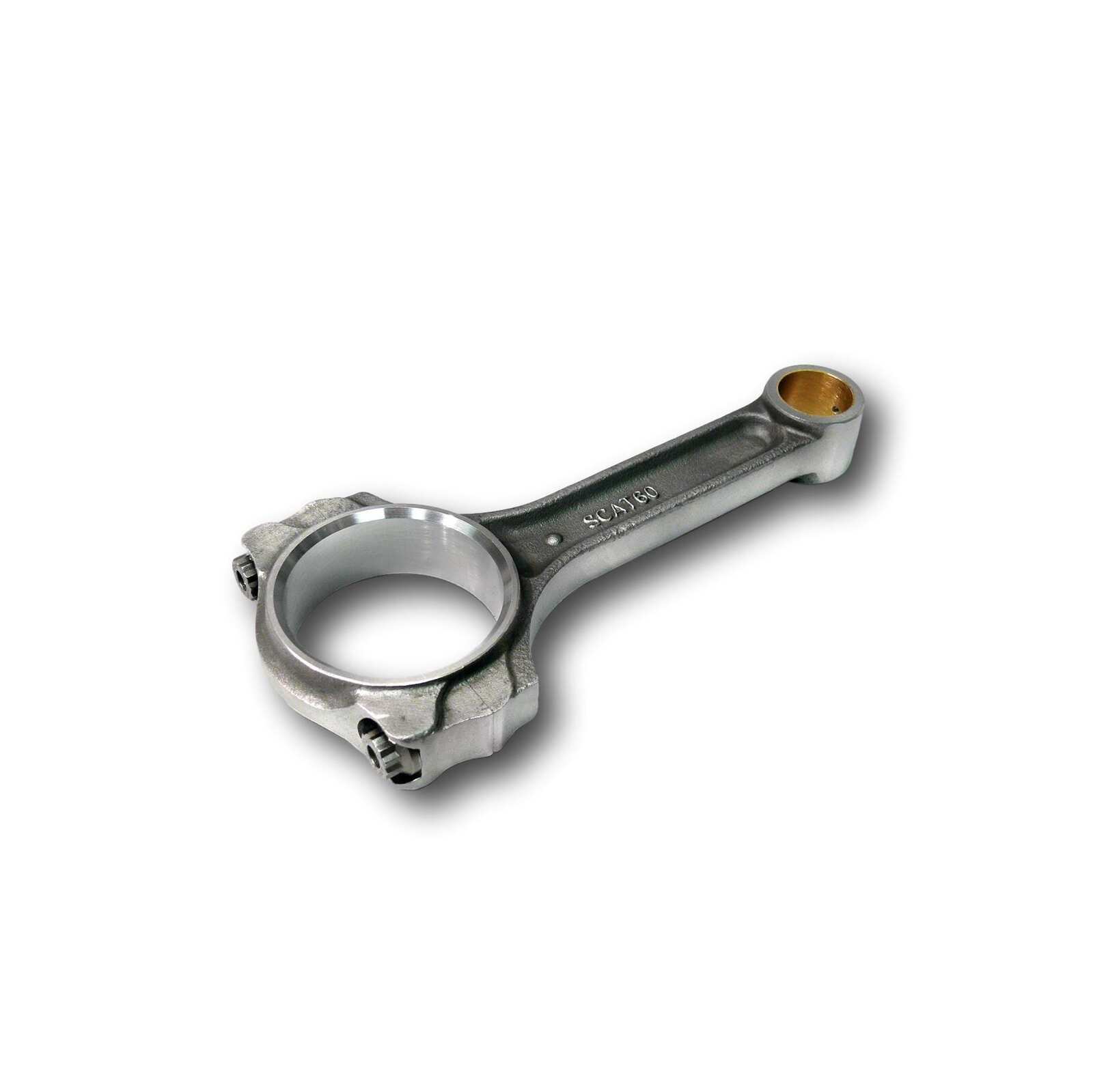

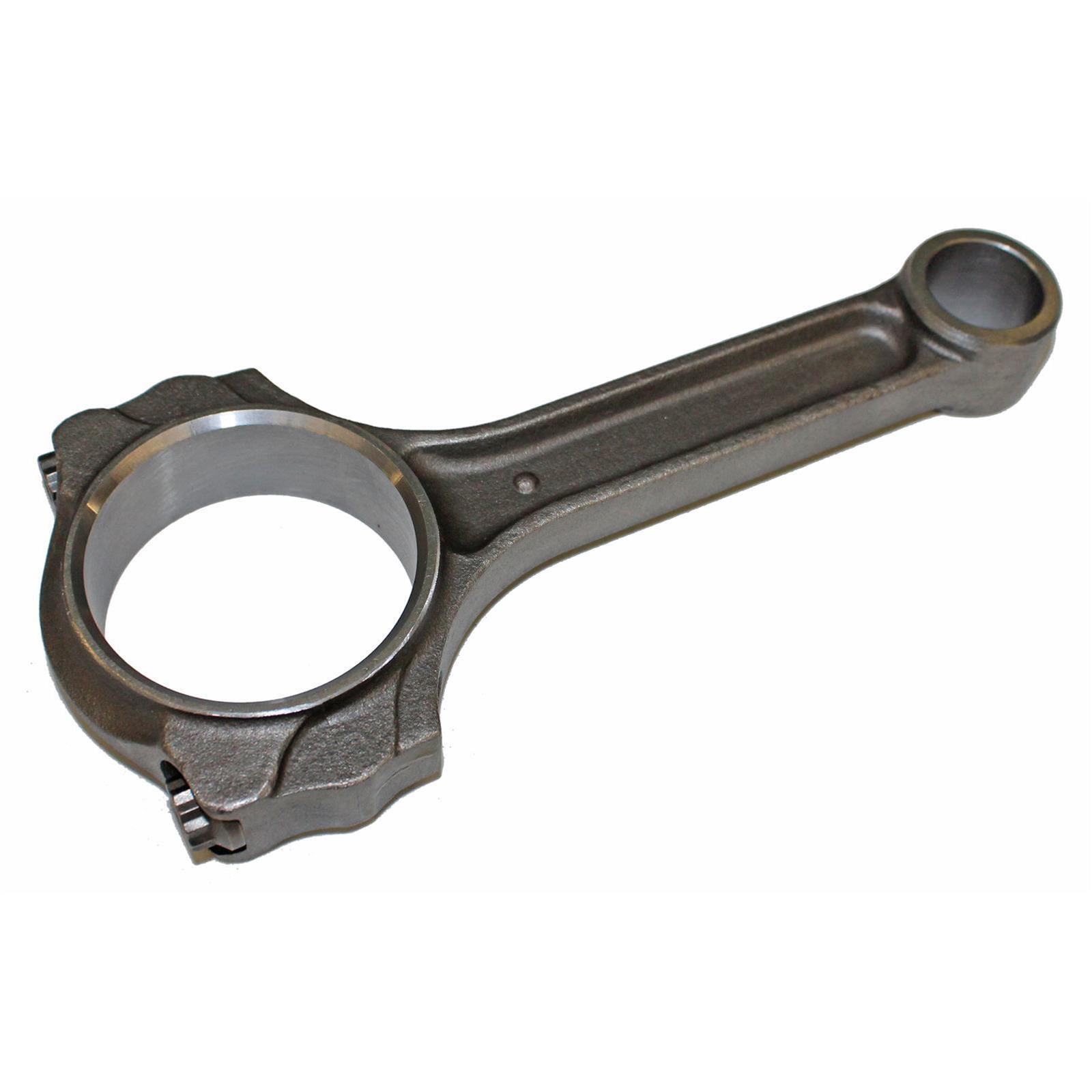

Scat Pro Series I-Beam Connecting Rods

These Scat I-beam connecting rods incorporate all of the best features possible for an I-beam rod, including some strength adders found in H-beam designs. Scat Pro Series I-beam Windsor connecting rods are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, polished beams to eliminate stress risers, and special hollow dowels with huge 7/16 in. ARP cap screw bolts to greatly increase strength and horsepower capabilities.

Ford Small Block 302 Windsor Pro Series 4340 Forged I-Beam Connecting Rods with ARP 7/16" Cap Screw Bolts are the strongest I Beam available. They're cut for cam clearance on longer stroke. The single rib cap design ensures added strength and bearing support, and the polished and shot-peened beams eliminate stress risers. The special hollow doweled cap offers accurate cap-to-rod beam alignment.

Scat Short Part#:  26540716

Connecting Rod Series: Pro Series

Connecting Rod Length Center to Center (in.):  5.400 in.

Connecting Rod Beam Style:  I-beam

Connecting Rod Material:  Forged 4340 steel

Connecting Rod Finish:  Natural

Wrist Pin Style:  Floating / Bushed

Big End Bore Diameter (in.):  2.123 in.  (Ford Windsor)

Big End Width (in.):  0.830 in.

Pin End Bore Diameter:  0.927" in. (chevy)

Clearanced for Stroker:  Yes

Connecting Rod Bolt:  ARP 8740

Connecting Rod Bolt Diameter:  7/16 in.

Connecting Rod Bolt Head Style:  Cap screw 12 point

Weight Matched Set:  Yes

Quantity:  Sold as a set of 8.
