Description

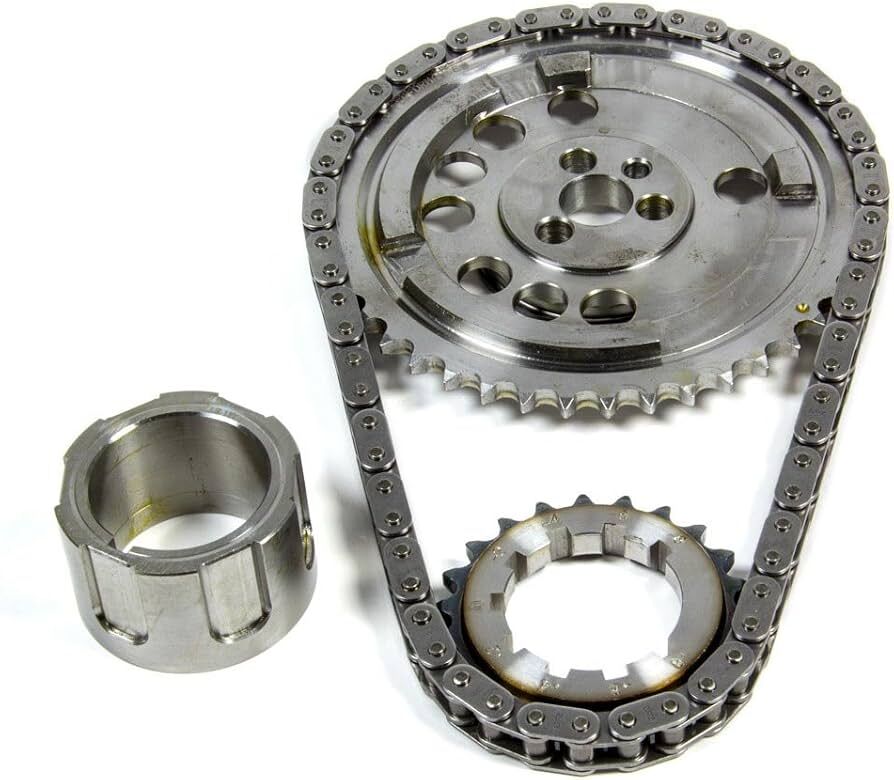

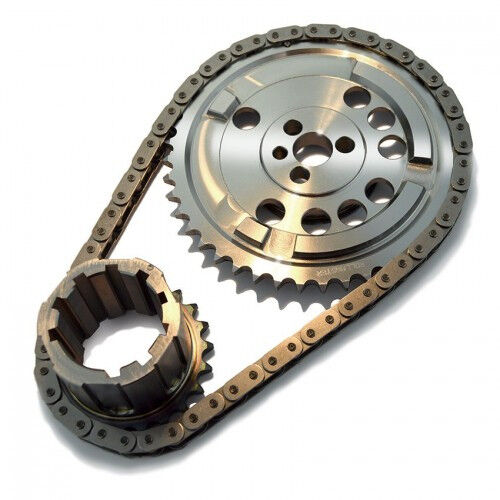

DRP - 3 BOLT, 4 Trigger Billet SINGLE ROW TIMING CHAIN KIT fits LS2, LS3, L98 SS Commodore. Includes TORRINGTON BEARING
Single Row Timign Gear Set suits the following LS Engines:
- LSA
- L98
- L77
- L76
- LS3
- LS7
3 Bolt Cam With Multi Trigger Sensor / 4 Trigger. Suits LS2 LS3 Commodores VZ VE VF with a 3 Bolt Cam Swap
Will NOT fit Single bolt camshafts (OEM type)
DRP-LS3-TGS-SR Specifications:
- All Timing Chain Sets are made from billet steel, have 9 Keyways (unless otherwise stated) and have a heat treated crank sprocket.
- IWIS Chain: Yes - Performance Series
- Type of Chain: Singel Row
- Camshaft Bolts: 3 Bolt type
- Camshaft Sensor Trigger: Multi 4 Trigger
- Number of Keyways: 9 Kayway Adjustable
- Oil Pump Drive: Yes included
- Number of Teeth Cam Sprockets 44
- Number of Teeth Crank Sprockets 22
- Number of Links 60
- Nitrited YES
- Oil Pump Drive: YES INCLUDED
- Torrington Bearing: Yes Torrington Bearing
Specifications
| SKU | DRP-LS3-TGS-SR |
| Brand | DRP |
| chain type | Single Row |
| Camshaft Gear Material | Billet Steel |
| Crankshaft Gear Material | Billet Steel |
| Number Of Crankshaft Keyways | 3 |
| Timing Set Series | Adjustable |
