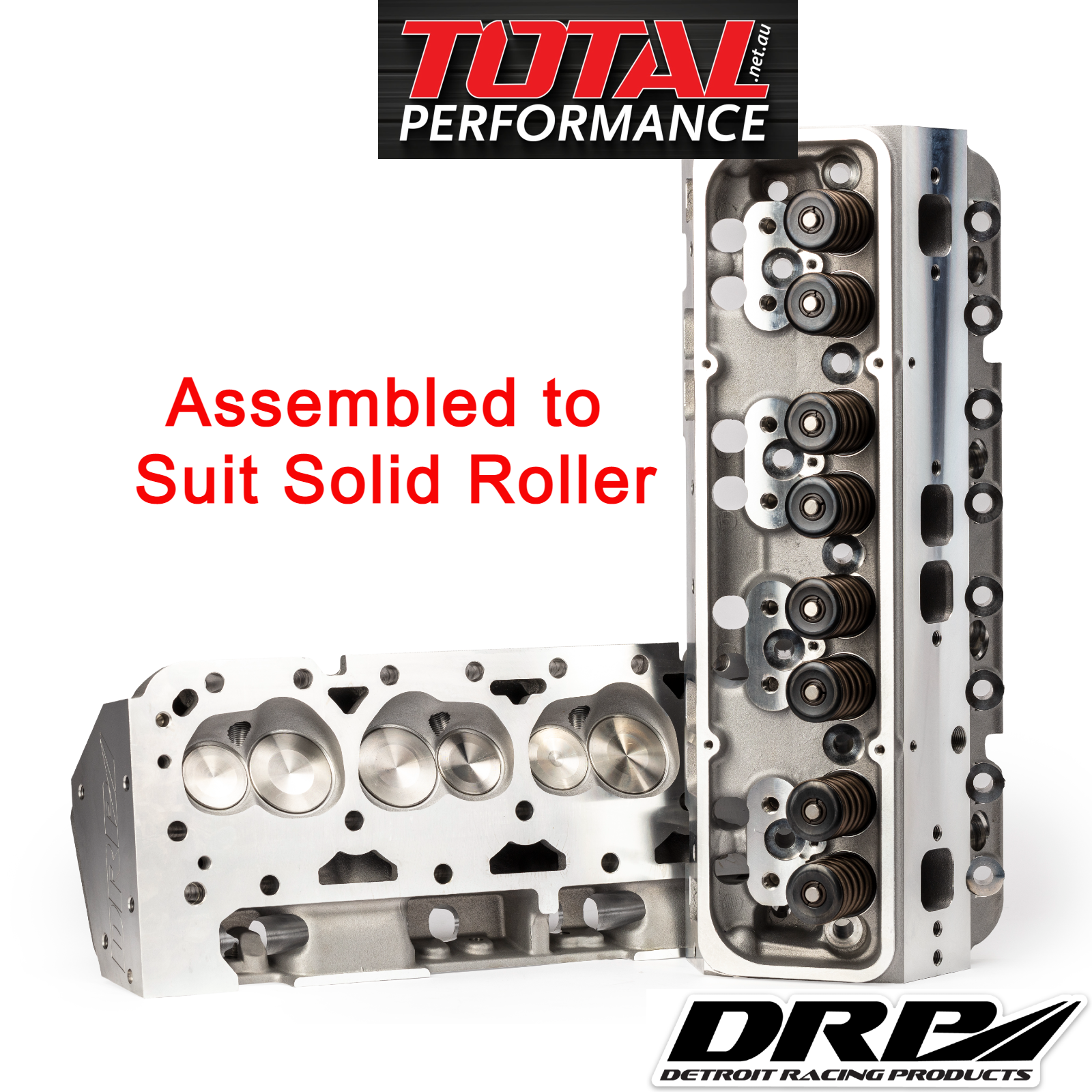

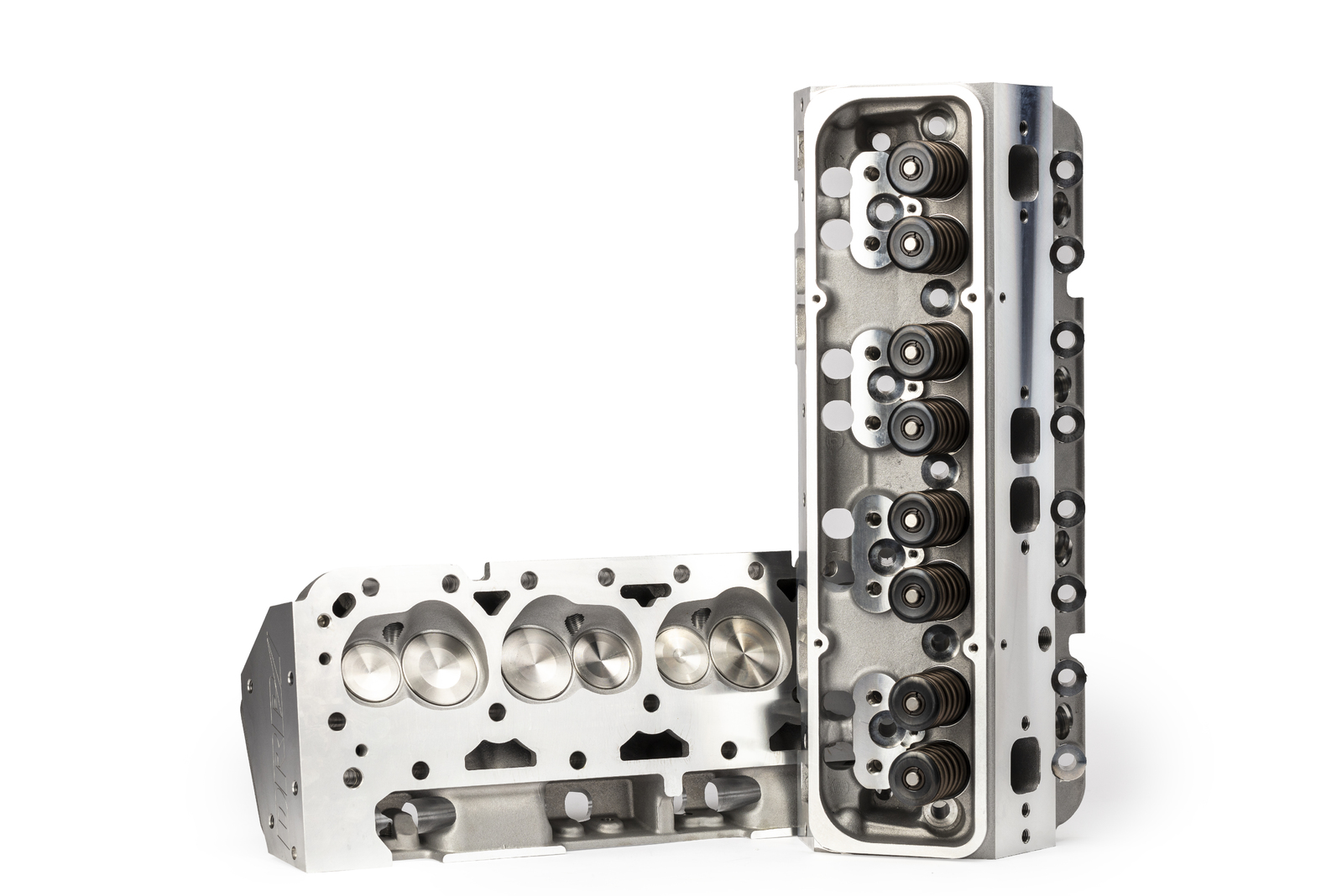

DRP SBC Small Block Chevy 350 23° Heads Assembled with Comp Cams for SOLID ROLLER

SKU: DRP-SBC200-A-SR-FV

DRP SBC Small Block Chevy 350 23° Heads Assembled with Comp Cams for SOLID ROLLER

FERREA VALVES - 5000 SERIES - SOLID ROLLER

$2,365.00

or 4 payments of $591.25 with Info

SOLD OUT

*FREE SHIPPING ON ORDERS OVER $200!

Notify Me

Description

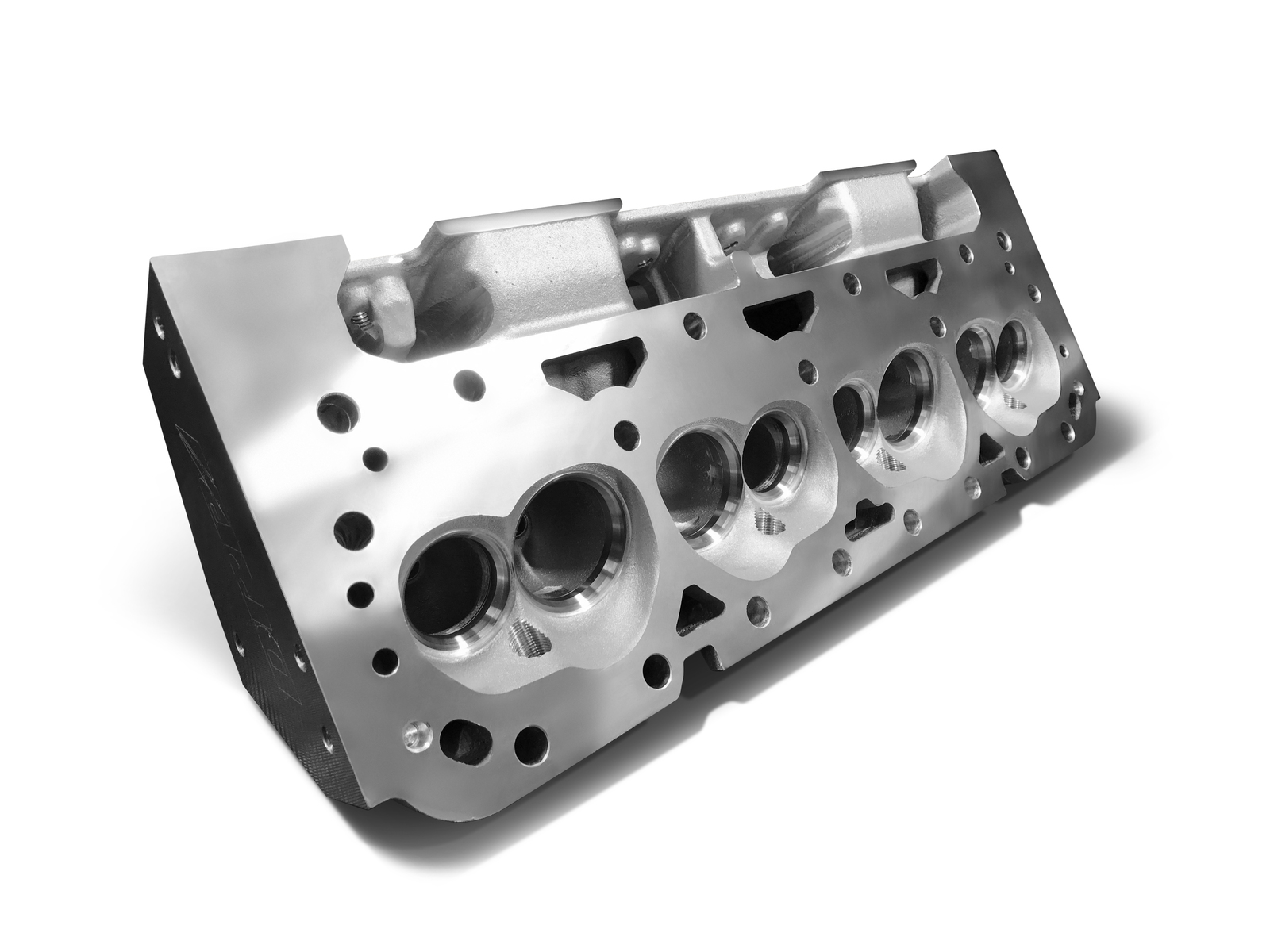

DRP - Detroit Racing Products, Chevy Small Block Cylinder Heads, Angle Plug.

Assembled to suit a Street Solid Roller Camshaft.

These cylinder heads product 500HP and 460ft/lb of Torque from a 350 Small Block Chev* as cast.

Wow of a price for such a great Horsepower and Torque!!

*Dyno results are from a 350 Chev with a Solid Flat Tappet.

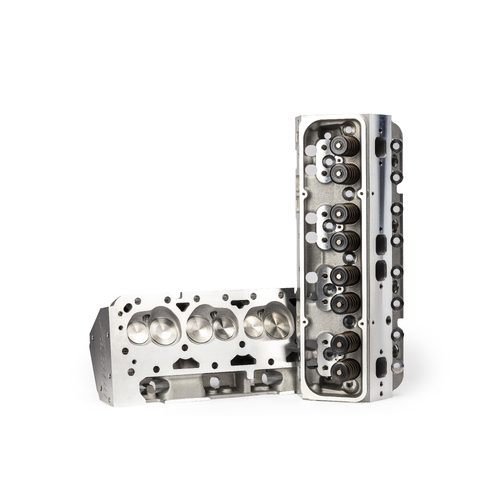

Heads are assembled for SOLID ROLLER & includes:
      °DRP Cylinder Heads - Hand assembled by US using Comp Cams hardware and Ferrea Valves (hand assembled in Melbourne)
      °Comp Cams - Street Series Springs (Dual). (need race? contact us)
                  Springs: 195LBS Seat & 480LBS Open @ 0.600" Lift.
                  Max lift:  500lbs  Open @ 0.655 Max Lift
      °Comp Cams - Retainers, Locks, Spring Seats, Seals
      °Ferrea - 5000 Series valves

REQUIRES:
  • Adjustable guide plates  - see listing part # 4835-8 Comp Cams
  • Rocker Studs  -  see listing part # 4512-16 Comp Cams
These heads flow 500hp @ 0.450" lift
Flow Figures*:
Lift          Intake          Exhaust
200          145             106
300          192             135
400          232             160
450          242             168
500          242             178
550          242             179
600          244             181
650          244             187
700          245             190
* Flown on a Superflow 600 with a 4.030" Bore and a 30° back cut to the intake valve.
Youtube:

350 CHEV DYNO RUN - 500HP  https://www.youtube.com/watch?v=vpwIgJIN5X8

383 CHEV DYNO RUN - LOW COMP 95 OCTANE  https://www.youtube.com/watch?v=iAEie9M4fz8

Customer Combinations:

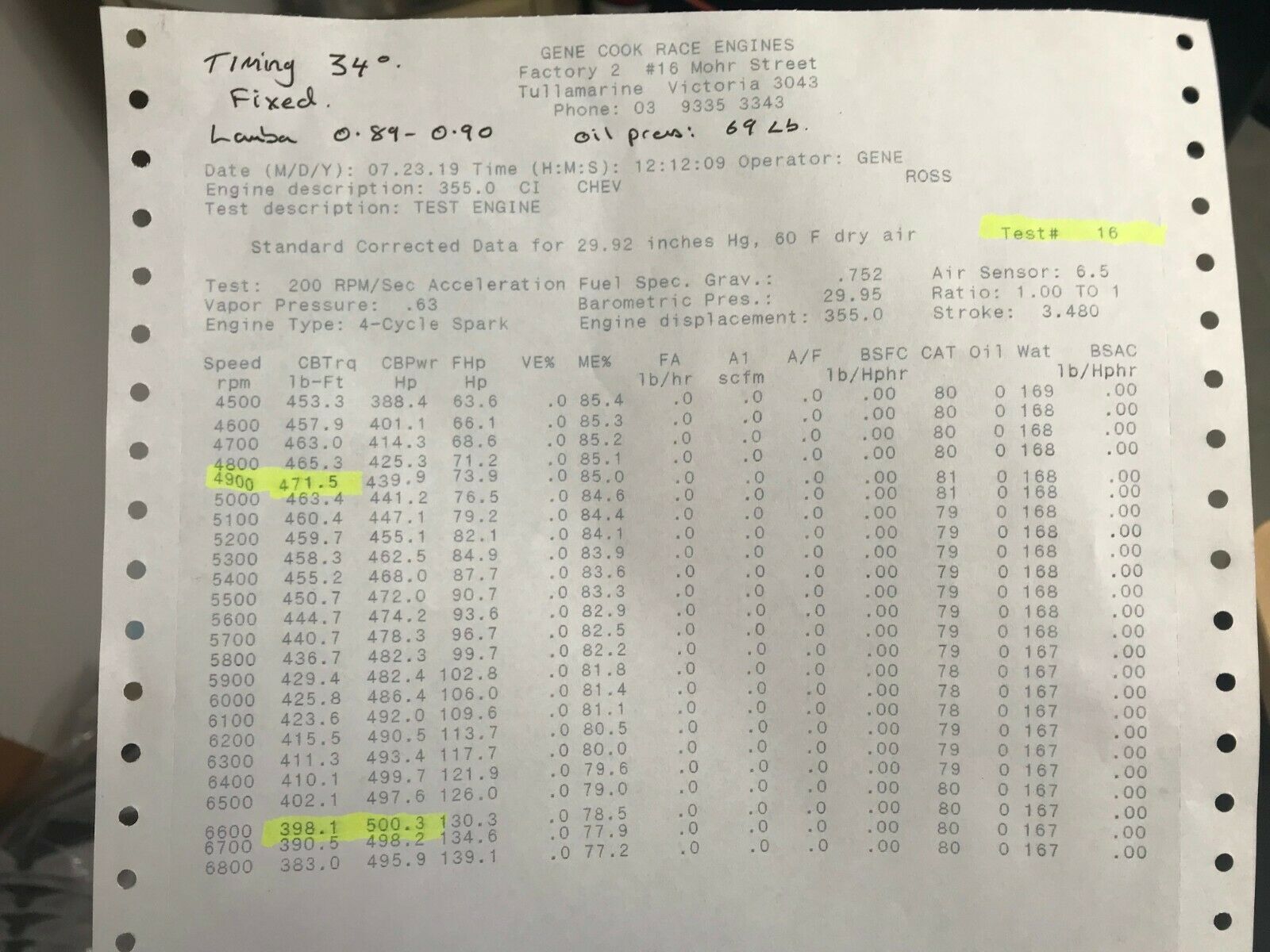

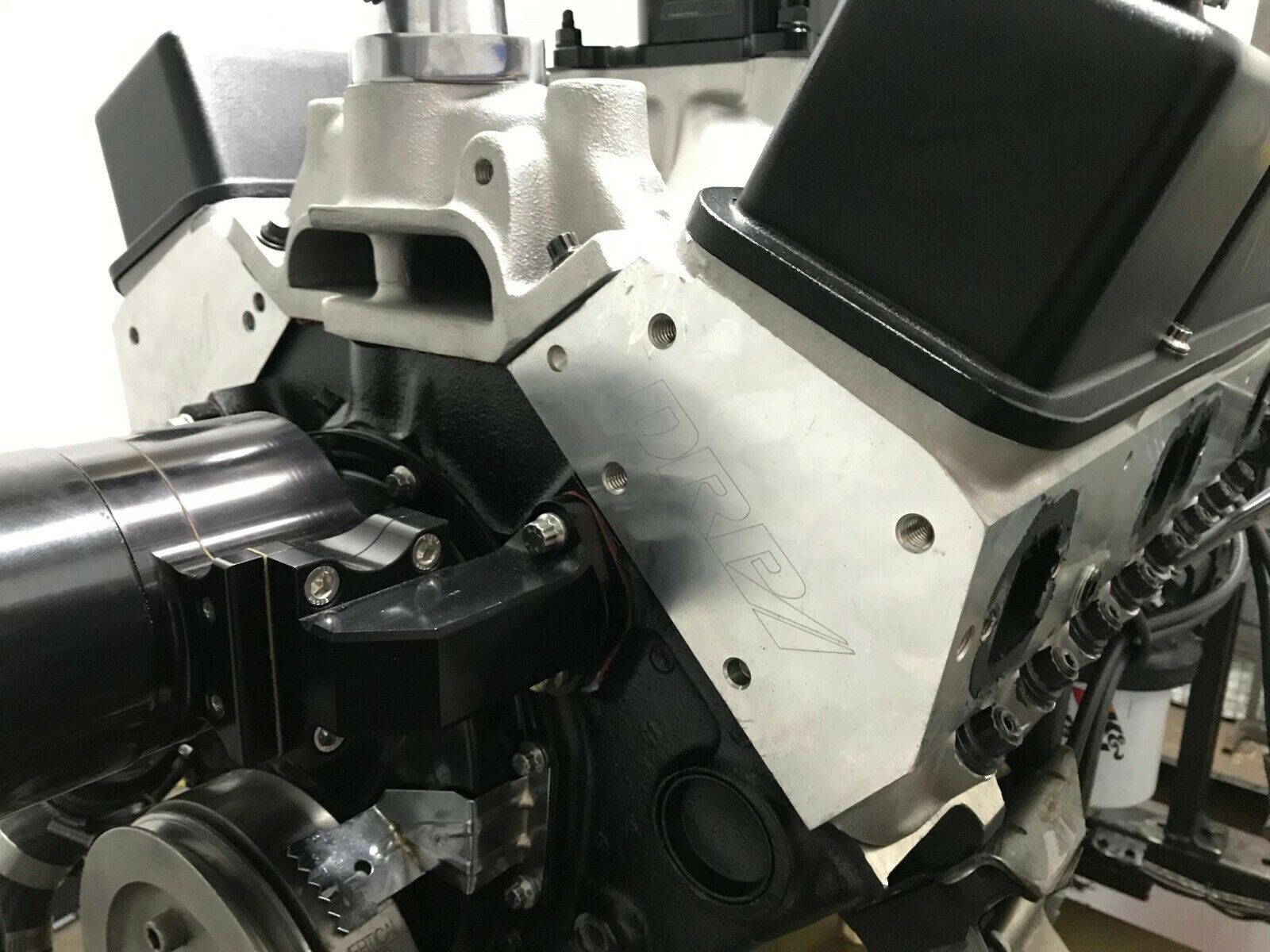

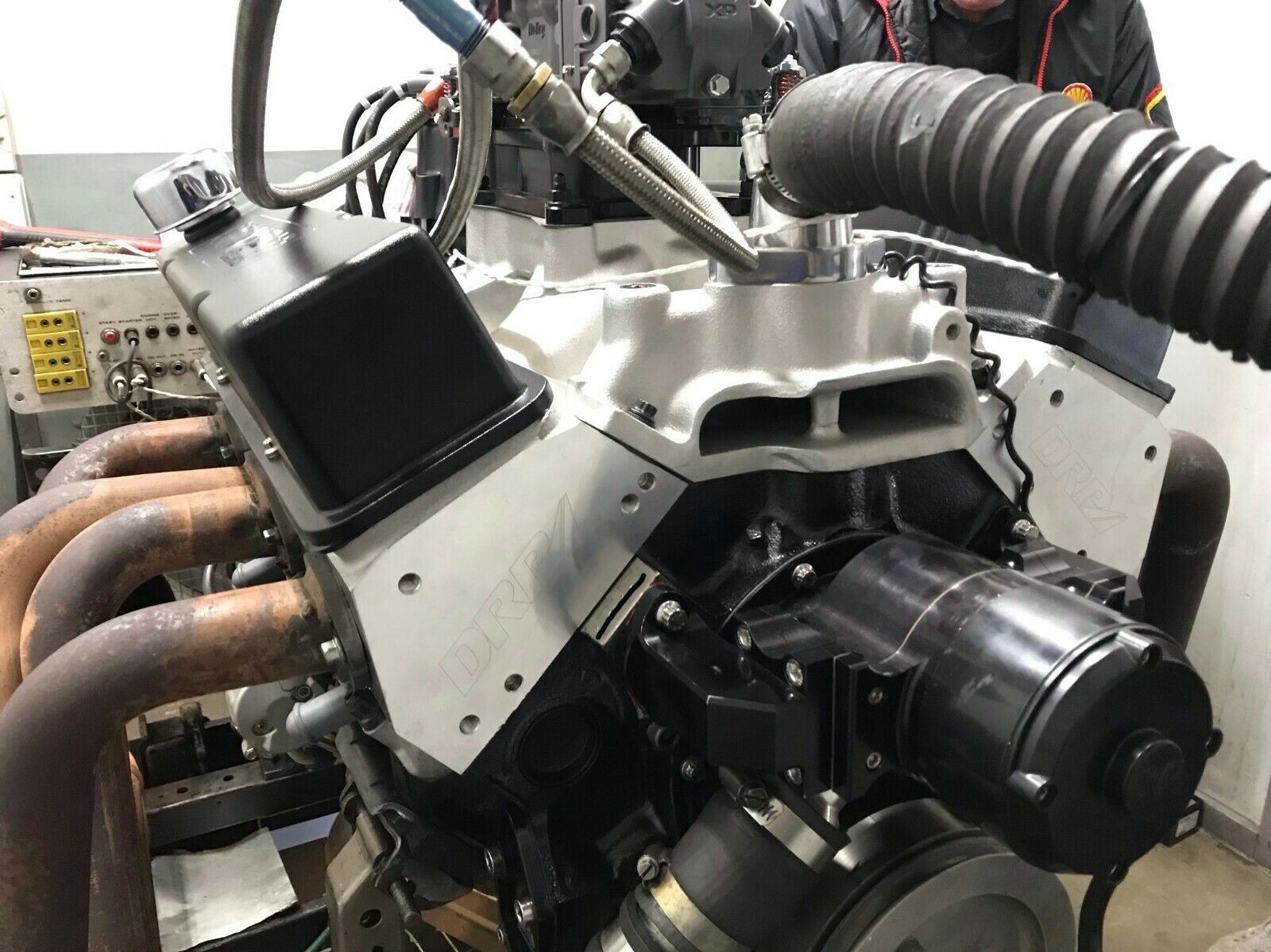

500HP:   We have dyno run these heads (out of the box) on a 350 Chev, 750dp carb, Edelbrock VJ, Long tube headers, our custom solid flat tappet Cam in the 250° range and produced an excellent 500HP and 470ft/lbs of Torque! Watch our post on facebook OR Youtube and see the Dyno Sheet in the photos.

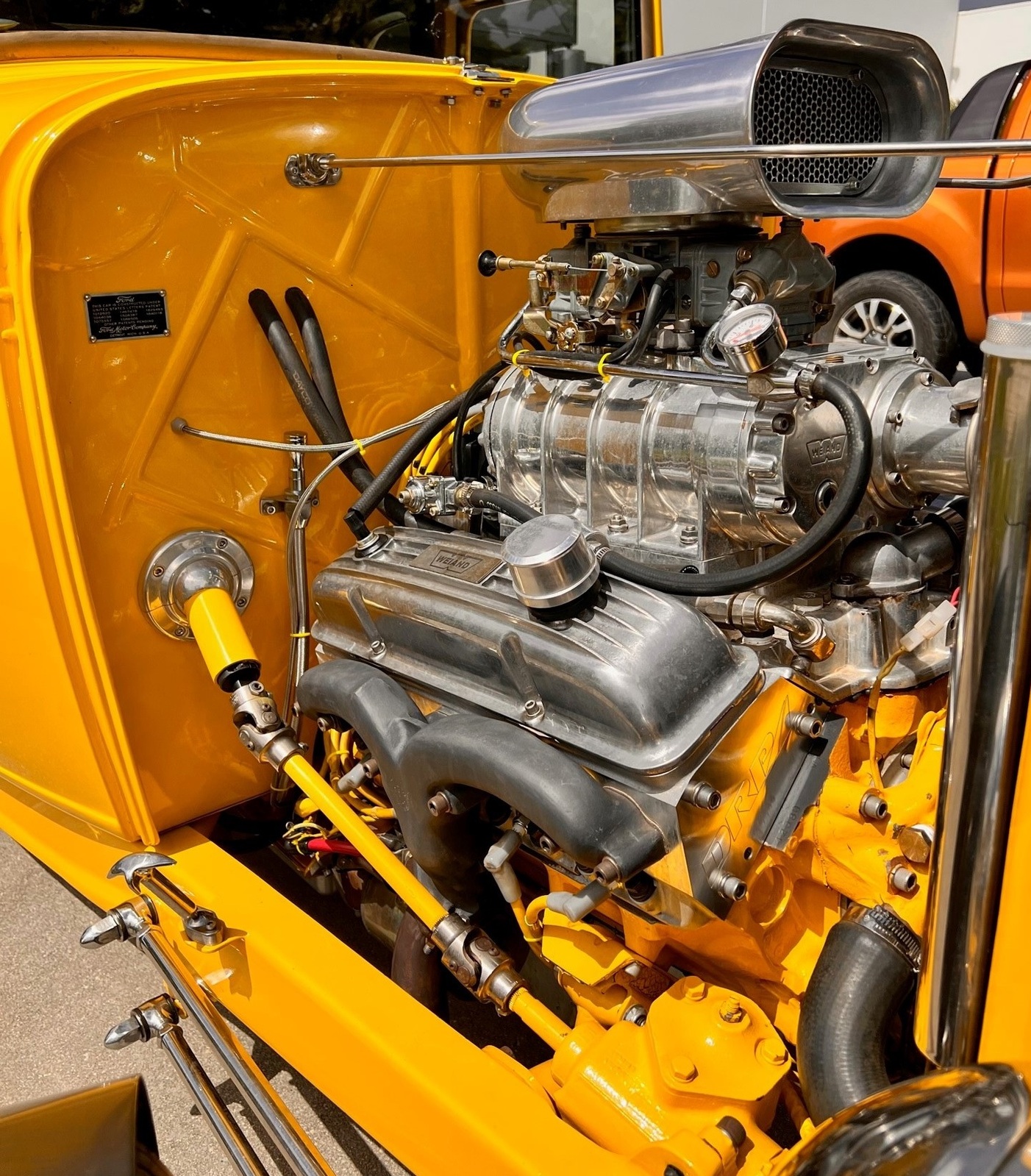

10.6 Second HK 4 Door:    Street Trim, 383 Cubes @ 11.5:1 compression. Victor Jnr manifold and a 750 cfm carb. Camshaft is a Total Performance custom solid roller.

*Output will be determined by your combination and quality of the engine build.        We can assemble using Ferrea Valves and Comp Cams Hardware.

Exceptional Quality for a Wow factor of a price!

*See the photo of the internal cast quality. We cut a cylinder head in half to verify the thickness and quality. These castings are exceptional quality.

These Cylinder heads flow and work like you wont believe. Best Bang for your Buck!

Dont waste your time or money on rebuilding old Cast Iron units - upgrade now. Forget the headaches, poor valve seats and crack testing woes.

We do offer Complete assemblies, valves, springs, retainers to suit your application, see our other listings for various assemblies to suit your camshaft. We have 4 Stages - 1 through to 4. We use Stainless Steel Valves and Comp Cams hardware.








Specifications

SKU DRP-SBC200-A-SR-FV
Brand DRP
Unit Of Measure ea
Warranty Manufacturers Warranty
