Description

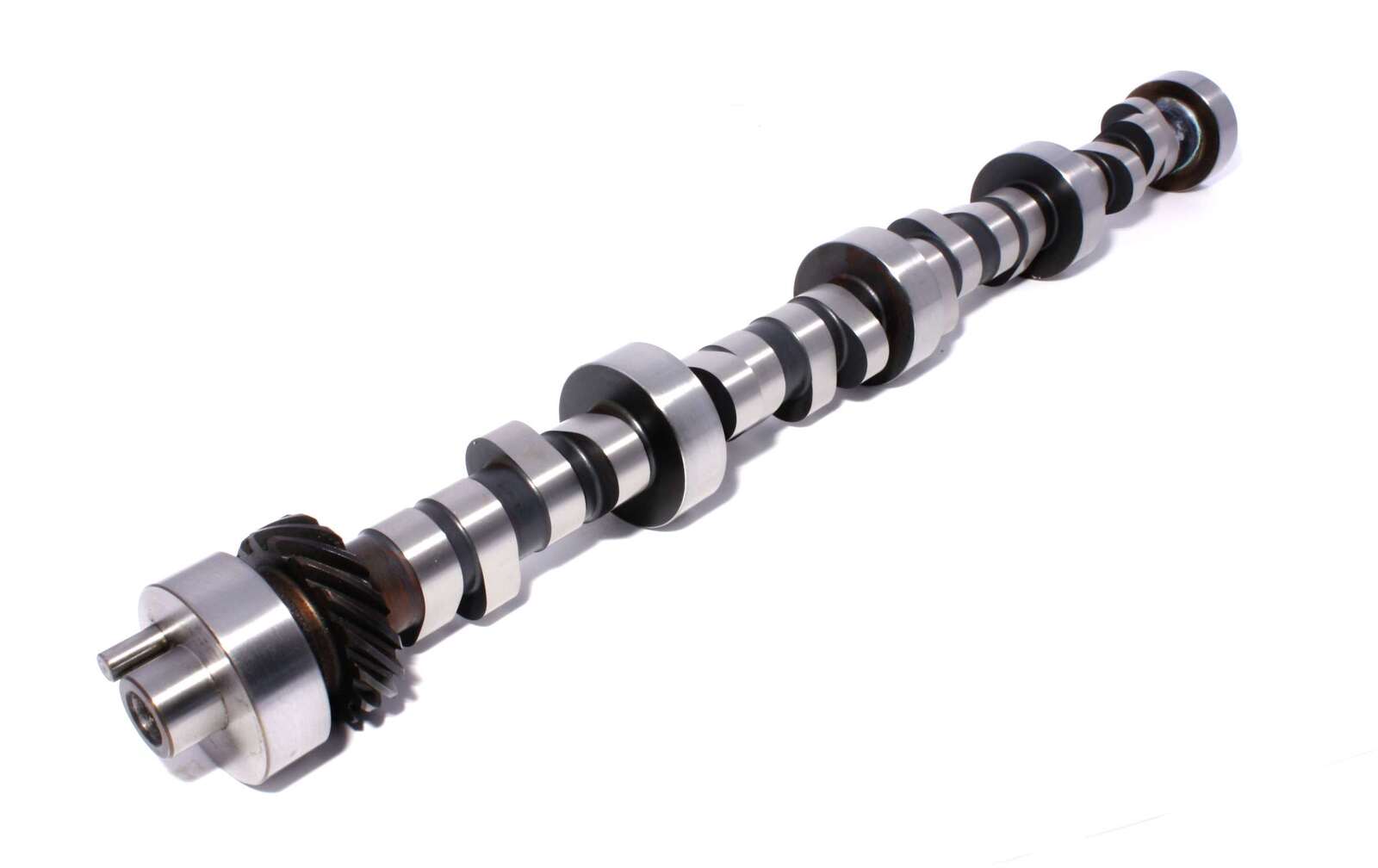

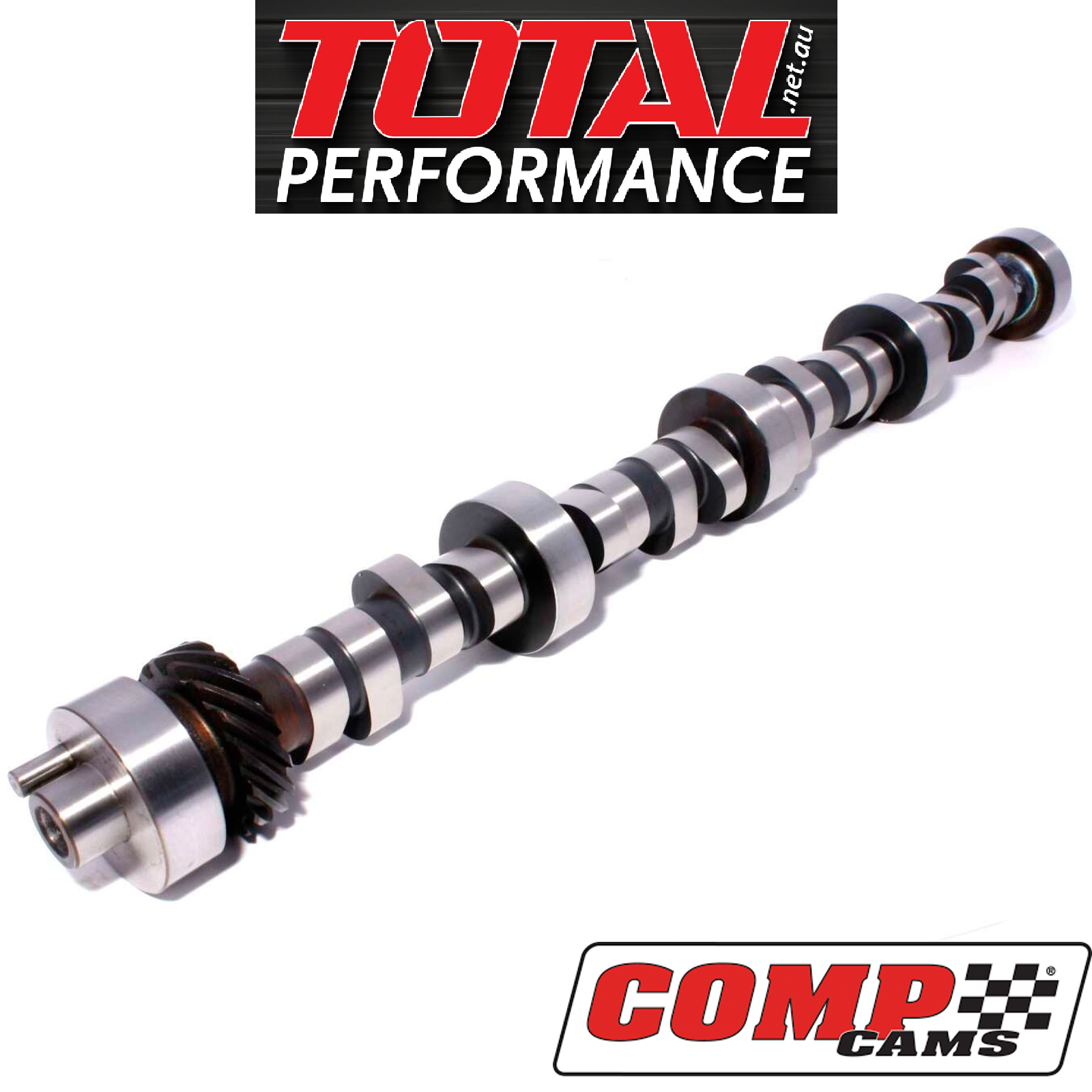

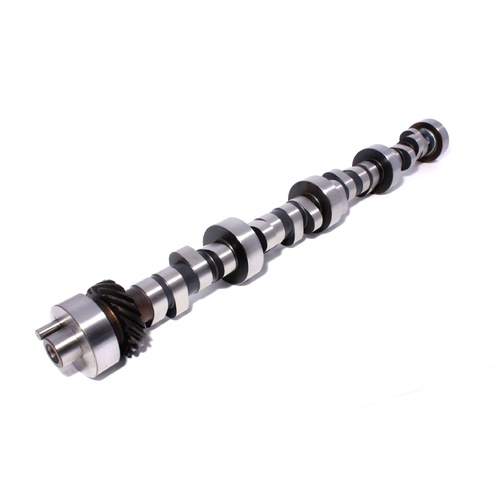

32-651-8 Comp Cams, Ford Cleveland, Hydraulic Roller Camshaft, High Performance,
Street/strip only. 4 speed or 3000+ stall and 4.10 or lower gear. Higher compression, aftermarket intake and headers.
HYDRAULIC ROLLER: Street/Strip only. 4 speed or 3000 stall and 4.10 or lower gear. Higher compression, aftermarket intake and headers.
A Total Performance Customer has made easy Torque of 500 Lbs/Ft at 4000rpm and peak Torque of 519 Lbs/Ft @ 4600 RPM. 400HP Power started rolling in a 4200 RPM and Peak Power was 543HP @ 6200 RPM. Dyno run went to 6500RPM and still held 540HP.
Combo: 393, Alloy heads, DRP Dual Plane intake, 11.3:1 Compression.
Engine Family:Ford 351C, 351M-400M 8 Cylinder (1970-1983)
RPM Operating Range:3,000-6,500
Grind Number:304HR
Cam Type:Hydraulic Roller
Lifter Style:Hydraulic Roller
Camshaft Series:Magnum
Advertised Intake Duration:304
Advertised Exhaust Duration:304
Intake Duration at .050 Inch Lift:244
Exhaust Duration at .050 Inch Lift:244
Intake Valve Lift:0.612
Exhaust Valve Lift:0.612
Lobe Lift Intake:0.361
Lobe Lift Exhaust:0.361
Lobe Separation:110
Intake Centerline:106
Exhaust Close ATDC:38
Intake Open BTDC:46
Exhaust Open BBDC:86
Intake Close ABDC:78
Specifications
SKU | 32-651-8 |
Barcode # | 036584780281 |
Brand | COMP CAMS |
intake valve lift | 0.612 |
Exhaust Valve Lift | 0.612 |
Lifter Type | Hydraulic Roller |
Advertised Exhaust Duration | 304 |
Advertised Intake Duration | 304 |
Cam Type | Hydraulic Roller |
Exhaust Duration At .050 Inch Lift | 244 |
Intake Duration At .050 Inch Lift | 244 |
Lobe Separation | 110 |
Camshaft Series | Magnum |
Grind Number | 304HR |
Basic Operating Rpm Range | 3,000-6500 |
Lifters Included | No |
Valve Springs Required | Yes |
Camshaft Gear Attachment | 1-Bolt |
Camshaft Material | Austempered Ductile Iron |
