FORD 351C 408 Stroker Cast Crankshaft 4.000" Stroke External Balance, Cleveland, Windsor, 9000 Series 9351C46

Scat Crankshaft, Ford Cleveland / 351 Windsor (with Clev mains)

Cleveland Windsor Stroker Cast Crankshaft - 9000 SERIES

Fits: Ford 351C and 351 Windsor blocks with Cleveland Main journals.

Scat Short Part#: 9351C46

Stroke:   4.000 Stroke,   (Typical 408 Cube Stroker)

Mains Journal:  2.750   (351C Main)

Big End Journal:  2.100 Rod Journal,

Recommended Rods: 6.000" or Longer Rod,

Balance: 28oz External Balance,

Approximate Weight 52 LBS,

Rear Main Seal: Fits Both 1 or 2 Piece Rear Seal Blocks

NOTE; Designed for use with aftermarket blocks with 351 Cleveland main journals. If using in a 351C, the crank has 351W snout and requires 0.375" spacer behind timing gear or special timing chain set. Uses 1.375 in. Pilot Bearing

Scat Series 9000 Cast Pro Comp Stroker Lightweight Crankshafts

Do you want to increase cubic inches? Scat Series 9000 cast Pro Comp stroker lightweight crankshafts are the perfect solution for your mild or moderate street or race engine. These lightweight crankshafts are patterned after Scat's custom billets and are built from their exclusive space-age 9000 material. Features like Aero-wing counterweights, straight shot oil holes, and lightening holes in all rod throws (except for the 3.480 stroke) offer reduced windage and the ability to increase your horsepower. Scat cranks are precision-ground and micro-polished for a beautiful finish and a perfect fit. Stroke your engine with lightweight, state-of-the-art components from skilled craftsmen--Scat series 9000 cast Pro Comp crankshafts.

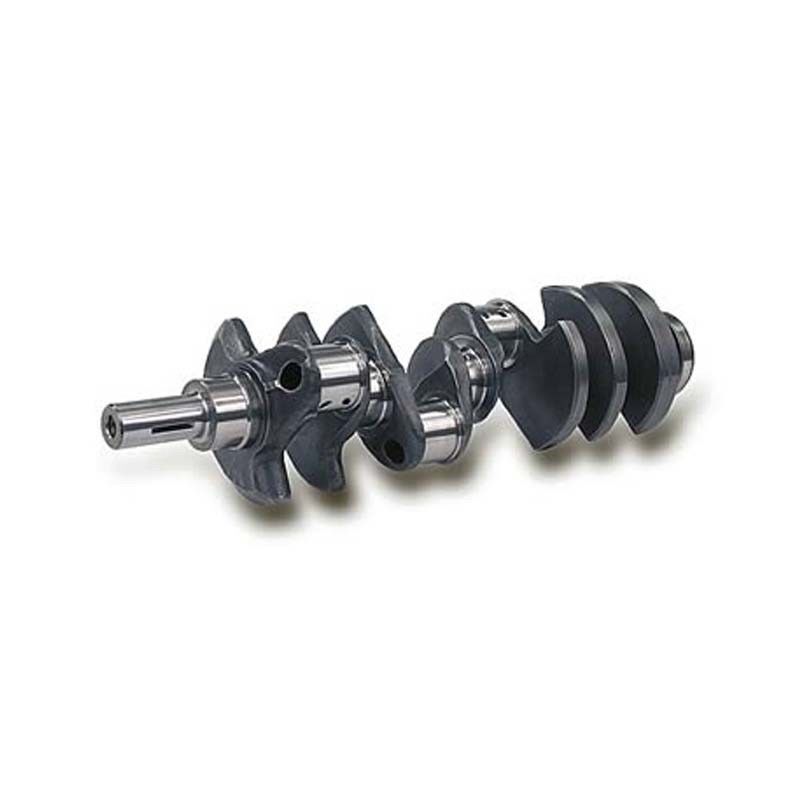

*NOTE:   IMAGE MAY DIFFER FROM ACTUAL PRODUCT.
