FORD 351 / 408 STROKER CRANKSHAFT 4.000" FORGED 4340 - 351C mains Cleveland, Windsor, Stroker Crank

DRP - DETROIT RACING PRODUCTS - FORGED - CRANKSHAFTS

Ford Cleveland 408 Stroker Forged Crankshaft

Premium Performance Forged Crankshafts -

408 Cleveland & Windsor Stroker Crankshaft - Forged 4340

Note: This crankshaft suits the 351C Mains blocks. Will fit the Windsor blocks that have the aftermarket 351C main bearings (2.750") (Dart / World etc)

Features Forged 4340 steel, Bullnose counterweights, straight shot oil holes,

These Crankshafts are a High Performance 4340 Forging. All journals are precision CNC machined to exact tolerances and indexing. The tolerances are held to within +/- 0.0001"! All rod journals are drilled and counterweights profiled for piston clearance. Counterweights have a bullnose leading edge and are extremely nicely finished. You wont find any better for the price of the DRP items

Material:  Forged 4340 -Premium forging & Heat treated.

Engine:   Cleveland & Windsor - with 2.750" mains.

Stroke:    4.000"  (408 Stroker Cubes)

Mains:     2.750"  (351C factory main bearing size)

Big Ends:  Chevy LJ  2.100"

Rear Seal:  1 Piece Factory type.

Rod Length:  6.000" Recommended

Bob Weight:  1920g

Key ways: 3 x Chevy 3/16" x 3/4" (Woodruff)

Timing Chain:  Needs 351C SVO bottom gear.

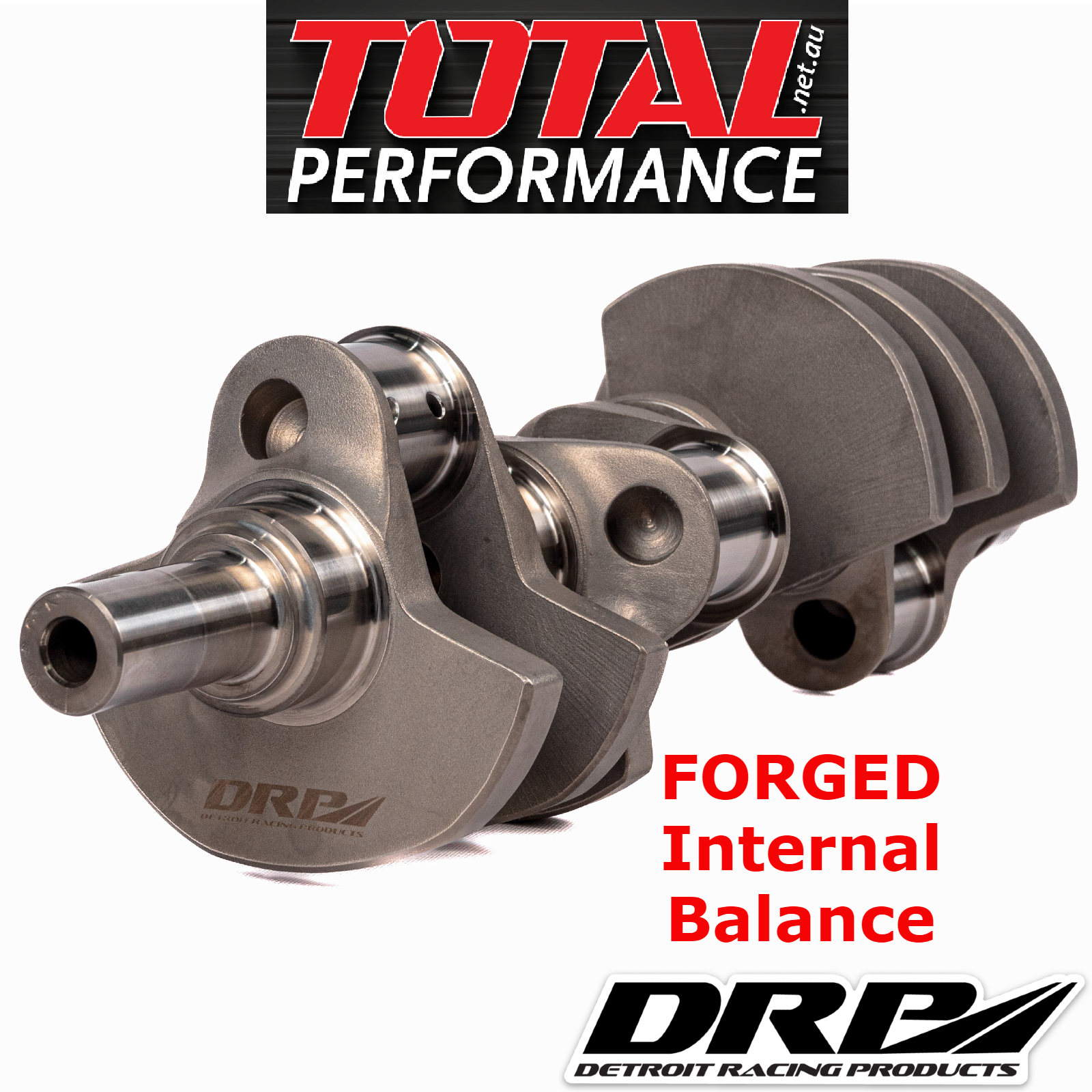

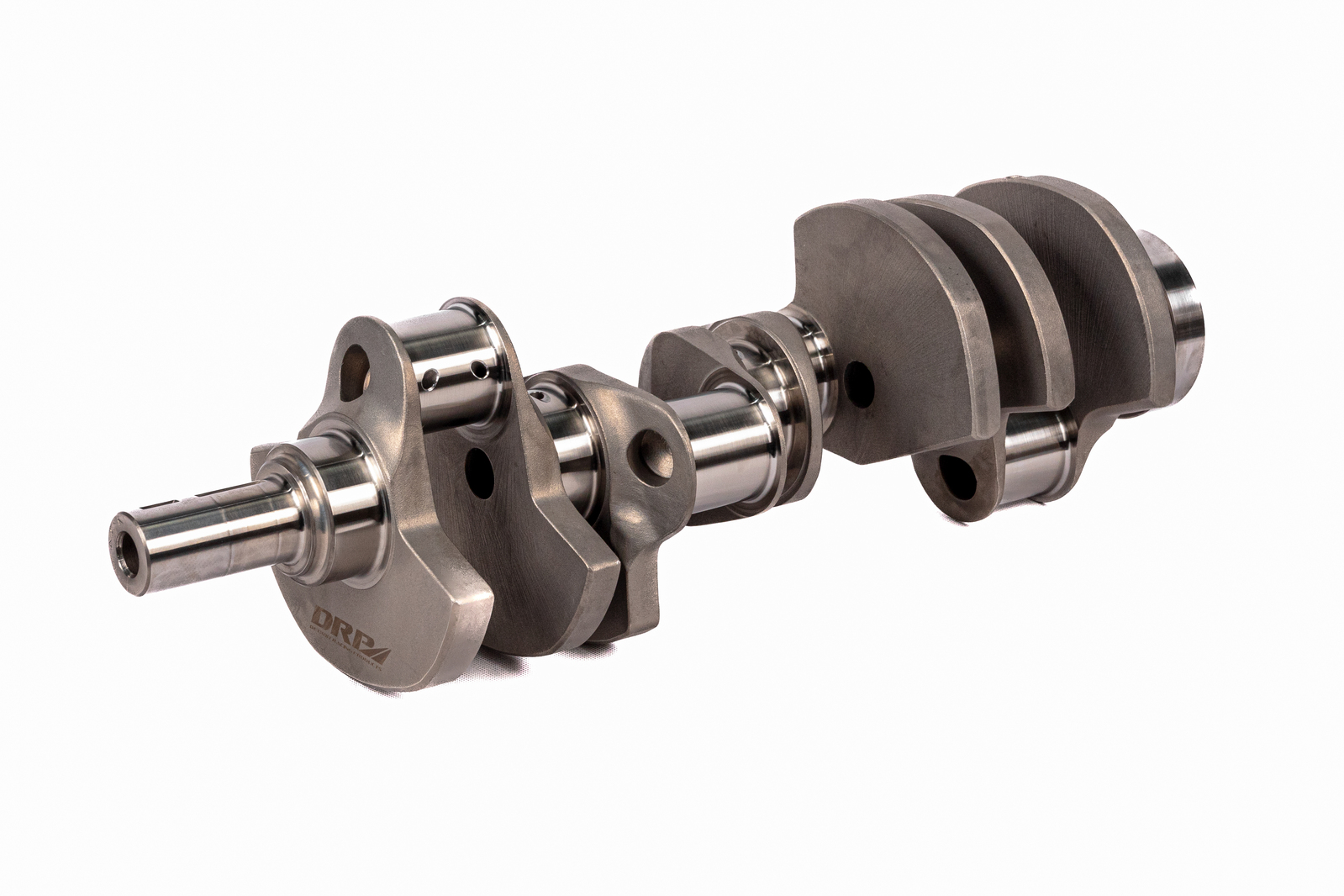

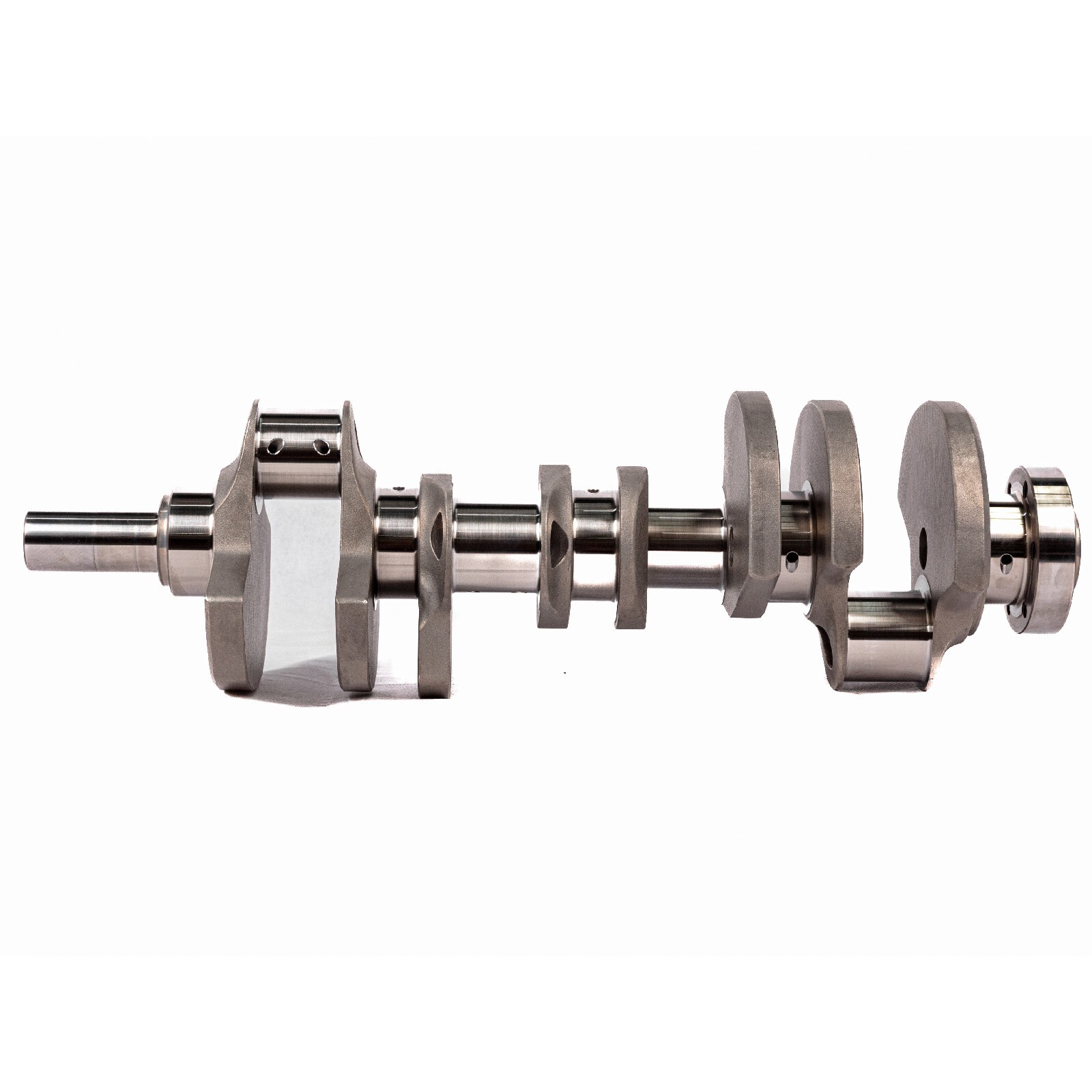

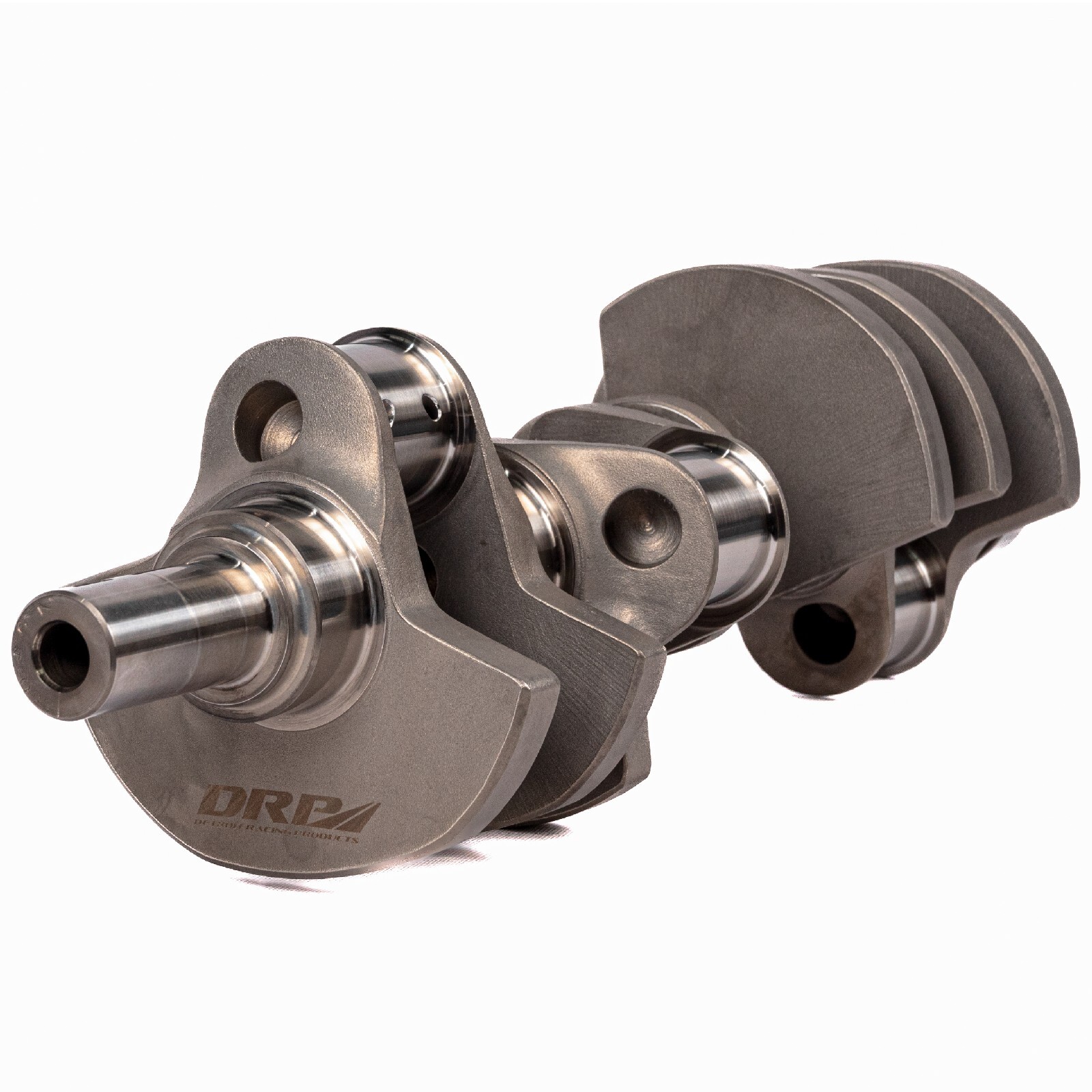

NOTE: PICTURE MAY BE GENERIC AND NOT OF ACTUAL ITEM.
