SKU: CB-634HXN-8

FORD WINDSOR Connecting Rod Big End Bearings, + .001" EXTRA Clearance H-Series, 289 302W SBF Conrod con rod

EXTRA Clearance, RACE, H-Series. +.001"

$175.91

or 4 payments of $43.98 with Info

SOLD OUT

Description

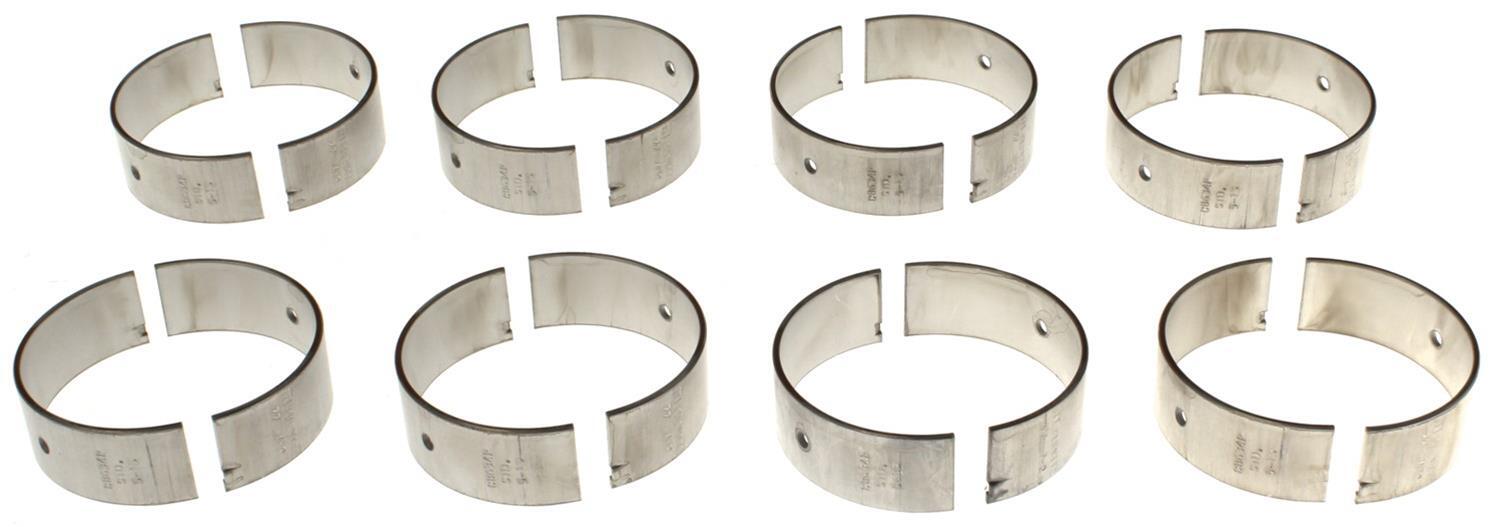

Mahle Clevite 77 Ford Windsor Rod Bearings - 289 302 347 Windsor Big End Rod Conrod Bearings.

CB634HXN -  H Series - RACE & Narrowed + Extra Clearance.

Full Set of 8 Conrod Bearings

Suits:  302 Windsors & Stroker 347 Windsors (using the Windsor Rod journals)

Series:  Clevite 77 H Series Rod Bearings

Bearing Usage:  Race Series  (H)

Engine Crankshaft Undersize (in.):  Stock

Engine Crankshaft Undersize (mm):   Stock

Bearing Material:   Tri-Metal, TM-77

Dowel Pin Hole:   No

Narrow Bearing:   YES

Extra Oil Clearance: Yes - approx +.001"

Quantity:  Sold as a set of 8.

Clevite 77 H-Series Windsor Rod Bearings

Clevite H-Series 289 & 302W Windsor rod bearings, Clevite H-Series Big End bearings were developed primarily for NASCAR racing, but are well suited to other types of competition engines as well. They're especially good for Ford Windsor SBF engines that run at medium-to-high revs. They have steel backings with carefully selected overlays and a high crush factor, plus a medium level of eccentricity. H-Series bearings have enlarged chamfers at the sides for greater crank-fillet clearance and are made without flash plating for better seating. Perfect usage for Stroker 347 Windsors.

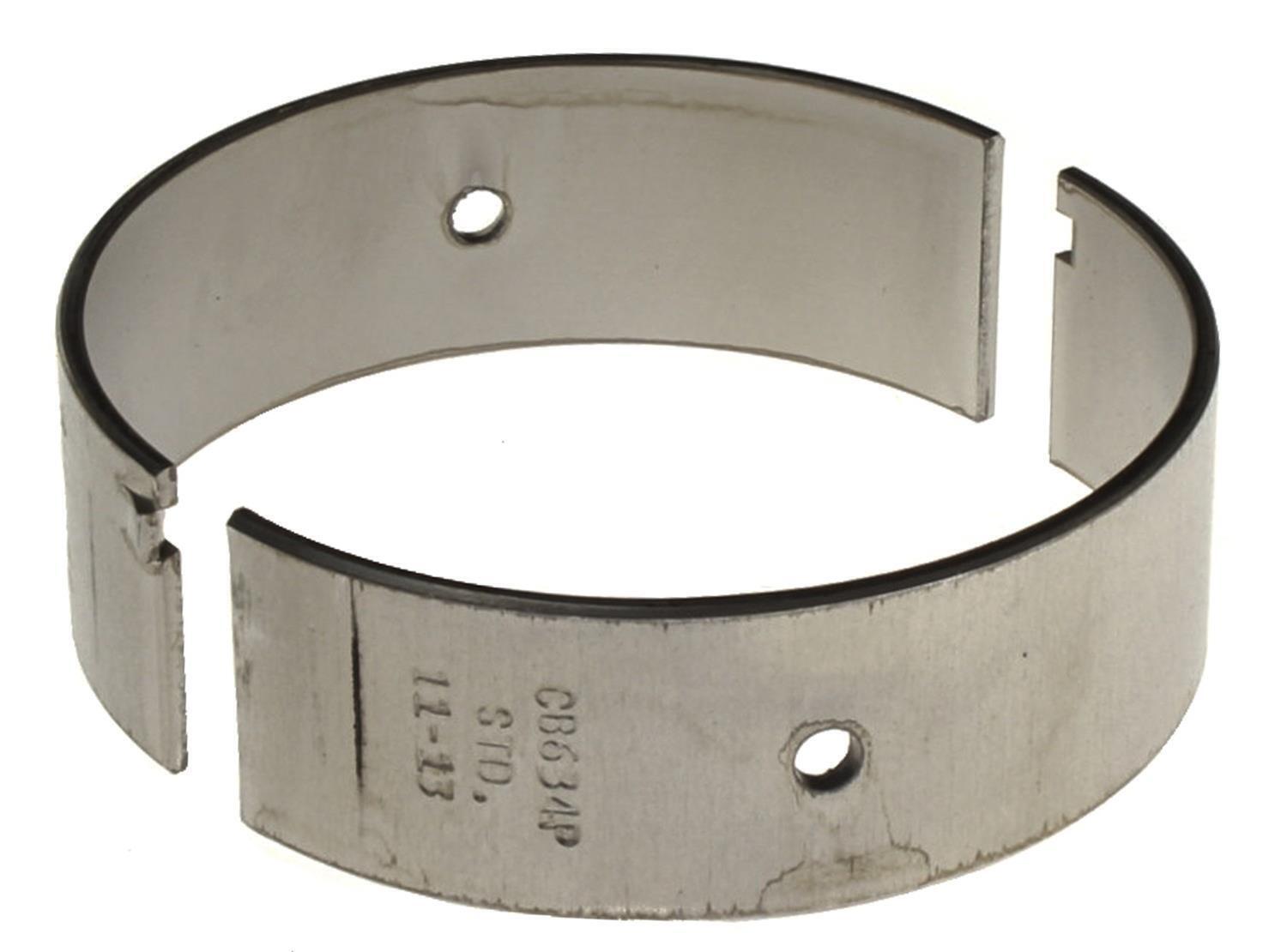

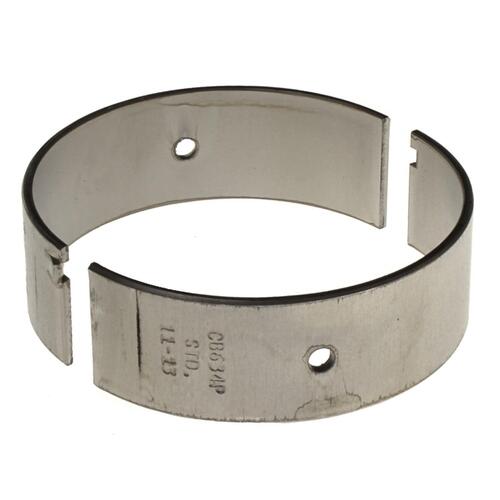

BE ADVISED: IMAGE MAY DIFFER FROM ACTUAL PRODUCT.

Specifications

SKU CB-634HXN-8
Barcode # 027067537072
Brand MAHLE CLEVITE
