Short Travel Link Tie Bar Hydraulic Roller Lifters LS1, LS2 LS3, 5.7L, 6.0L, 6.2L axle oiling

1800351351

** FREE SHIPPING ON ORDERS OVER $200 **

Short Travel -Tie Bar Hydraulic Roller lifters GM LS1, LS2 LS3, 5.7L, 6.0L, 6.2L, L98,

Description

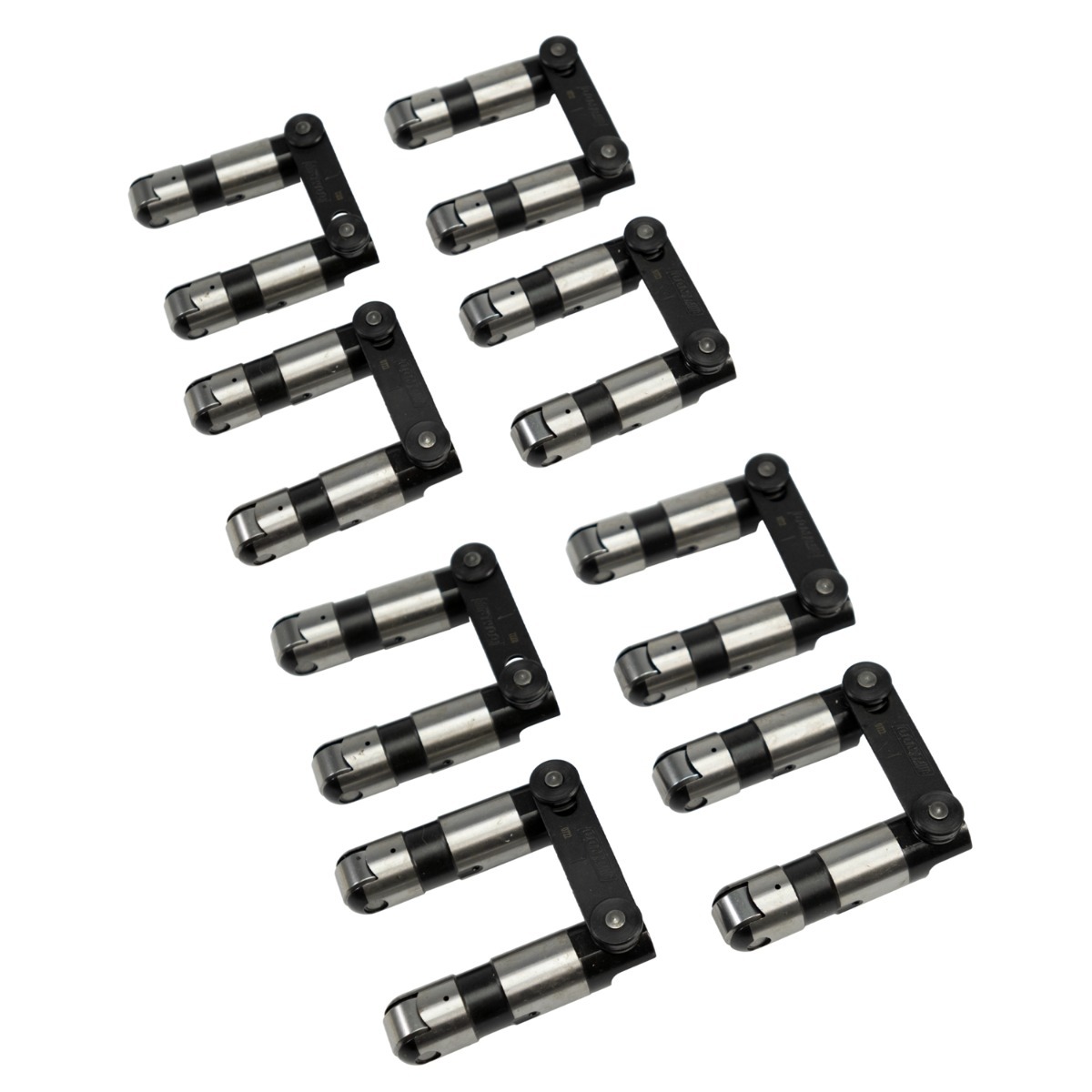

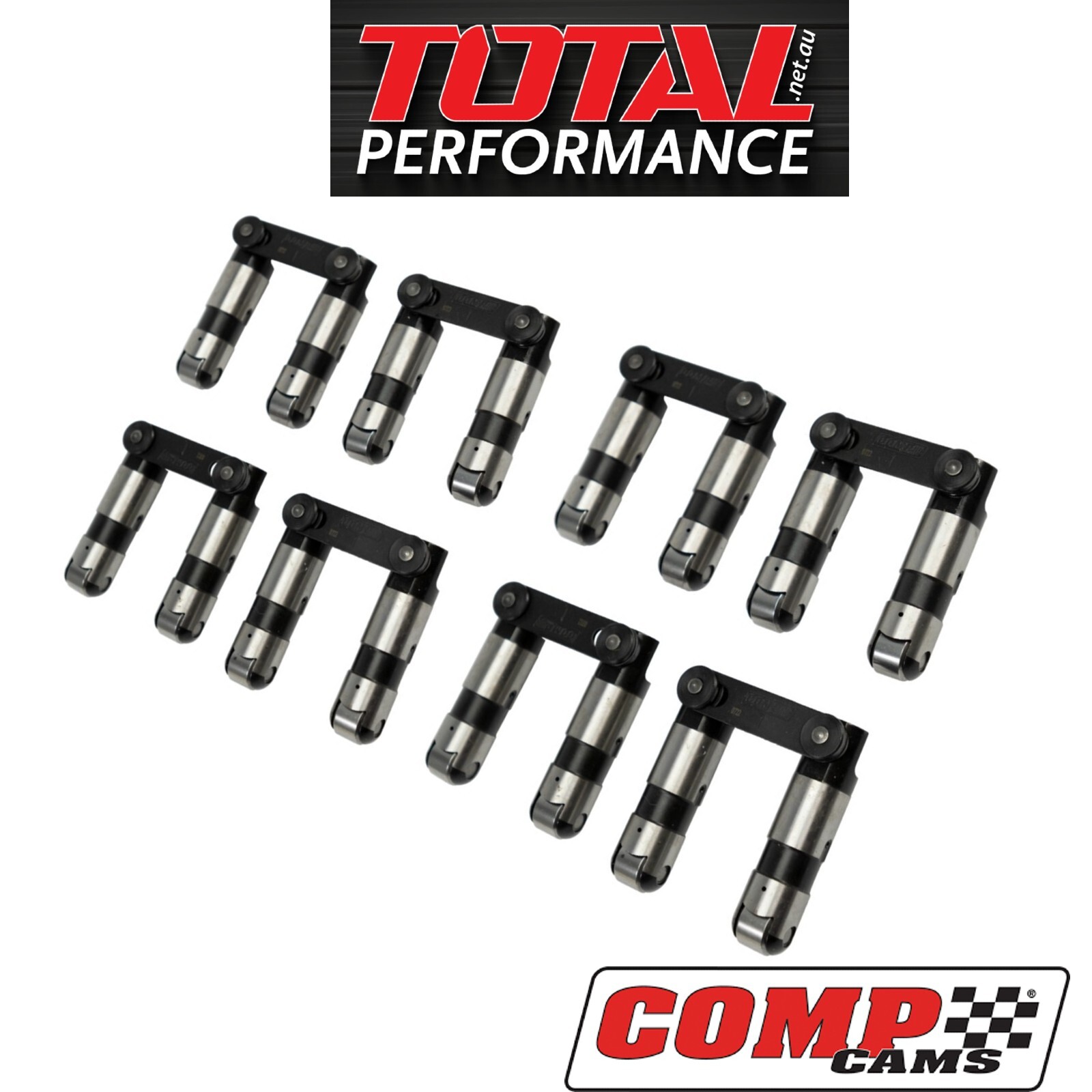

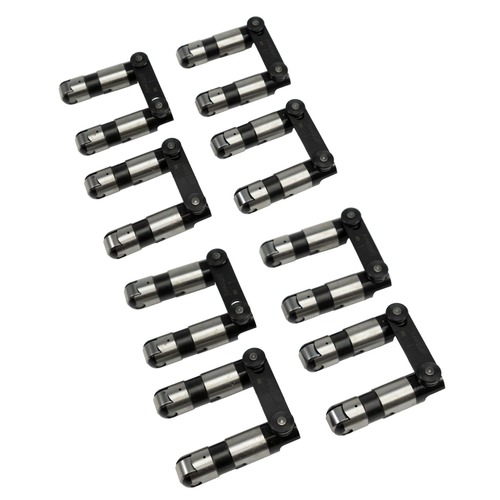

Johnson Hydraulic Roller Lifters, Tie Bar, Fits LS1 LS2 LS3 Engines.

FEATURES: Short Travel - High RPM* needs fine pushrod adjustments

Accept No Imitation ~ Insist On Johnson Lifters
Best street / race hydraulic roller lifter in the WORLD!!!
Cold forged steel body heat treated for exceptional wear resistance.
Precision ground needle roller bearing with high chromium steel axle for long life and minimal friction.
Cold forged extra long piston, precision ground and fitted for controlled leak down and pump up.
High flow disc style quick reacting check valve for better reaction at higher RPM.
Precision oil metering assuring proper oiling to the rocker arms without sacrificing oil pressure.
Proprietary tie-bar system.
All hydraulic lifters are available with short travel, variable duration lift, and axle oiling features.

SPECIFICATIONS

Johnson Part # ST2116LSR
Engine Family: LS1 LS2 LS3 / 5.7L 6.0L 6.2L
Hydraulic-Roller - TIE BAR
Axel Oiling: NO
Will Accommodate Higher Open Spring Pressures of 500+ lb.
.058" Total Plunger Travel (Short Travel)
.035" Recommended Pre-Load +-.005"
Set of 16 LifterS
NOTES: *Non-DOD Applications Only

Specifications

SKU	JH-ST2116LSR
Brand	JOHNSON
Lifter Diameter	0.842
Lifter Type	Retro-Fit Link Bar Hydraulic Roller
Seat Height	2.66
Plunger Travel	Short
Link Bar Included	Yes
