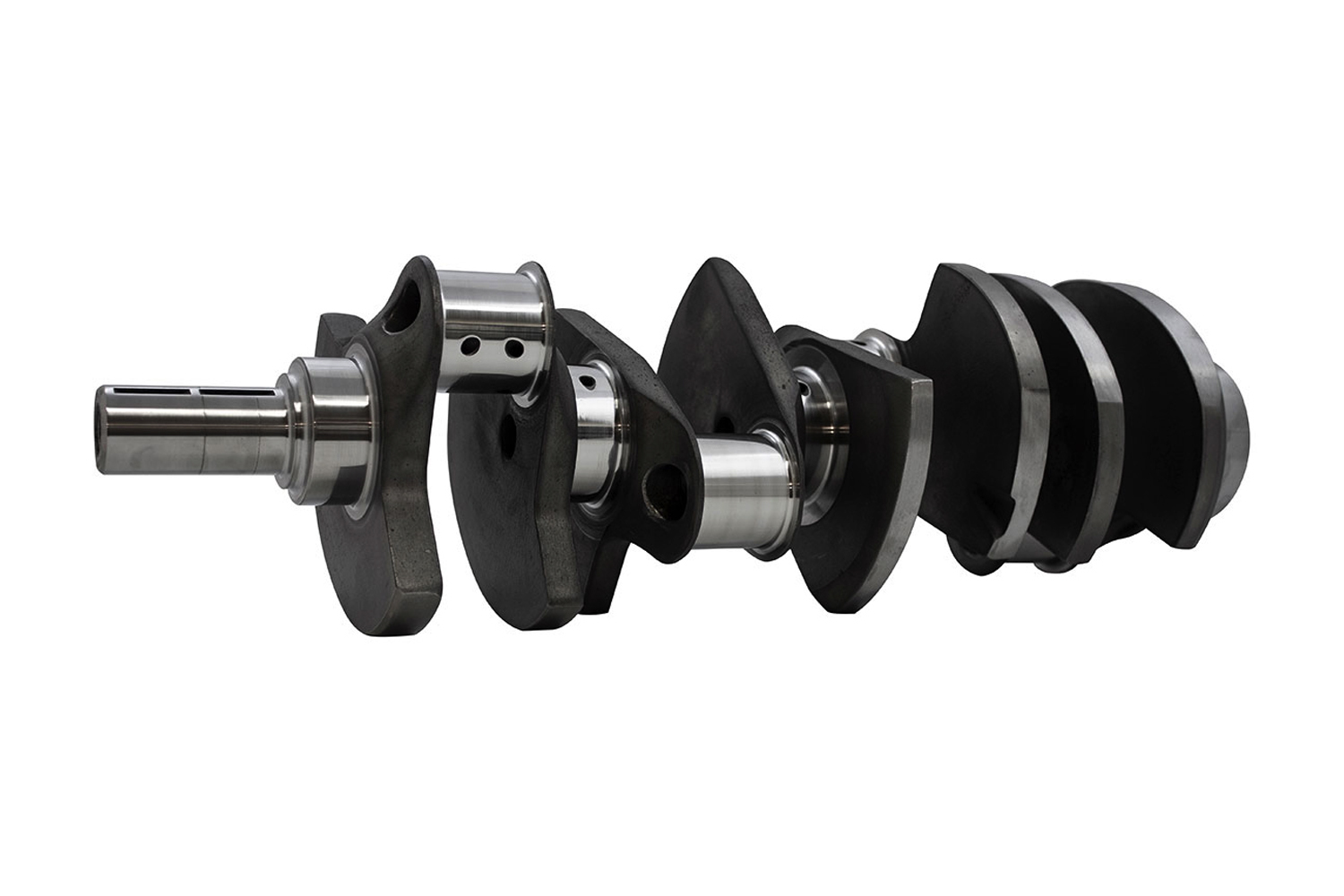

LS2 LS3 3.622" STROKER CRANKSHAFT FORGED 4340 - 6.125" ROD - NO Reluctor Wheel

SCAT LS FORGED STANDARD STROKE CRANKSHAFT - 3.622" STROKE - NO RELUCTOR FITTED

LS1 LS2 LS3 STANDARD STROKE CRANKSHAFT

Scat Forged Standard Weight Crankshafts

Scat forged standard weight crankshafts are designed for street or race engines with substantially increased horsepower. These crankshafts are precision-ground, heat-treated, shot-peened, inspected, and micro-polished for superior tolerance control. Scat crankshafts are also nitride-hardened for superior wear resistance, have straight-shot and chamfered oil holes, and feature lightening holes in all rod throws. They also have a large radius on all journals for improved strength and wear resistance. Scat forged standard weight crankshafts are available in dozens of sizes and configurations for fitment on vehicles spanning seven decades.

Material:  Forged 4340 - Premium Forging & Heat treated.

Fits Engine:   LS1 LS2 LS3

Stroke:    3.622"  (standard LS)

Mains:     2.559"

Big Ends:  Chevy LJ  2.100"

Requires Narrow Bearings: YES

Rear Seal:  1 Piece Factory type.

Rod Length:  6.125" Recommended

Bob Weight:

Reluctor Wheel:  NOT FITTED. *please ask and we can fit a 24T or 58T at an extra charge.

Balancer Bolt Thread: M16 x 2.0

Balance:  Internal
