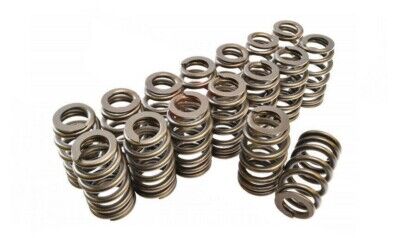

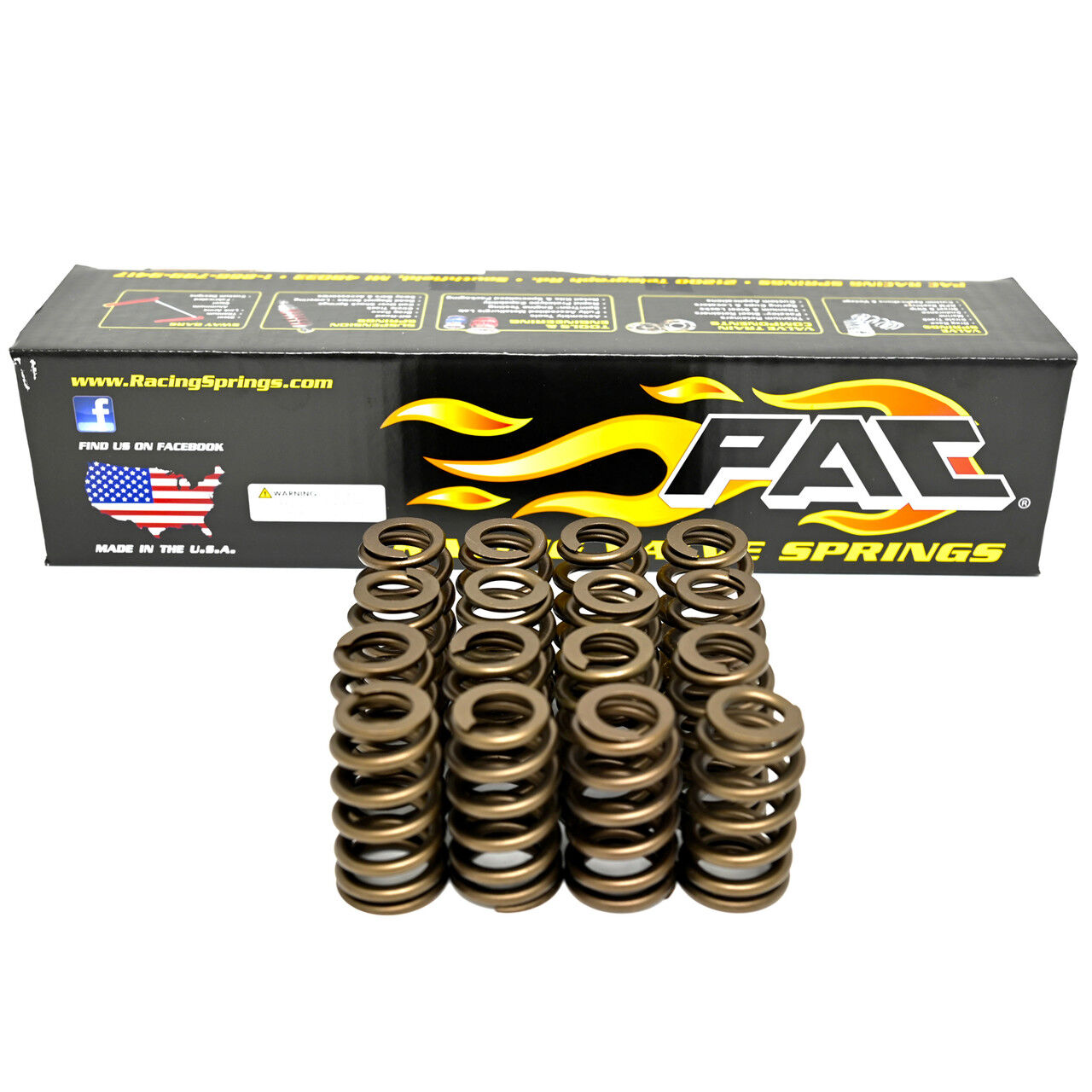

LS1 LS2 LS3 LS Race Street Beehive Valve Springs; 16 Springs

Before ordering, check the cam card, installed height, valve lift, rocker ratio, coil bind and retainer-to-seal clearance.

Do not assume .625" max lift means every .625" cam is safe. Measure it properly.

Our sales team of actual engine builders are on hand to help.

PAC 1219-16 suits GM LS beehive valve spring applications where the camshaft, cylinder head setup and clearances match the PAC 1219 specs. PAC lists the 1219 as fitting stock LS retainers and seats.

PAC lists the 1219 as a drop-in design for stock LS retainers and seats. You still need to check installed height, valve lift, coil bind and retainer-to-seal clearance before fitting.

PAC lists the 1219 with .625" max lift. This still needs to be checked against your actual valve lift, rocker ratio and clearance in the engine.

No. PAC 1219-16 is the spring set only. Retainers, locks, seats and seals are not included unless listed separately.

PAC lists R310, R311, R362 and R363 300 Series retainers, R510 and R511 500 Series retainers, and S111 spring seat for PAC-1219.

PAC does not list the 1219 as a Gen 3 Hemi spring in the catalogue. Treat it as an LS spring unless the full Hemi setup has been confirmed separately.
