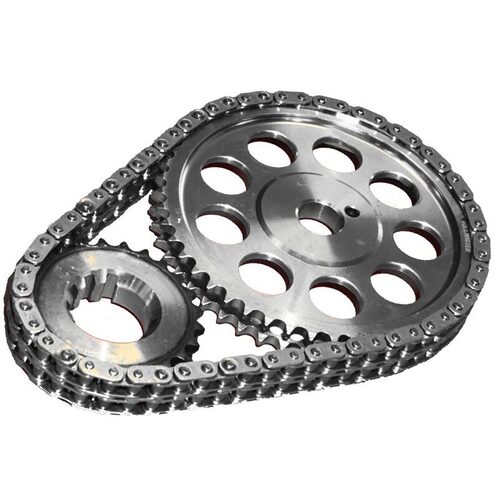

Timing Chain Gear Set Kit fits HOLDEN V8 253 304 308 5.0L Adjustable Double Row Roller Chain (Red, Blue, Black, EFI engines)

Rollmaster CS10050 Holden 308 Timing Chain Kit. IWIS Doulbe roller chain & billet gears. Gold Series - Nitrided Gears

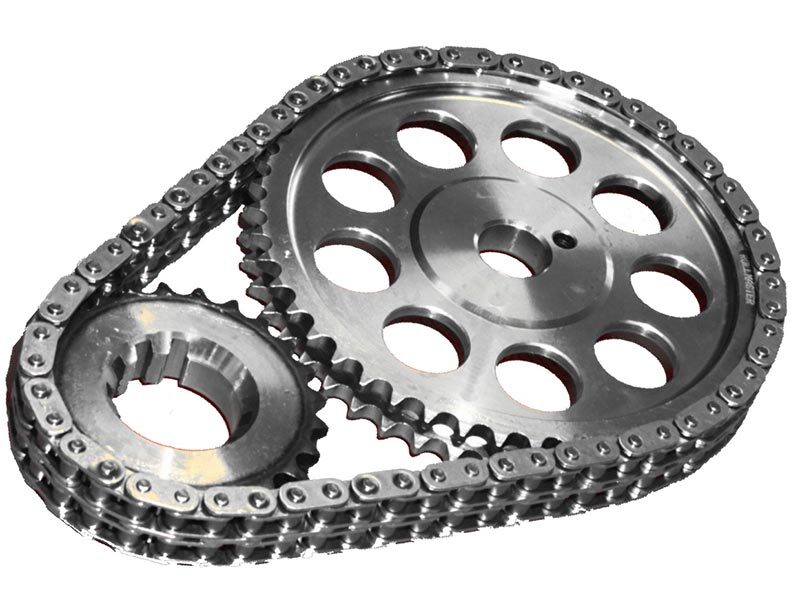

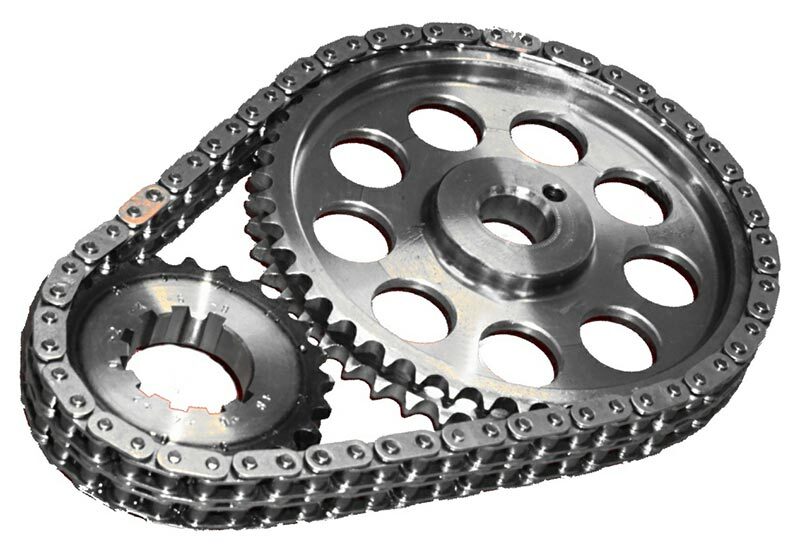

Rollmaster CS10050 is a premium Gold Series, heavy-duty double roller timing chain set. It is designed for race level 253, 304, 308 & 5.0L EFI Holden V8 built engines. Suitable for race solidflat tappet, hydraulic roller & solid roller camshafts. This Gold Series timing chain kit has billet steel gears, a German-made IWIS double roller chain and a hardened 9-keyway adjustable crank sprocket.In addition, has nitrided gears.

ROLLMASTER TIMING CHAIN SET GOLD SERIES

Rollmaster Part# CS10050 Timing Chain Kit Specifications:

• Timing Chain Gear Set fits: HOLDEN V8 253-308, 5.0L EFI & 355, 383 Strokers.
• Rollmaster Series: Gold Series
• Type of Chain: Double Row IWIS Chain - pre-stretched
• Thrust Type: Shim
• Number of Keyways: 9 keyway adjustable bottom gear
• Hardened/Nitrided Gears:  Nitrided
• Number of Links   62
• Number of Teeth Cam Sprockets     48
• Number of Teeth Crank Sprockets    24
• IMPORTANT Installation notes: Do not install dot to dot.

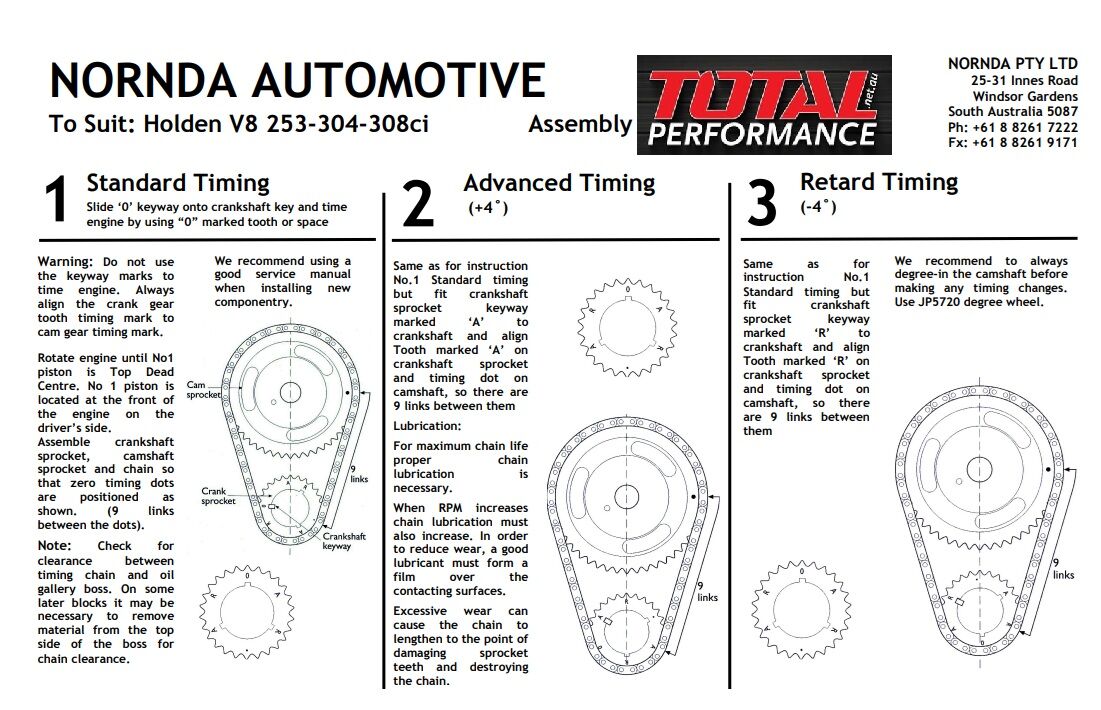

• Rotate engine until No1 piston is Top Dead Centre. No 1 piston is located at the front of the engine on the driver’s side. Assemble crankshaft sprocket, camshaft sprocket and chain so that zero timing dots are positioned as shown. (9 links between the dots) - see image attached.

MADE IN AUSTRALIA
