Double Row Timing Chain Gear Set Kit fits HOLDEN V8 253 304 308 5.0L EFI, Adjustable Roller Chain (Red, Blue, Black, EFI engines)

Rollmaster CS6000 Holden 253, 304, 308, 5.0L, 355 Timing Chain Kit. IWIS Doulbe roller chain & billet gears, Red Series

Rollmaster CS6000 is a great value Holden 308 timing chain set. This Red Series heavy-duty double roller timing chain set. It is designed for Street level 253, 304, 308 & 5.0L EFI Holden V8 built engines. Suitable for flat tappet or hydraulic roller camshafts. This Red Series has billet steel gears, a German-made IWIS double roller chain and a hardened 9-keyway adjustable crank sprocket.

ROLLMASTER TIMING CHAIN SET RED SERIES

Rollmaster Part# CS6000 Holden 308 Timing Chain Kit Specifications:

• Timing Chain Gear Set fits: HOLDEN V8 253-308, 5.0L EFI & 355, 383 Strokers.
• Rollmaster Series: Red Series
• Type of Chain: Double Row IWIS Chain - pre-stretched
• Thrust Type: Shim
• Number of Keyways: 9 keyway adjustable bottom gear
• Hardened/Nitrided Gears:  Hardened (not nitrided)
• Number of Links   62
• Number of Teeth Cam Sprockets     48
• Number of Teeth Crank Sprockets    24

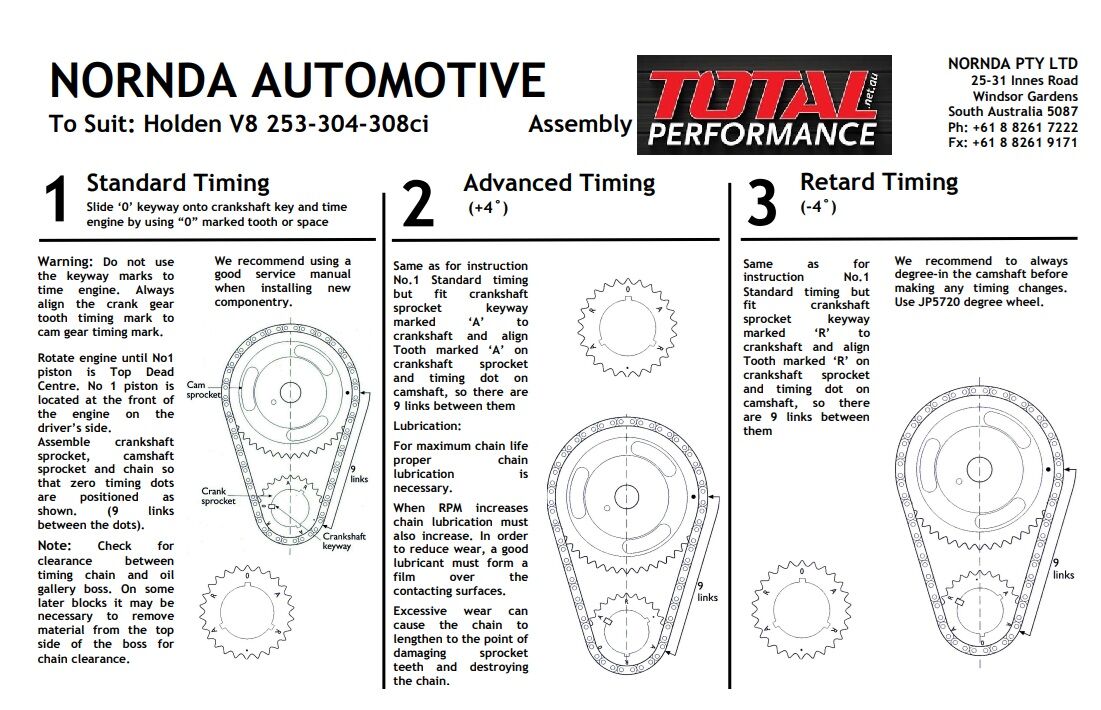

• IMPORTANT Installation notes: Do not install dot to dot.
• Rotate engine until No1 piston is Top Dead Centre. No 1 piston is located at the front of the engine on the driver’s side. Assemble crankshaft sprocket, camshaft sprocket and chain so that zero timing dots are positioned as shown. (9 links between the dots) - see image attached.

MADE IN AUSTRALIA
