SKU: 12-415-8

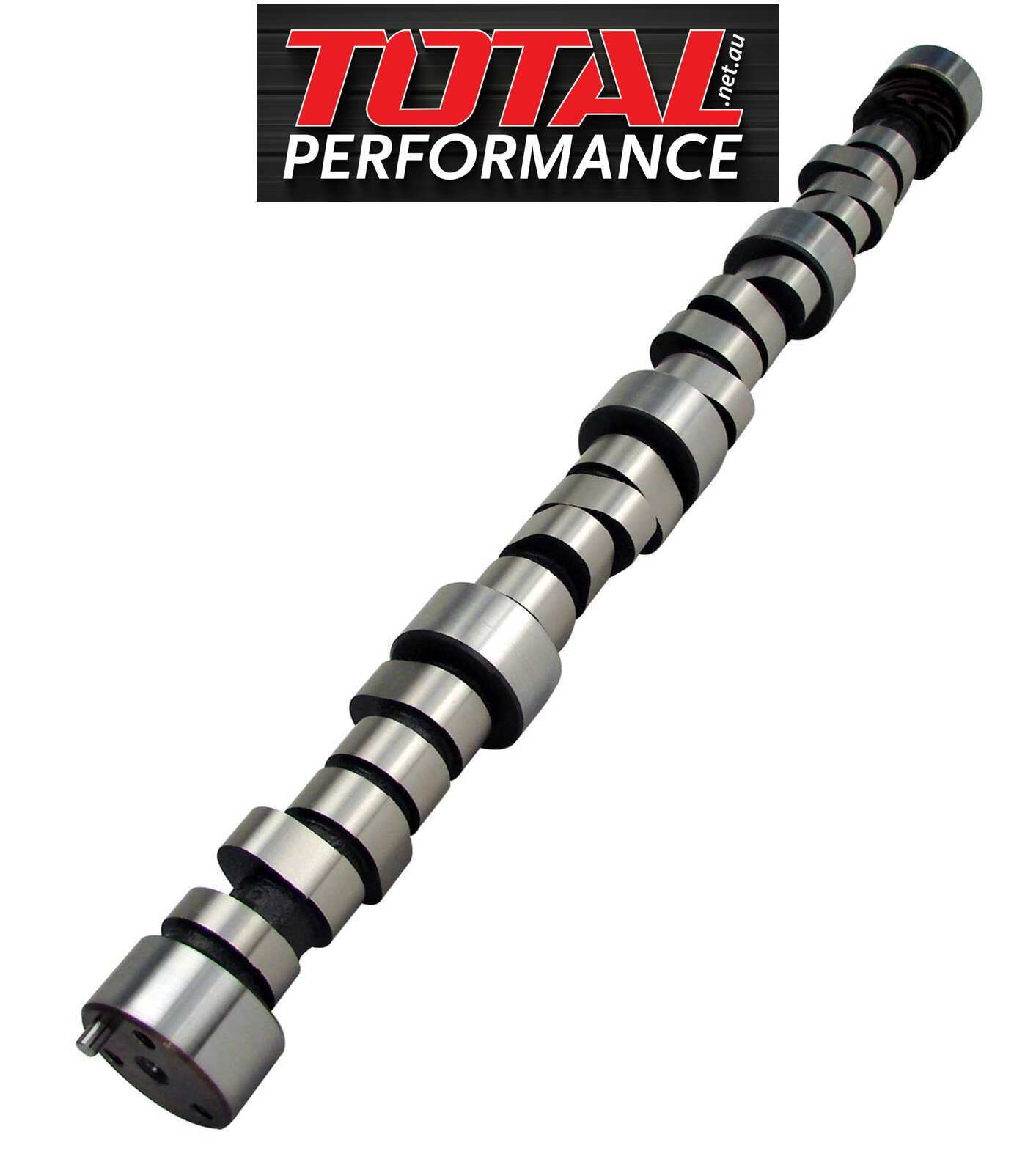

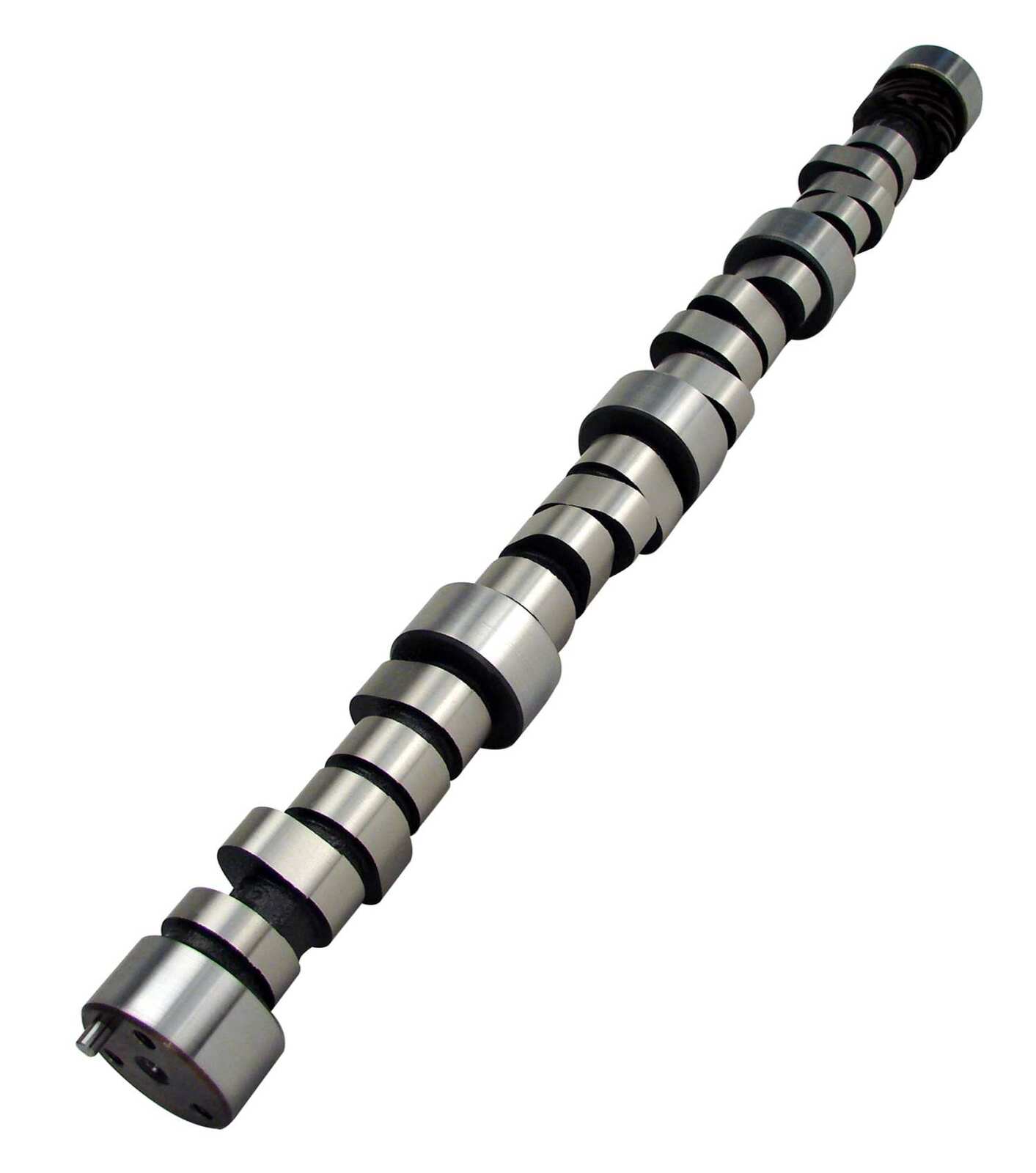

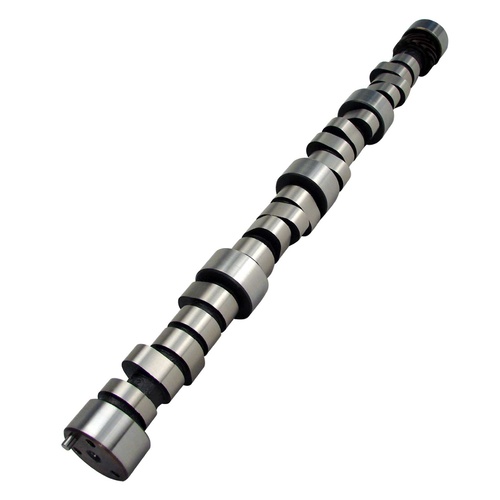

SBC Nitrous HP 224/236 Hydraulic Roller Camshaft Chevy Small Block


Sold Out


Street machine with 125+ nitrous system or small supercharger. 2200+ Stall with lower gears.


SKU 12-415-8
Barcode # 036584081388
Lifters Included No
Camshaft Series Nitrous HP
Exhaust Duration At .050 Inch Lift 236
Advertised Exhaust Duration 288
intake valve lift 0.502
Camshaft Gear Attachment 3-Bolt
Basic Operating Rpm Range 2,000-6,000
Lobe Separation 113
Cam Type Hydraulic Roller
Lifter Type Hydraulic Roller
Valve Springs Required Yes
Grind Number NX276HR
Intake Duration At .050 Inch Lift 224
Advertised Intake Duration 276
Exhaust Valve Lift 0.52
Camshaft Material Austempered Ductile Iron
