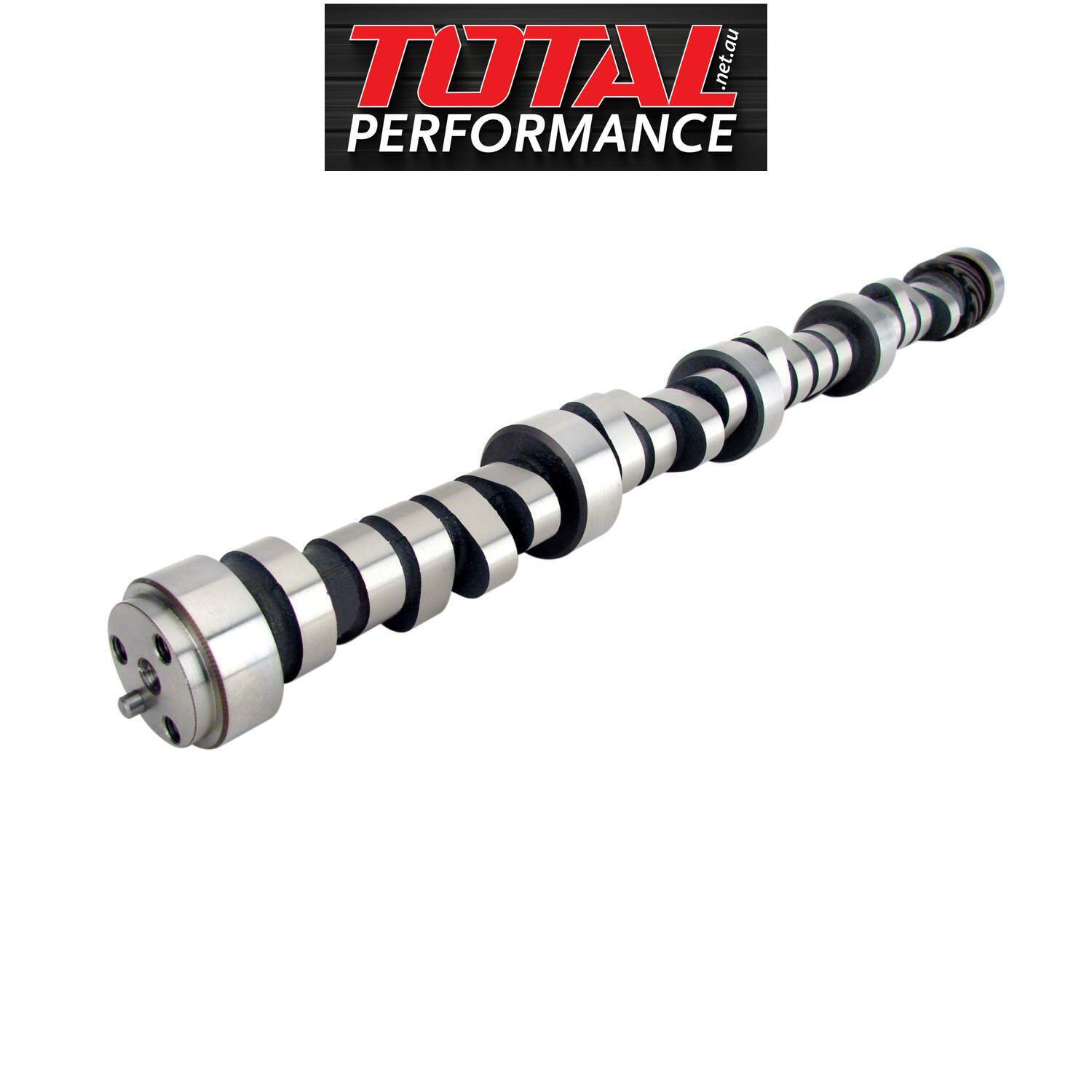

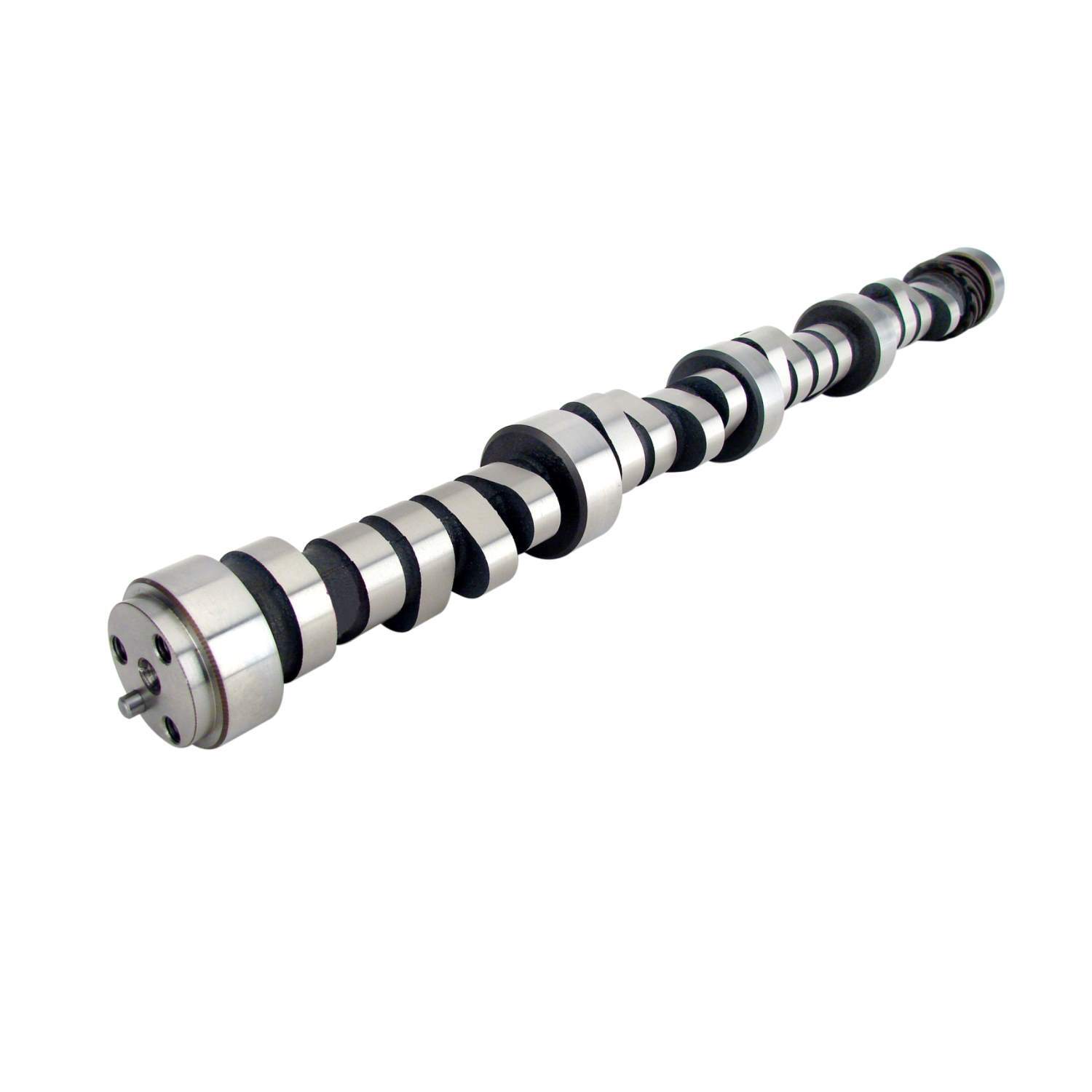

Xtreme Energy 242/248 LSA 110 Hydraulic Roller Camshaft fits Chevrolet Chevy 454 502 Big Block GEN VI (1996 - 1999)

** FREE SHIPPING ON ORDERS OVER $200 **

Description

Best for serious street/ strip use with 10.5:1+ compression and 3000+ stall. Needs good intake, headers and ported heads.

Fits: Chevrolet Chevy 454 502 Big Block GEN VI (1996 - 1999)

Specifications

SKU	01-424-8
Barcode #	036584063483
Brand	COMP CAMS
intake valve lift	0.54
Exhaust Valve Lift	0.56
Lifter Type	Hydraulic Roller
Advertised Exhaust Duration	300
Advertised Intake Duration	294
Cam Type	Hydraulic Roller
Exhaust Duration At .050 Inch Lift	248
Intake Duration At .050 Inch Lift	242
Lobe Separation	110
Camshaft Series	Xtreme Energy
Grind Number	XR294HR
Basic Operating Rpm Range	2,800-6,200
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	3-Bolt
Camshaft Material	Austempered Ductile Iron
