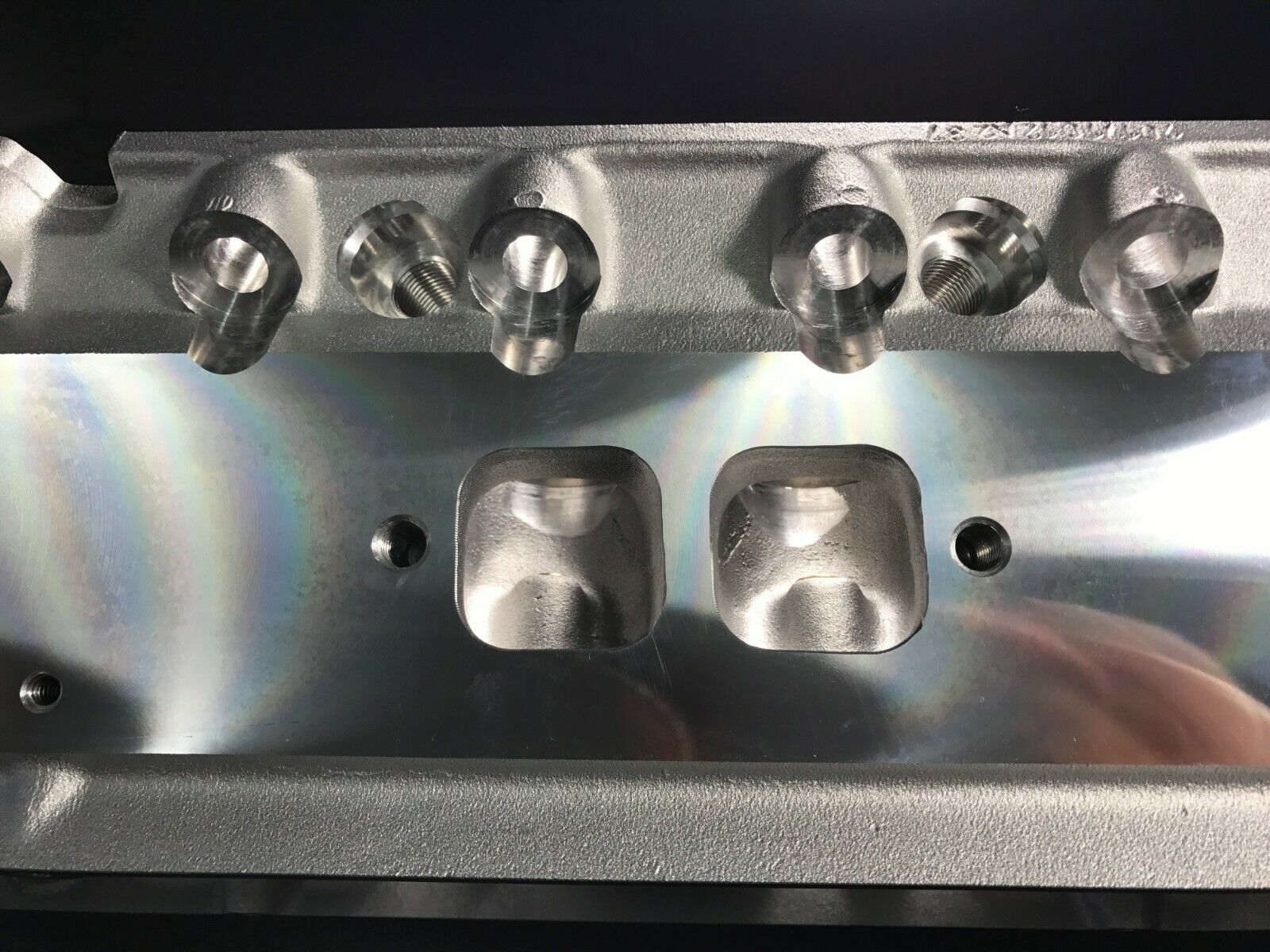

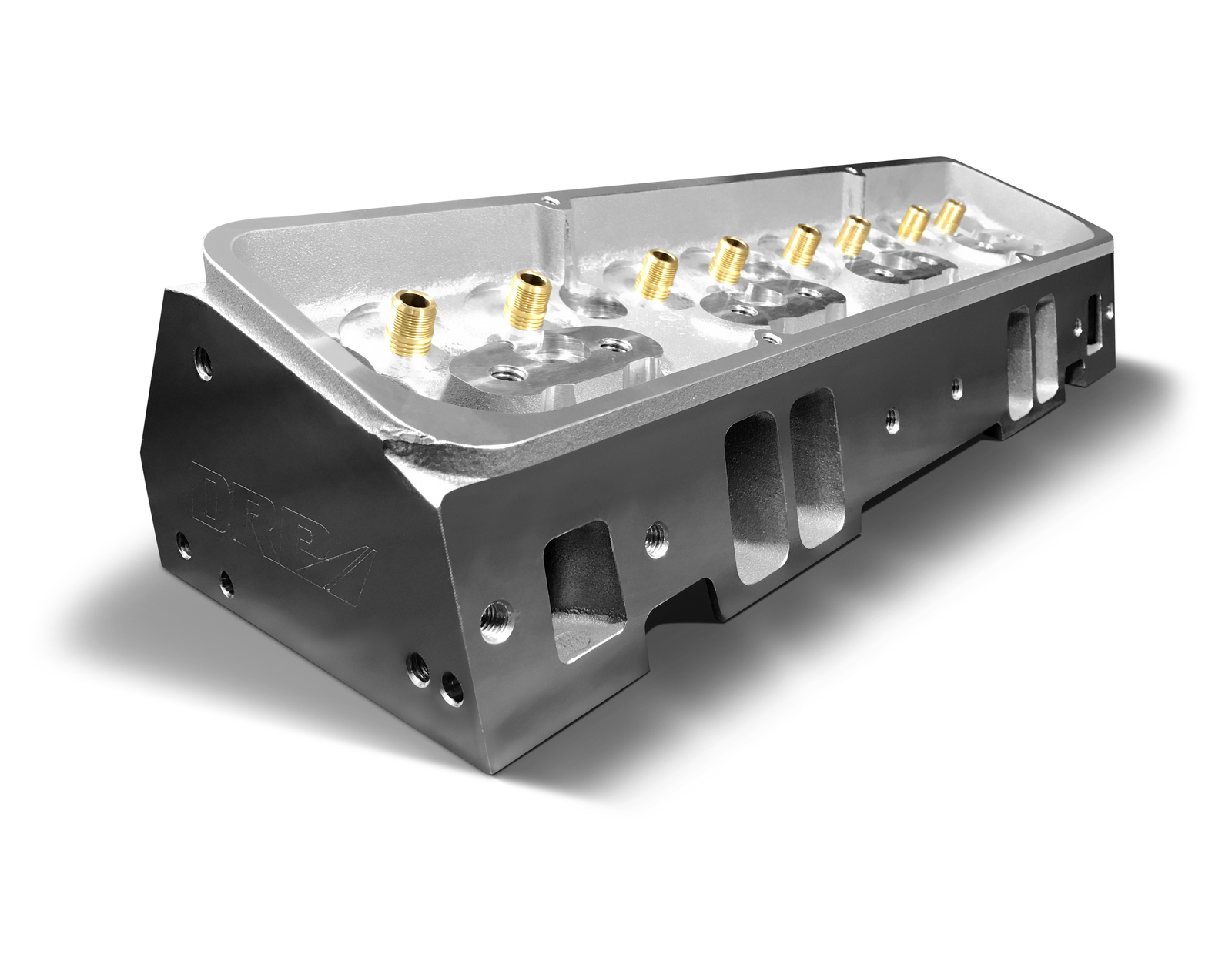

SBC Small Block Chev 350 23 deg Heads DRP ASSEMBLED Comp Cams HYDRAULIC ROLLER Straight Plug Heads

Description

500HP and 460ft/lb of Torque from a 350 Small Block Chev*

Wow of a price for such a great Horsepower and Torque!!

*Dyno results are from a 350 Chev with a Solid Flat Tappet.

Straight Plug + Heads are assembled for HYDRAULIC ROLLER & includes:

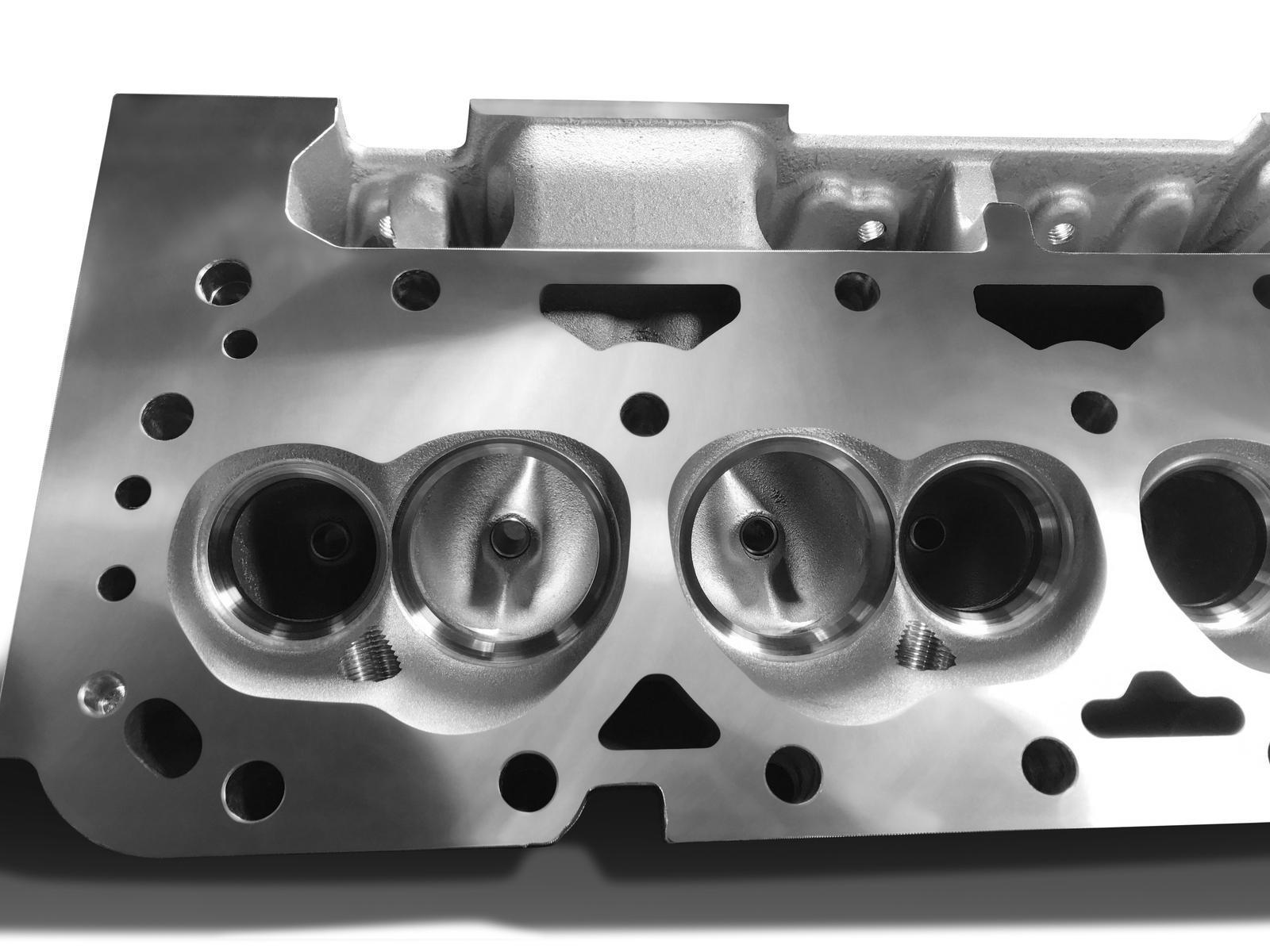

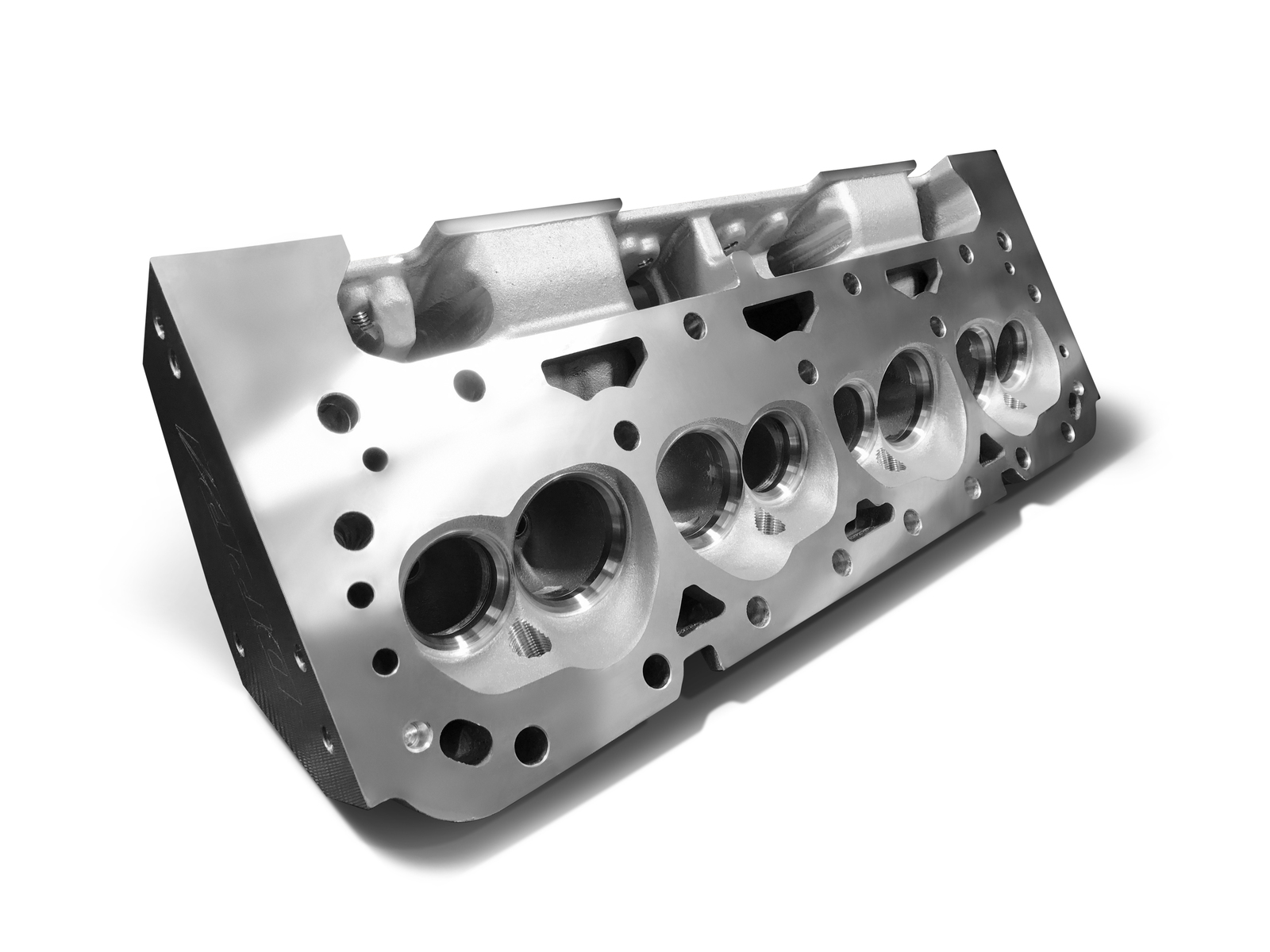

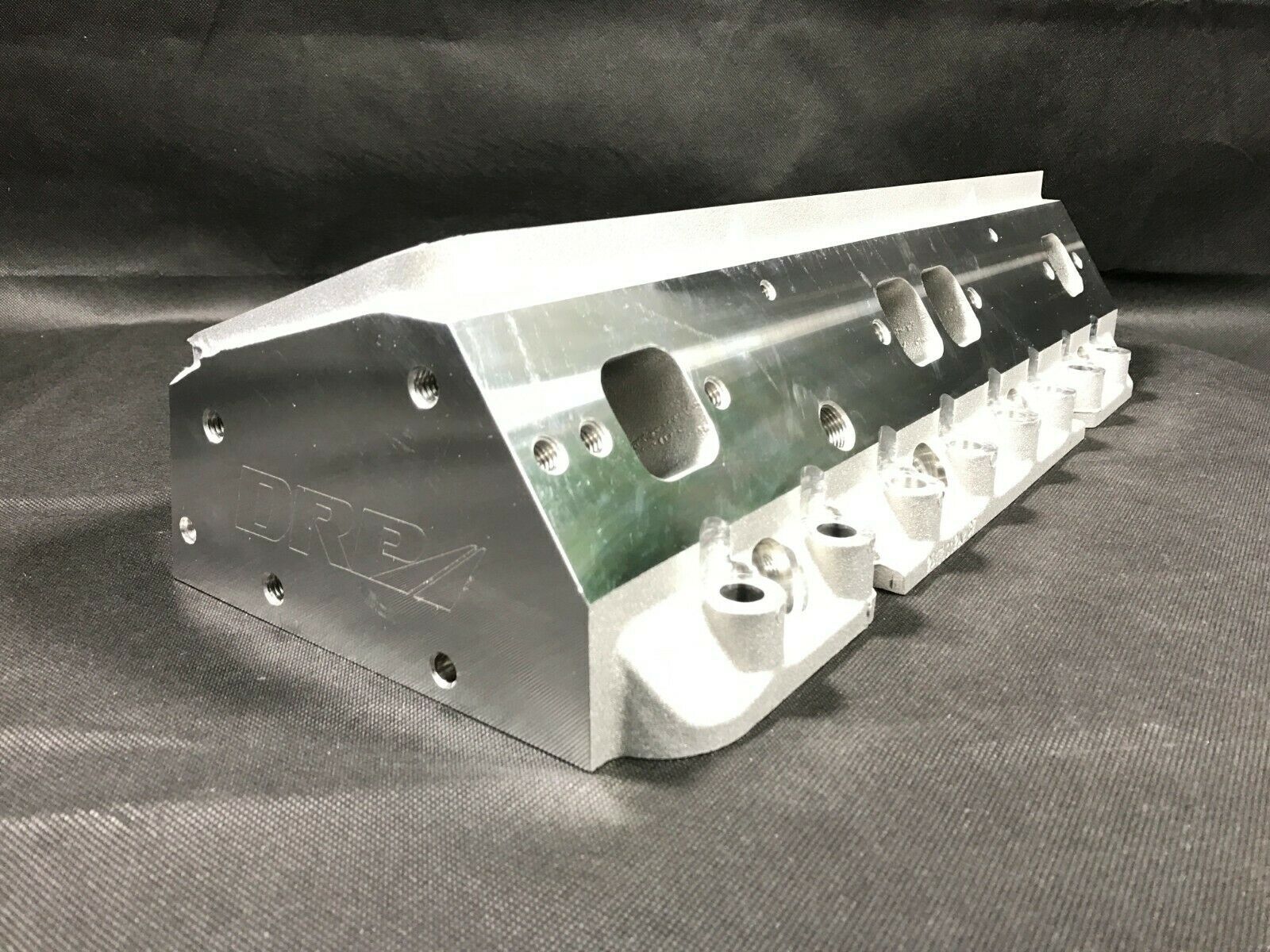

°DRP Cylinder Heads - Hand assembled by US using Comp Cams hardware and DRP STAINLESS VALVES (hand assembled in Melbourne)

°Comp Cams - Springs 985-16 (Dual).

Intake: 148LBS Seat & 349LBS Open @ 0.550" Lift.

Exhaust: 142lbs Seat & 343lbs Open @ 0.550' Lift

°Comp Cams - Retainers, Locks, Spring Seats, Seals

°DRP - 5000 Series valves - Stainless 241-N with a 30° back cut on the intake for improved flow and performance.

REQUIRES:

Adjustable guide plates - see listing part SKU 4835-8 Comp Cams or SKU DRP-4835-GP
Rocker Studs - see listing part # 4512-16 Comp Cams - or ARP 100-7101

Please allow 5 days to assemble the heads. * If you need these sooner, just ask.

* Results will vary depending on your build and combination of other items.

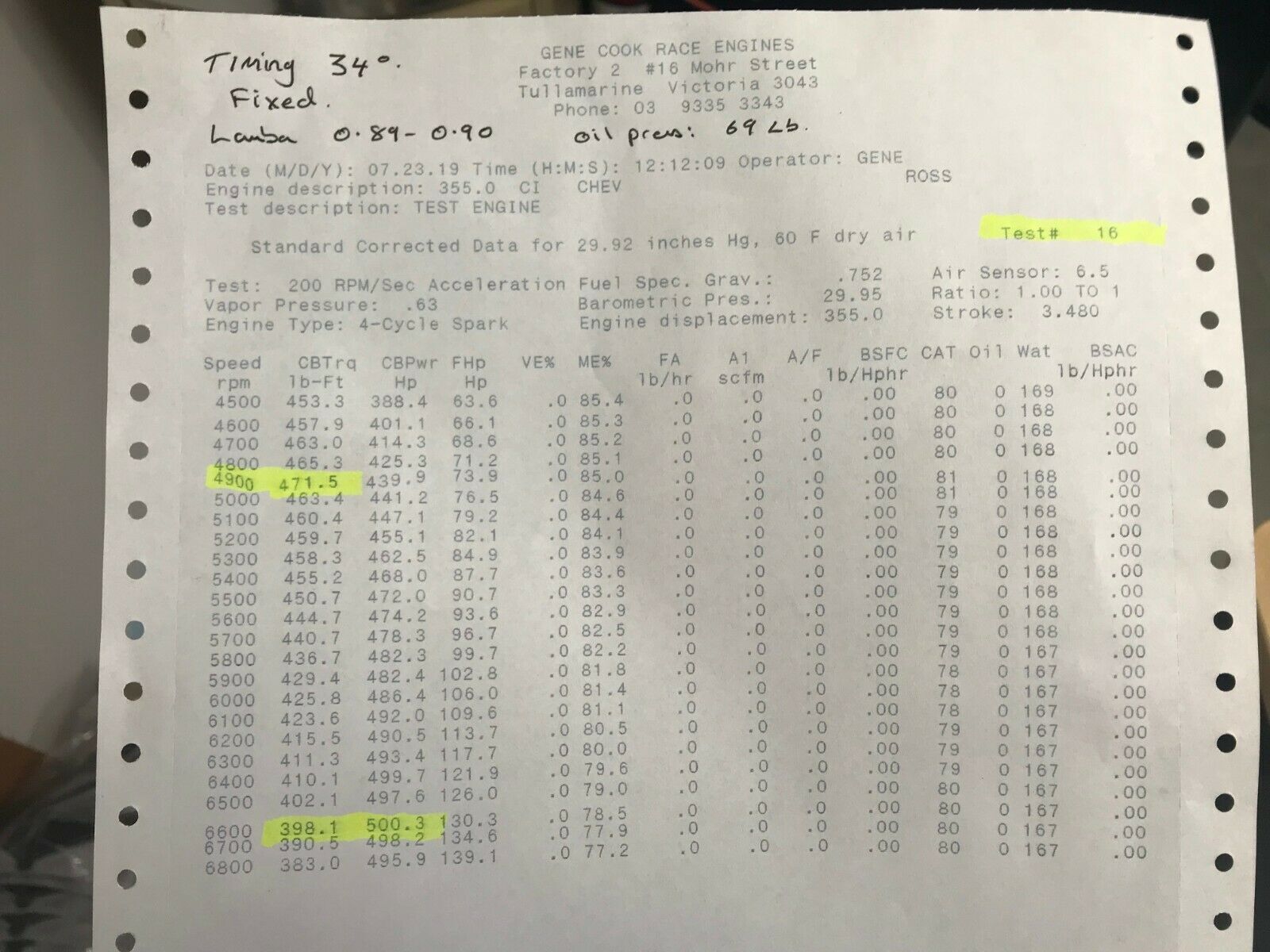

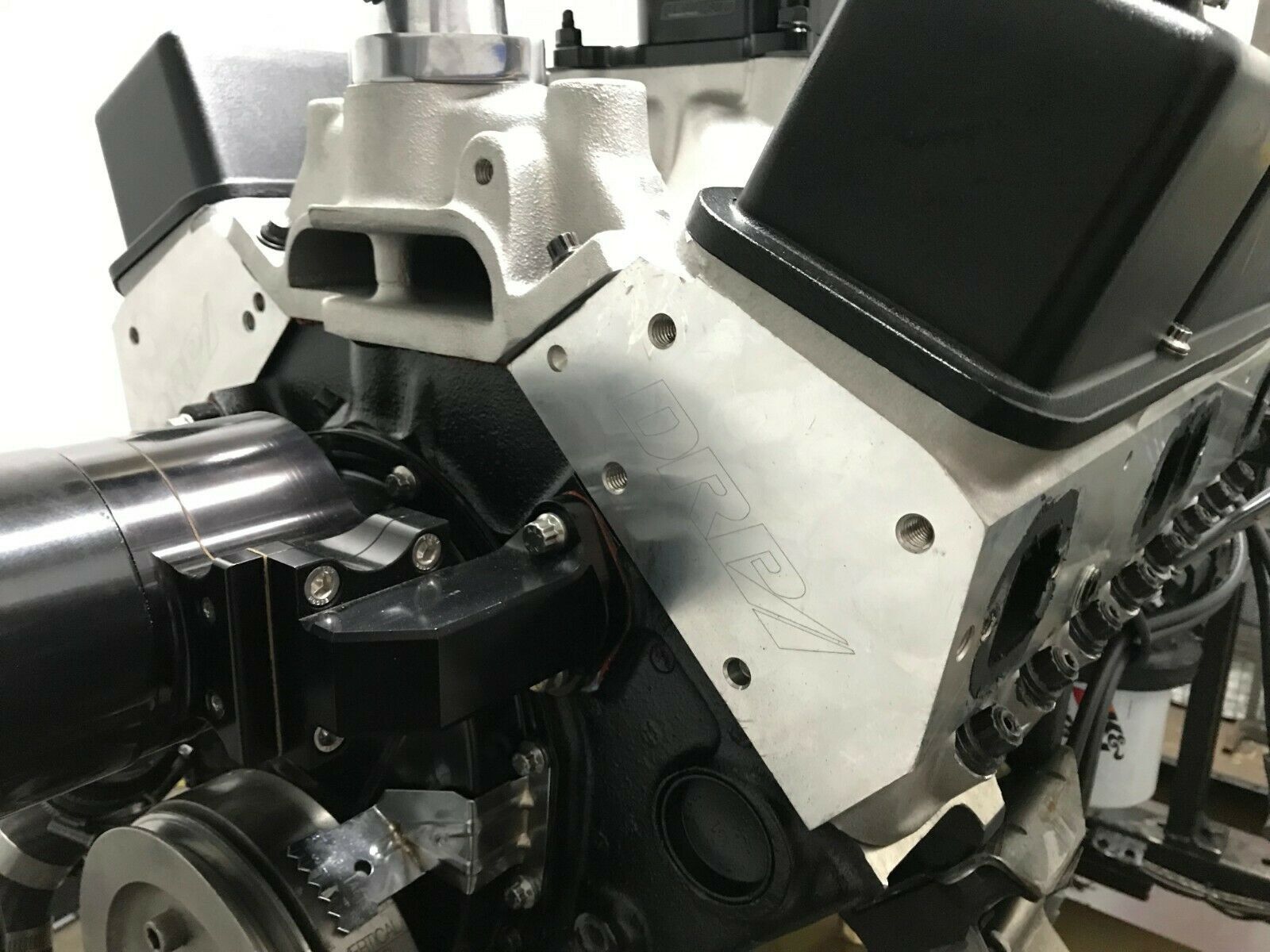

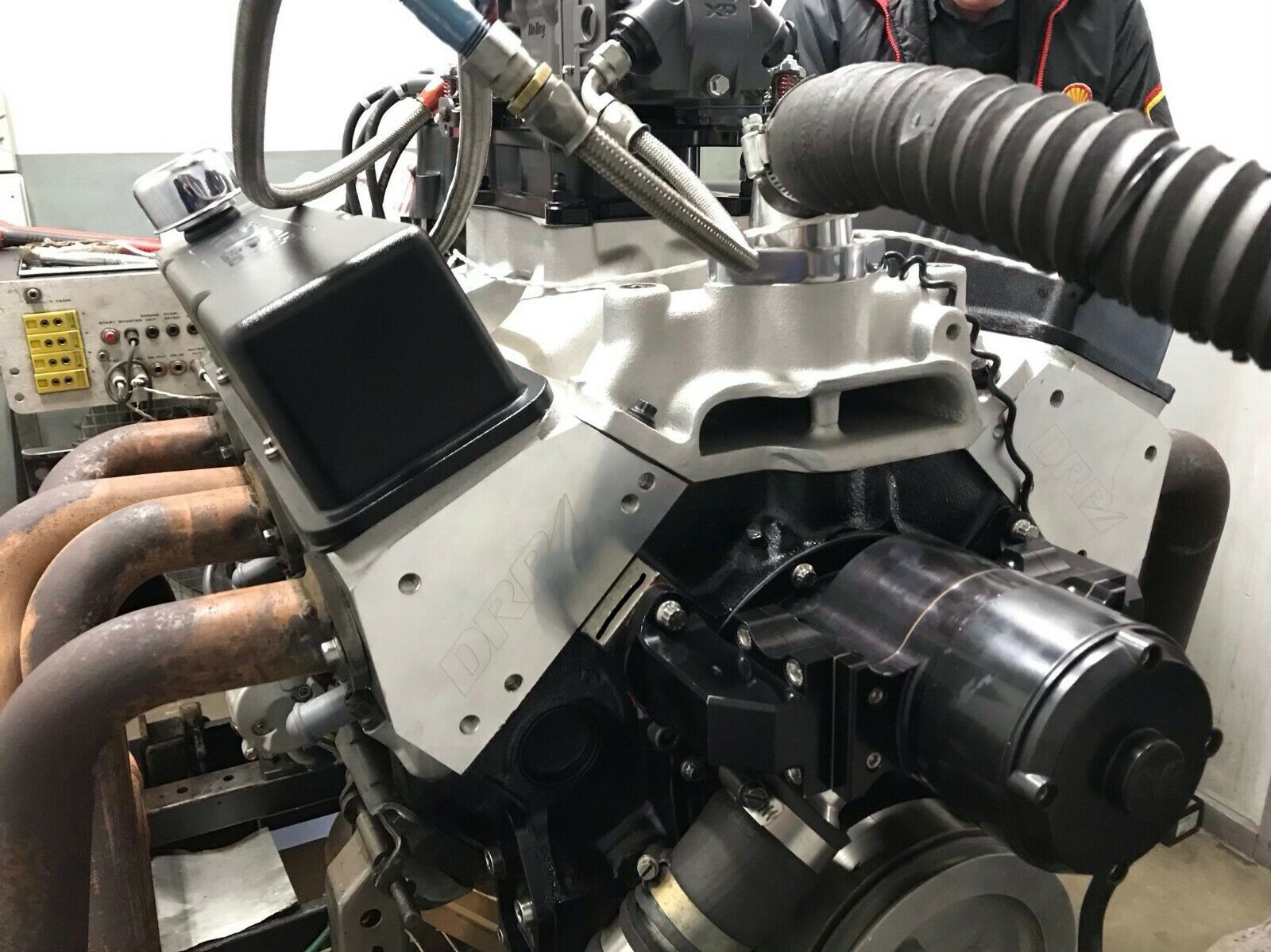

This Dyno test was carried out Using DRP Angle plug heads with a Solid Flat Tappet Camshaft,255/256 Duration and 0.540/0.534" valve lift with a 106 LSA. 1 3/4 Headers, Electrical Water pump, Edelbrock Victor Jnr Single plane intake (we feel you will achieve similar results with an air gap dual plane. 11:1 Compression with a domed Piston. 34°

350 CHEV DYNO RUN - 500HP https://www.youtube.com/watch?v=vpwIgJIN5X8

383 CHEV DYNO RUN - LOW COMP 95 OCTANE https://www.youtube.com/watch?v=iAEie9M4fz8

Specifications

SKU	DRP-SBC200-S-HRSL
Brand	DRP
Unit Of Measure	ea
Warranty	Manufacturers Warranty
