Description

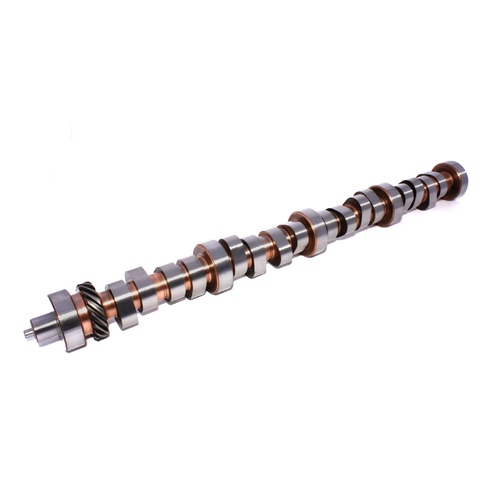

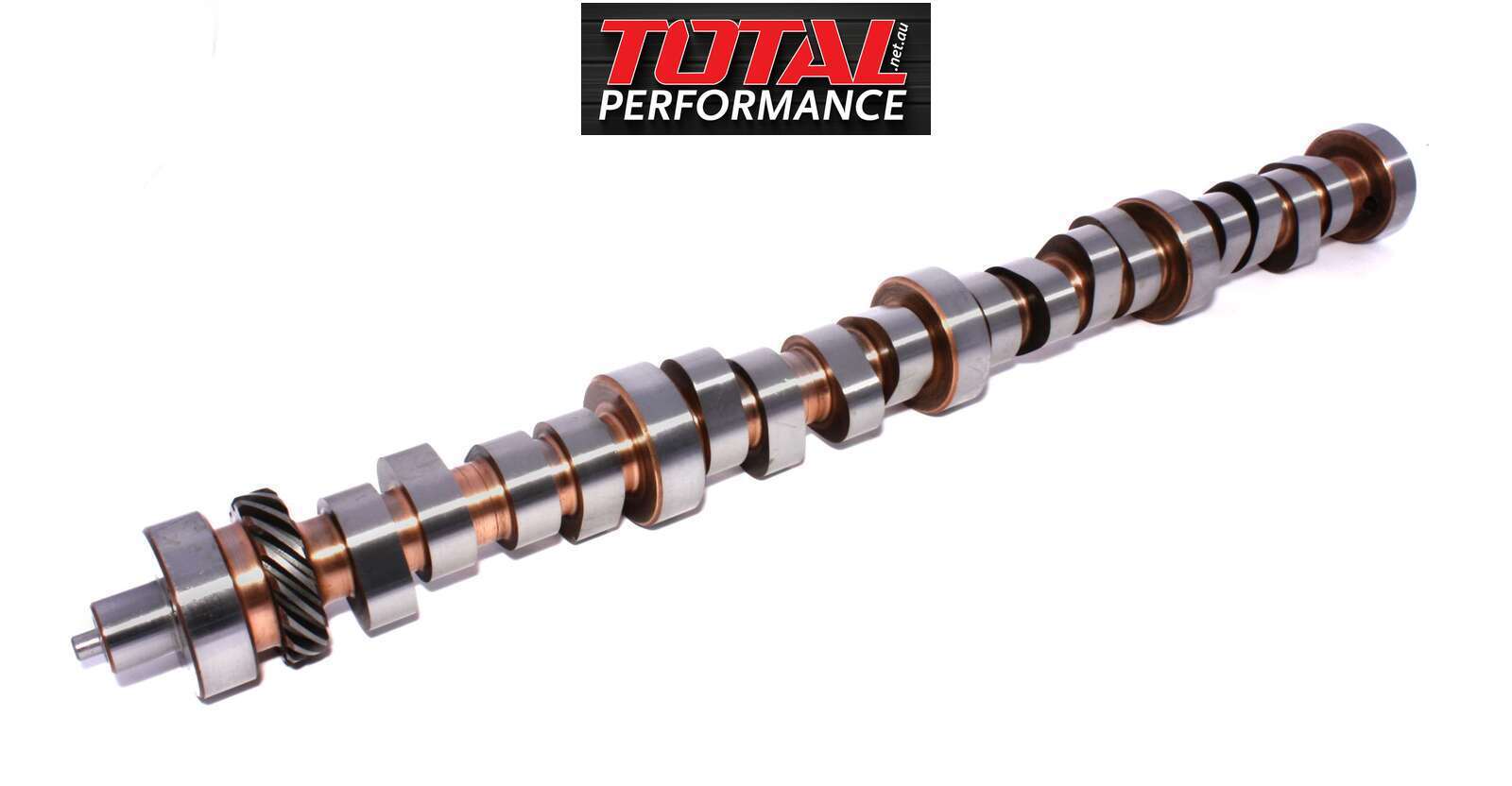

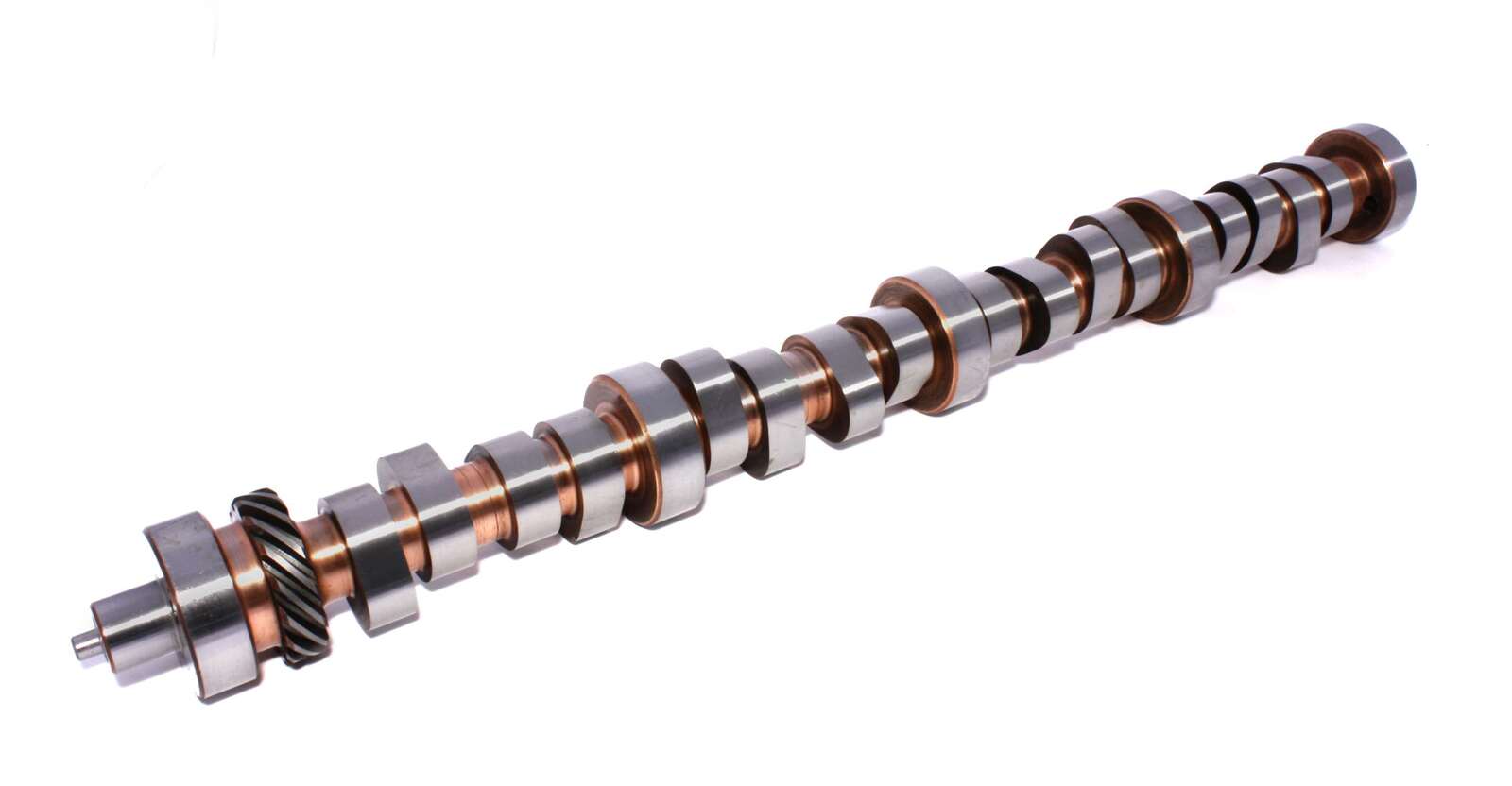

Comp Cams Big Block Ford 460 Camshaft – Hydraulic Roller Retro Fit Endurance Street/Marine lobes.
The Total Performance custom Comp Cams is a hydraulic roller camshaft built for strong street endurance mileage & constant rpm marine applications. The lobes selected for this camshaft has a lower lift and softer over the nose for better endurance and extended valve train life. This cam still delivers a broad power curve with crisp throttle response, strong mid-range torque, and impressive top-end pull. Designed for engines to do milage with an increased camshaft. F100/150 hot rods that still sees long haul applications. This camshaft balances drivability with performance. Ideal for enthusiasts seeking a noticeable idle and reliable performance on pump fuel without sacrificing everyday usability.
Characteristics:
-
Delivers strong mid-to-upper RPM power while maintaining reasonable idle quality and usable vacuum for street driveability.
-
Provides excellent mid-range punch without sacrificing too much bottom-end torque.
-
Lumpy idle and a great all-round camshaft for fun, cruising, and hot rods.
-
Perfect for hot street F100 F150 trucks and similar builds.
Modifications / Applications:
-
Suits 429+ and 460 engines with a stall converter of ~2200+ RPM.
-
Recommended for engines with compression above ~9.0:1 and supporting mods like headers and performance intake.
-
Works best with aluminium performance intakes and ~10.2:1 compression.
-
Valve springs must be upgraded – we recommend
34-236242M-HR-10 Specifications:
-
Camshaft core: premium steel -9 core
-
Operating RPM range: 2,200 – 5,800 rpm
-
Duration @ .050″: 236° intake / 242° exhaust
-
Advertised duration: 292° intake / 298° exhaust
-
Valve lift: .557″ intake / .576″ exhaust
-
Lobe separation angle (LSA): 110°
-
Intake Open (BTDC):
-
Intake Close (ABDC):
-
Exhaust Open (BBDC):
-
Exhaust Close (ATDC):
-
Comp Cams - made in USA
Specifications
| SKU | 34-236242M-HR-10 |
| Barcode # | 036584212324 |
| Brand | COMP CAMS |
| intake valve lift | 0.521 |
| Exhaust Valve Lift | 0.532 |
| Lifter Type | Hydraulic Roller |
| Advertised Exhaust Duration | 288 |
| Advertised Intake Duration | 282 |
| Cam Type | Hydraulic Roller |
| Exhaust Duration At .050 Inch Lift | 236 |
| Intake Duration At .050 Inch Lift | 230 |
| Lobe Separation | 110 |
| Camshaft Series | Xtreme Energy |
| Grind Number | XR280HR |
| Basic Operating Rpm Range | 2,200-5,800 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
