Description

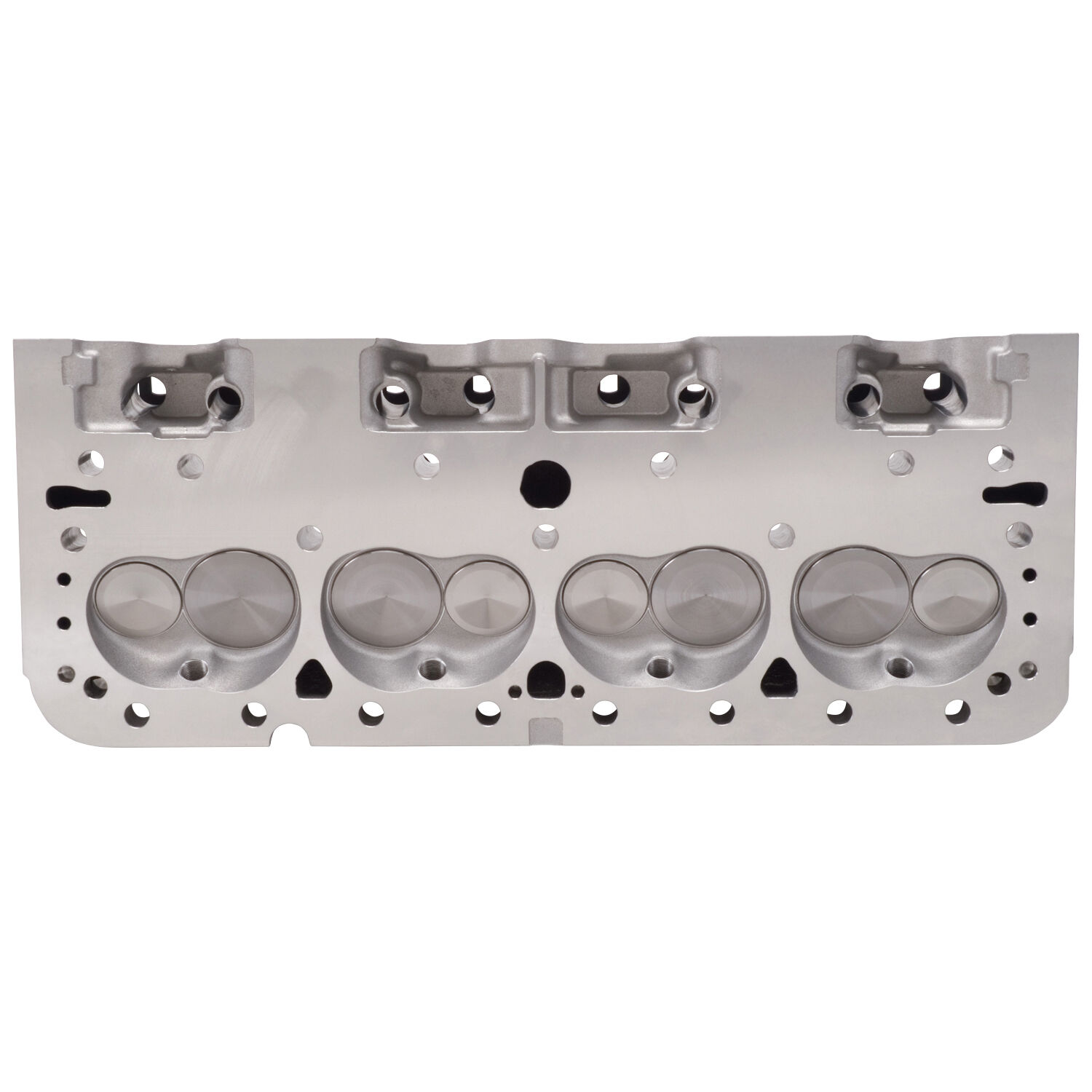

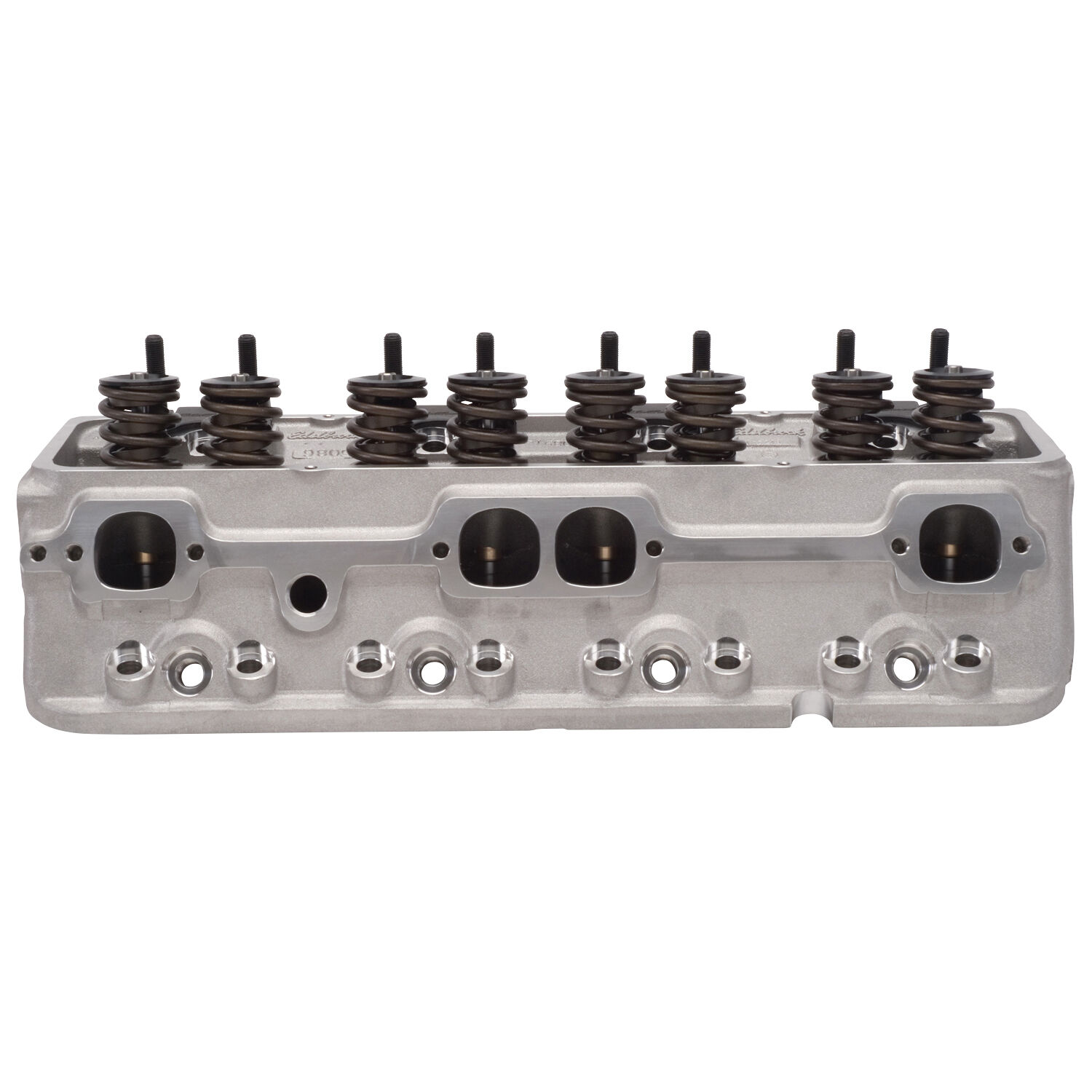

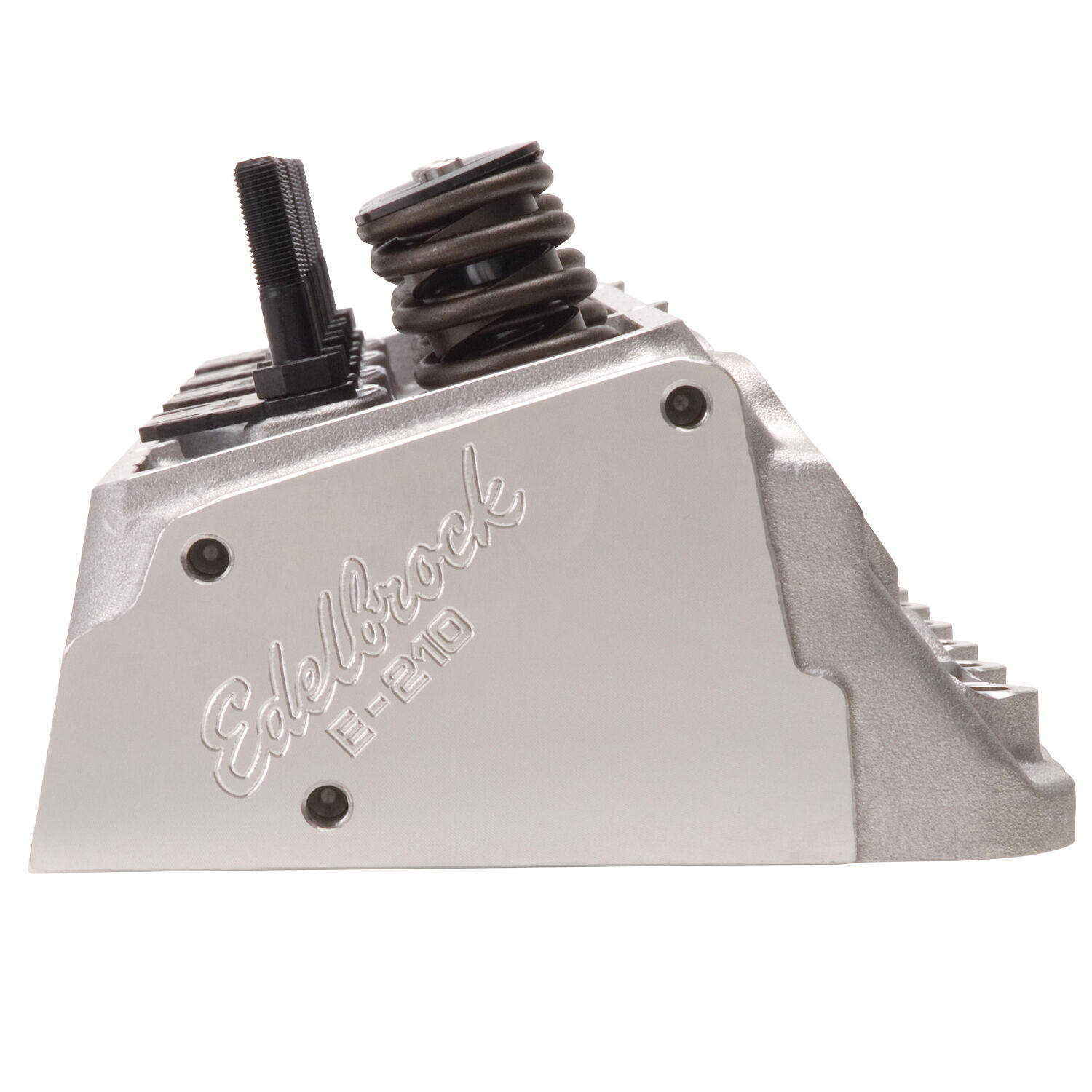

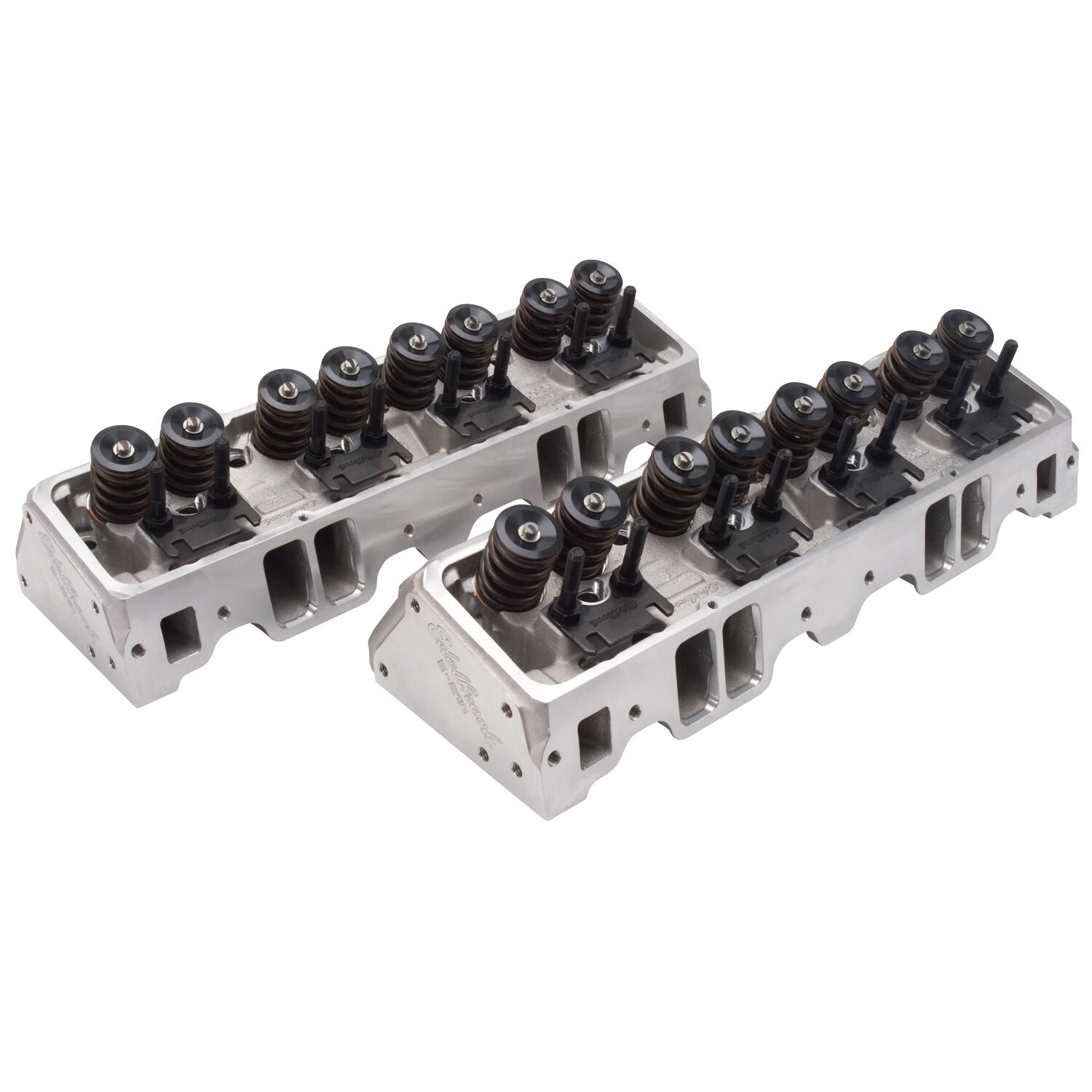

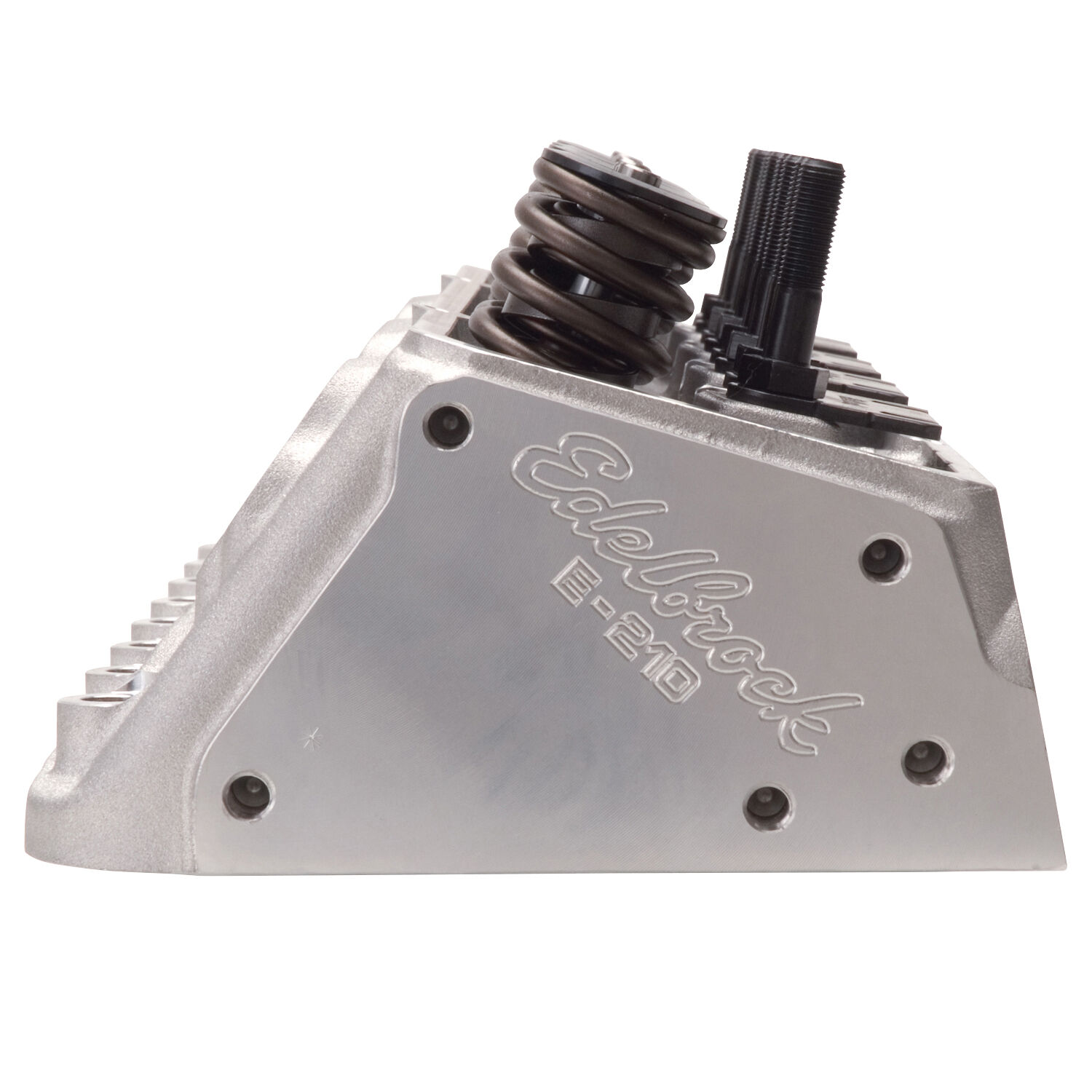

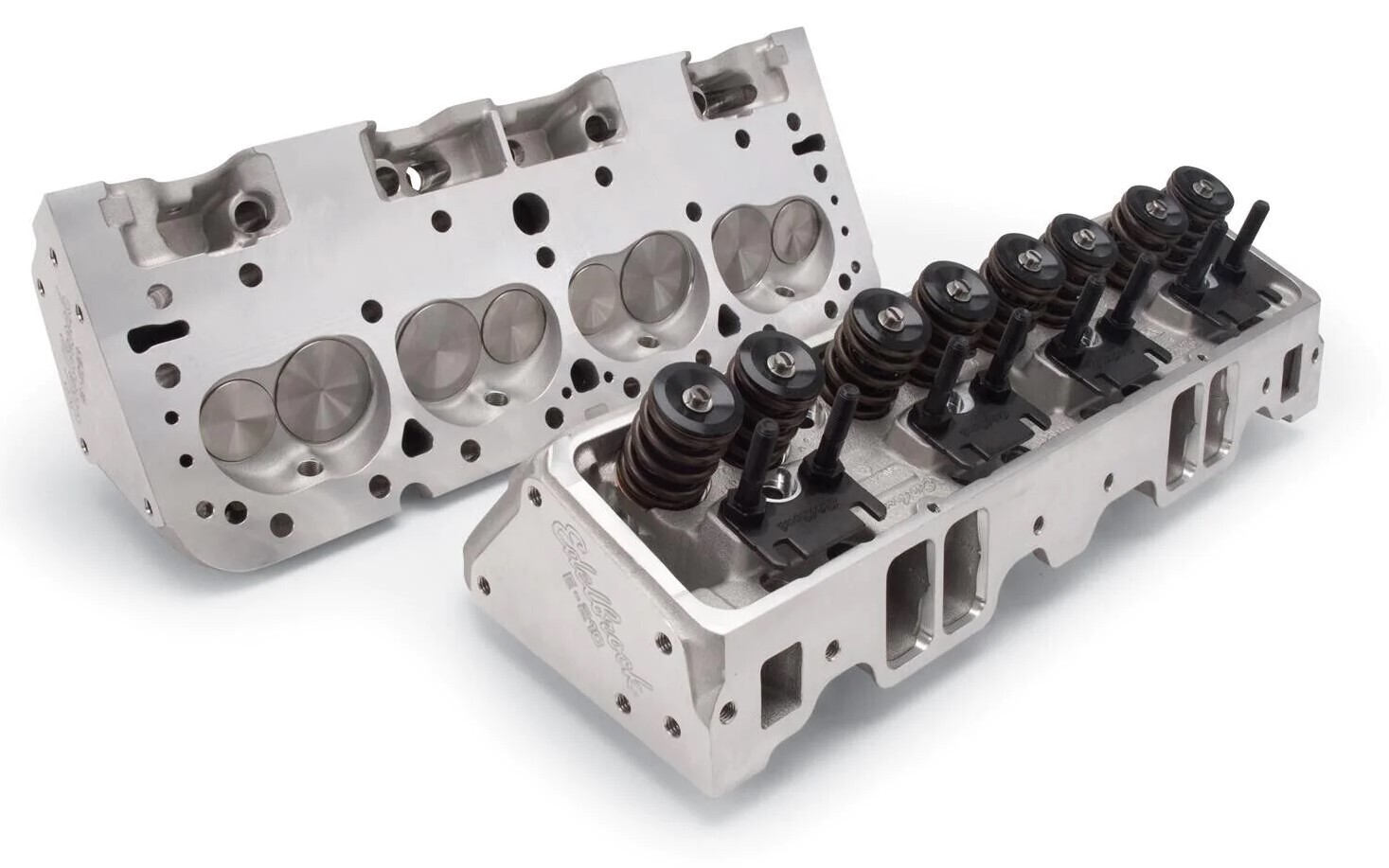

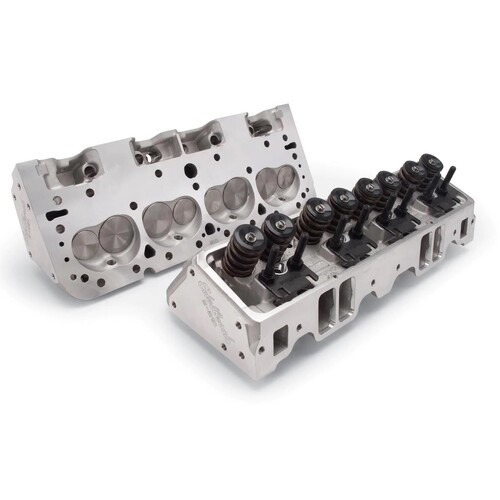

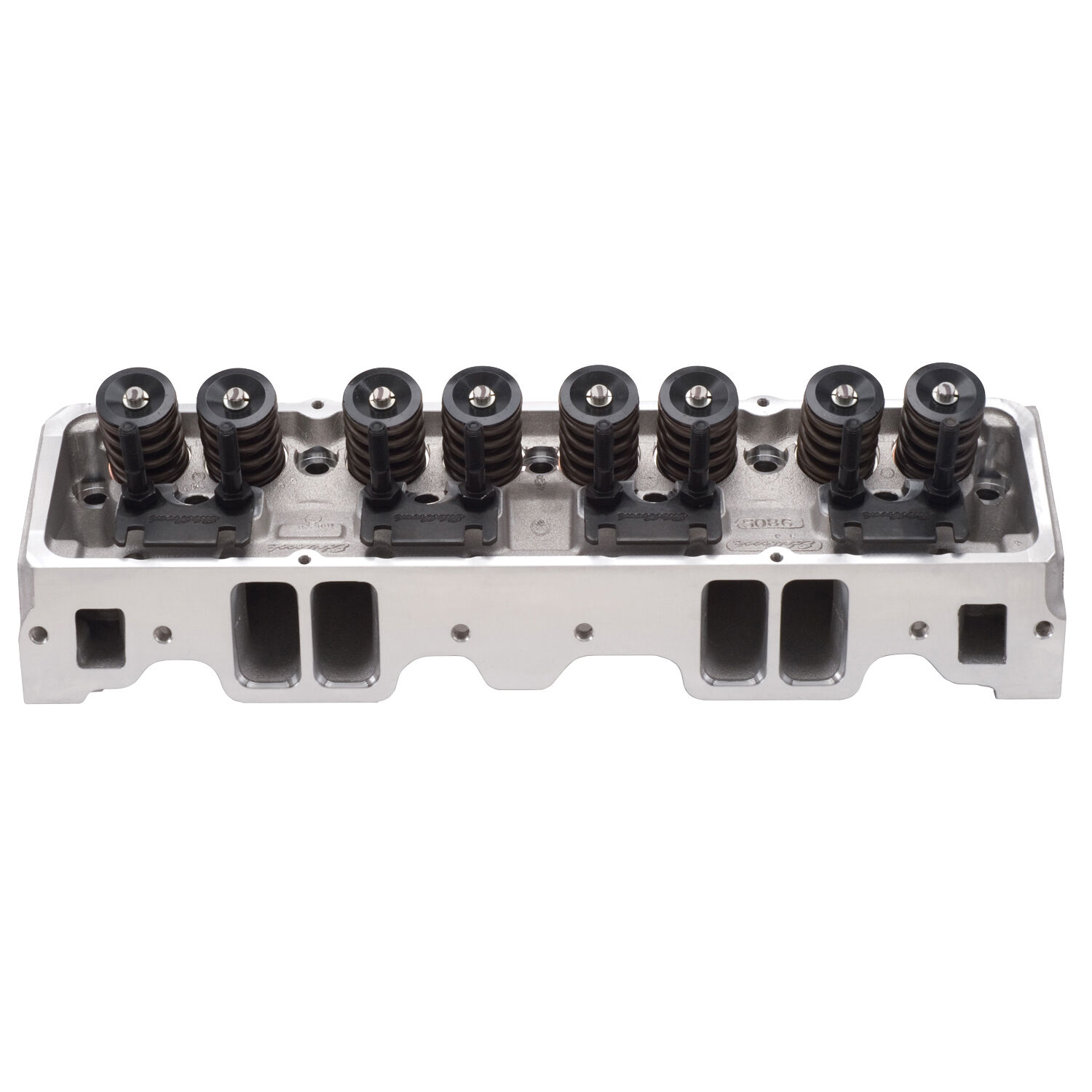

The Edelbrock #5087 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts.
The Edelbrock Chevy 350 E-210 Cylinder heads fits 1955-1986 Small-Block Chevy applications. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts.
The Chevy 350 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5028 E-Series Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.
Engine: Fits Small Block Chevy 350
Series: E-Series
Material: Aluminium
Quantity Sold: Set of 2

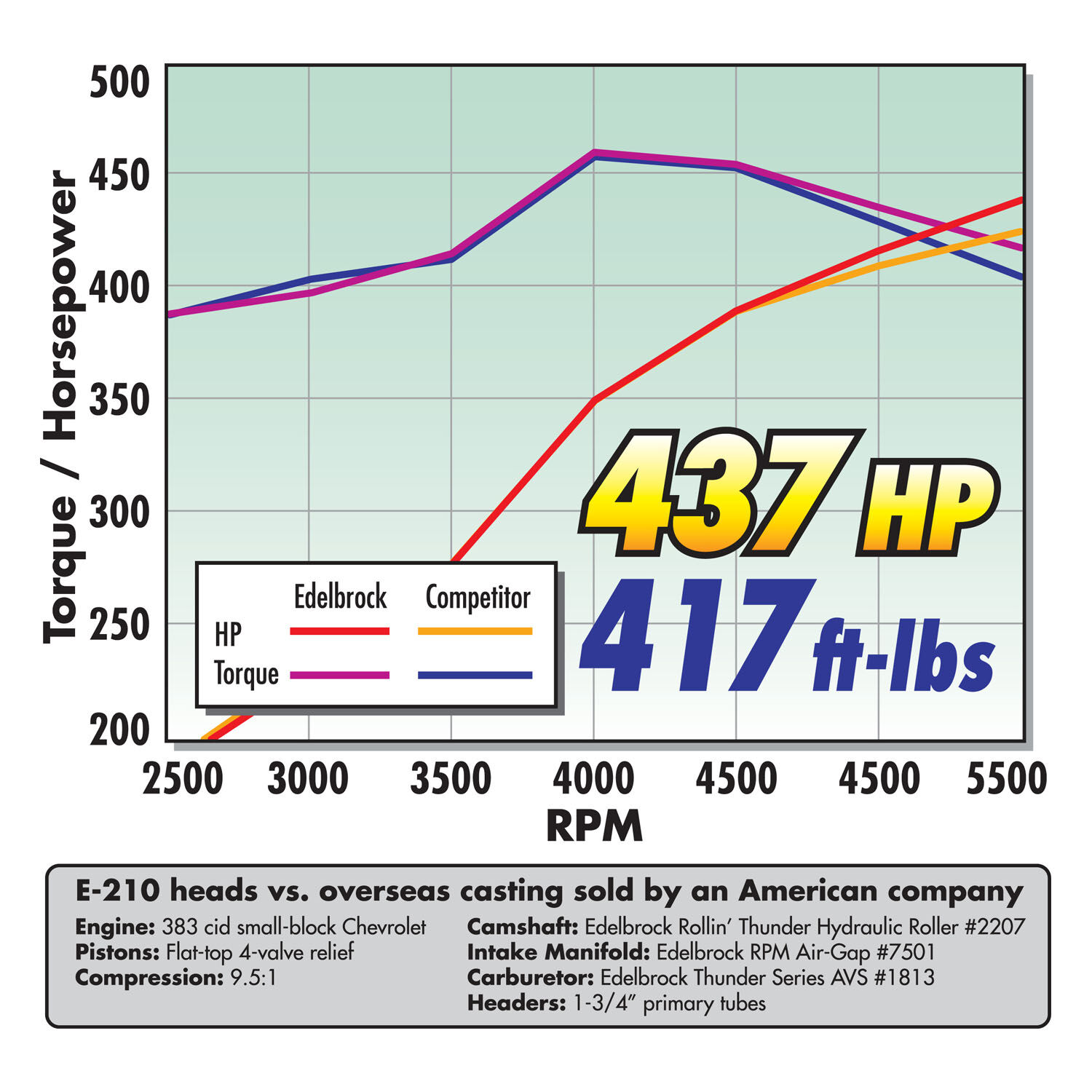

Horsepower Rating: 400-550 HP Approx
Valve Seat Angles Exhaust 45 deg + Intake 45 deg
Intake Valve Diameter 2.08 in
Intake Runner Volume 210 cc
Rocker Stud Diameter 0.375 in
Valve Angle 23 Degree
Valve Spring Diameter 1.55 in
Valve Spring Maximum Lift 0.650 in
Valve Stem Diameter 0.3438 in
Guide Plates: Yes included - Hardened Steel
Installation Notes
- EQUIPPED WITH SPRINGS FOR USE IN MECHANICAL FLAT TAPPET AND HYDRAULIC ROLLER CAMSHAFT; Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.; Requires hardened pushrods.; Edelbrock recommends Fel-Pro #1206 intake gaskets for use with E-210 cylinder heads.; Cylinder heads provides race-level performance while maintaining full compatibility with off-the-shelf headers and hardware; Features larger runners for increased airflow and revised exhaust ports and larger diameter springs for higher lift camshafts; Capable of supporting more than 500 naturally aspirated horsepower, and even more in forced induction applications
Specifications
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
SKU | ED5087 |
Barcode # | 00085347050871 |
Brand | Edelbrock |
