SKU: 08-610-44

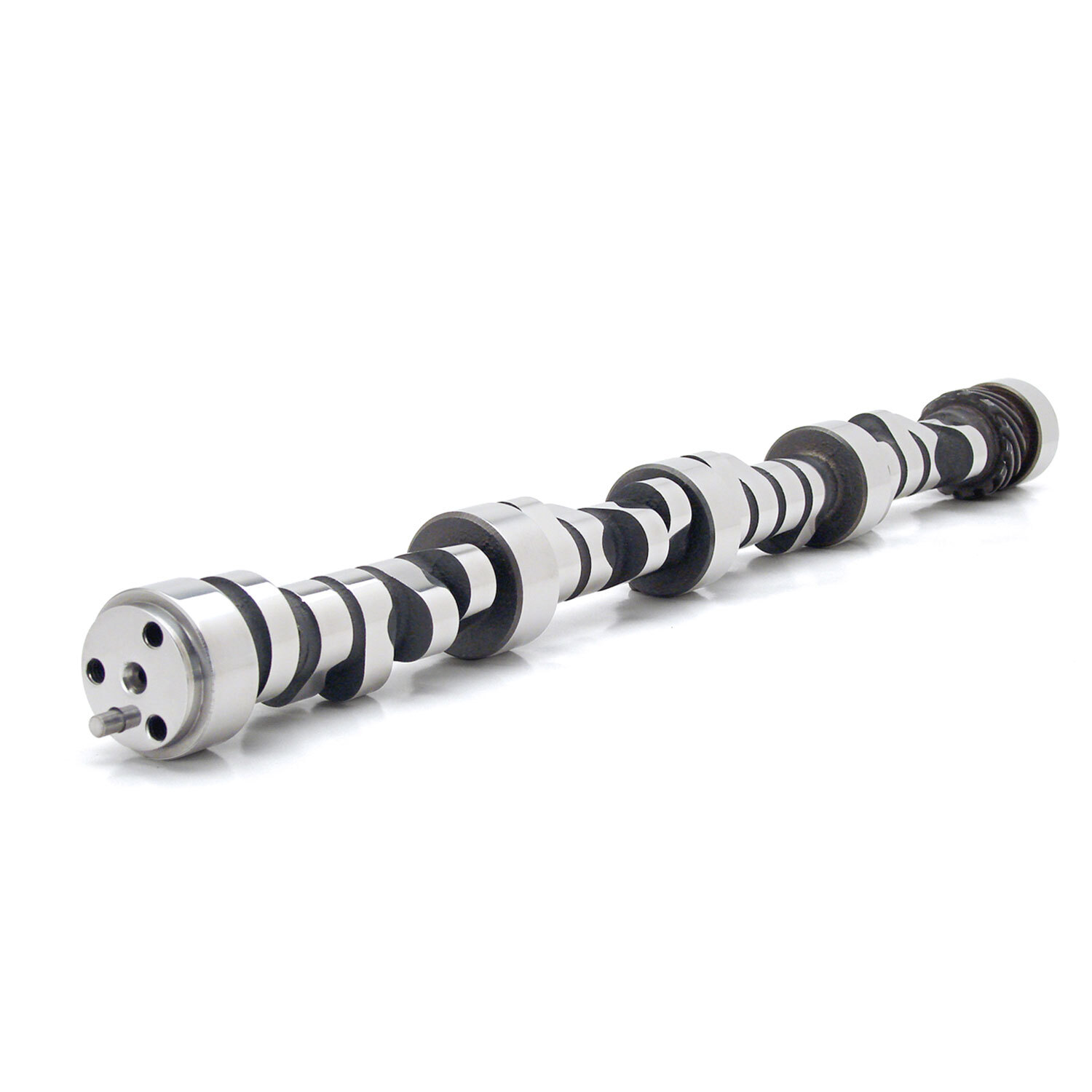

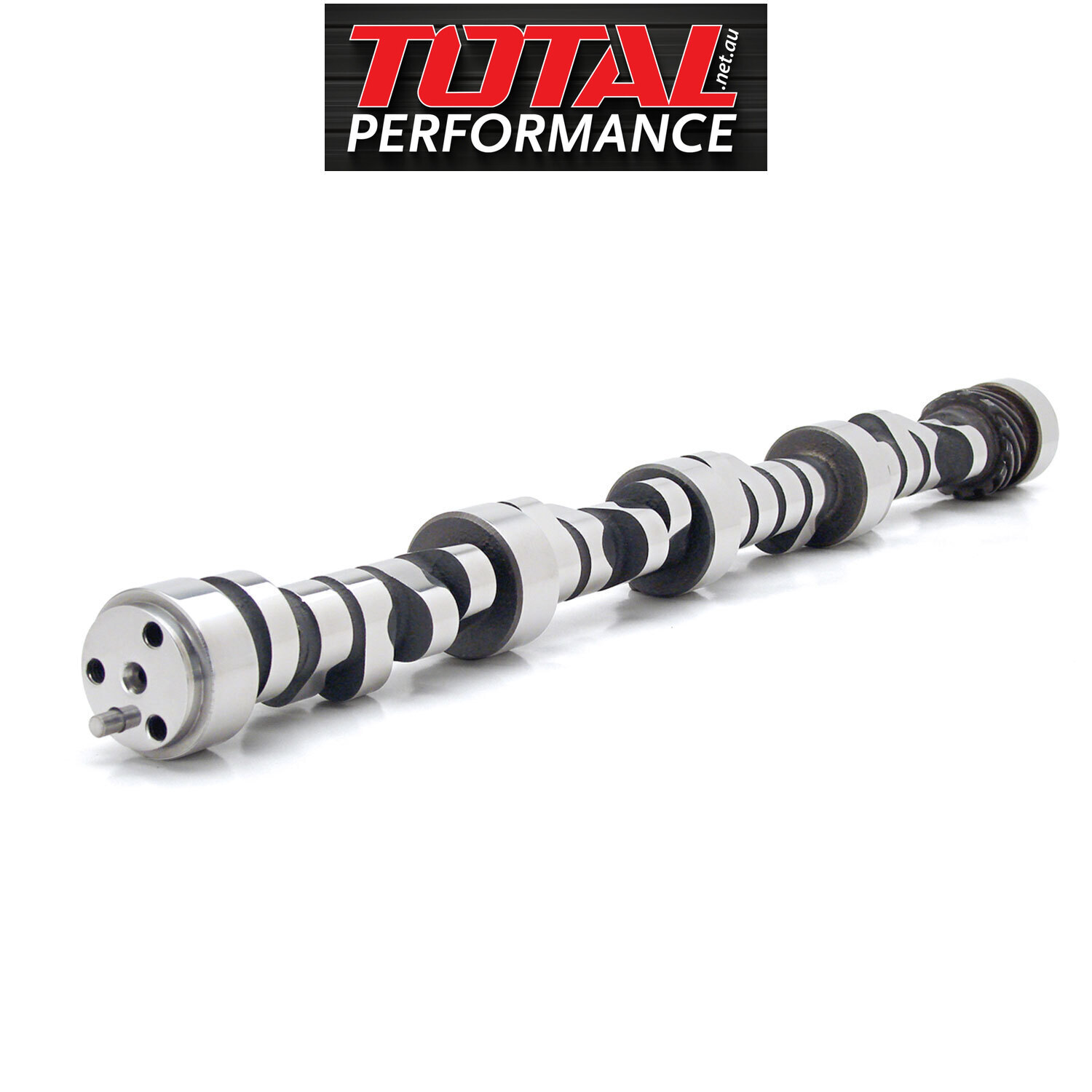

08-610-44 4-Pattern 258/268 IB, 260/270 OB Hydraulic Roller Cam for OE Roller SBC

$1,220.30

or 4 payments of $305.07 with Info

Sold Out

Description

Recommended in highly modified 420+ c.i. stroker applications with higher compression. 3500+ Stall.

Specifications

SKU 08-610-44
Barcode # 036584259619
Brand COMP CAMS
Outboard Exhaust Duration At .050 Inch Lift 270
Inboard Intake Duration At .050 Inch Lift 258
Valve Springs Required Yes
Grind Number 311QS10
Lifter Type Hydraulic Roller
Outboard Exhaust Valve Lift 0.621
Inboard Intake Valve Lift 0.637
Advertised Outboard Intake Duration 313
Inboard Exhaust Duration At .050 Inch Lift 268
Camshaft Material Billet Steel
Lifters Included No
Camshaft Series 4-Pattern (.900" Base Circle)
Inboard Exhaust Valve Lift 0.621
Advertised Outboard Exhaust Duration 325
Advertised Inboard Intake Duration 311
Outboard Intake Duration At .050 Inch Lift 260
Camshaft Gear Attachment 3-Bolt
Basic Operating Rpm Range 3200-7,500
Cam Type Hydraulic Roller
Outboard Intake Valve Lift 0.637
Advertised Inboard Exhaust Duration 323
