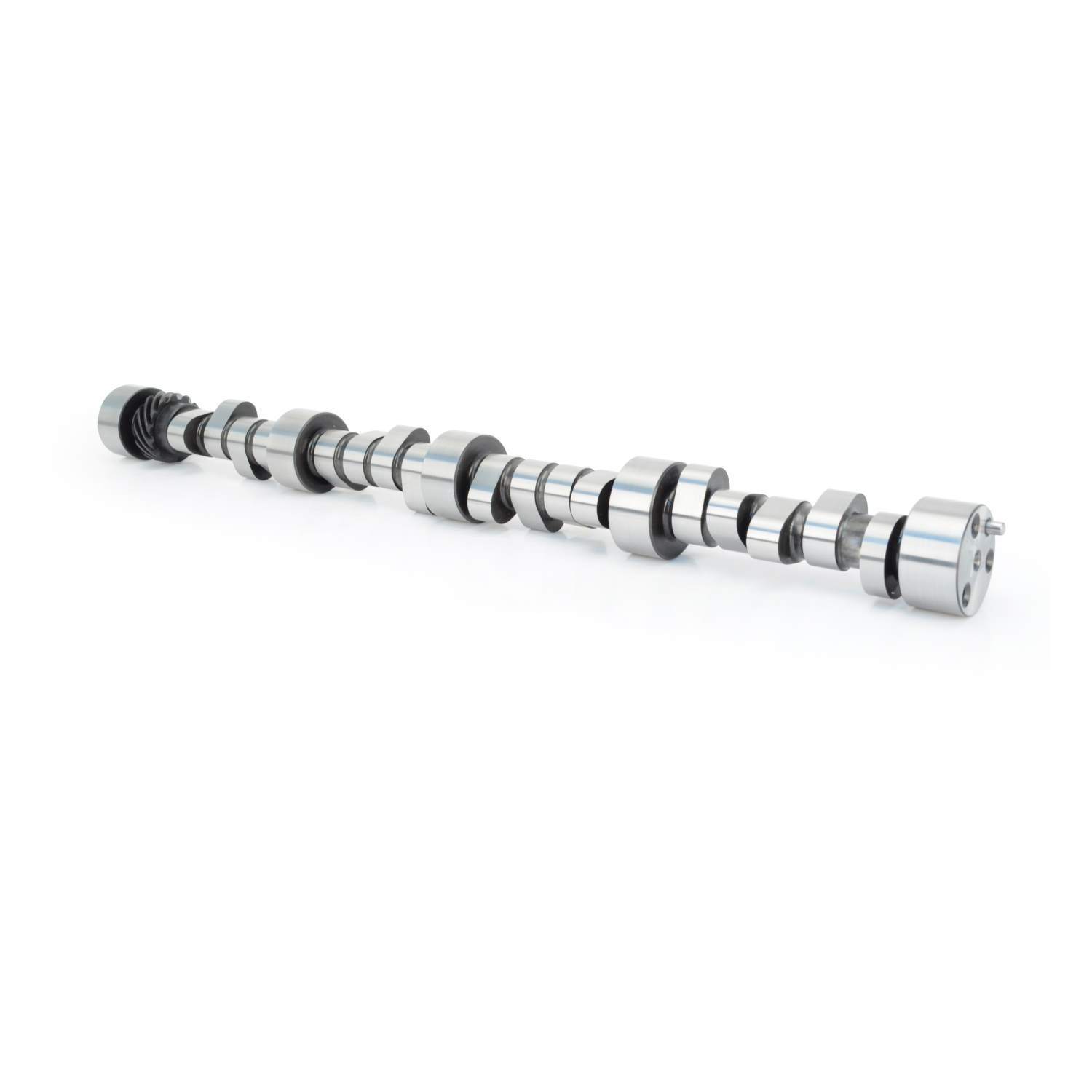

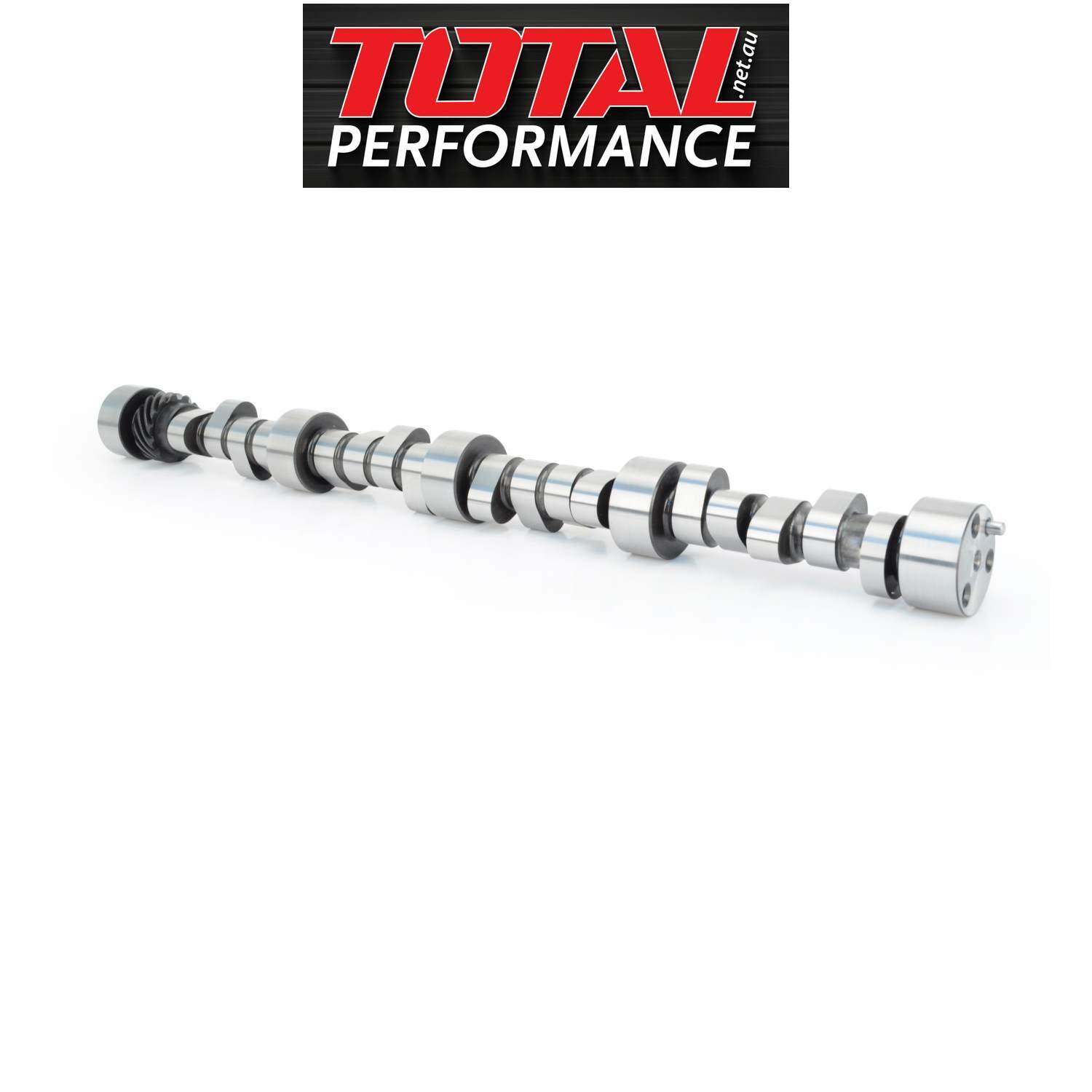

11-617-44 4-Pattern 253/263 IB 255/265 OB Hydraulic Roller Cam Chevrolet Big Block 396-454

** FREE SHIPPING ON ORDERS OVER $200 **

Description

Recommended in highly modified street/strip or bracket race engines and also works well in 572+ c.i. applications.

Specifications

SKU	11-617-44
Barcode #	036584259718
Brand	COMP CAMS
Outboard Intake Duration At .050 Inch Lift	255
Outboard Exhaust Valve Lift	0.661
Inboard Exhaust Valve Lift	0.661
Outboard Intake Valve Lift	0.678
Inboard Intake Valve Lift	0.678
Advertised Outboard Exhaust Duration	319
Advertised Inboard Exhaust Duration	317
Advertised Outboard Intake Duration	307
Advertised Inboard Intake Duration	305
Outboard Exhaust Duration At .050 Inch Lift	265
Inboard Exhaust Duration At .050 Inch Lift	263
Lifter Type	Hydraulic Roller
Inboard Intake Duration At .050 Inch Lift	253
Camshaft Material	Billet Steel
Camshaft Gear Attachment	3-Bolt
Valve Springs Required	Yes
Lifters Included	No
Basic Operating Rpm Range	3200-7,500
Grind Number	305QIO10
Camshaft Series	4-Pattern
Cam Type	Hydraulic Roller
