SKU: 12-225-4

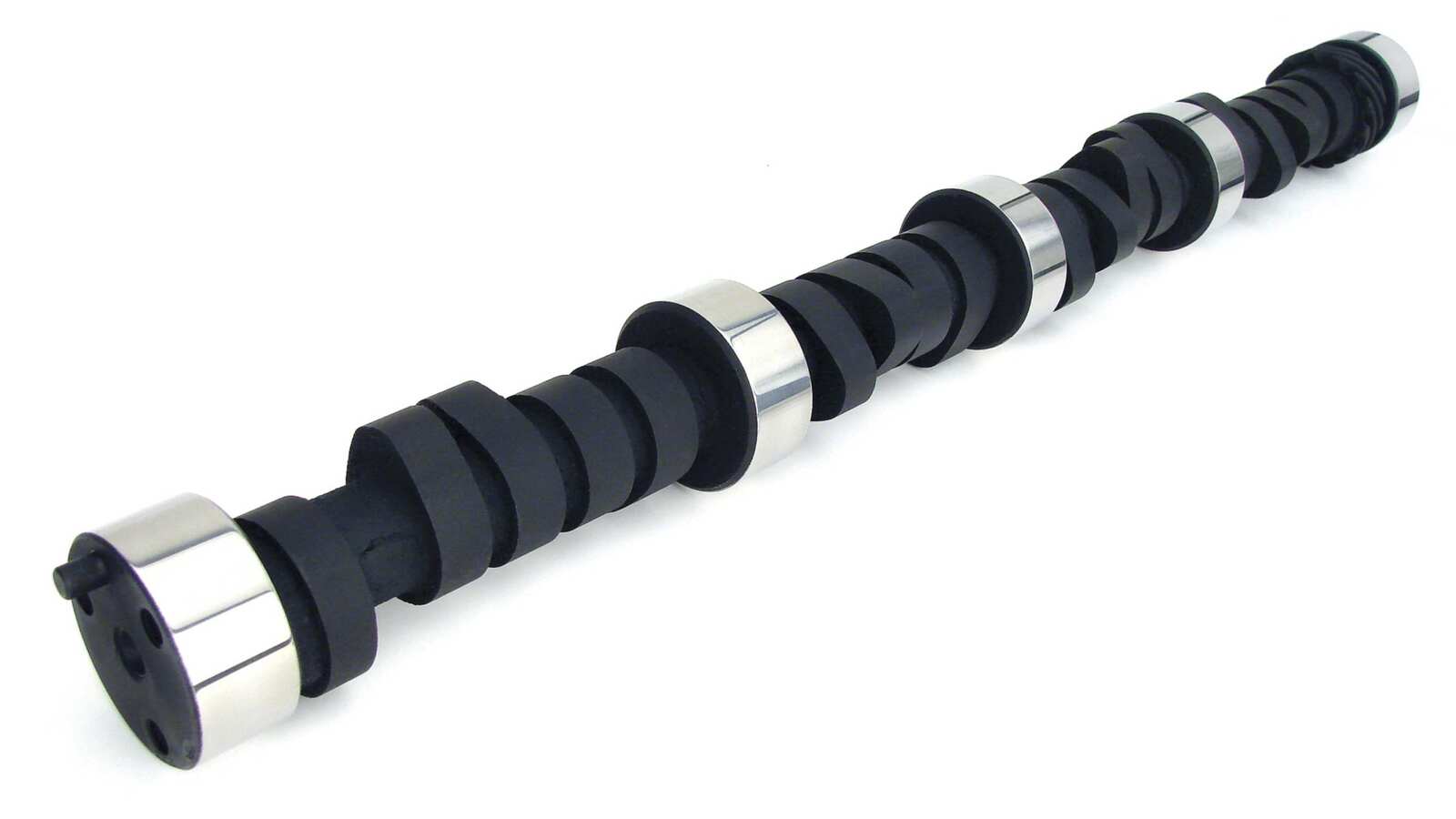

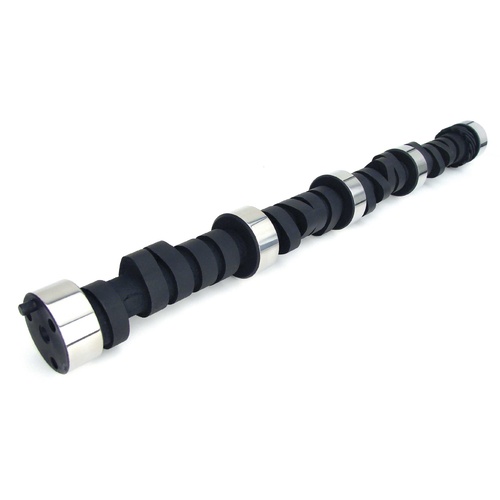

12-225-4 Magnum 260/260 Solid Flat Cam for Chevrolet Small Block

$280.59

or 4 payments of $70.15 with Info

Sold Out

Description

Street/strip. 3500+ stall, 10.5:1 compression. Low gears, headers and intake. Racy idle.

Specifications

SKU 12-225-4
Barcode # 036584540069
Brand COMP CAMS
Lifters Included No
Camshaft Series Magnum
Exhaust Duration At .050 Inch Lift 260
Advertised Exhaust Duration 306
intake valve lift 0.555
Camshaft Gear Attachment 3-Bolt
Basic Operating Rpm Range 3,000-7000
Lobe Separation 110
Cam Type Solid Flat Tappet
Lifter Type Solid Flat Tappet
Valve Springs Required Yes
Grind Number 306S
Intake Duration At .050 Inch Lift 260
Advertised Intake Duration 306
Exhaust Valve Lift 0.555
Camshaft Material Cast Iron
