SKU: 12-468-8

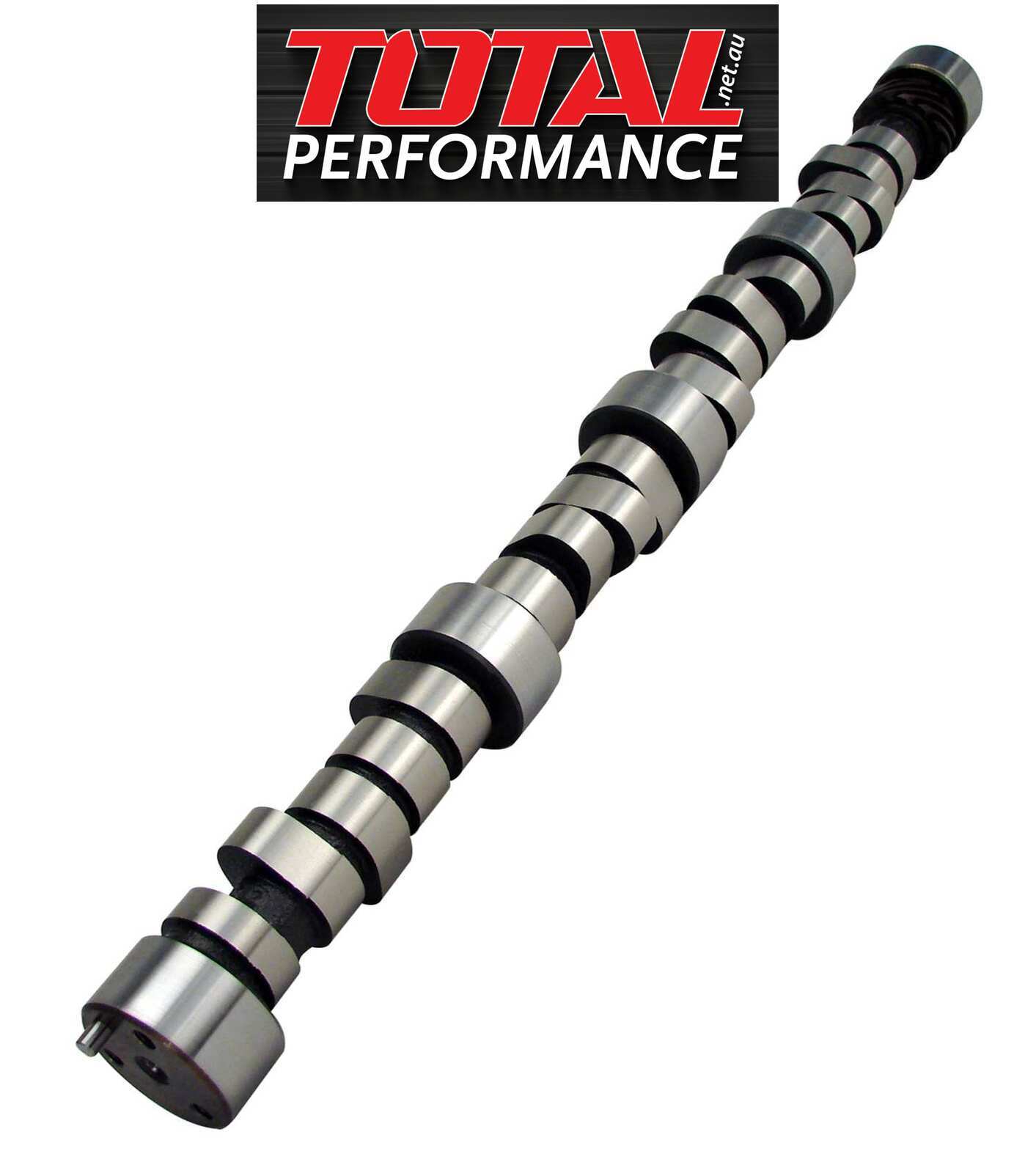

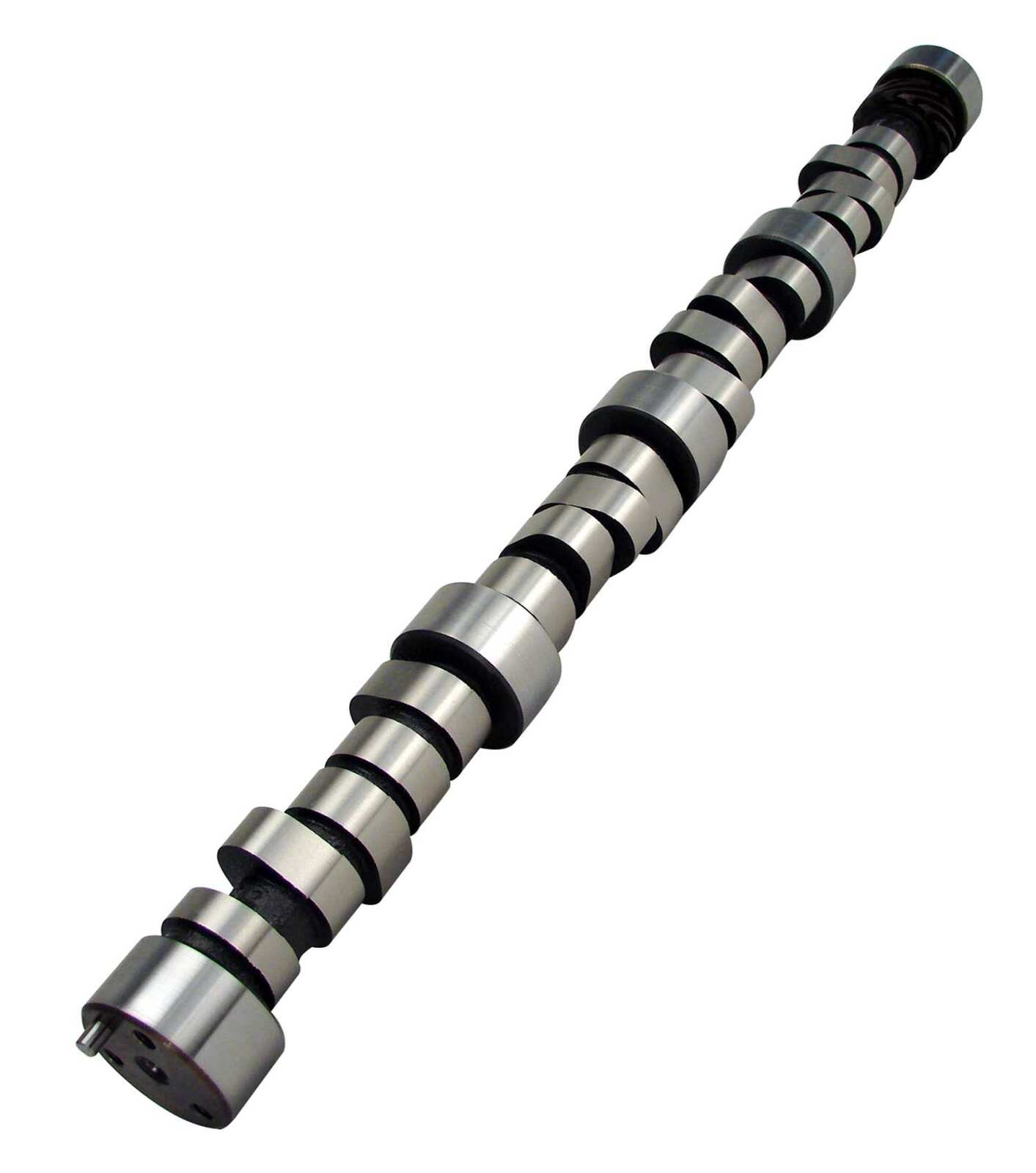

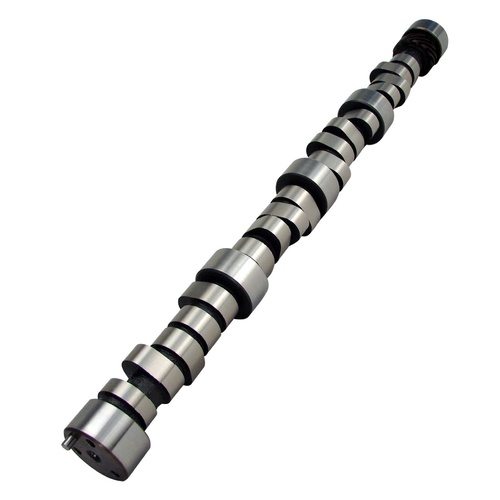

SBC XFI 242/248 Hydraulic Roller Camshaft Chevy Small Block 350 LSA 113 .584"/.579" @ 1.6 ratio

RPM Range: 2200-6200

$907.81

or 4 payments of $226.95 with Info

Sold Out

Description

Comp Cams 292XFIHR13 Chevy 350 Hydraulic Roller Camshaft. Street/strip. Best at wide-open throttle. Need all upgrades with 2600+ converter. 9.5:1 compression.

  • Xtreme Fuel Injection (XFI™) -Newest & quickest lobe profiles in the Xtreme family; Provide a terrific increase in performance • Tuned for use in EFI applications where extra air flow signal through the carburetor is not required (feature wider lobe separation w/o loss of responsiveness) • Work well w/ aftermarket cylinder heads & feature high lift

  • Warning: Camshaft Optimized for use with a Melanized or Nitrided distributor gear. Not compatible with cast or steel gears without similar surface treatments. Failure to utilize the proper distributor gear will void all warranties and/or return policies.



Engine Family:   Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)

RPM Operating Range:   2,200-6,200

Grind Number:   292XFI HR-13

Cam Type:   Hydraulic Roller

Lifter Style:  Hydraulic Roller

Camshaft Series:  XFI

Usage:  Street/Performance

Advertised Intake Duration:  292

Advertised Exhaust Duration:  300

Intake Duration at .050 Inch Lift:  242

Exhaust Duration at .050 Inch Lift:  248

Intake Valve Lift:  0.584

Exhaust Valve Lift:   0.579

Lobe Separation:   113

Exhaust Close ATDC:   33

Intake Open BTDC:  37

Exhaust Open BBDC:  87

Intake Close ABDC:  75

Camshaft Gear Attachment:  3-Bolt

Specifications

SKU 12-468-8
Barcode # 036584105381
Brand COMP CAMS
Lifters Included No
Camshaft Series XFI
Exhaust Duration At .050 Inch Lift 248
Advertised Exhaust Duration 300
intake valve lift 0.584
Camshaft Gear Attachment 3-Bolt
Basic Operating Rpm Range 2,200-6,200
Lobe Separation 113
Cam Type Hydraulic Roller
Lifter Type Hydraulic Roller
Valve Springs Required Yes
Grind Number 292XFI HR-13
Intake Duration At .050 Inch Lift 242
Advertised Intake Duration 292
Exhaust Valve Lift 0.579
Camshaft Material Austempered Ductile Iron
