SKU: 646-431-13

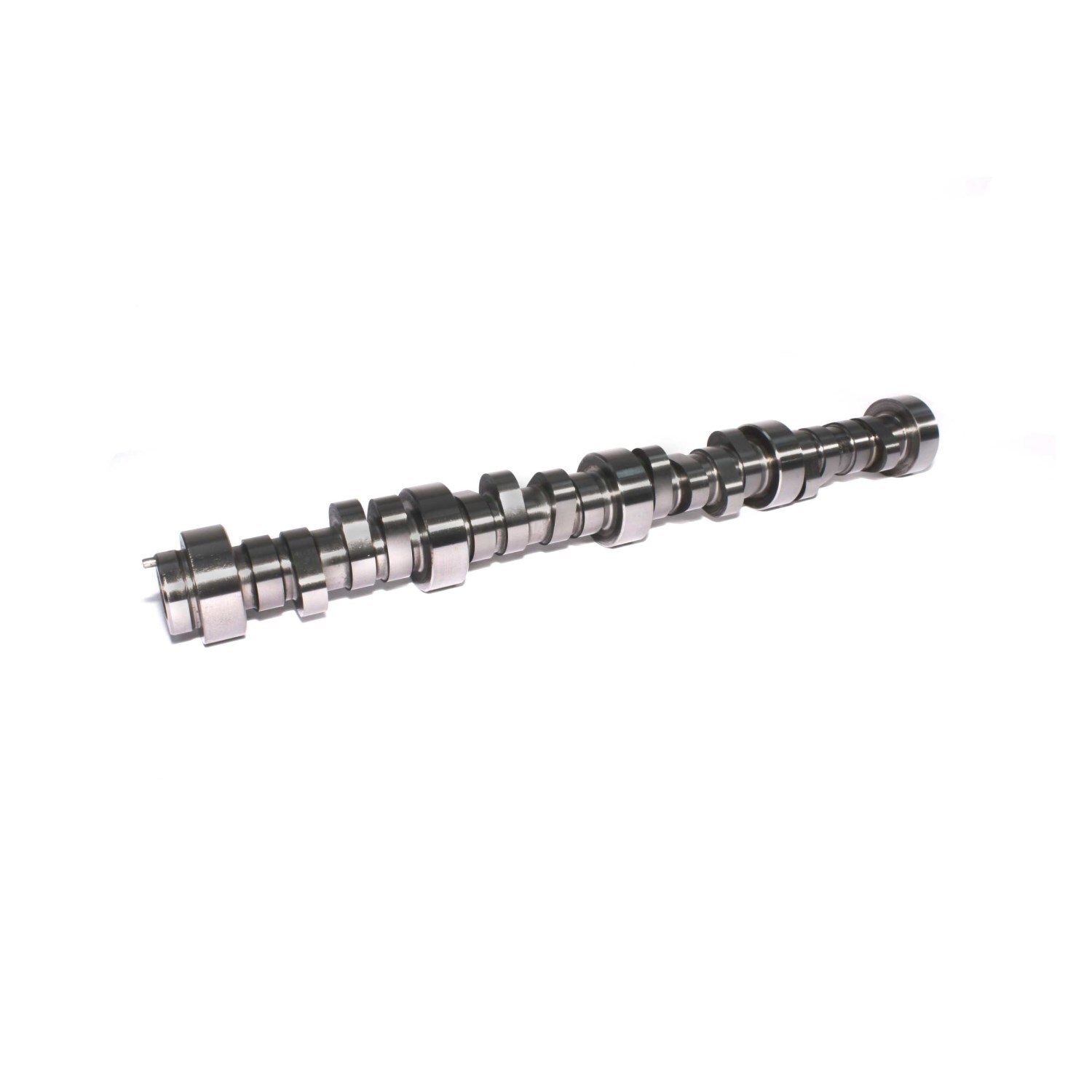

646-431-13 XFI AFM 212/224 D, 210/222 N Hydraulic Roller Cam for GM LS2/LS3 GEN IV

$868.51

or 4 payments of $217.13 with Info

SOLD OUT

*FREE SHIPPING ON ORDERS OVER $200!

Description

Great all around torque for trucks and other heavy applications; across the board improvements power over stock AFM cams.

Specifications

SKU 646-431-13
Barcode # 036584238003
Brand COMP CAMS
Advertised Exhaust Duration Deactivation Cylinders 286
Afm Delete Camshaft Core Prefix 146-
Exhaust Valve Lift Non-deactivation Cylinders 0.5
Intake Valve Lift Non-deactivation Cylinders 0.5
Exhaust Valve Lift Deactivation Cylinders 0.5
Intake Valve Lift Deactivation Cylinders 0.5
Exhaust Duration At .050" Non-deactivation Cylinde 222
Intake Duration At .050" Non-deactivation Cylinder 210
Advertised Exhaust Duration Non-deactivation Cylin 274
Advertised Intake Duration Non-deactivation Cylind 262
Exhaust Duration At .050" Deactivation Cylinders 224
Intake Duration At .050" Deactivation Cylinders 212
Lifter Type Hydraulic Roller
Advertised Intake Duration Deactivation Cylinders 275
Camshaft Material Billet Steel
Camshaft Gear Attachment 1-Bolt
Valve Springs Required Yes
Lifters Included No
Basic Operating Rpm Range 1,600-6,300
Grind Number 262AFM15
Camshaft Series XFI AFM
Lobe Separation 115
Cam Type Hydraulic Roller
