SKU: 12-477-44

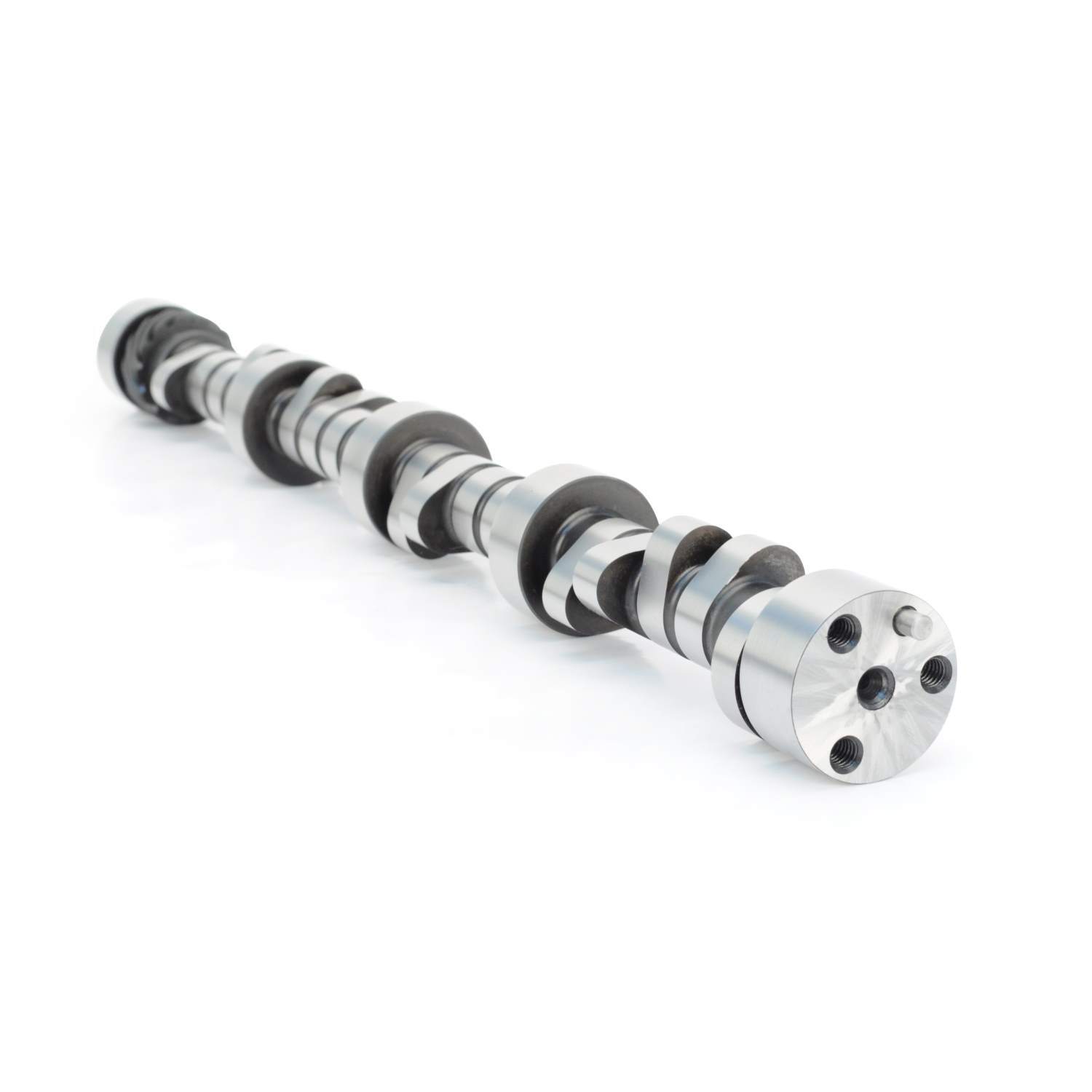

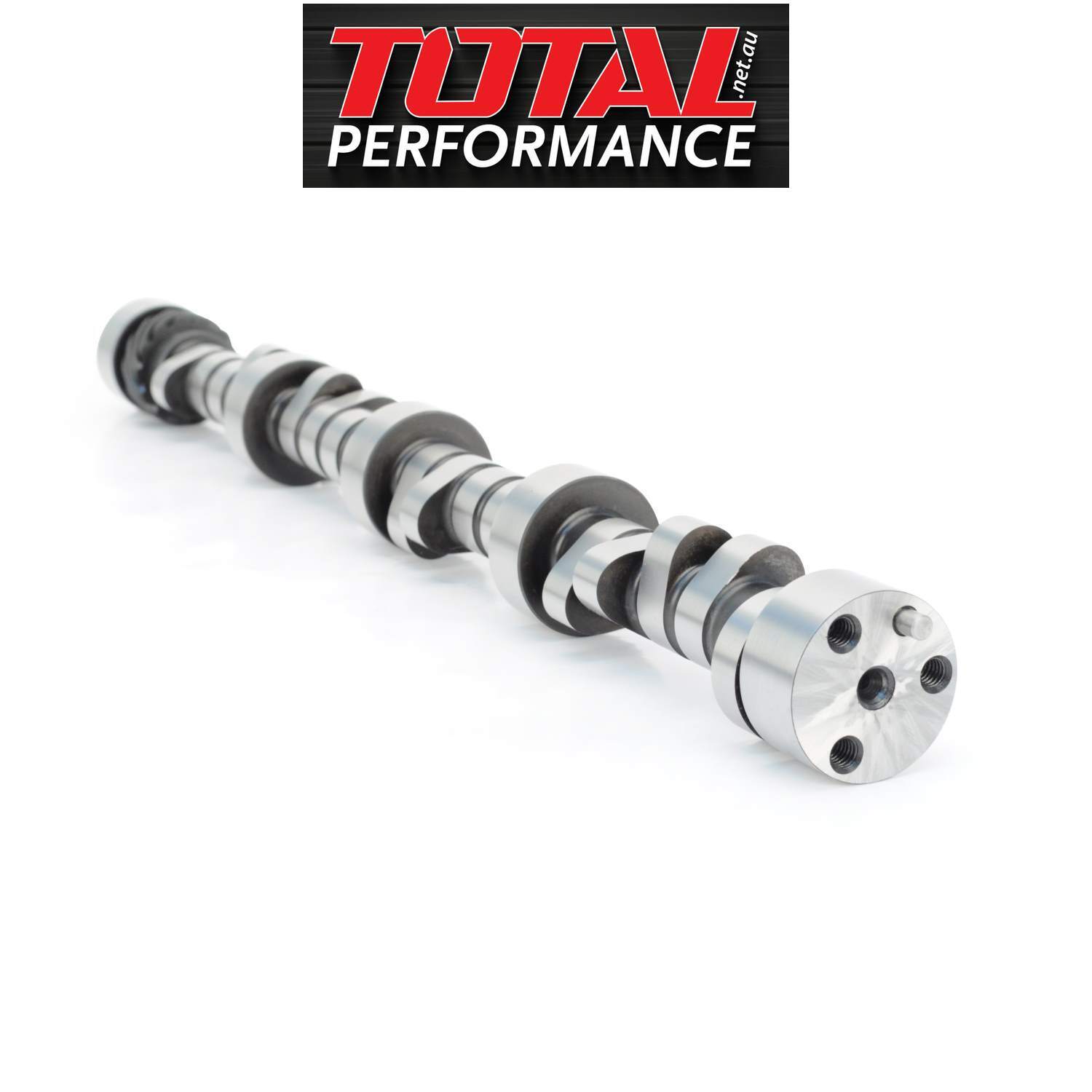

SBC 4-Pattern 258/268 IB, 260/270 OB Hydraulic Roller Camshaft Chevy Small Block

$1,110.15

or 4 payments of $277.54 with Info

SOLD OUT

*FREE SHIPPING ON ORDERS OVER $200!

Description

Recommended in highly modified 420+ c.i. stroker applications with higher compression. 3500+ Stall.

Specifications

SKU 12-477-44
Barcode # 036584259688
Brand COMP CAMS
Outboard Intake Duration At .050 Inch Lift 260
Outboard Exhaust Valve Lift 0.621
Inboard Exhaust Valve Lift 0.621
Outboard Intake Valve Lift 0.637
Inboard Intake Valve Lift 0.637
Advertised Outboard Exhaust Duration 325
Advertised Inboard Exhaust Duration 323
Advertised Outboard Intake Duration 313
Advertised Inboard Intake Duration 311
Outboard Exhaust Duration At .050 Inch Lift 270
Inboard Exhaust Duration At .050 Inch Lift 268
Lifter Type Hydraulic Roller
Inboard Intake Duration At .050 Inch Lift 258
Camshaft Material Billet Steel
Camshaft Gear Attachment 3-Bolt
Valve Springs Required Yes
Lifters Included No
Basic Operating Rpm Range 3200-7,500
Grind Number 311QS10
Camshaft Series 4-Pattern Small Base Circle
Cam Type Hydraulic Roller
