SKU: 689-422-13

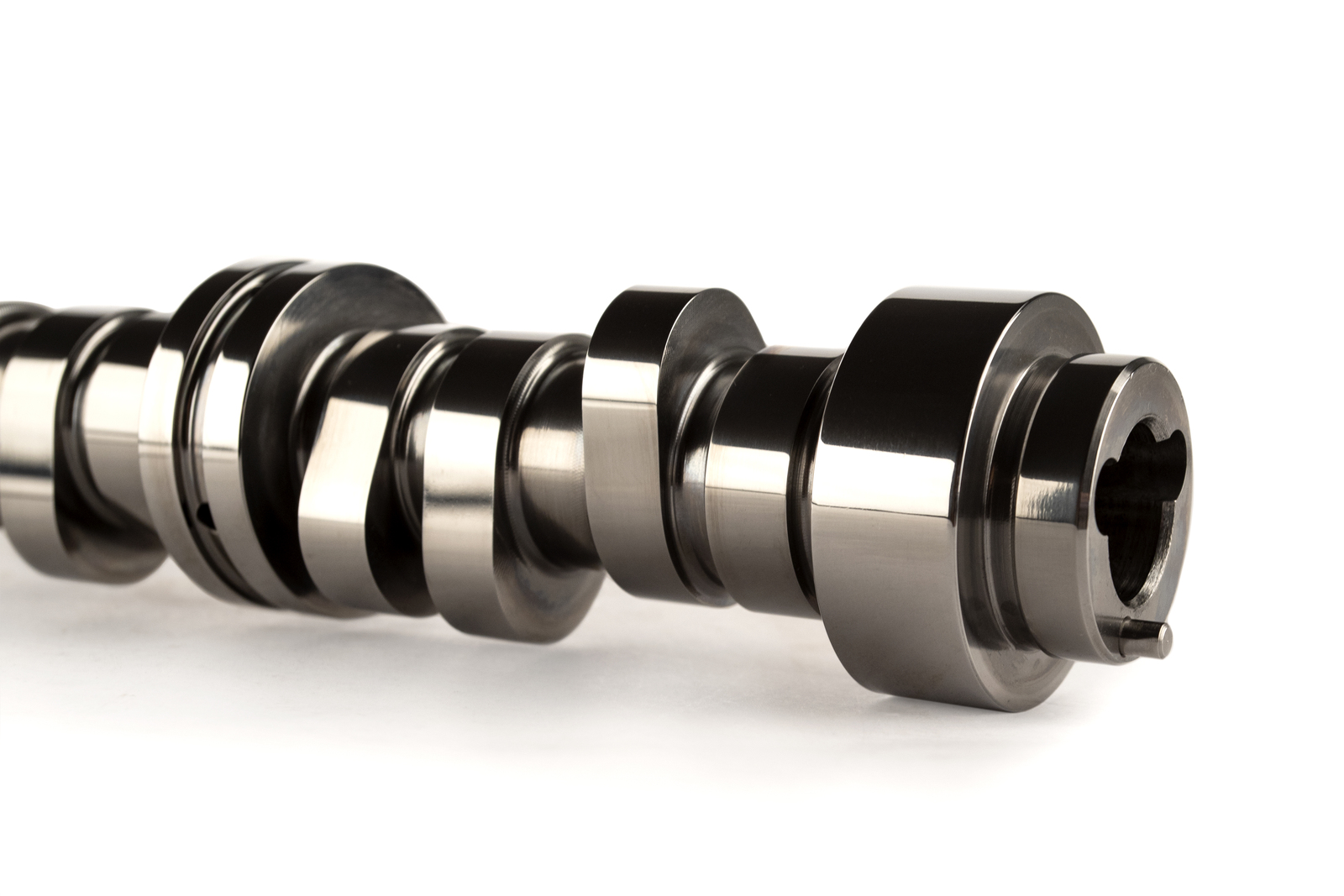

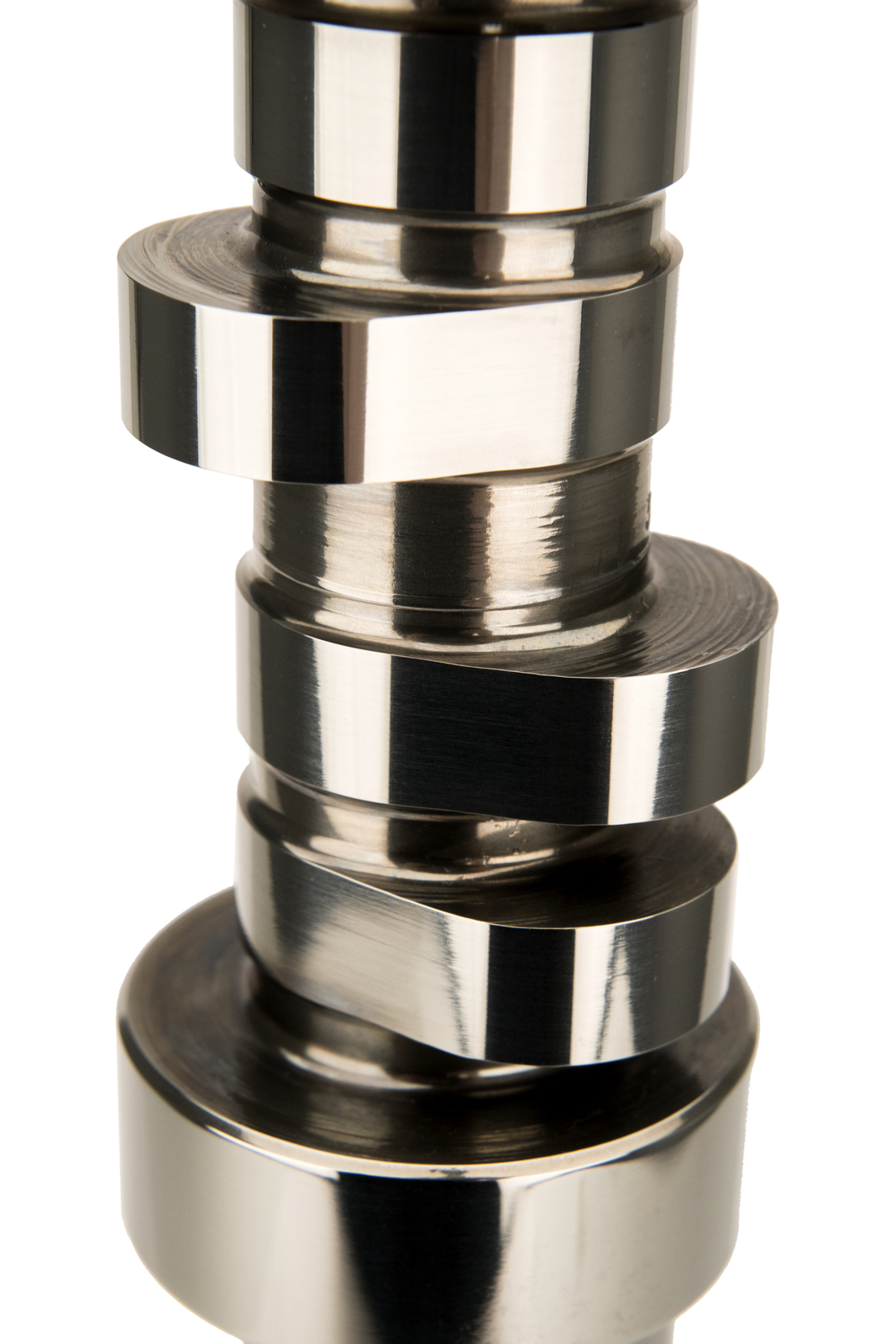

689-422-13 XFI AFM 220/232 D, 218/230 N Hydraulic Roller Cam for GM LS GEN IV

$931.84

or 4 payments of $232.96 with Info

SOLD OUT

*FREE SHIPPING ON ORDERS OVER $200!

Description

Great all around performance and best choice for mildly modified L99 Camaro applications with AFM enabled.

Specifications

SKU 689-422-13
Barcode # 036584237938
Brand COMP CAMS
Intake Valve Lift Deactivation Cylinders 0.5
Advertised Intake Duration Non-deactivation Cylind 270
Exhaust Duration At .050 Inch Lift Deactivation Cy 232
Exhaust Duration At .050 Inch Lift Non-deactivatio 230
Advertised Exhaust Duration Non-deactivation Cylin 282
Intake Duration At .050 Inch Lift Deactivation Cyl 220
Intake Duration At .050 Inch Lift Non-deactivation 218
Exhaust Valve Lift Non-deactivation Cylinders 0.5
Intake Valve Lift Non-deactivation Cylinders 0.5
Exhaust Valve Lift Deactivation Cylinders 0.5
Lobe Separation 115
Advertised Exhaust Duration Deactivation Cylinders 294
Advertised Intake Duration Deactivation Cylinders 282
Camshaft Material Billet Steel
Camshaft Gear Attachment 1-Bolt
Valve Springs Required Yes
Lifters Included No
Grind Number 270PIIHR15
Camshaft Series XFI AFM
