SKU: 31-331-4

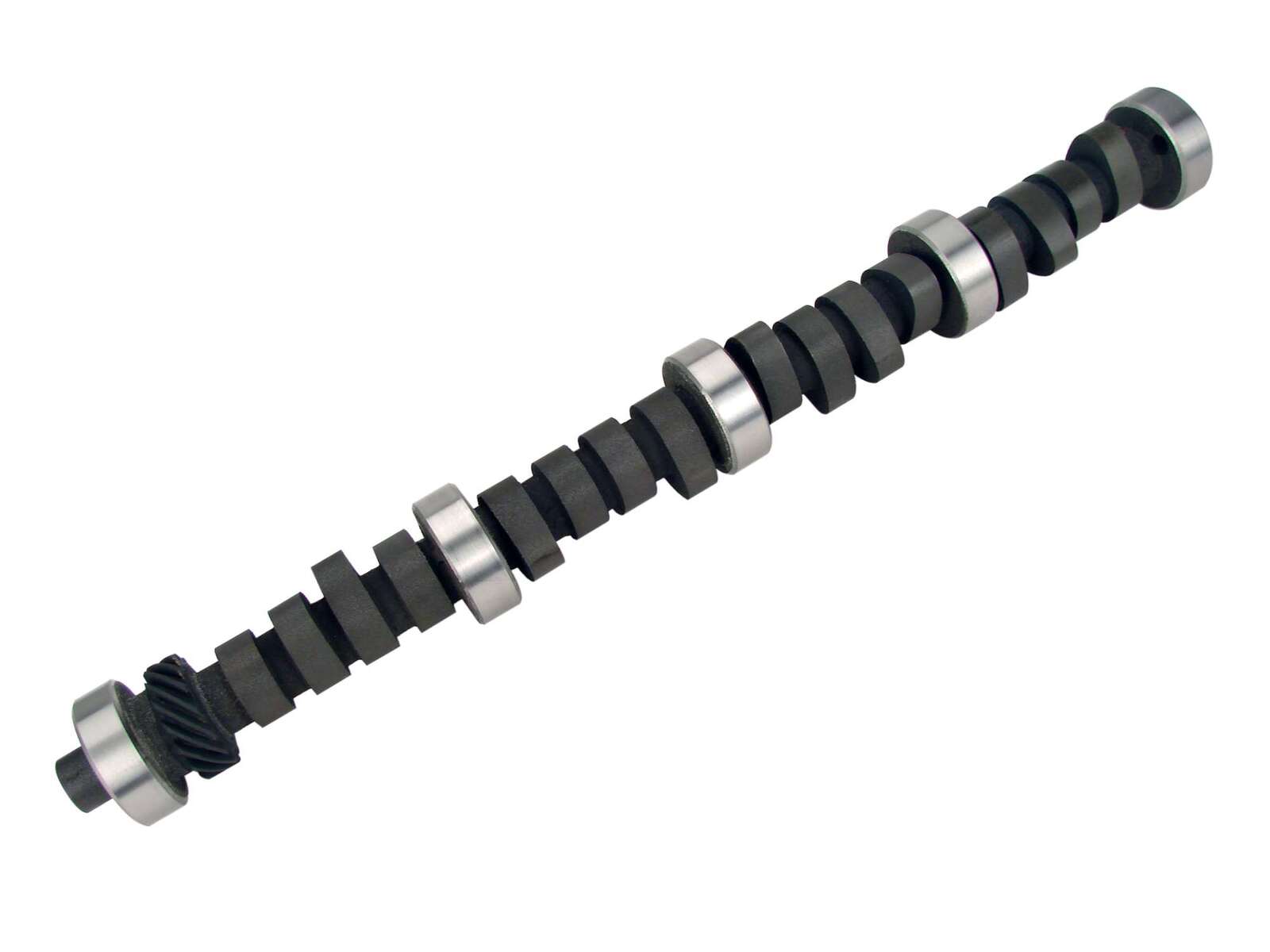

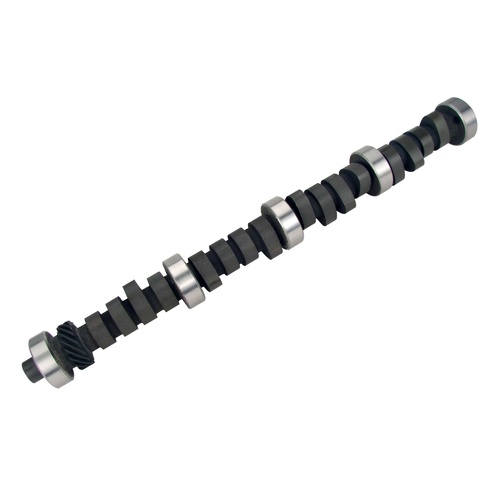

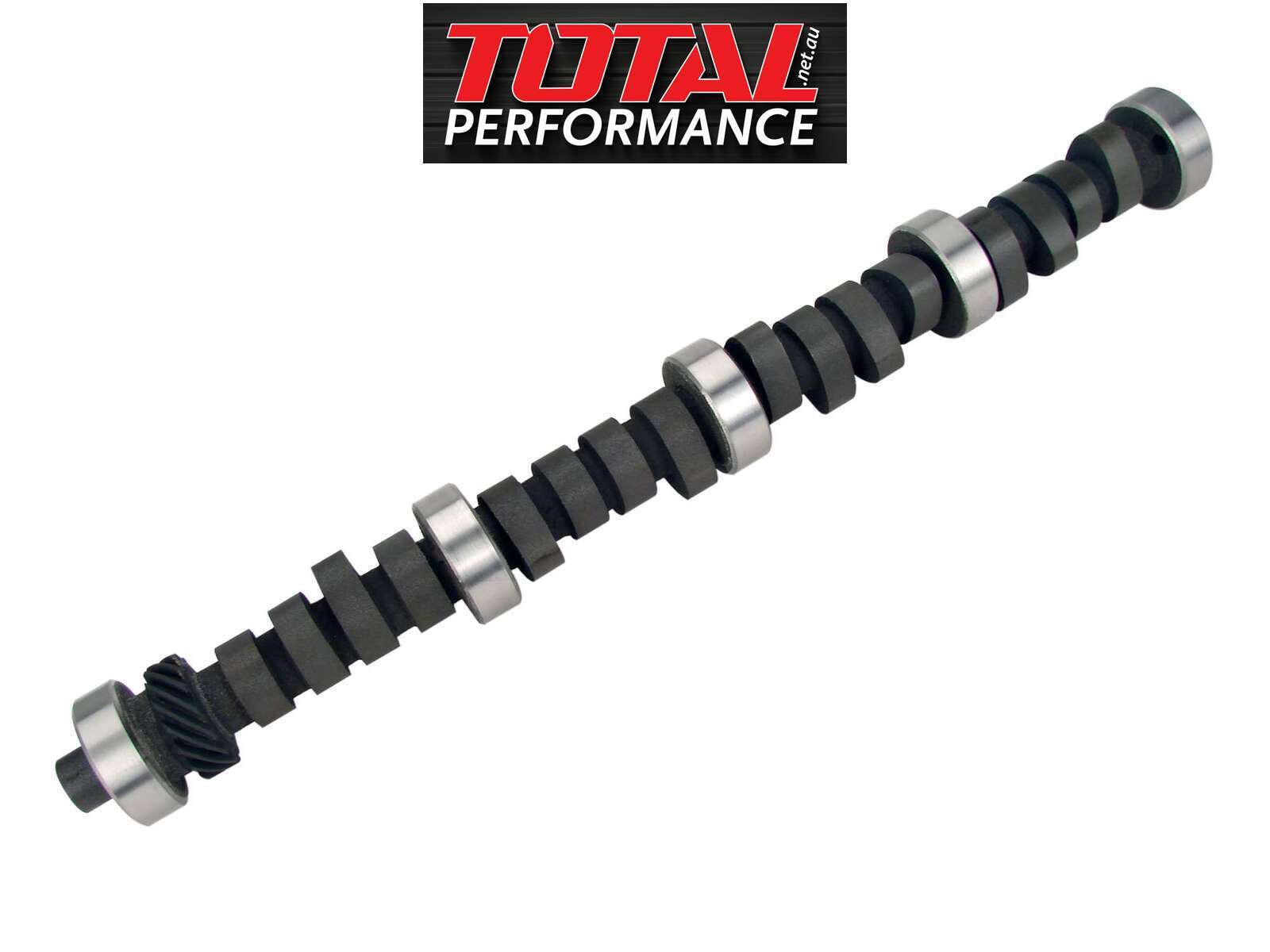

31-331-4 Magnum/Drag Race 253/253 Hydraulic Flat Cam for Ford 221-302

$280.59

or 4 payments of $70.15 with Info

Sold Out

Description

Limited street use or bracket race. 11:1 compression, intake and exhaust. Radical idle. Good for 4 speed or 3500+ stall, 10.5:1+ compression.

Specifications

SKU 31-331-4
Barcode # 036584611158
Brand COMP CAMS
Lifters Included No
Camshaft Series Magnum
Exhaust Duration At .050 Inch Lift 253
Advertised Exhaust Duration 305
intake valve lift 0.54
Camshaft Gear Attachment 1-Bolt
Basic Operating Rpm Range 3,000-7000
Lobe Separation 110
Cam Type Hydraulic Flat Tappet
Lifter Type Hydraulic Flat Tappet
Valve Springs Required Yes
Grind Number 305AH-10
Intake Duration At .050 Inch Lift 253
Advertised Intake Duration 305
Exhaust Valve Lift 0.54
Camshaft Material Cast Iron
