SKU: 54-463-11

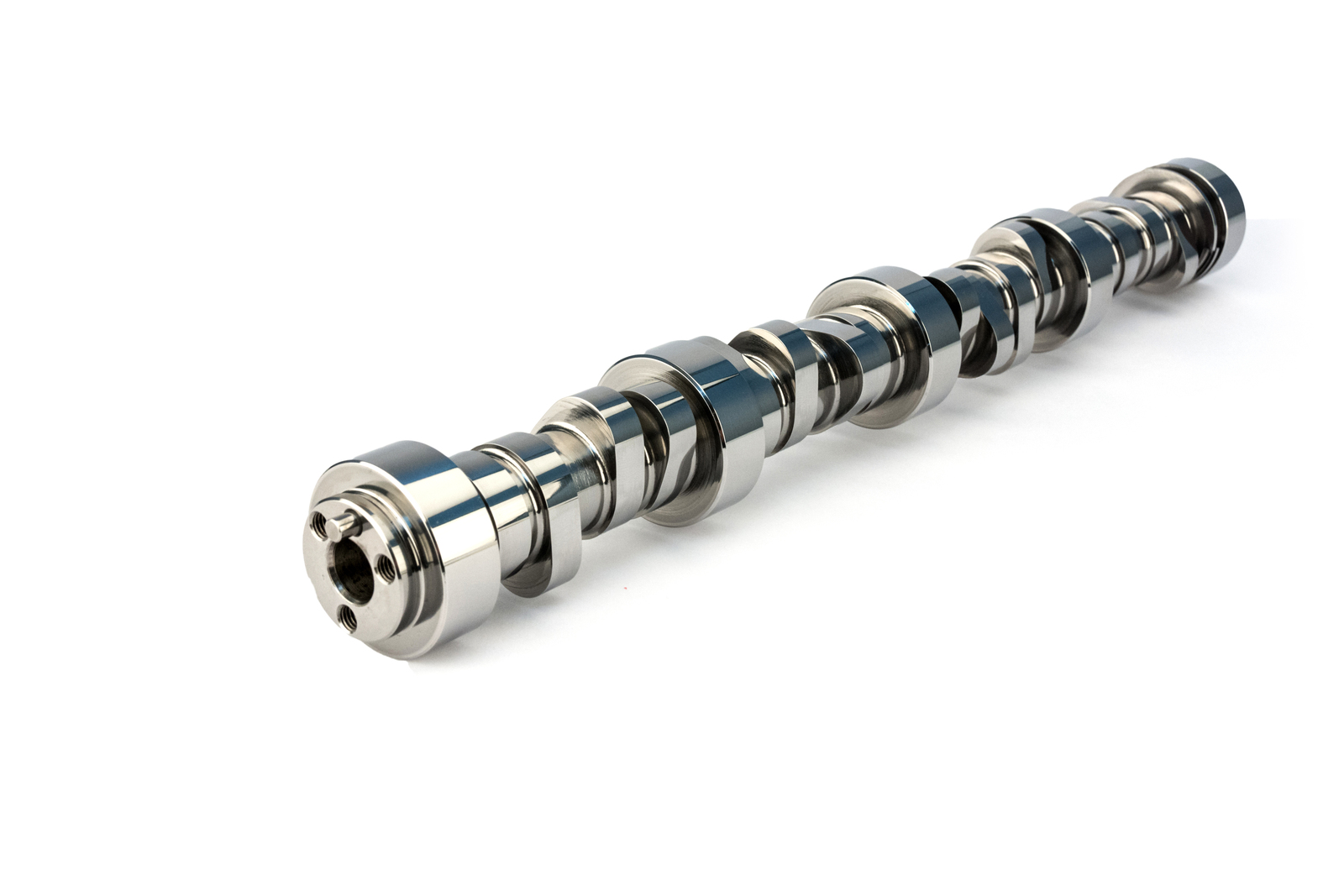

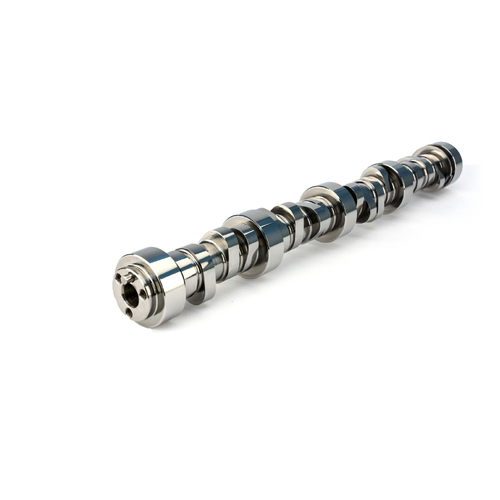

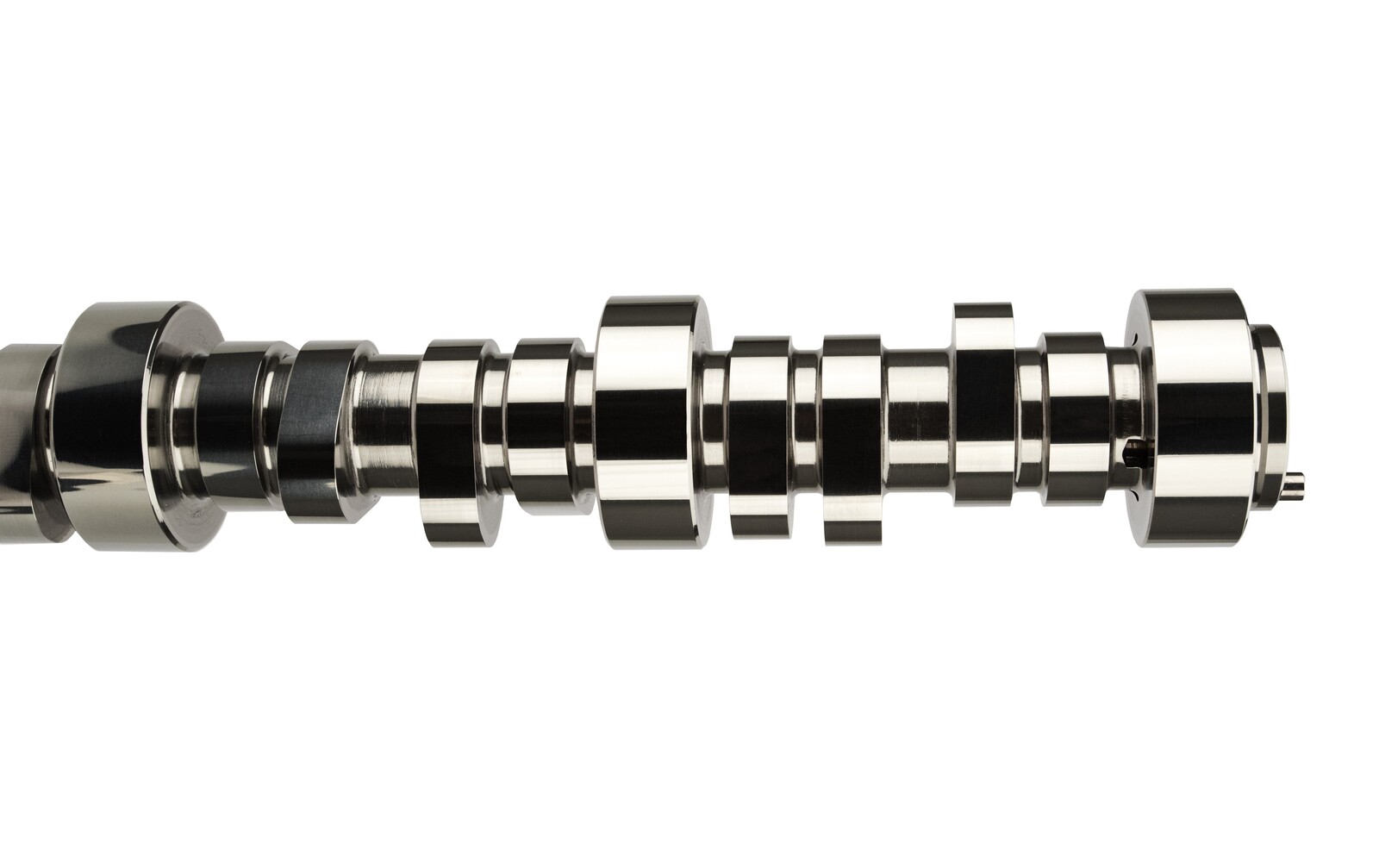

54-463-11 LSR Cathedral Port 247/255 Hydraulic Roller Cam for GM LS GEN III/IV

$926.22

or 4 payments of $231.56 with Info

SOLD OUT

Description

400+c.i., high RPM applications with major modifications and cathedral port cylinder heads.

Specifications

SKU 54-463-11
Barcode # 036584195276
Brand COMP CAMS
intake valve lift 0.624
Exhaust Valve Lift 0.624
Lifter Type Hydraulic Roller
Advertised Exhaust Duration 305
Advertised Intake Duration 297
Cam Type Hydraulic Roller
Exhaust Duration At .050 Inch Lift 255
Intake Duration At .050 Inch Lift 247
Lobe Separation 114
Camshaft Series LSR Cathedral Port Large Displacement
Grind Number 297LRx HR14
Basic Operating Rpm Range 2,400-7,000
Lifters Included No
Valve Springs Required Yes
Camshaft Gear Attachment 3-Bolt
Camshaft Material Billet Steel
