SKU: 12-684-5

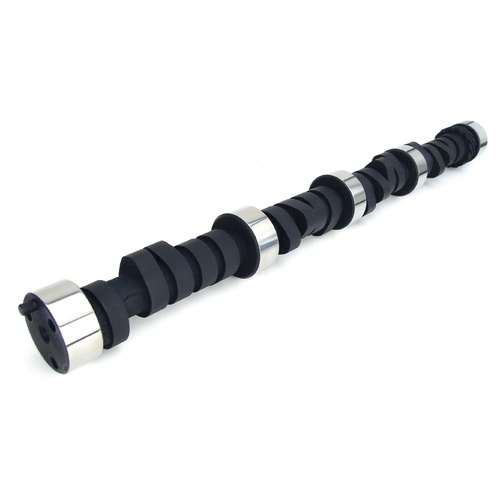

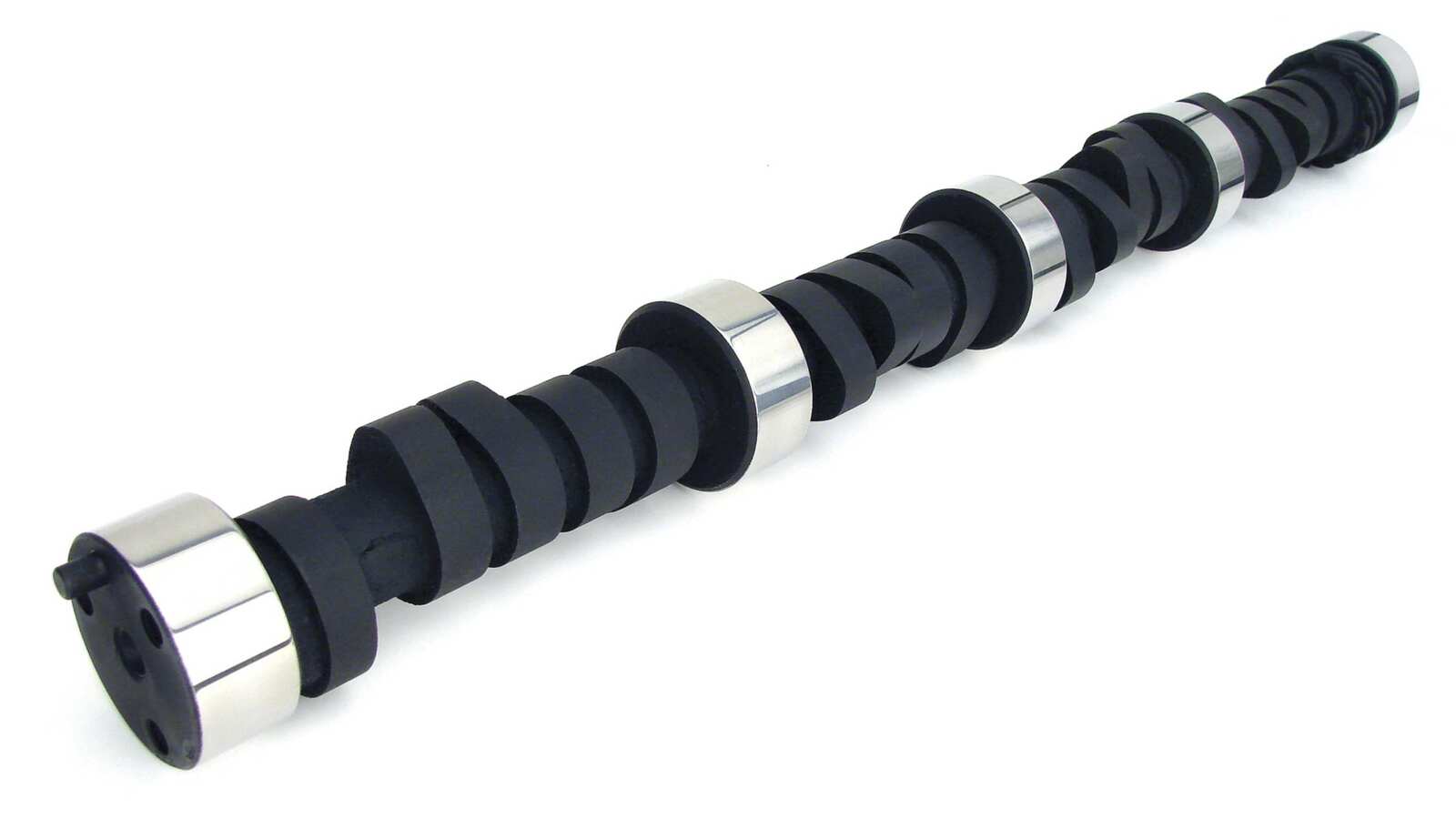

12-684-5 Launcher Series 244/248 Solid Flat Cam for Chevrolet Small Block

$346.67

or 4 payments of $86.67 with Info

Sold Out

Description

.322" lobe lift - Good for short track restricted with stock rocker and .480" or .500" lift rule.

Specifications

SKU 12-684-5
Barcode # 036584070511
Brand COMP CAMS
Lifters Included No
Camshaft Series Launcher Series
Exhaust Duration At .050 Inch Lift 248
Advertised Exhaust Duration 274
intake valve lift 0.483
Camshaft Gear Attachment 3-Bolt
Basic Operating Rpm Range 2,800-6,400
Lobe Separation 107
Cam Type Solid Flat Tappet
Lifter Type Solid Flat Tappet
Valve Springs Required Yes
Grind Number LC2705
Intake Duration At .050 Inch Lift 244
Advertised Intake Duration 270
Exhaust Valve Lift 0.483
Camshaft Material Cast Iron
