SKU: 646-432-13

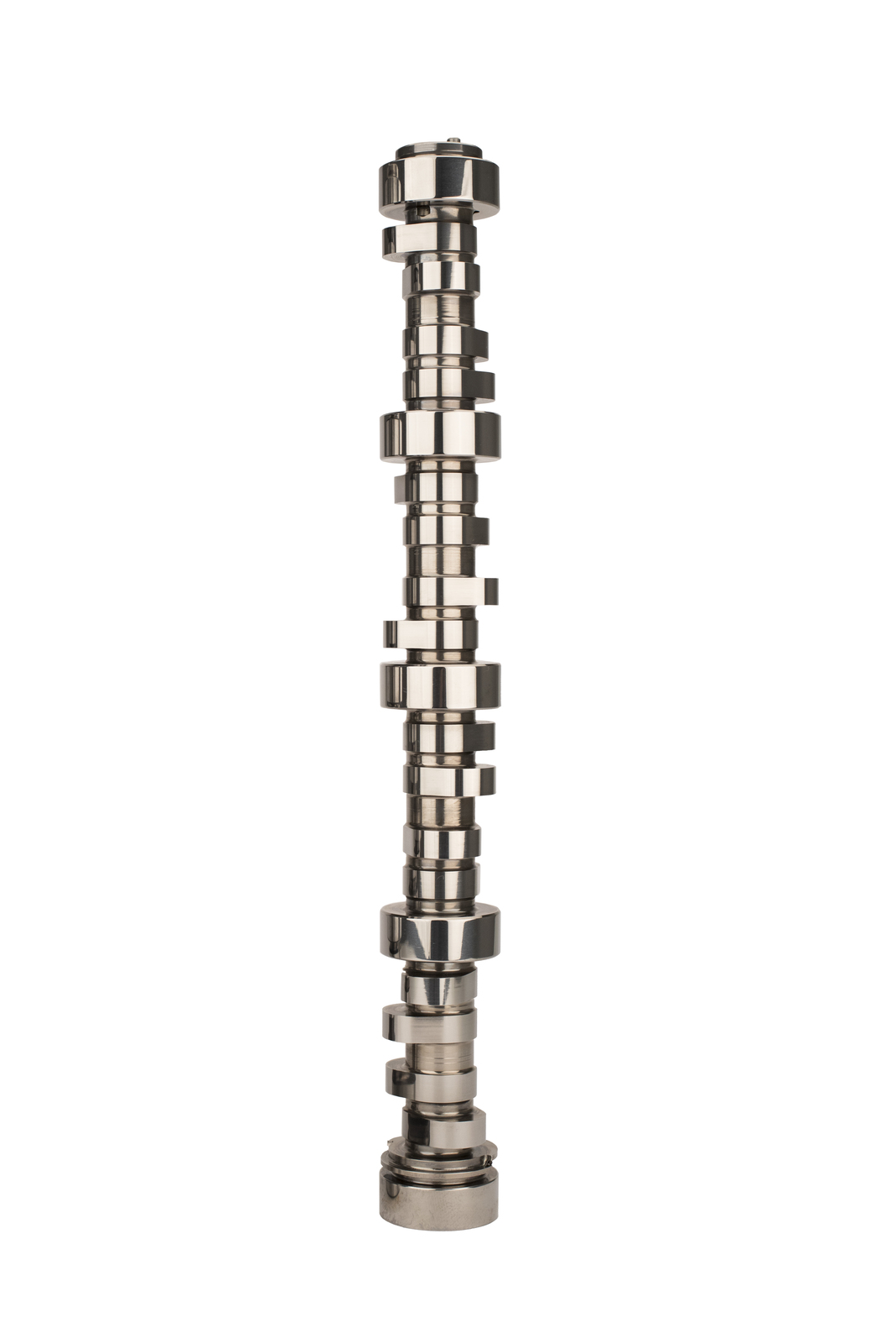

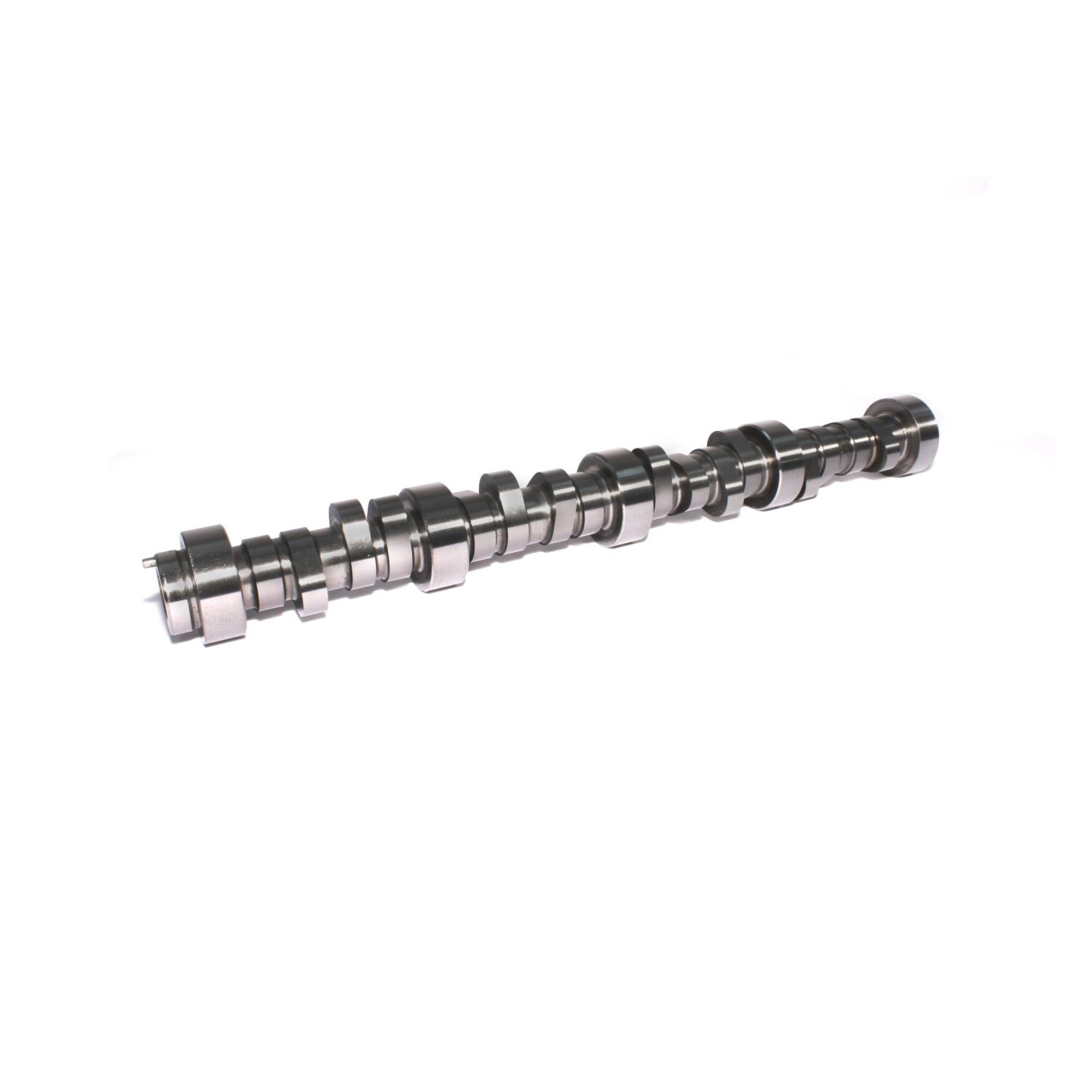

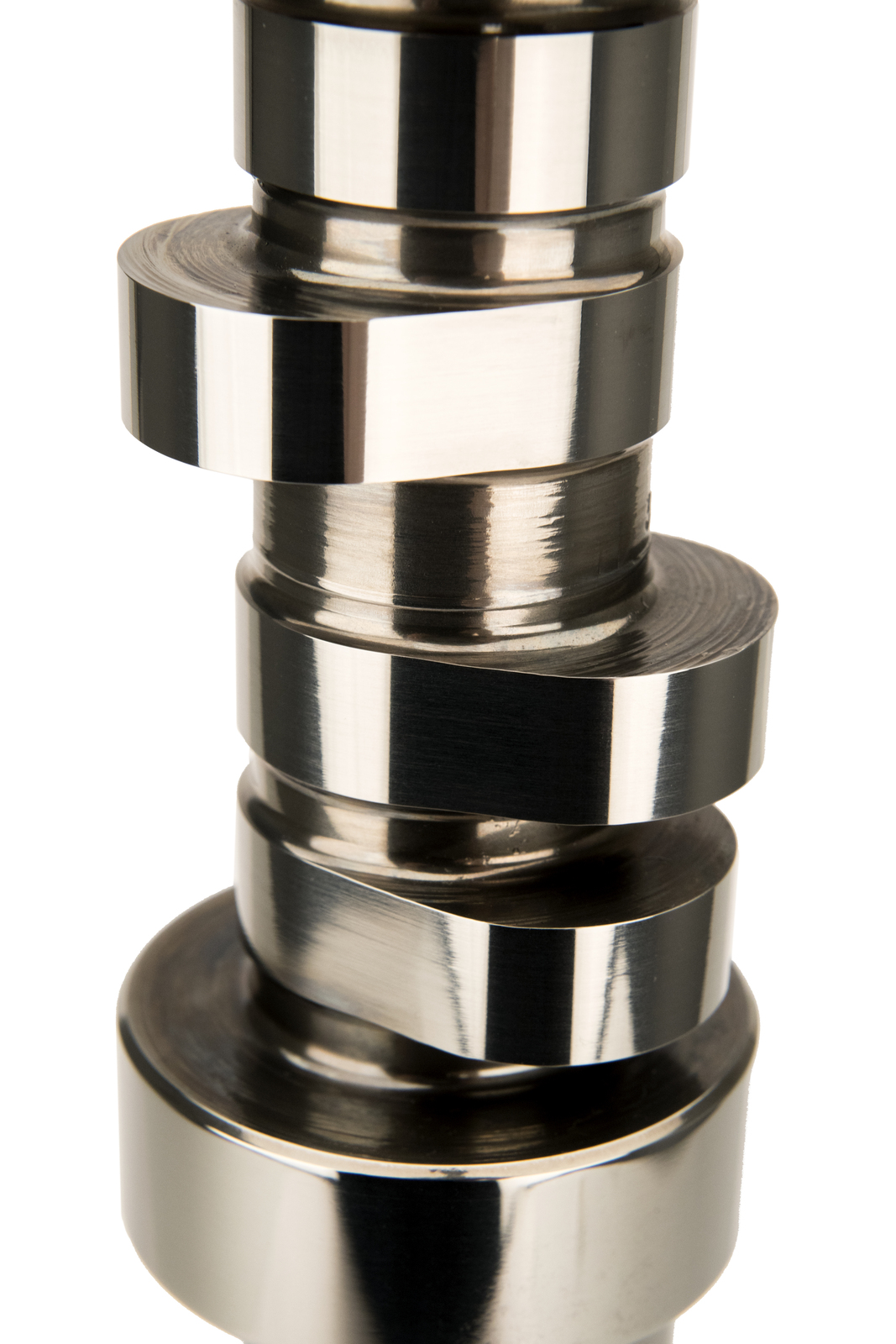

646-432-13 XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM LS2/LS3 GEN IV

$962.57

or 4 payments of $240.64 with Info

SOLD OUT

*FREE SHIPPING ON ORDERS OVER $200!

Description

Excellent performance gains over the widest possible range in modified applications like a G8 with manifold and headers.

Specifications

SKU 646-432-13
Barcode # 036584238010
Brand COMP CAMS
Advertised Exhaust Duration Deactivation Cylinders 294
Exhaust Duration At .050" Non-deactivation Cylinde 230
Intake Duration At .050" Non-deactivation Cylinder 218
Advertised Exhaust Duration Non-deactivation Cylin 282
Advertised Intake Duration Non-deactivation Cylind 270
Afm Delete Camshaft Core Prefix 146-
Exhaust Valve Lift Non-deactivation Cylinders 0.5
Intake Valve Lift Non-deactivation Cylinders 0.5
Exhaust Valve Lift Deactivation Cylinders 0.5
Intake Valve Lift Deactivation Cylinders 0.5
Exhaust Duration At .050" Deactivation Cylinders 232
Intake Duration At .050" Deactivation Cylinders 220
Lifter Type Hydraulic Roller
Advertised Intake Duration Deactivation Cylinders 282
Camshaft Material Billet Steel
Camshaft Gear Attachment 1-Bolt
Valve Springs Required Yes
Lifters Included No
Basic Operating Rpm Range 1,900-6,500
Grind Number 266AFM16
Camshaft Series XFI AFM
Lobe Separation 116
Cam Type Hydraulic Roller
