XE282HR 232/240 LSA 112 Hydraulic Roller Camshaft fits Ford 5.0L 302W 35W Windsor Large Base Circle Xtreme Energy

Description

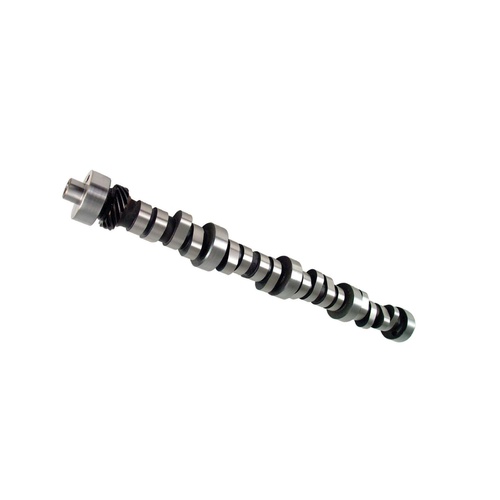

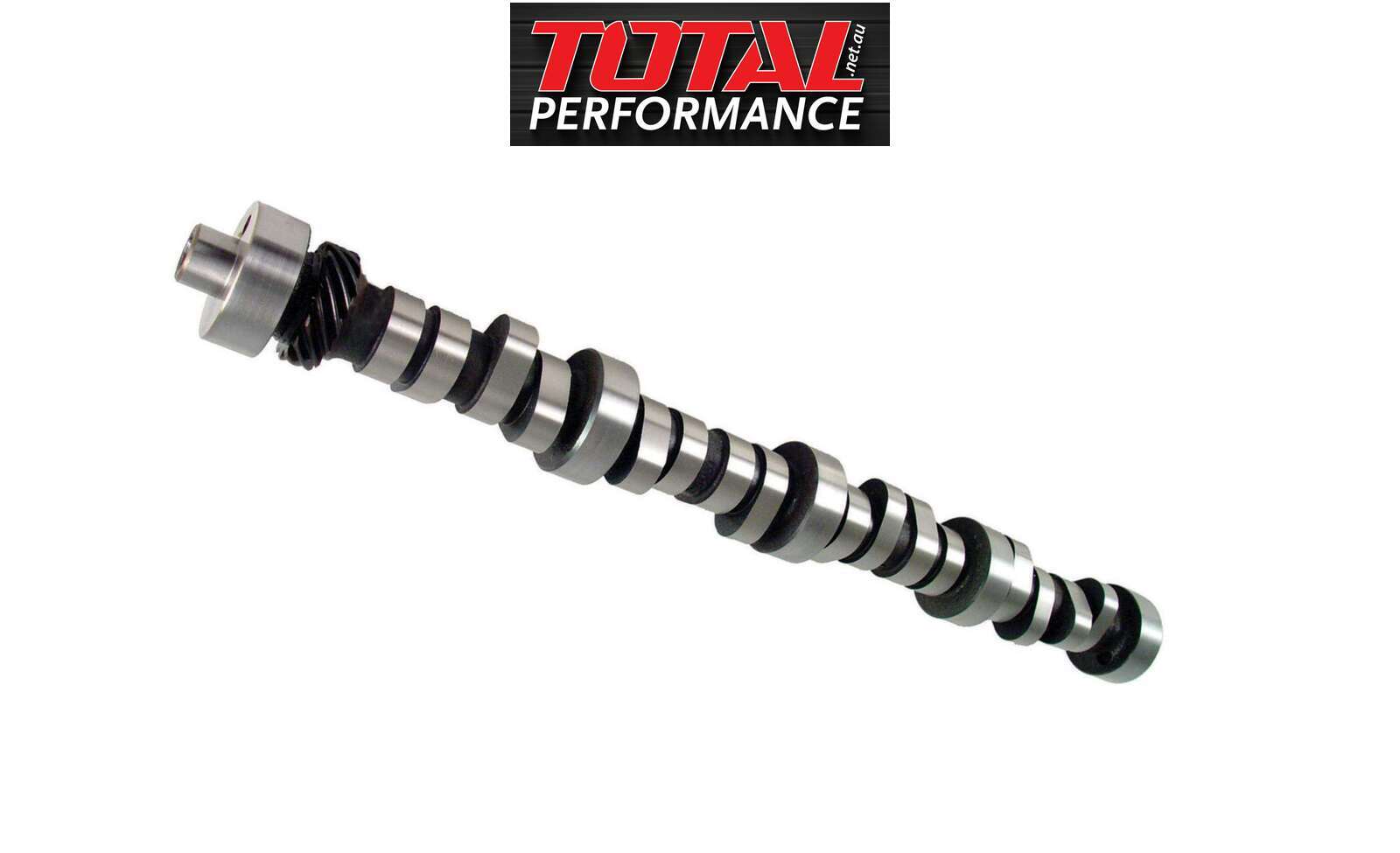

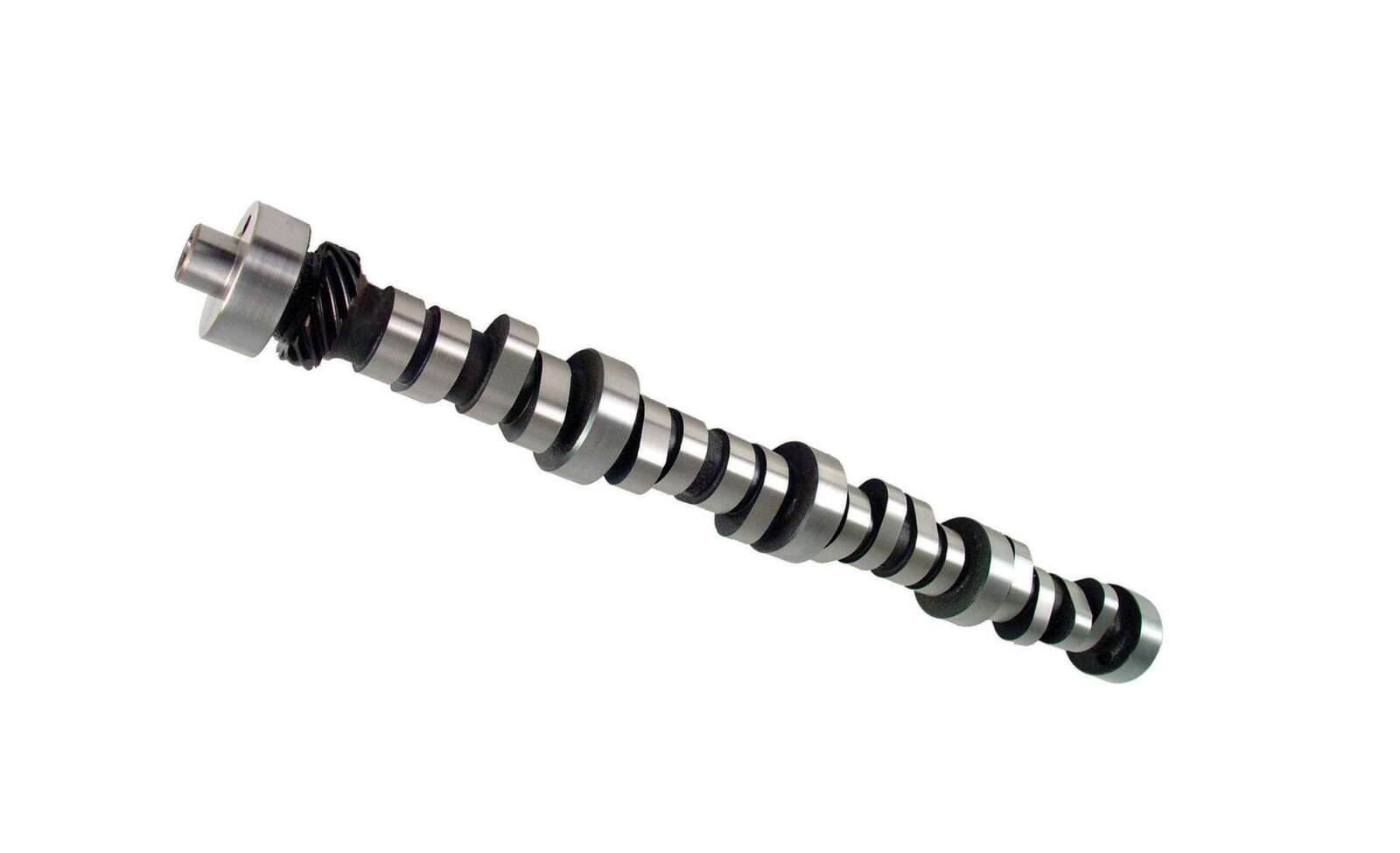

Comp Cams 35-522-8 Grind: XE282HR Ford SBF Windsor Hydraulic Roller Camshaft.

Street/strip, needs EEC IV upgrade, heads, intake and gears. 2800+ stall.

Comp Cams 35-522-8 Camshaft specs:

• Camshaft Type	Hydraulic roller
• Camshaft Series	Xtreme Energy Computer Controlled
• Grind Number	XE282HR
• Intake Valve Lift	0.565 in.
• Exhaust Valve Lift	0.574 in.
• Advertised Intake Duration	282 degrees
• Advertised Exhaust Duration	290 degrees
• Intake Duration at .050 in. Lift	232 degrees
• Exhaust Duration at .050 in. Lift	240 degrees
• Lobe Separation Angle	112 degrees
• Basic Operating RPM Range	1,500-5,500 rpm
• Lifter Type	Hydraulic roller
• Lifters Included	No
• Valve Springs Required	Yes
• Camshaft Gear Attachment	1-bolt
• Camshaft Material	Austempered ductile iron
• UPC / EAN	036584031581
• Supplier Part Number	35-522-8
• Engine Fitment	Fits Ford 5.0L and 351W engines with factory hydraulic roller camshafts

Specifications

SKU	35-522-8
Barcode #	036584031581
Brand	COMP CAMS
intake valve lift	0.565
Exhaust Valve Lift	0.574
Lifter Type	Hydraulic Roller
Advertised Exhaust Duration	290
Advertised Intake Duration	282
Cam Type	Hydraulic Roller
Exhaust Duration At .050 Inch Lift	240
Intake Duration At .050 Inch Lift	232
Lobe Separation	112
Camshaft Series	Xtreme Energy Computer Controlled
Grind Number	XE282HR
Basic Operating Rpm Range	1,500-5,500
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	1-Bolt
Camshaft Material	Austempered Ductile Iron
