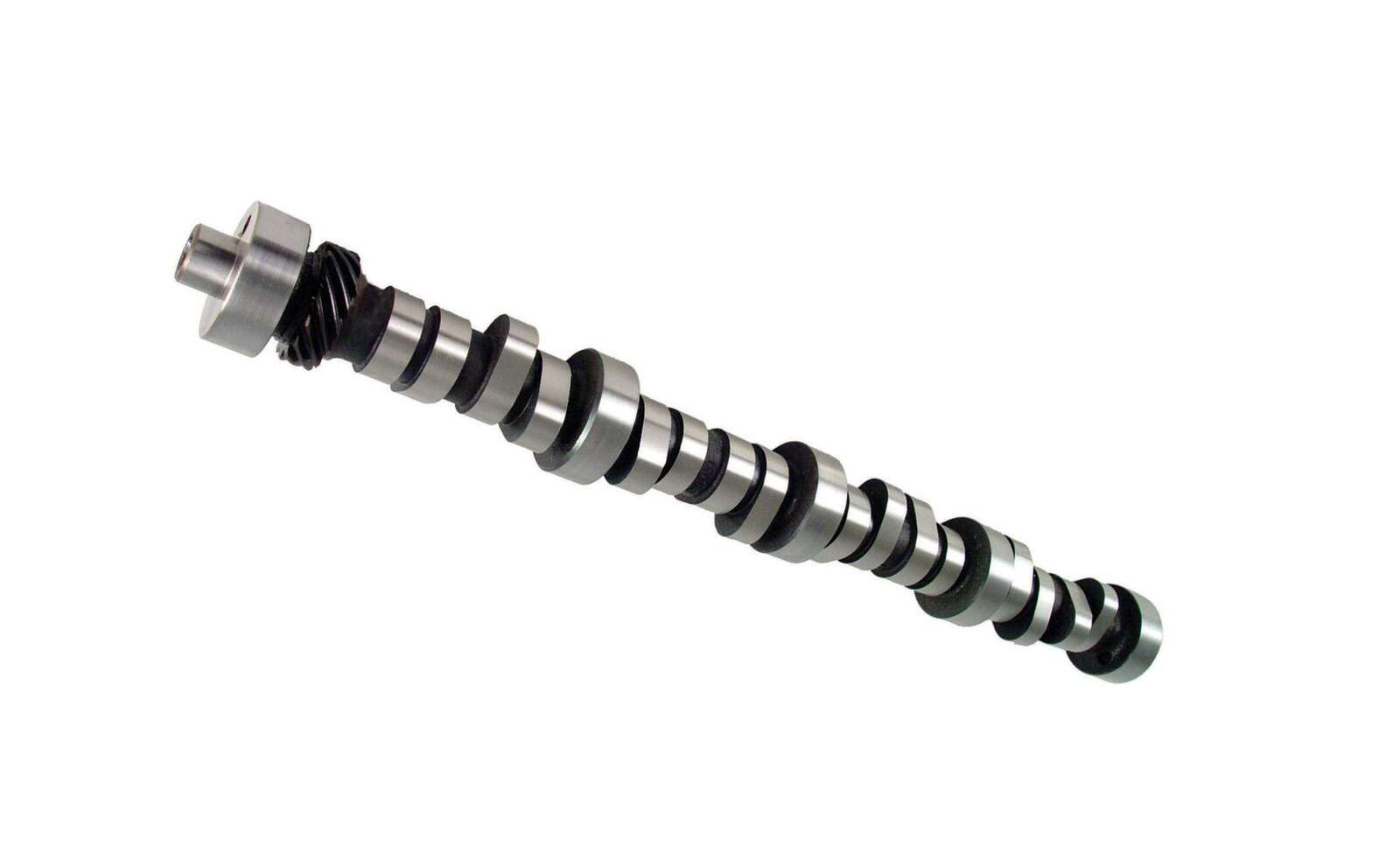

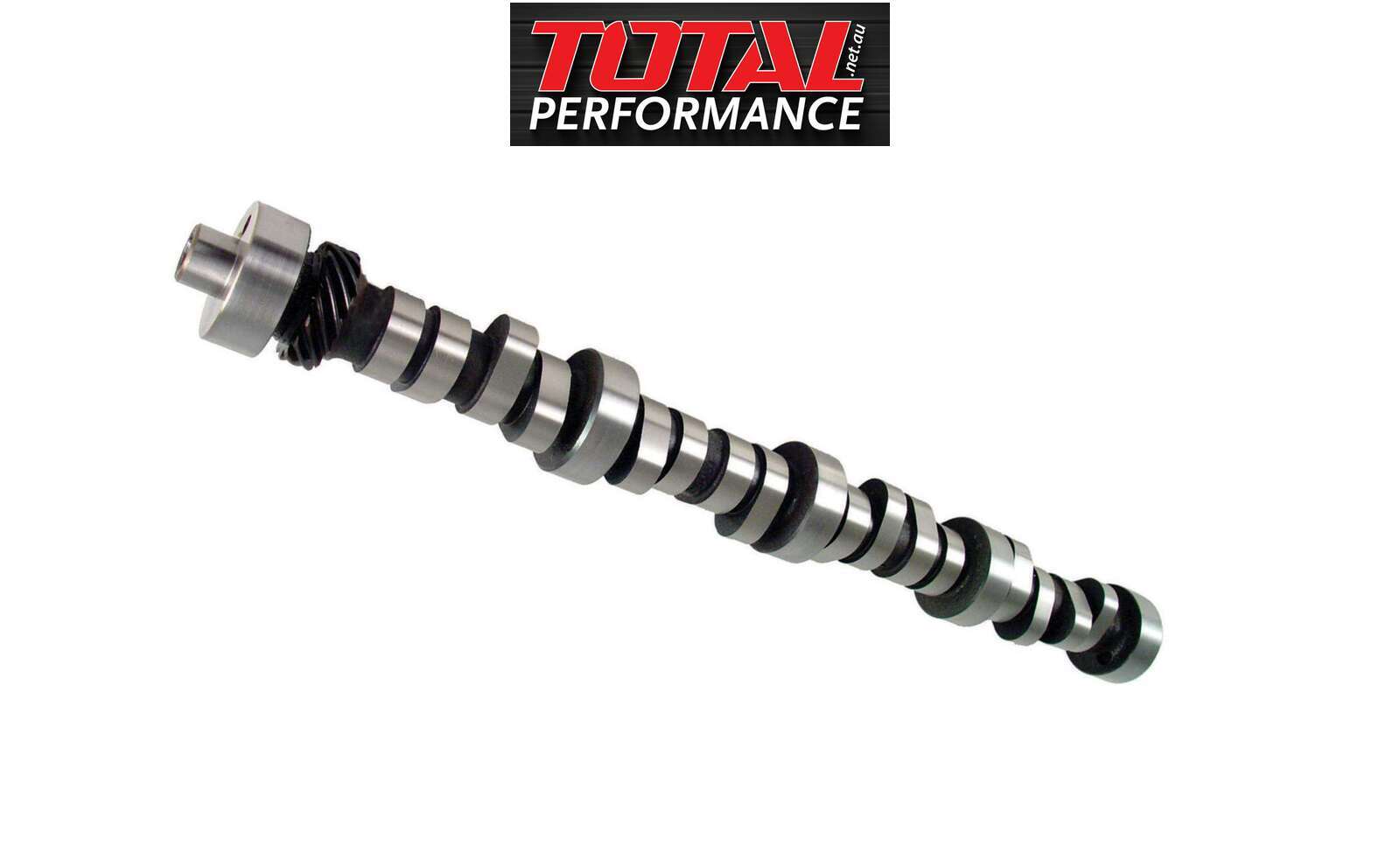

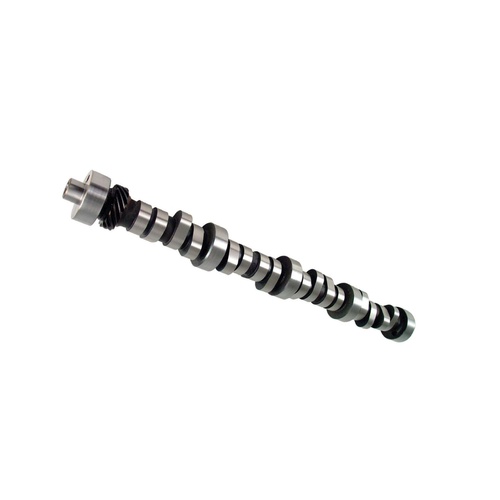

276HR Magnum Computer EFI/Blower 220/224 LSA 114Hydraulic Roller Camshaft Ford 5.0L Windsor SBF 302W large base circle

** FREE SHIPPING ON ORDERS OVER $200 **

Description

Works well with 5 speed or 2500+ stall, likes good intake, mass air and injectors. Supercharged, works well with 5 speed, needs good intake with mass air and larger injectors, mild stall.

Large Base Circle

Recommended Valve Springs - click the links below:

Specifications

SKU	35-312-8
Barcode #	036584017288
Brand	COMP CAMS
intake valve lift	0.544
Exhaust Valve Lift	0.56
Lifter Type	Hydraulic Roller
Advertised Exhaust Duration	280
Advertised Intake Duration	276
Cam Type	Hydraulic Roller
Exhaust Duration At .050 Inch Lift	224
Intake Duration At .050 Inch Lift	220
Lobe Separation	114
Camshaft Series	Magnum Computer Controlled
Grind Number	276HR
Basic Operating Rpm Range	2,000-6,000
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	1-Bolt
Camshaft Material	Austempered Ductile Iron
