XE266HR Xtreme Energy Computer Controlled (EFI) 216/224 LSA 112 Hydraulic Roller Camshaft Ford 5.0L Windsor Large Base Circle / OEM Roller Blocks.

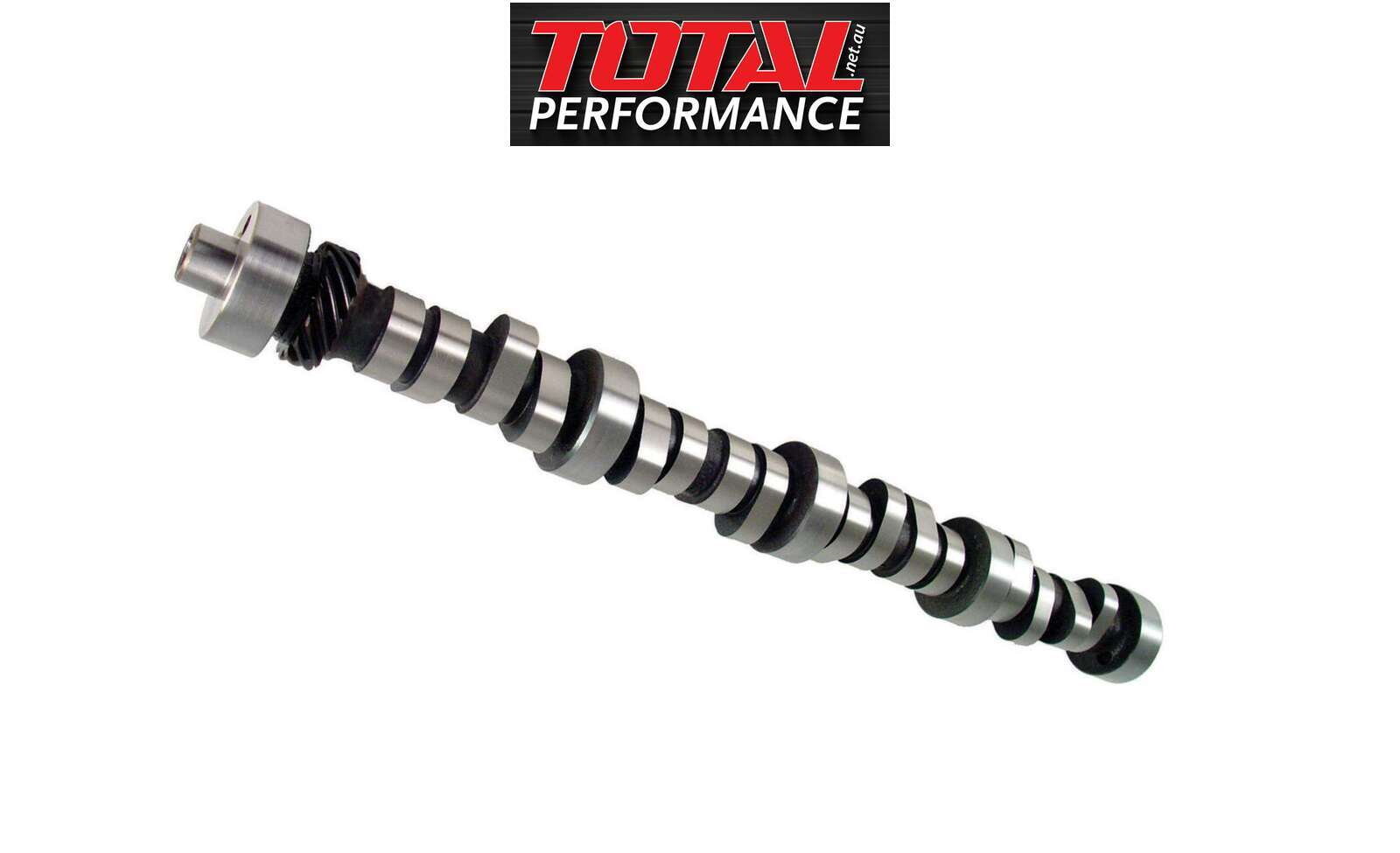

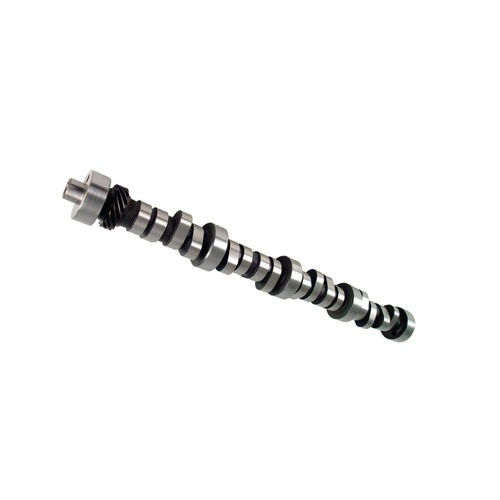

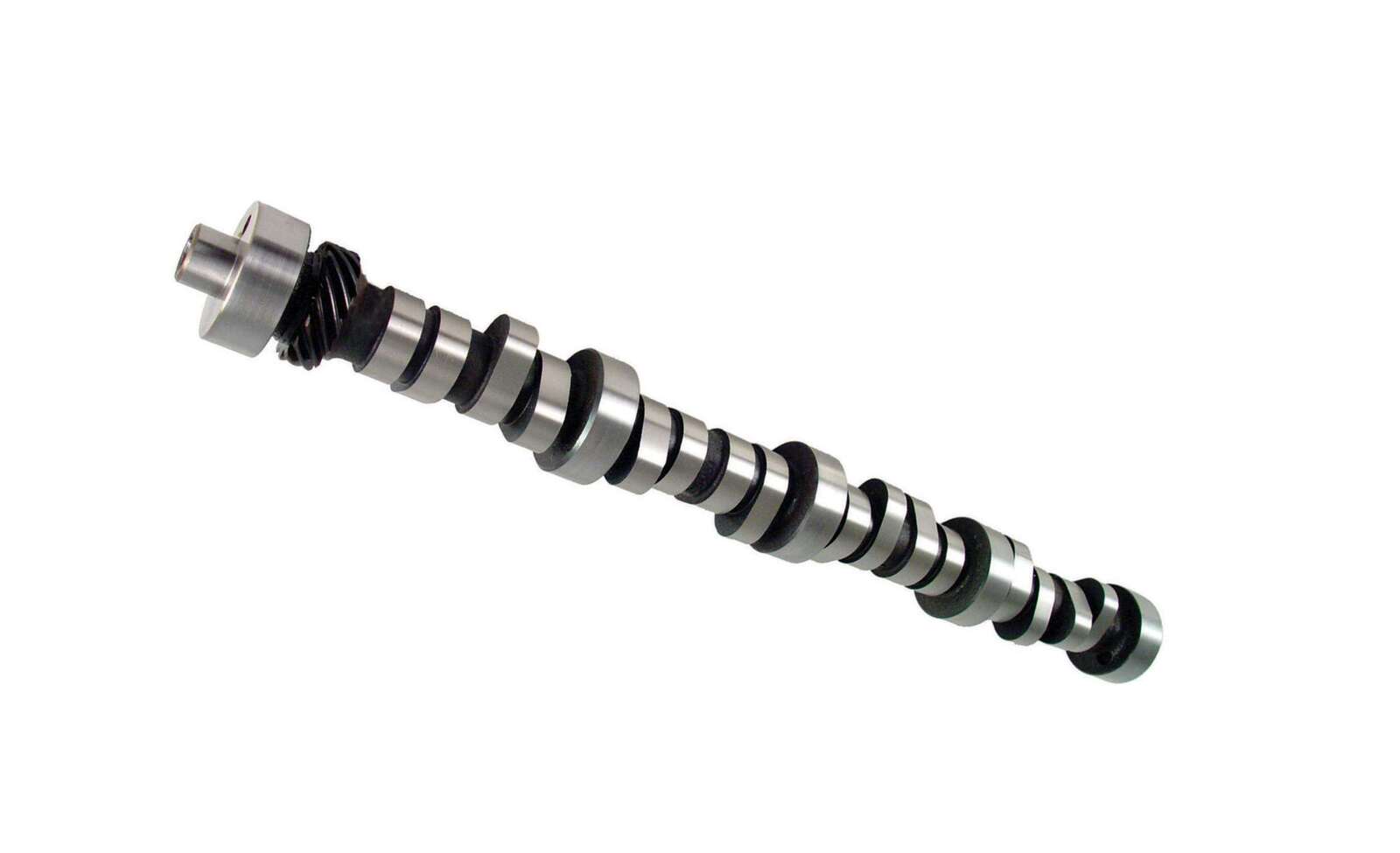

COMP Cams 35-514-8 XE266HR-12 Mild Hydraulic Roller Camshaft - Ford 5.0L & 5.8L Windsor - Large Base Circle

COMP Cams 35-514-8 is a mild hydraulic roller camshaft upgrade for Ford 5.0L and 5.8L Windsor engines. Best suited to street EFI Windsor combinations chasing more mid-range, a tougher idle over stock and better pull with the right supporting parts.

This is the Extreme Energy XE266HR-12 grind, with 216/224 duration @ .050", .544"/.555" valve lift and a 112° lobe separation. The 112° LSA helps keep it more street-manageable and EFI-friendly when matched with the right tune.

Note: This cam can also be used in older/early 2-piece rear main seal blocks when using tie bar lifters.

COMP Cams 35-514-8 Characteristics

• Mild hydraulic roller camshaft upgrade for Ford 5.0L and 5.8L Windsor engines
• RPM Range: 1500-5500 (5.0L)
• Good street cam for more mid-range and a noticeable idle over stock
• 112° lobe separation for better street manners and EFI compatibility with tuning
• Large base circle hydraulic roller profile - can use OEM type drop in lifters.
• Best suited to mild-modified Windsor combinations with matching intake, exhaust, gearing and valve springs

COMP Cams 35-514-8 Modifications Needed

Valve spring upgrade required. Stock springs cannot be used. See links to valve springs below

Best suited with:

• 3.27 to 3.73 diff gears
• Mass air EFI setup
• Larger throttle body
• Better intake manifold
• Headers and exhaust upgrade
• Matching valve springs, retainers and seals
• Correct pushrod length checked during assembly
• ECU/tuning support where required
• A low stall converter upgrade will help, not required though.

Recommended Valve Springs

• DRP-8374S-16 - StreetLine Series Small OD LS Springs
• DRP-8374S-SBKIT - Street Series Full Kit Small OD LS Springs
• DRP-8415P-16 - Proline Series High RPM Endurance Small OD LS Springs
• DRP-8415P-SBKIT - Proline Series Full Kit High RPM Endurance Small OD LS Springs

COMP Cams 35-514-8 Specifications

Installation Note: Total Performance always recommends camshafts and valvetrain parts be installed by an experienced engine builder. Check piston-to-valve clearance, retainer-to-seal clearance, valve spring installed height, pushrod length and coil bind clearance during assembly.
