SKU: 12-686-47

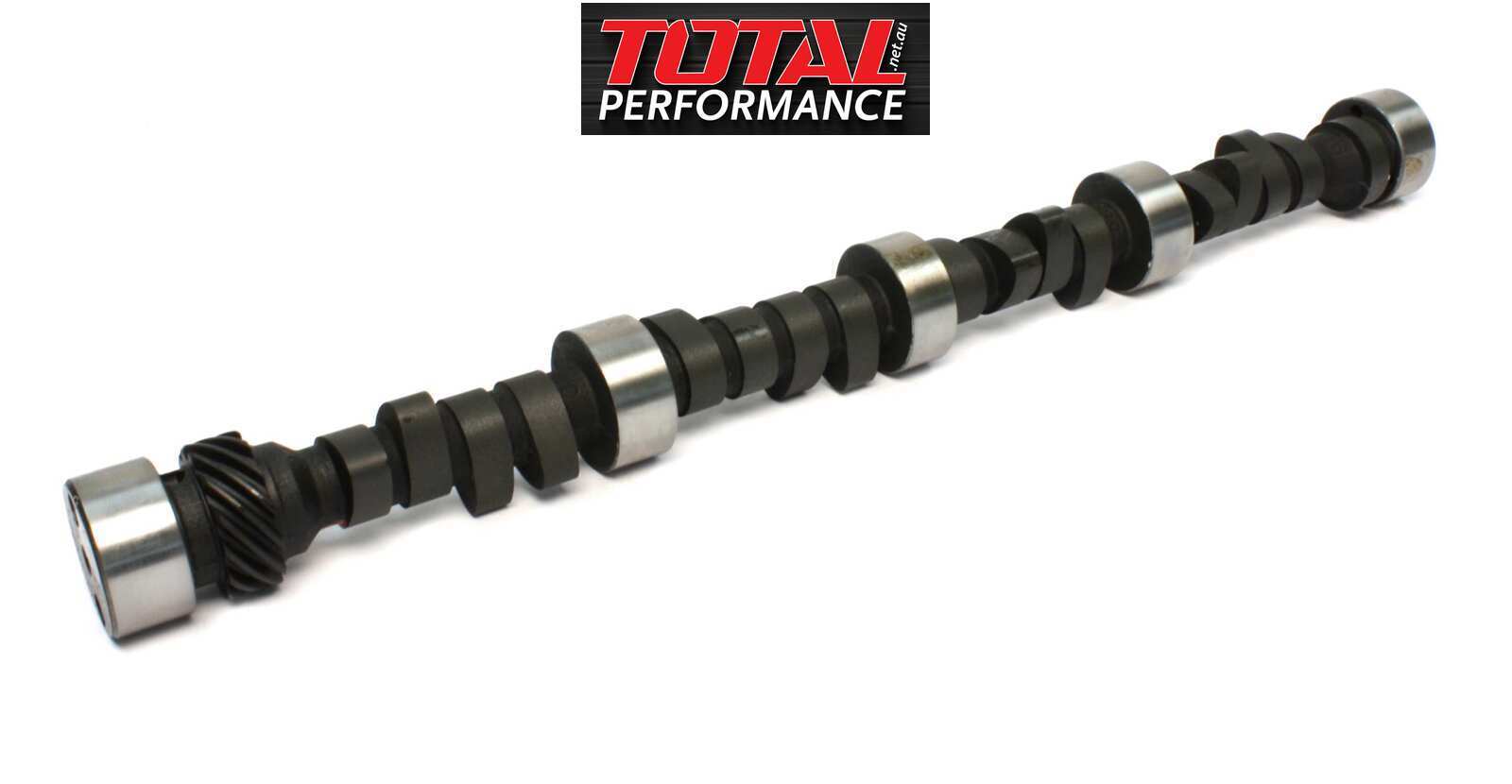

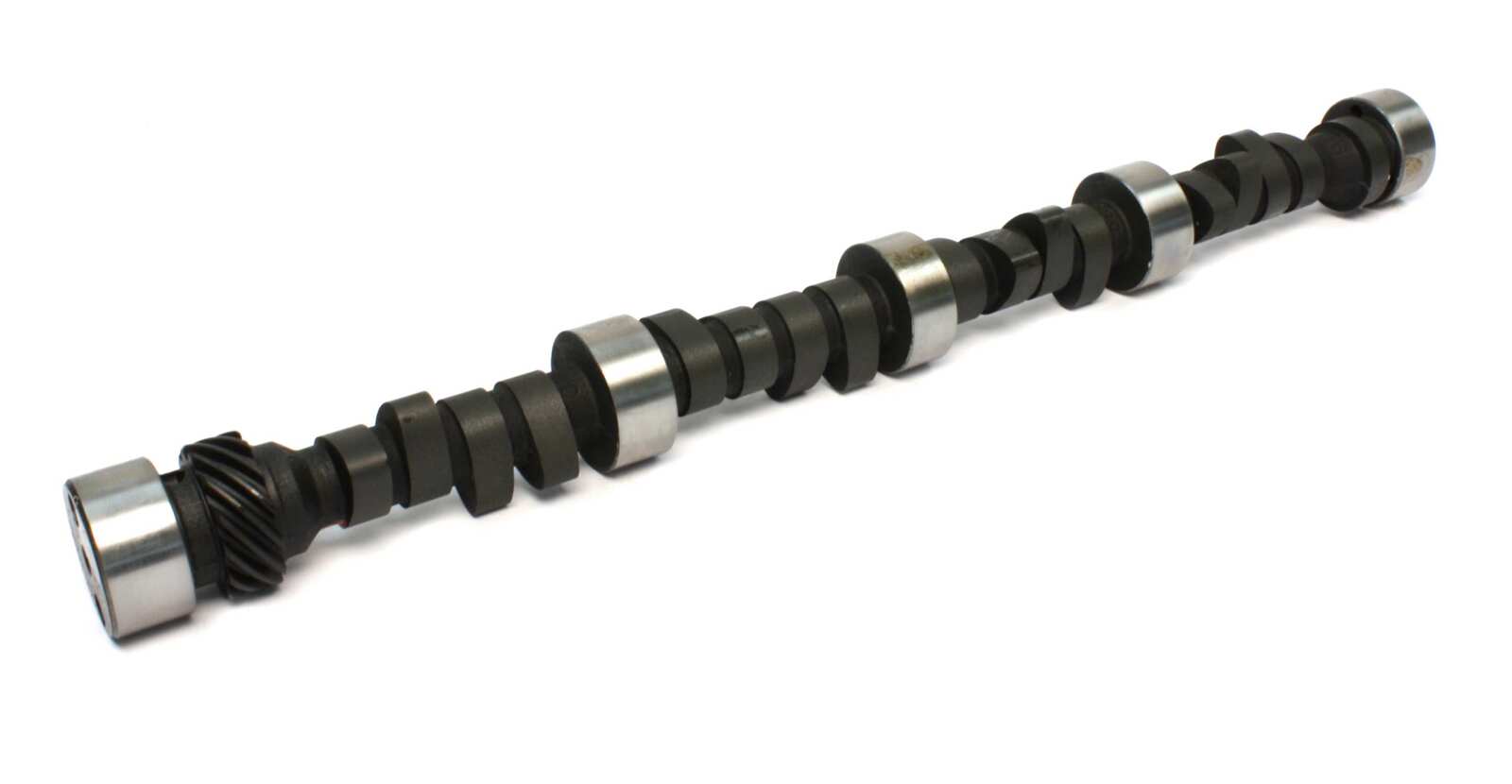

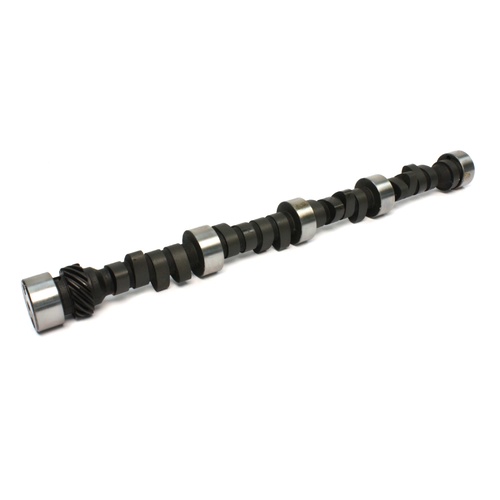

12-686-47 Drag Race 4/7 Swap 255/266 Solid Flat Cam for Chevrolet Small Block

$562.84

or 4 payments of $140.71 with Info

SOLD OUT

*FREE SHIPPING ON ORDERS OVER $200!

Description

4000+ stall, 10.5:1 compression and up.

Specifications

SKU 12-686-47
Barcode # 036584083986
Brand COMP CAMS
intake valve lift 0.54
Exhaust Valve Lift 0.534
Lifter Type Solid Flat Tappet
Advertised Exhaust Duration 304
Advertised Intake Duration 290
Cam Type Solid Flat Tappet
Exhaust Duration At .050 Inch Lift 266
Intake Duration At .050 Inch Lift 255
Lobe Separation 106
Camshaft Series Drag Race 4 and 7 Swap Firing Order
Grind Number 47S 290B-6
Basic Operating Rpm Range 4,000-7000
Lifters Included No
Valve Springs Required Yes
Camshaft Gear Attachment 3-Bolt
Camshaft Material Cast Iron
