SKU: 946-1

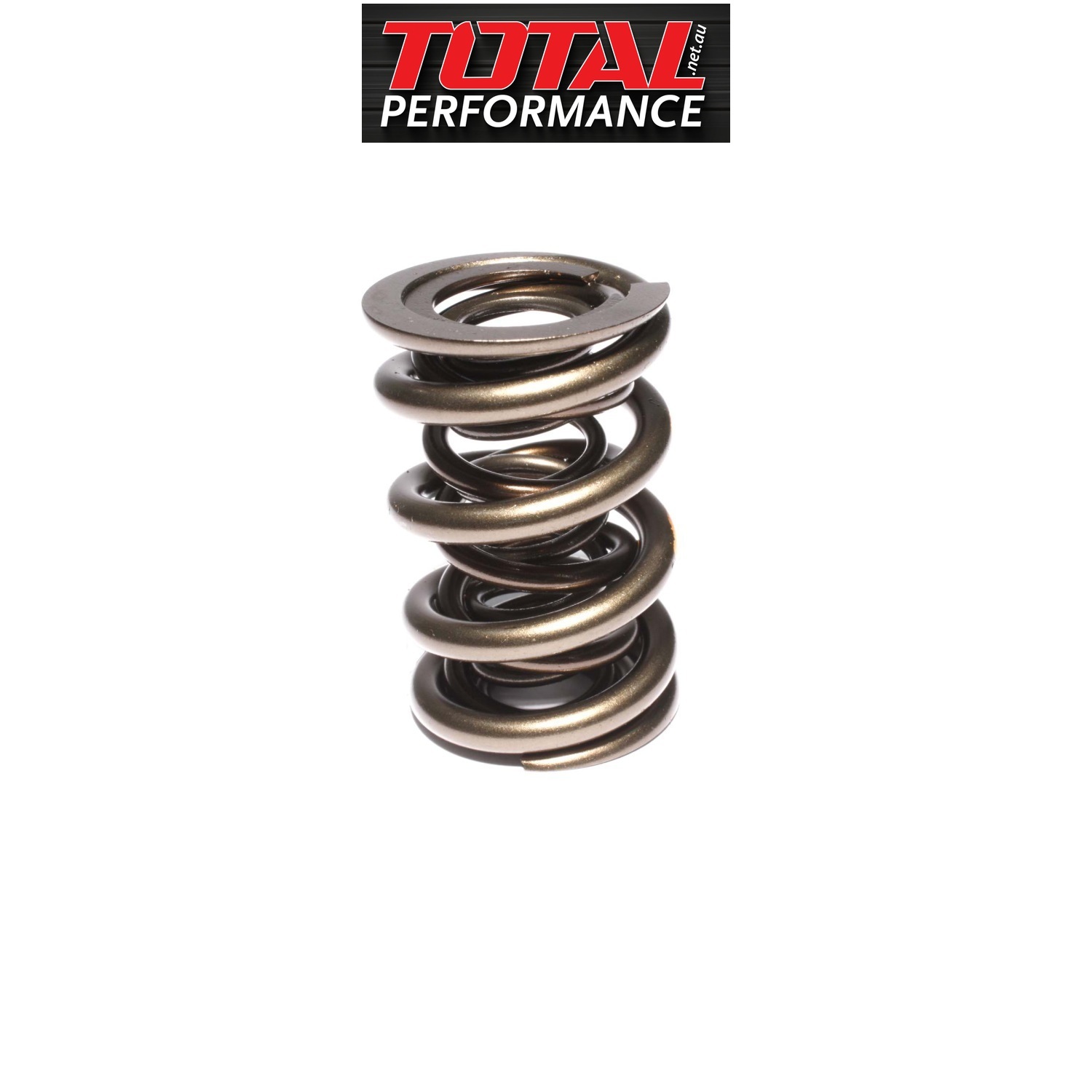

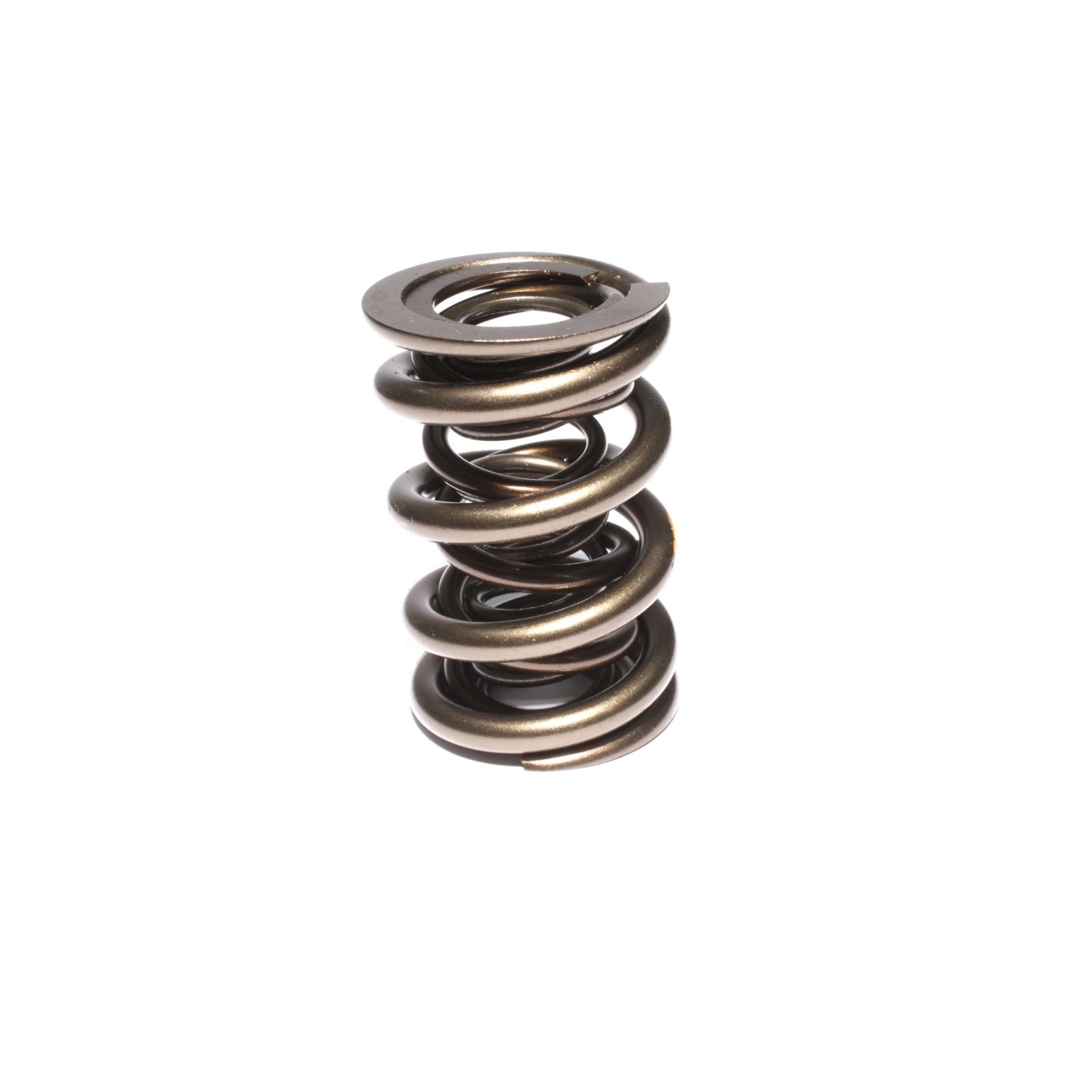

946-1 Race Extreme 1.660" OD Triple Spring; 2.000" Installed Height; 1 Spring

$41.77

or 4 payments of $10.44 with Info

Sold Out

Description

Engine Valve Spring

Specifications

SKU 946-1
Barcode # 036584280316
Brand COMP CAMS
Spring Rate 689
Inner Spring Inside Diameter 0.863/0.627
Outer Spring Outside Diameter 1.66
Seat Height 2
Coil Bind Height 1.13
Number Of Springs 3
Seat Pressure 285
Valve Spring Series Race Extreme
Outer Spring Inside Diameter 1.196
Damper No
