SKU: 689-199-13

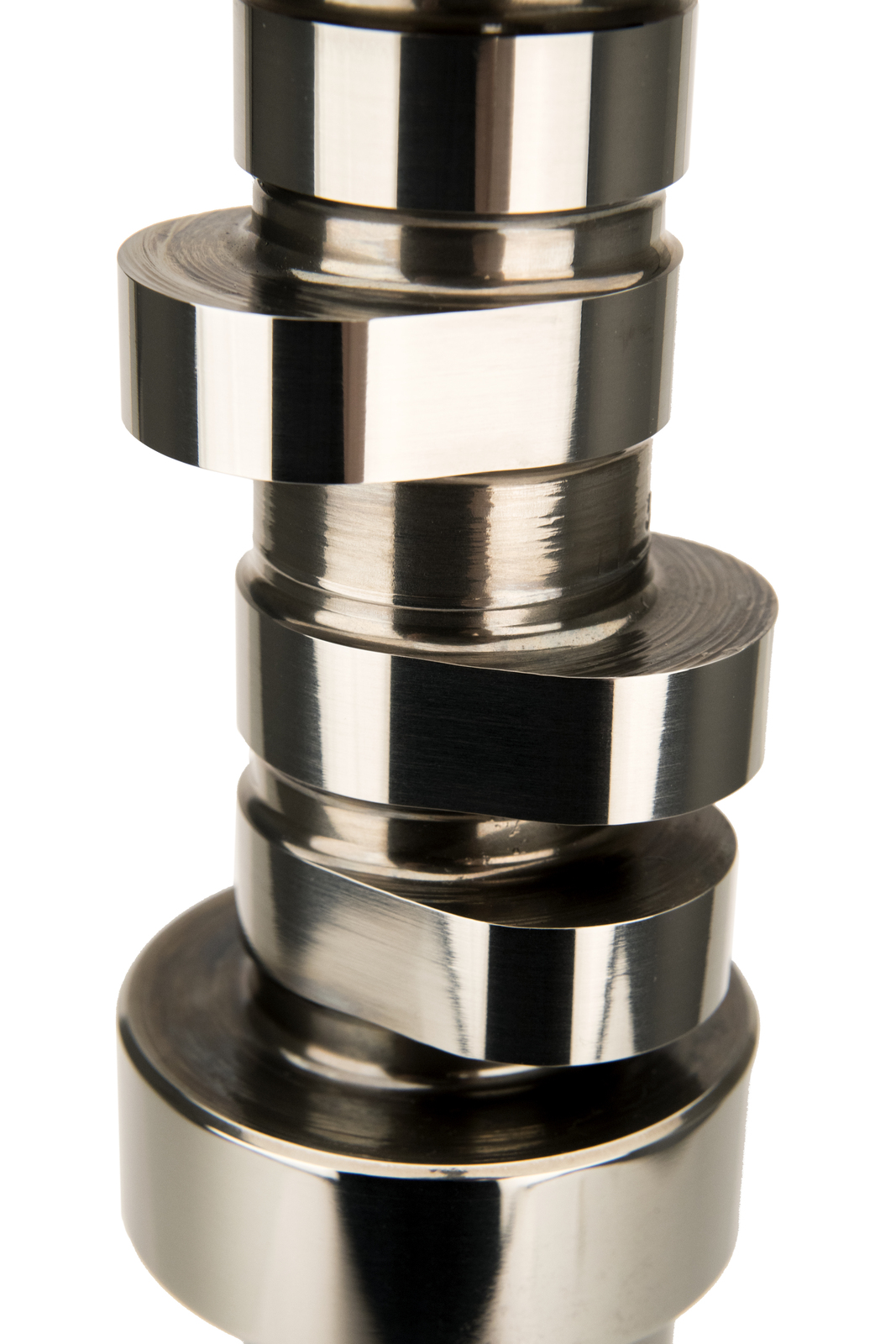

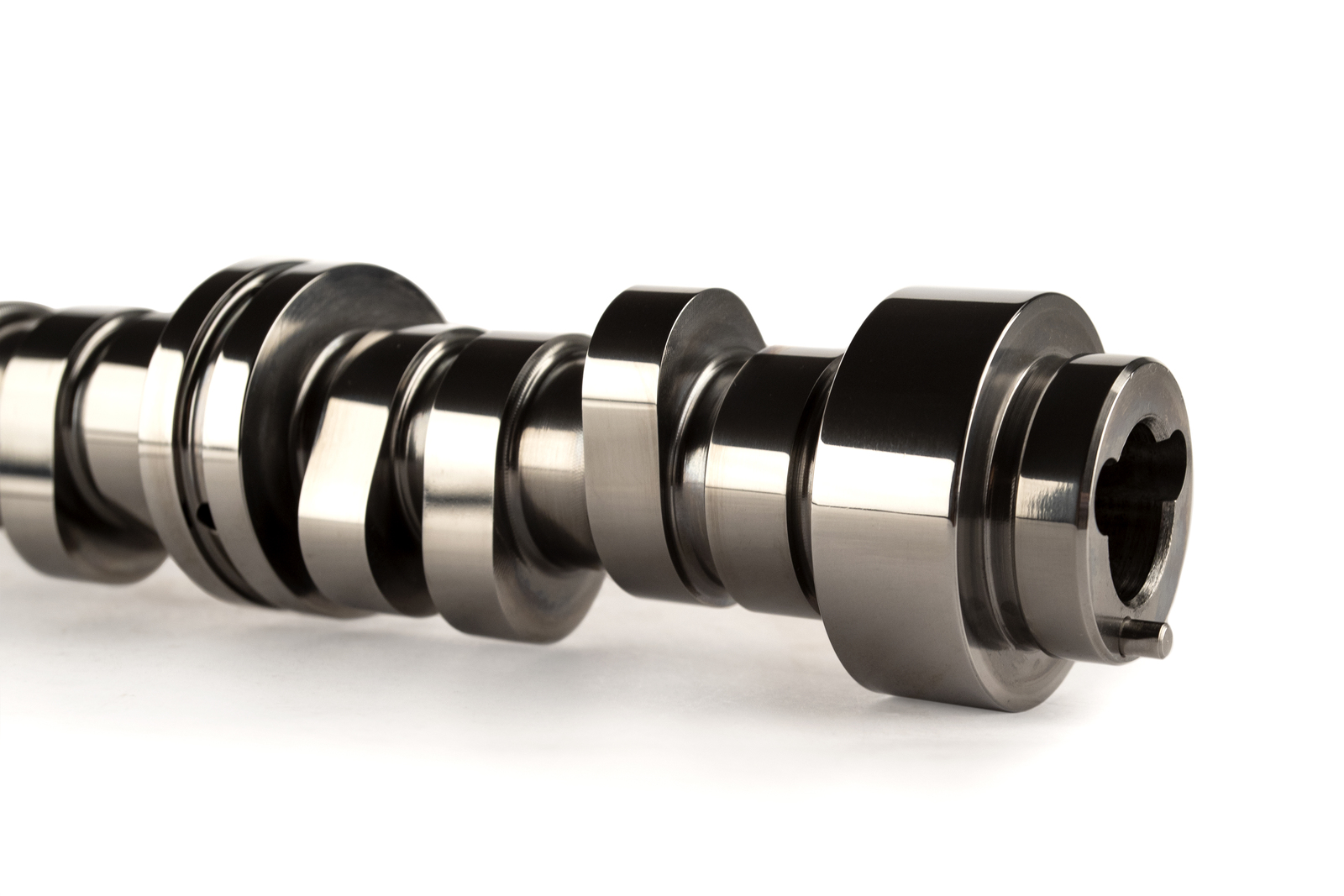

689-199-13 FSL AFM 208/220 D, 206/214 N Hydraulic Roller Cam for GM LS GEN IV

$959.97

or 4 payments of $239.99 with Info

SOLD OUT

*FREE SHIPPING ON ORDERS OVER $200!

Description

First 50-state legal grind for the L99 and similar family of GM LS engines with VVT and AFM. Drop-in with stock

Specifications

SKU 689-199-13
Barcode # 036584373131
Brand COMP CAMS
Intake Valve Lift Deactivation Cylinders 0.541
Advertised Intake Duration Non-deactivation Cylind 266
Exhaust Duration At .050 Inch Lift Deactivation Cy 220
Exhaust Duration At .050 Inch Lift Non-deactivatio 214
Advertised Exhaust Duration Non-deactivation Cylin 266
Intake Duration At .050 Inch Lift Deactivation Cyl 208
Intake Duration At .050 Inch Lift Non-deactivation 206
Exhaust Valve Lift Non-deactivation Cylinders 0.541
Intake Valve Lift Non-deactivation Cylinders 0.541
Exhaust Valve Lift Deactivation Cylinders 0.541
Lobe Separation 118
Advertised Exhaust Duration Deactivation Cylinders 282
Advertised Intake Duration Deactivation Cylinders 274
Camshaft Material Billet Steel
Camshaft Gear Attachment 1-Bolt
Valve Springs Required No
Lifters Included No
Basic Operating Rpm Range 1,700-6,400
Grind Number L99LX266
Camshaft Series FSL - 50 State Legal

Reviews

Be The First To Review This Product!

Help other Total Performance users shop smarter by writing reviews for products you have purchased.

Write a product review
