SKU: 7228TS-KIT

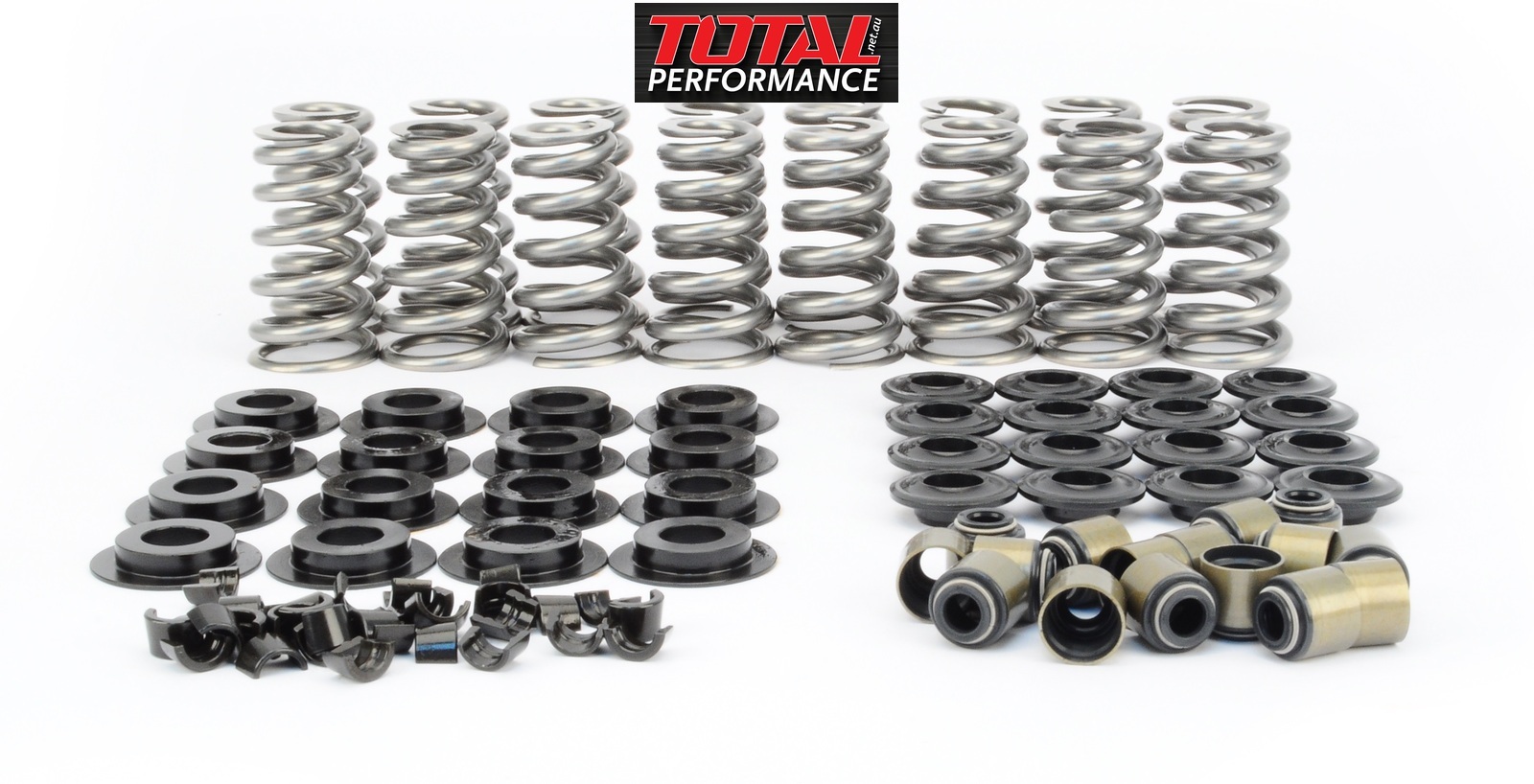

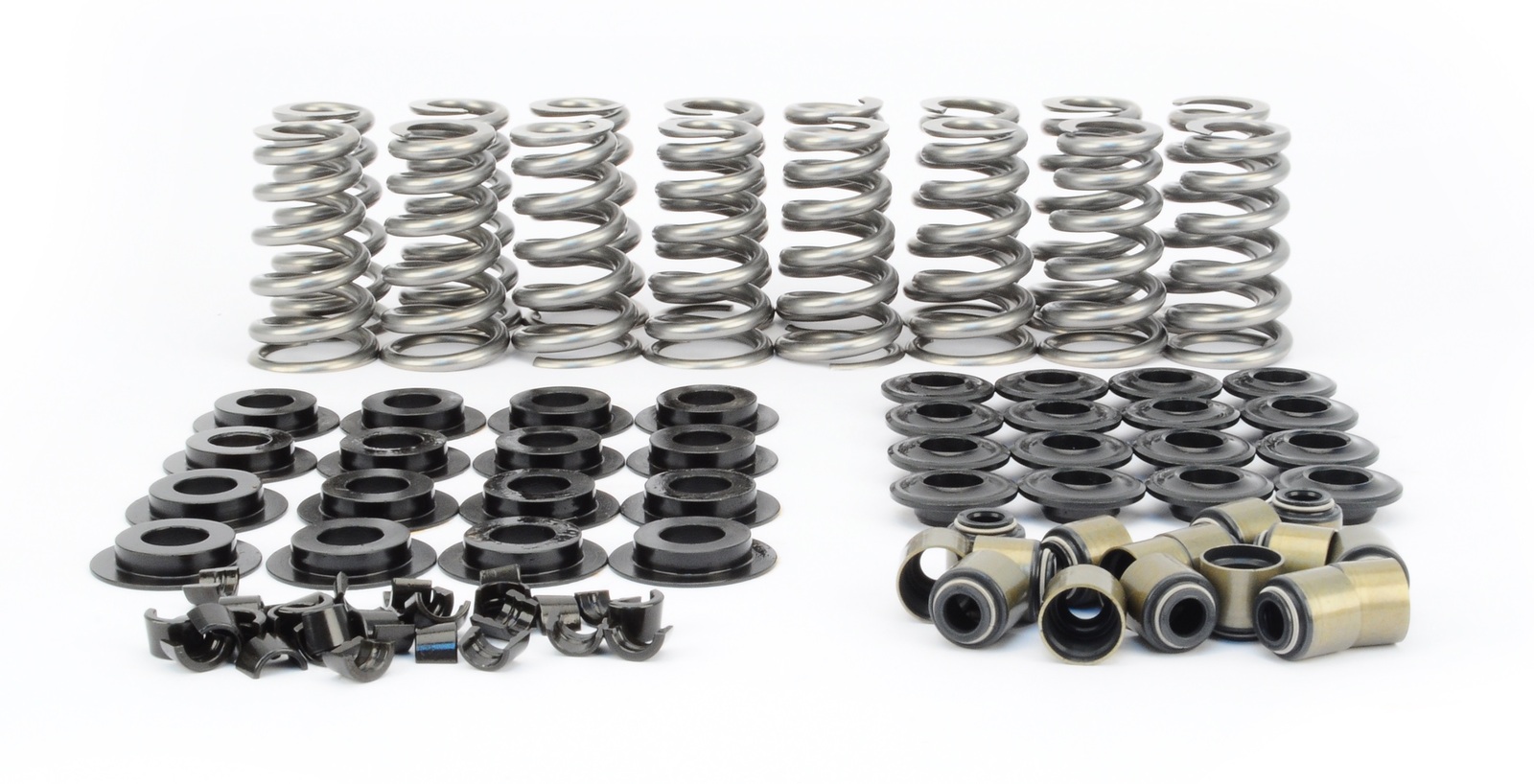

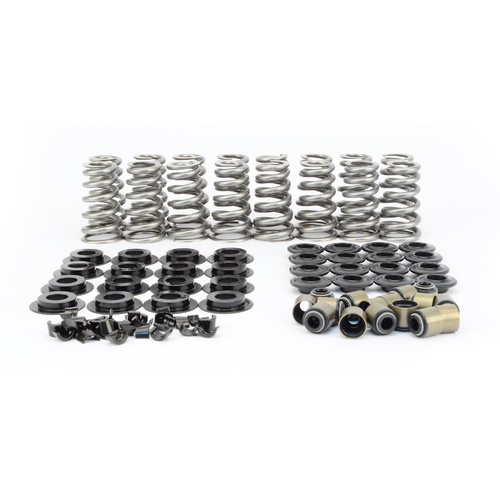

7228TS-KIT GM LS Conical Valve Spring Kit w/ Tool Steel Retainers

$839.16

or 4 payments of $209.79 with Info

Sold Out

Description

Featuring our innovative natural damping conical valve springs for increased RPM, this LS spring kit includes tool steel retainers, spring seats, seals and locks for a complete kit that can handle .615" lift from aggressive roller cams.

Specifications

SKU 7228TS-KIT
Barcode # 036584286073
Brand COMP CAMS
outer bottom spring inside diameter 0.918
Outer Top Spring Outside Diameter 1.03
Number Of Springs 1
Seat Height 1.8
Outer Bottom Spring Outside Diameter 1.286
Spring Rate 440
Seat Pressure 136
Maximum Valve Lift 0.615
Outer Top Spring Inside Diameter 0.662
Coil Bind Height 1.125
Retainer Material Tool Steel
