SKU: 7228CS-KIT

7228CS-KIT GM LS Conical Valve Spring Kit w/ Chromemoly Steel Retainers

$919.35

or 4 payments of $229.84 with Info

SOLD OUT

*FREE SHIPPING ON ORDERS OVER $200!

Description

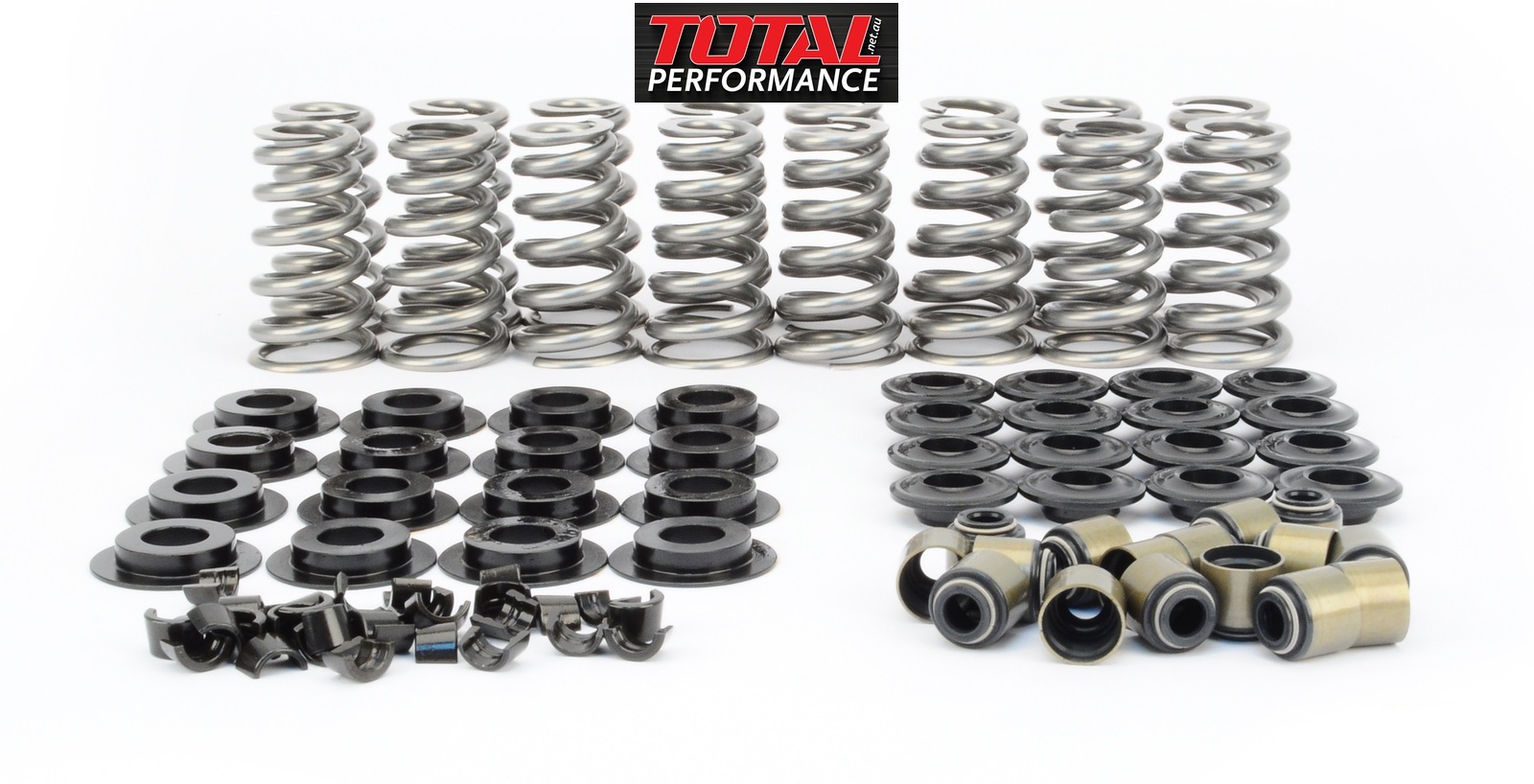

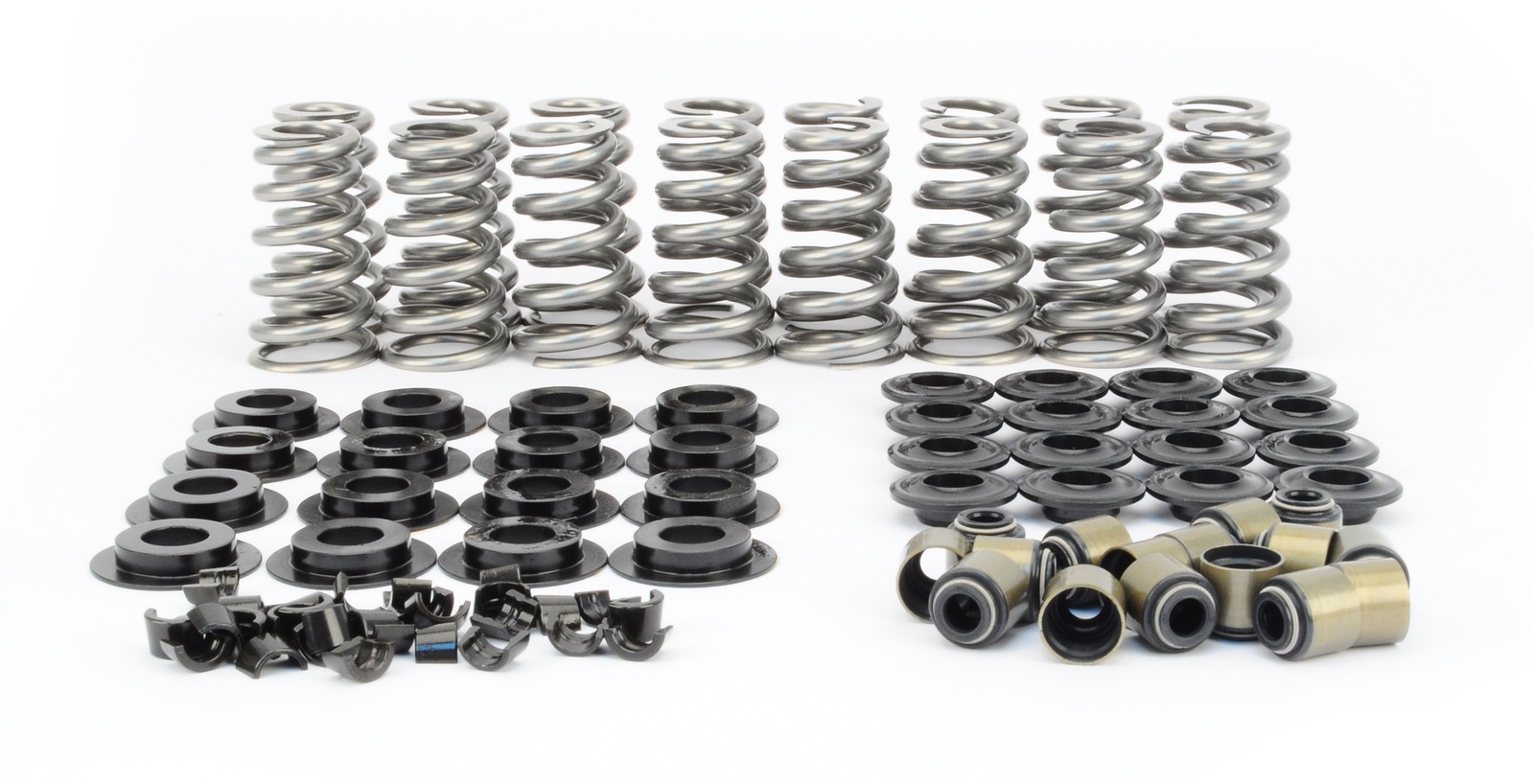

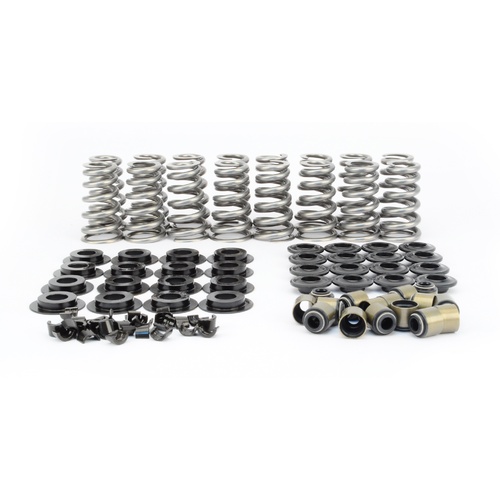

Featuring our innovative natural damping conical valve springs for increased RPM, this GM LS spring kit includes a set of retainers, spring seats, seals and locks for a complete kit that can handle .615" lift from aggressive roller cams.

Specifications

SKU 7228CS-KIT
Barcode # 036584286066
Brand COMP CAMS
Seat Height 1.8
Retainer Material Chromemoly Steel
Seat Pressure 136
Number Of Springs 1
Coil Bind Height 1.125
Spring Rate 440
Outer Top Spring Outside Diameter 1.03
Outer Top Spring Inside Diameter 0.662
Outer Bottom Spring Outside Diameter 1.286
outer bottom spring inside diameter 0.918
Maximum Valve Lift 0.615
