SKU: 224-302-13

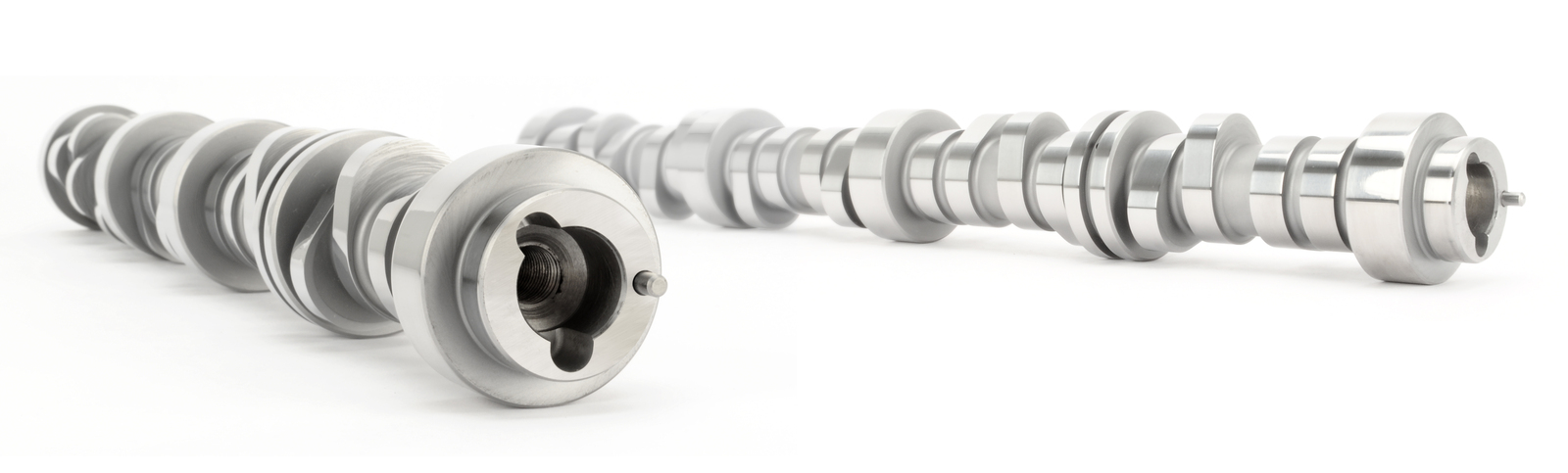

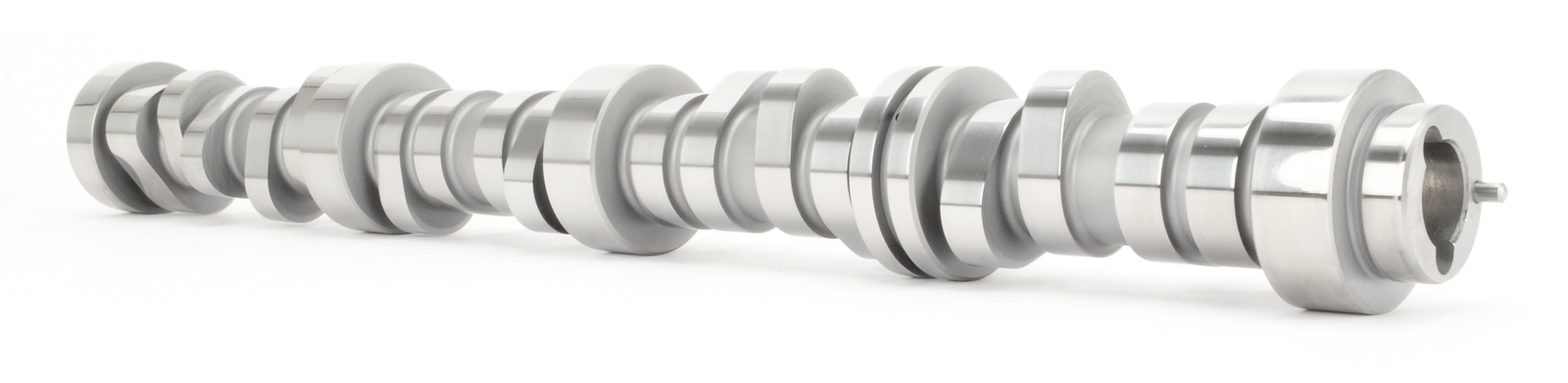

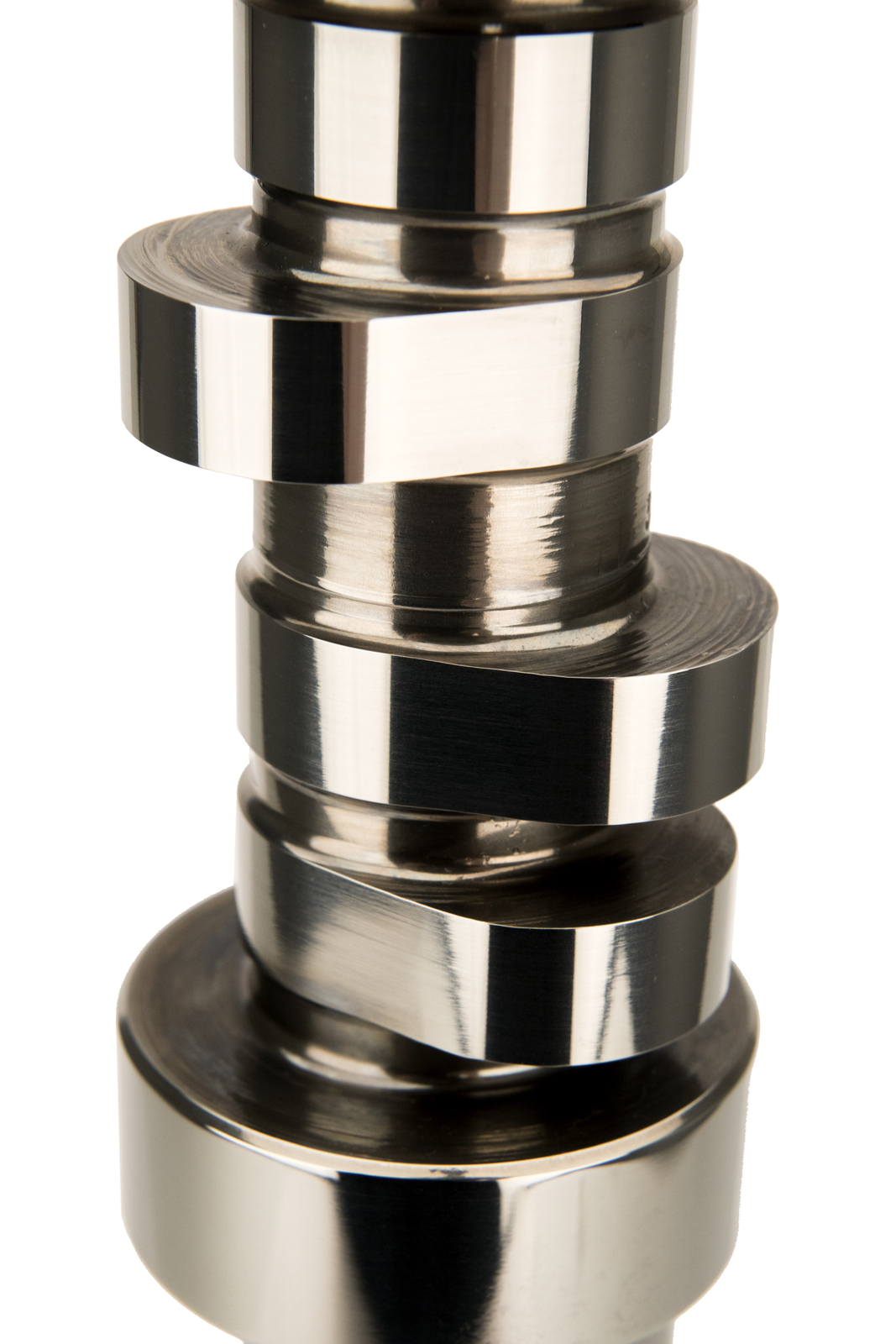

224-302-13 Stage 2 LST Cam for LT1 Camaro and Corvette w/ AFM Delete

$1,018.18

or 4 payments of $254.54 with Info

SOLD OUT

*FREE SHIPPING ON ORDERS OVER $200!

Description

Maximum HP in LT1 with 4000-7400 RPM powerband. Includes higher volume DI Lobe (+38%). 7500 RPM stability with CK & MK Kits. AFM delete & VVT limiter.

Specifications

SKU 224-302-13
Barcode # 036584386476
Brand COMP CAMS
Camshaft Series Low Shock Technology

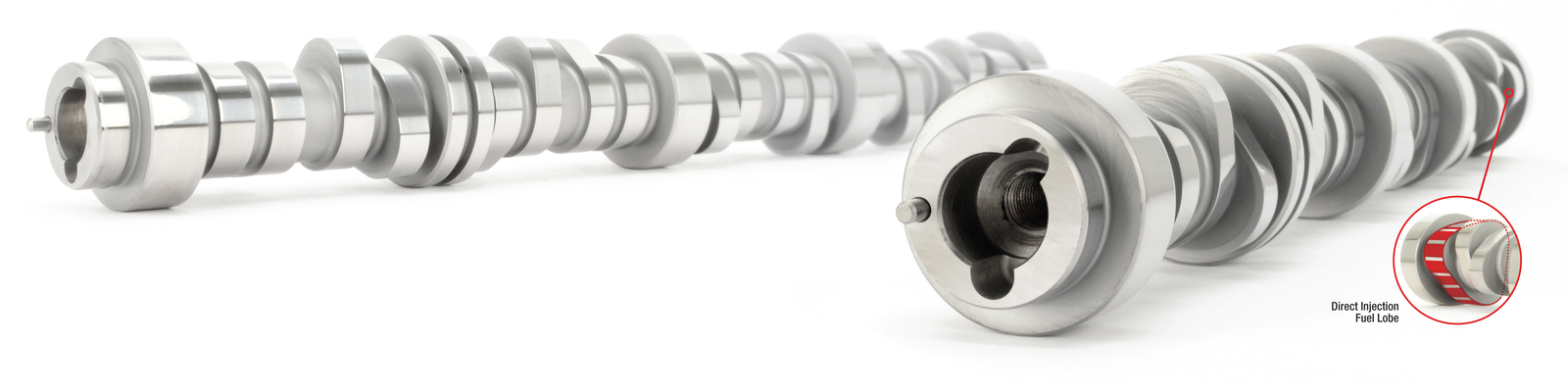

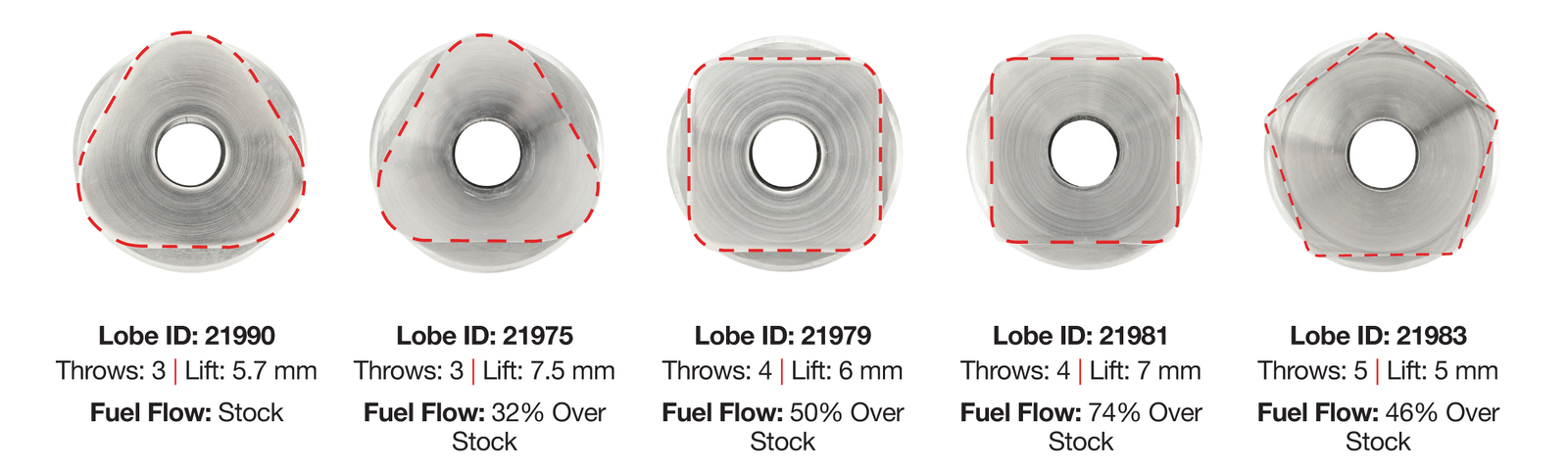

Direct Injection Fuel Pump Lobe Output 38% More than Stock
Stage 2
Camshaft Material Billet Steel
Camshaft Gear Attachment 1-Bolt
Valve Springs Required Yes
Lifters Included No
Basic Operating Rpm Range 2,700-7,400
Grind Number 290LMH20
intake valve lift 0.65
Lobe Separation 120
Intake Duration At .050 Inch Lift 235
Exhaust Duration At .050 Inch Lift 248
Cam Type Hydraulic Roller
Advertised Intake Duration 290
Advertised Exhaust Duration 297
Lifter Type Hydraulic Roller
Exhaust Valve Lift 0.643
