SKU: 9715-KIT

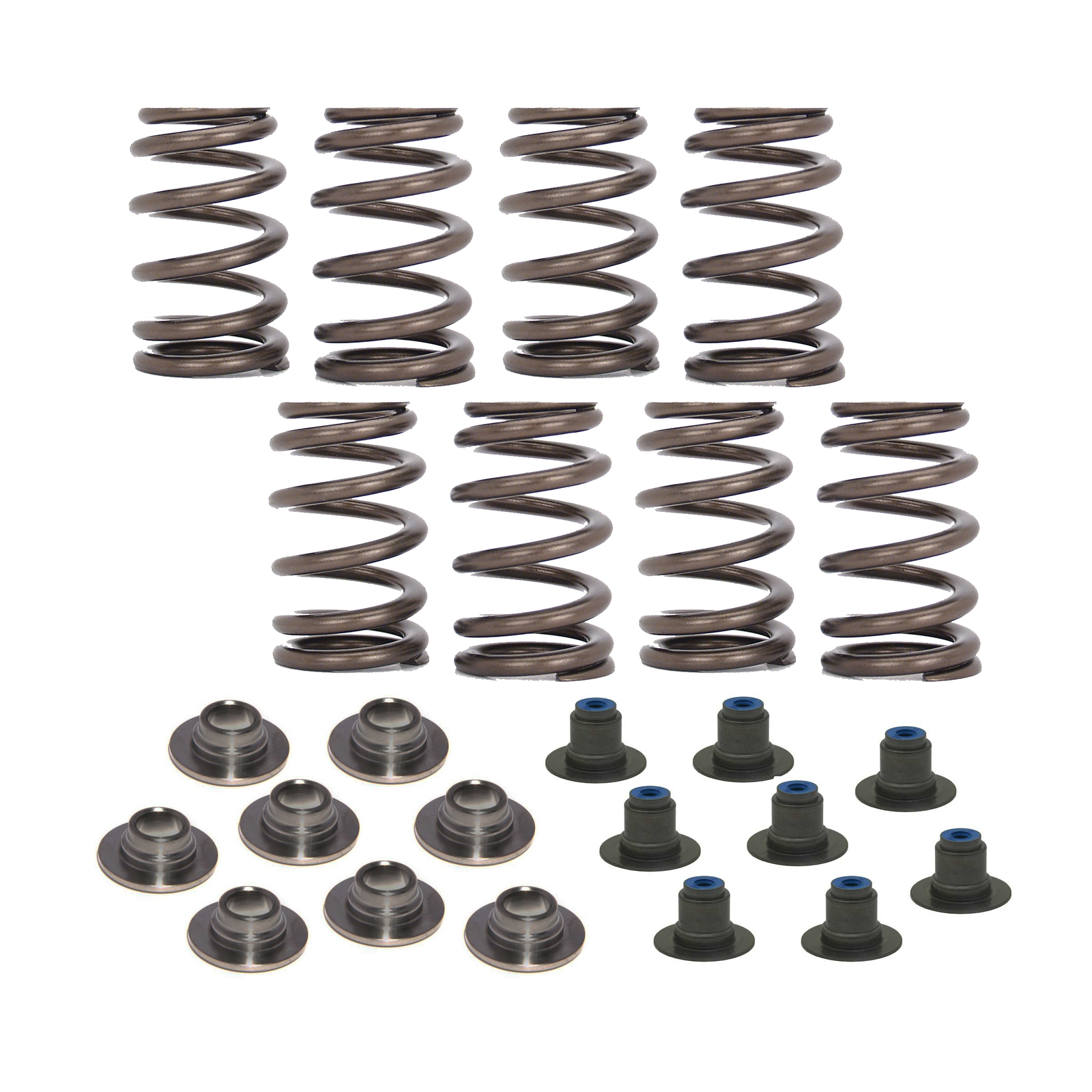

9715-KIT Harley Milwaukee 8 Beehive Spring Kit w/ Tool Steel Retainers; .530" Max Lift

$606.39

or 4 payments of $151.60 with Info

SOLD OUT

*FREE SHIPPING ON ORDERS OVER $200!

Description

The M8 Spring and Retainer kit features our Beehive springs for a .530" max lift and increased valvetrain stability. The kit includes our Tool Steel retainers for increased strength and light weight.

Features

The Harley M8 spring kit increases maximum valve lift to 0.540".;Beehive valve spring design increases valvetrain stability;Lightweight tool steel retainers reduce valvetrain weight while increasing rigidity

Specifications

SKU 9715-KIT
Barcode # 036584384137
Brand COMP CAMS
Seat Pressure 80
Coil Bind Height 0.900
Spring Rate 324
Installed Height 1.500
Machine Work Required? No
Maximum Valve Lift 0.530
Spring Top Outer Diameter 0.943
Spring Top Inner Diameter 0.580
Spring Bottom Outer Diameter 1.105
Spring Bottom Inner Diameter 0.742
Open Pressure 251
