SKU: 689-201-13

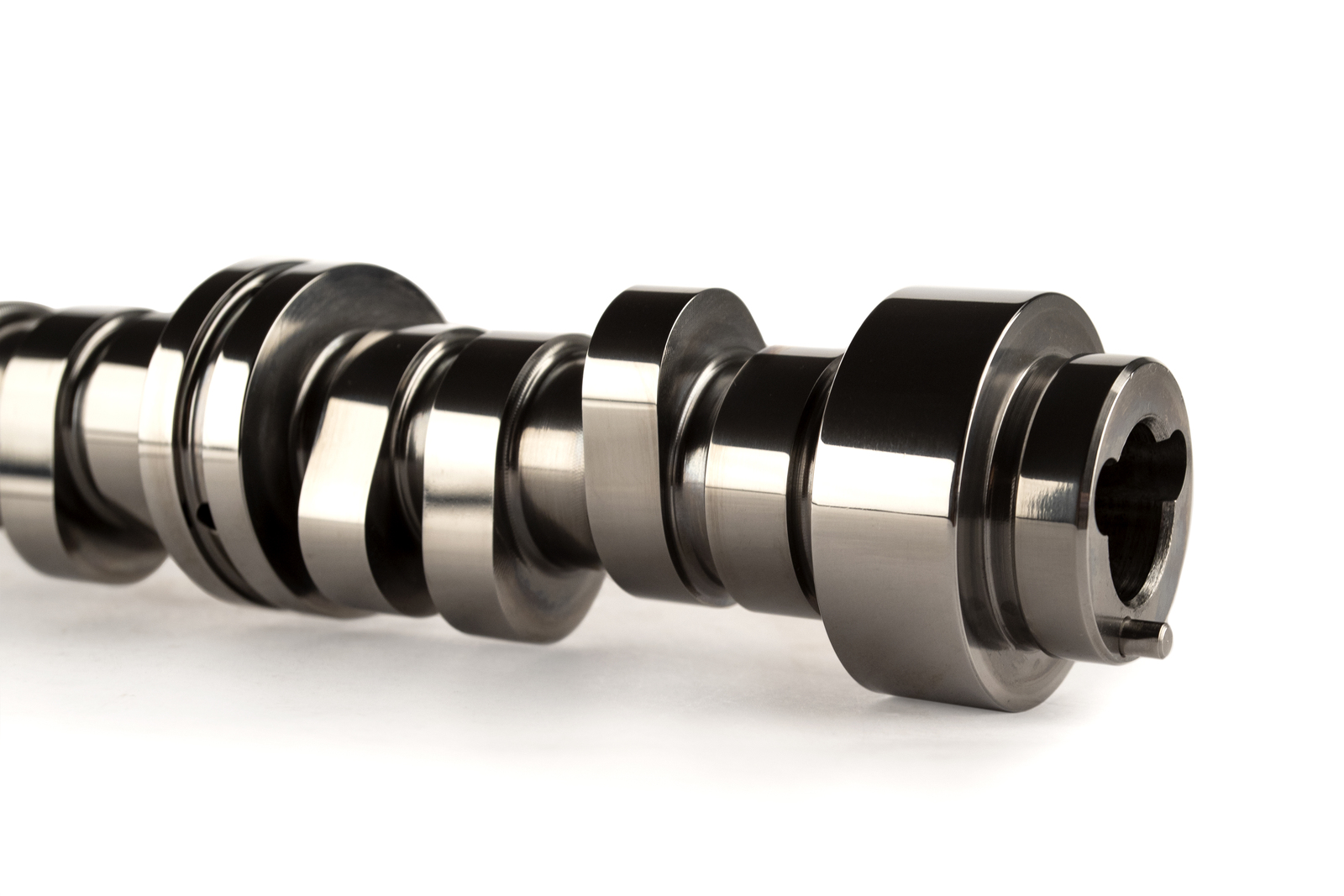

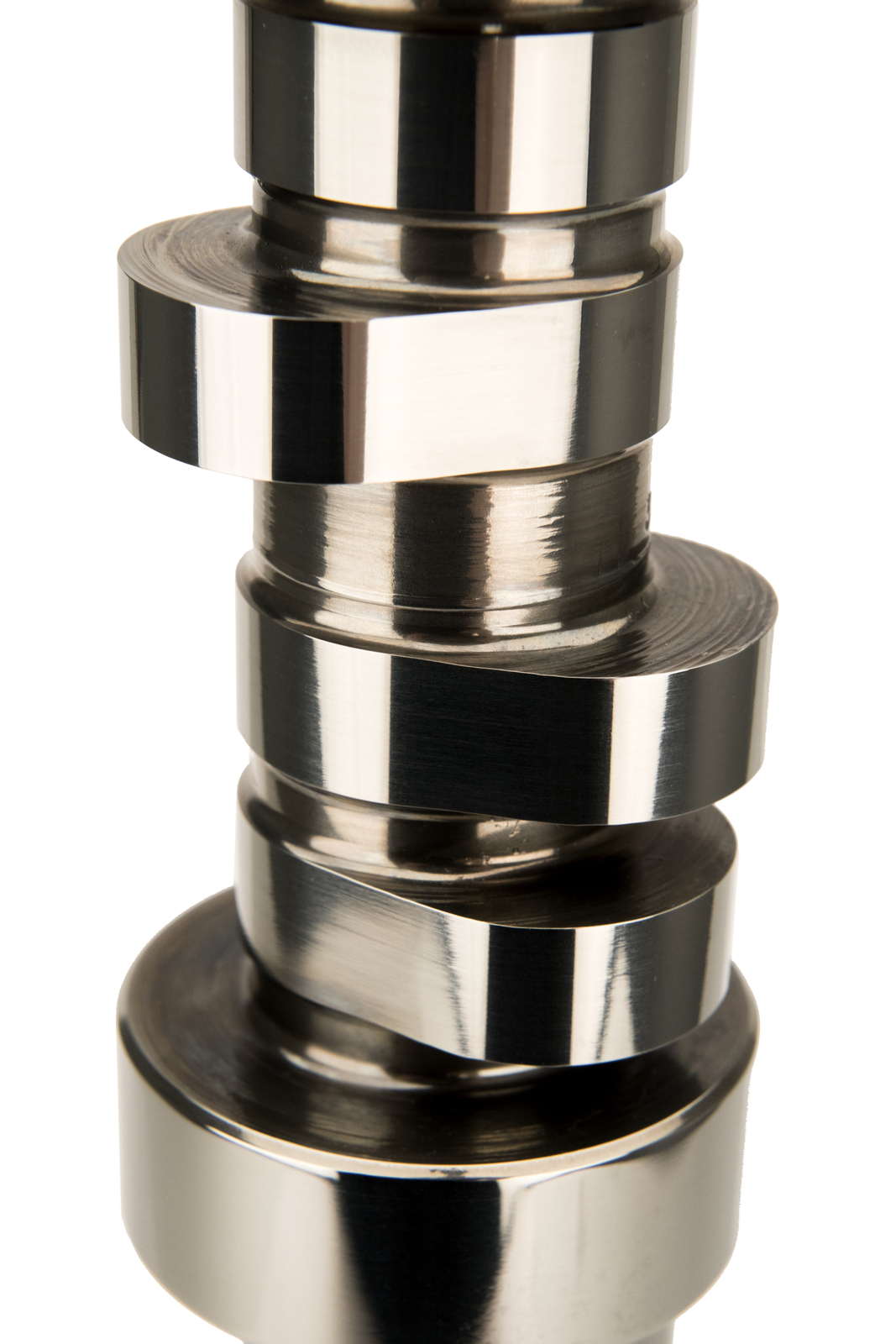

689-201-13 FSL AFM 212/224 D, 210/222 N Hydraulic Roller Cam for GM LS GEN IV

$1,145.79

or 4 payments of $286.45 with Info

SOLD OUT

*FREE SHIPPING ON ORDERS OVER $200!

Description

Specifications

SKU 689-201-13
Barcode # 036584388944
Brand COMP CAMS
Advertised Exhaust Duration Deactivation Cylinders 273
Advertised Exhaust Duration Non-deactivation Cylin 264
Advertised Intake Duration Non-deactivation Cylind 274
Exhaust Duration At .050 Inch Lift Deactivation Cy 224
Intake Duration At .050 Inch Lift Deactivation Cyl 212
Exhaust Duration At .050 Inch Lift Non-deactivatio 222
Intake Duration At .050 Inch Lift Non-deactivation 210
Vvt Limiter Required? No
Exhaust Valve Lift Non-deactivation Cylinders 0.541
Intake Valve Lift Non-deactivation Cylinders 0.541
Exhaust Valve Lift Deactivation Cylinders 0.541
Intake Valve Lift Deactivation Cylinders 0.541
Lifter Type Hydraulic Roller
Advertised Intake Duration Deactivation Cylinders 286
Camshaft Material Billet Steel
Camshaft Gear Attachment Single-Bolt
Valve Springs Required 26906
Lifters Included No
Basic Operating Rpm Range 1700-6900
Grind Number L99E264
Camshaft Series FSL
Lobe Separation 116
Cam Type Hydraulic Roller
