26906TS-KIT LS6+ Beehive Valve Spring Kit w/ Tool Steel Retainers; 0.580" Max Lift

** FREE SHIPPING ON ORDERS OVER $200 **

Description

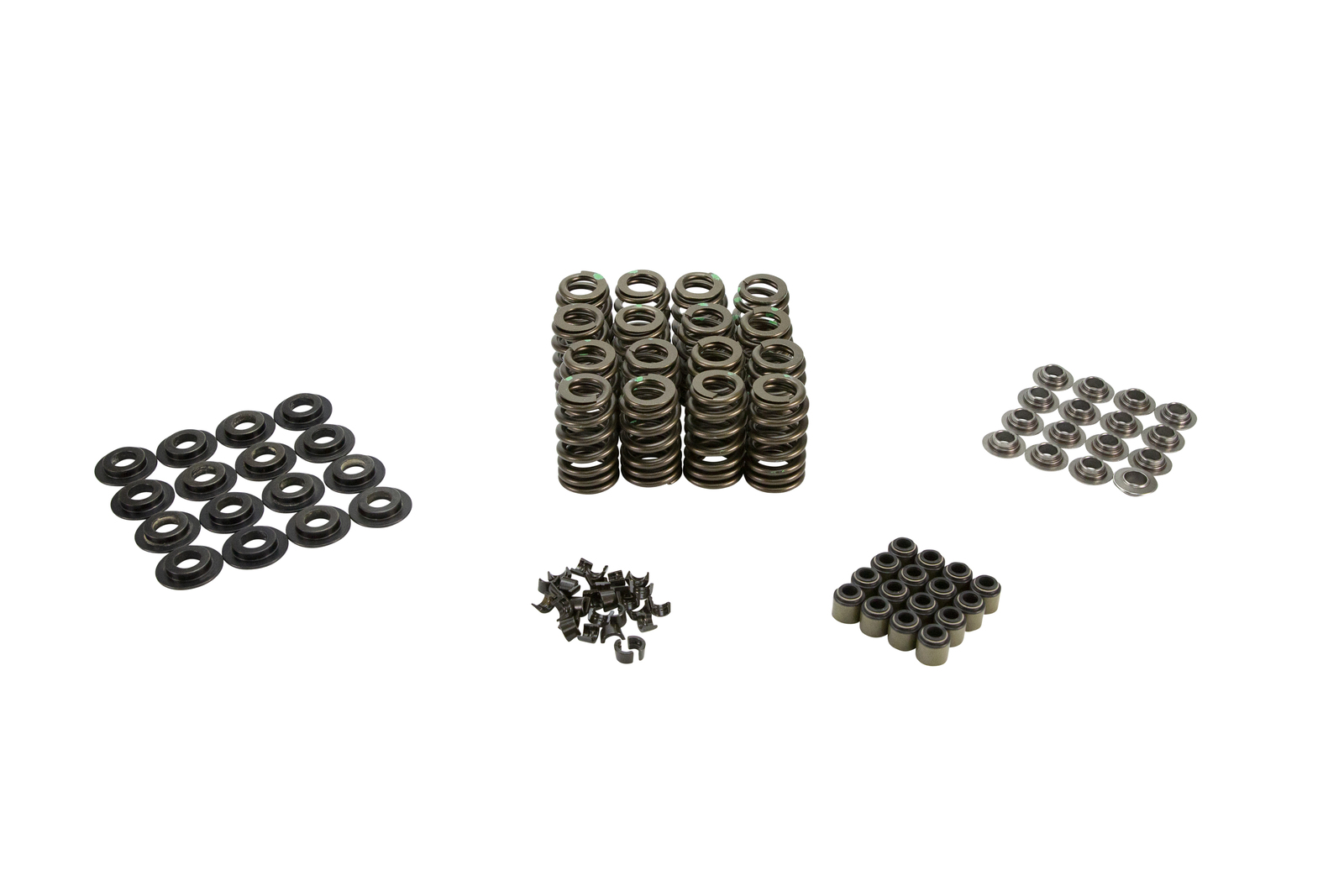

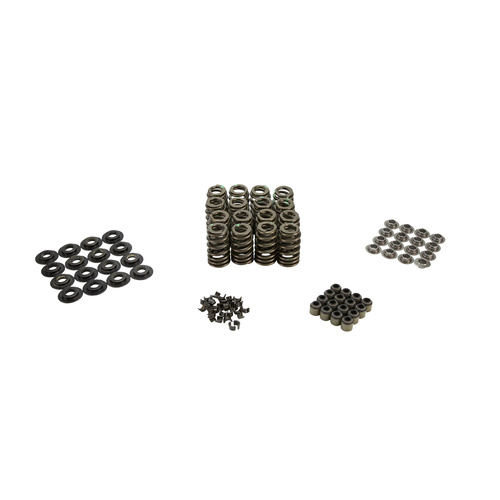

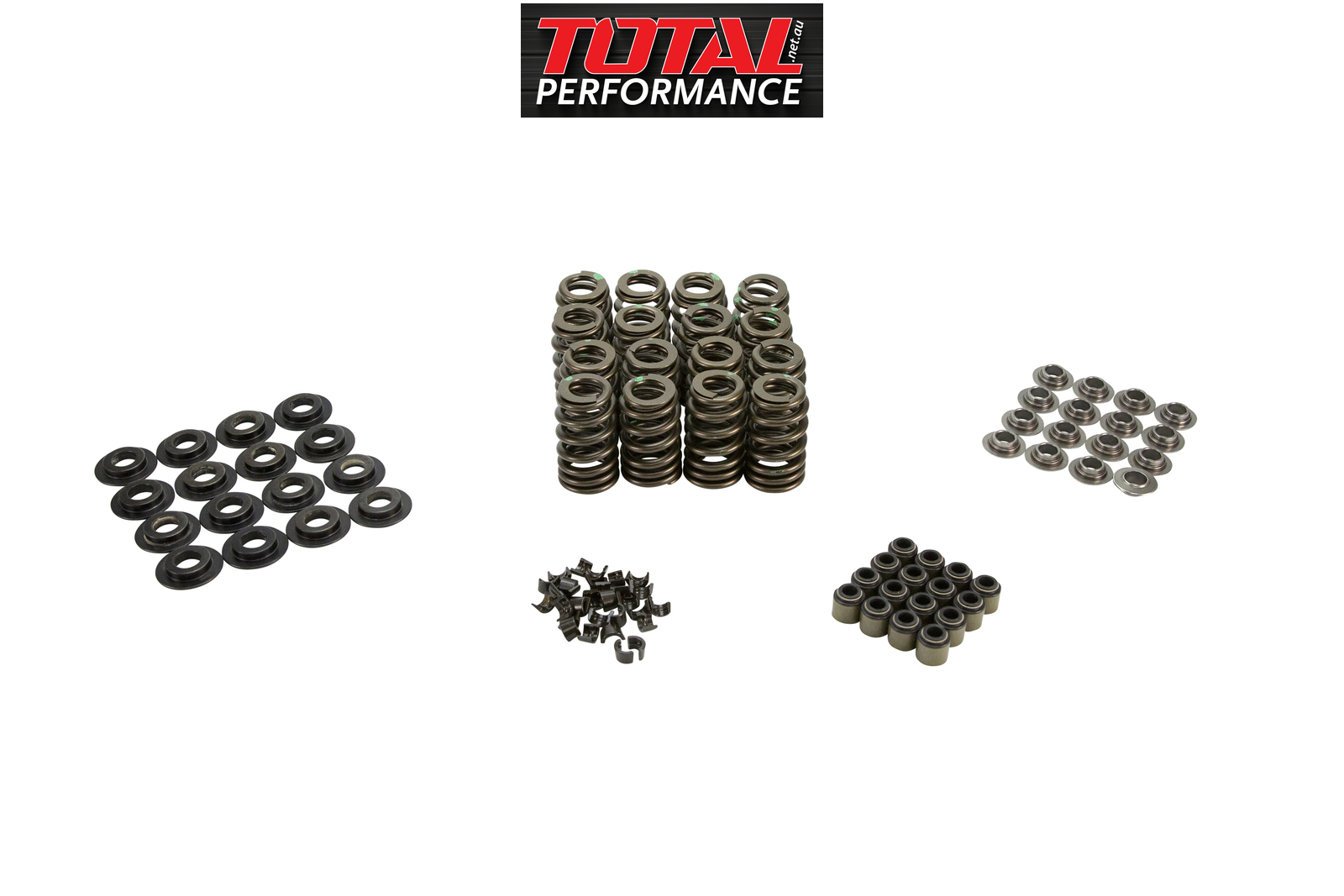

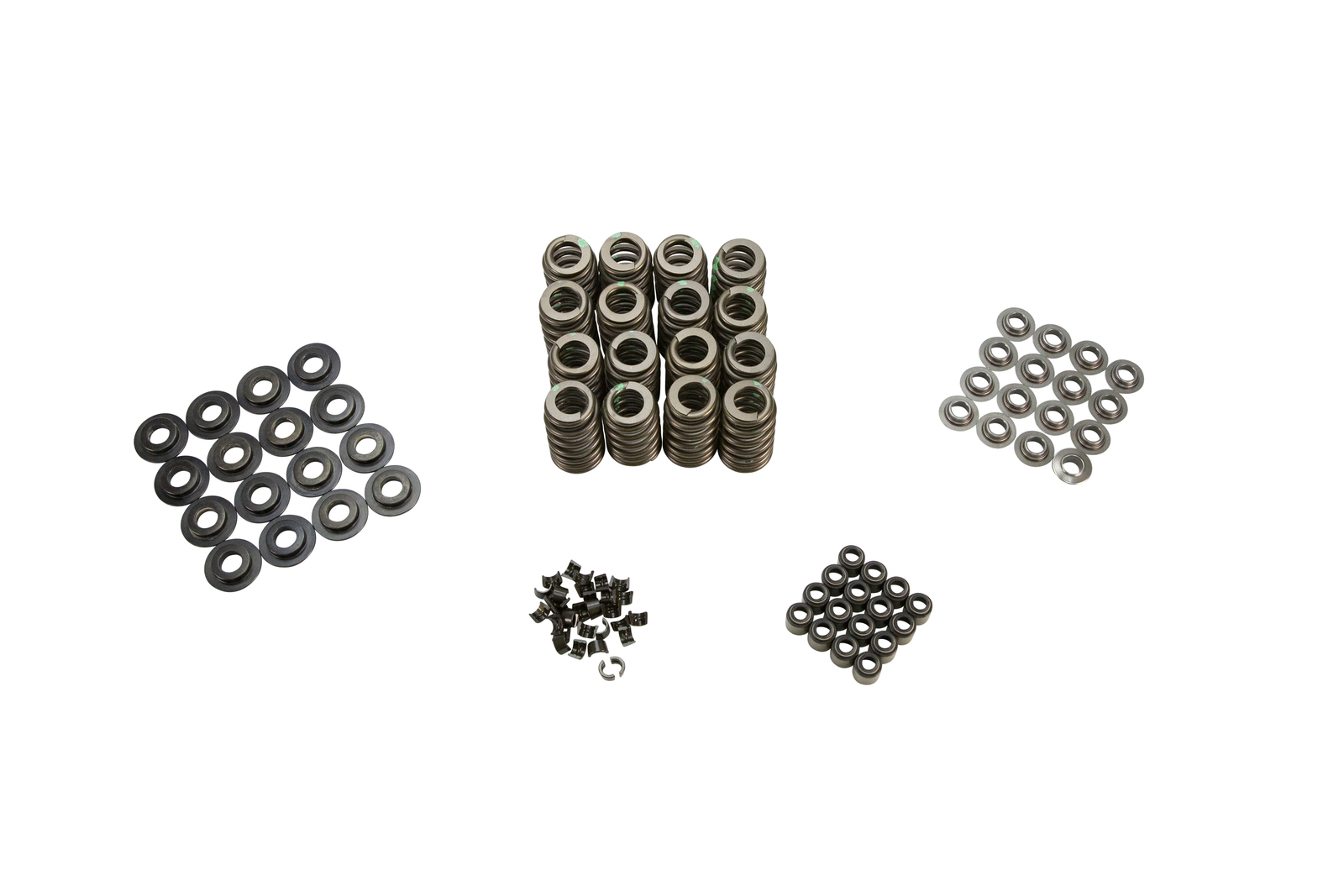

Including our LS6+ Beehive Valve Springs, hardened spring seats, viton valve seals and machined steel locks and tool steel retainers, this kit is a great way to freshen up LS heads. Allows for a maximum of 0.580" valve lift.

Specifications

SKU	26906TS-KIT
Barcode #	036584394228
Brand	COMP CAMS
Spring Top Outside Diameter	1.077
Valve Spring Type	Beehive
Max Lift	0.580
Includes Retainers	Yes
Includes Locks	Yes
Includes Spring Seats	Yes
Includes Valve Seals	Yes
Spring Bottom Inside Diameter	0.860
Spring Bottom Outside Diameter	1.282
Spring Top Inside Diameter	0.655
Seat Height	1.800
Valve Seal Outer Diameter	0.600
Valve Seal Type	Steel Jacketed Viton
Locator Thickness	0.0600
Locator Outer Diameter	1.300
Locator Inner Diameter	0.510
Coil Bind Height	1.181
Seat Pressure	92
Retainer Material	Tool Steel
