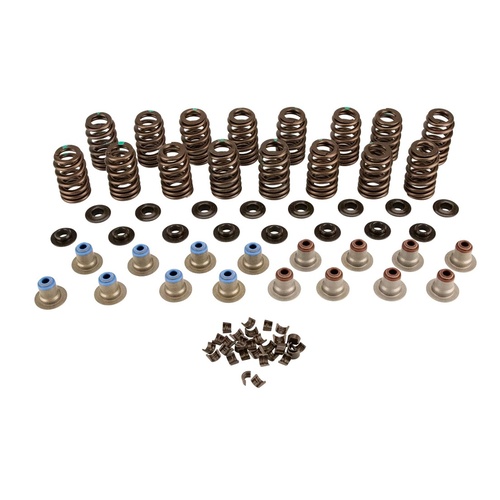

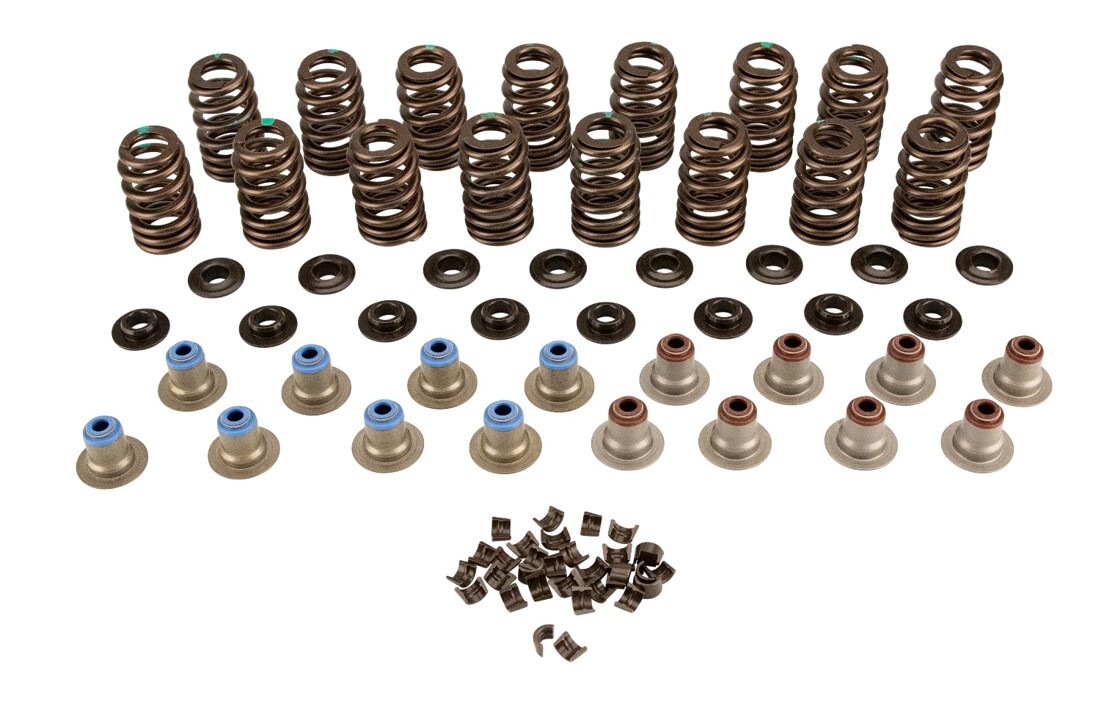

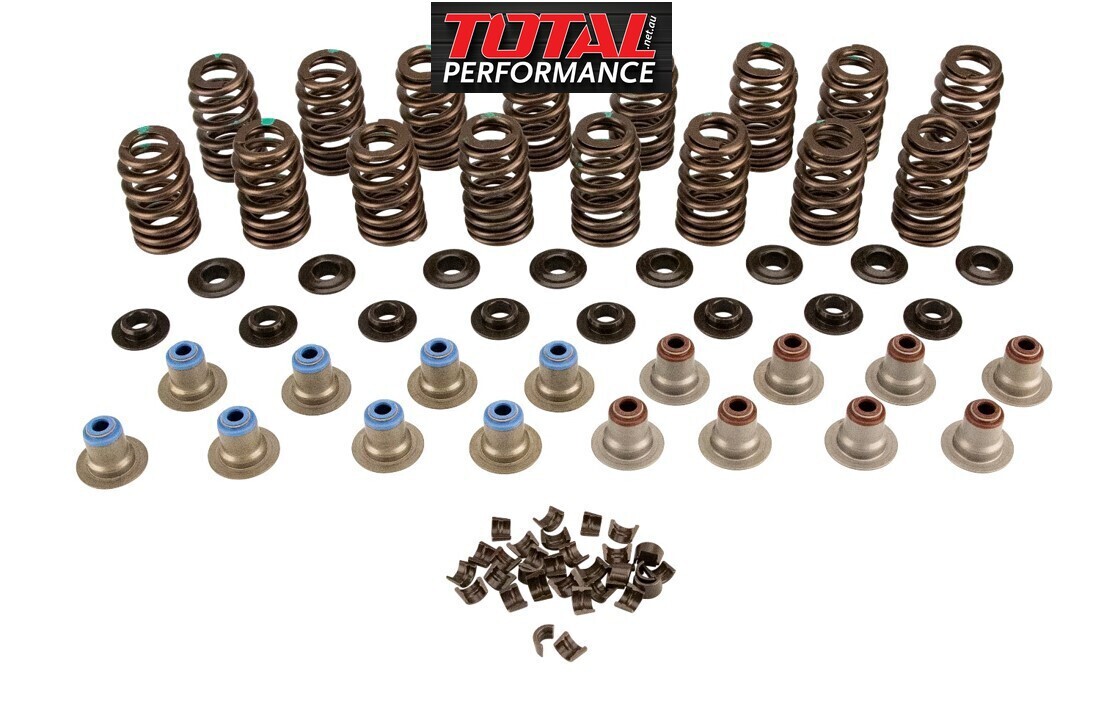

26906CS-KIT LS6+ Beehive Valve Spring Kit w/ Chromemoly Steel Retainers; 0.580" Max Lift

SKU: 26906CS-KIT

26906CS-KIT LS6+ Beehive Valve Spring Kit w/ Chromemoly Steel Retainers; 0.580" Max Lift

$497.15

or 4 payments of $124.29 with Info

SOLD OUT

*Free shipping on orders over $200

Notify Me

Description

Including our LS6+ Beehive Valve Springs, hardened spring seats, viton valve seals and machined steel locks and chromemoly steel retainers, this kit is a great way to freshen up LS heads. Allows for a maximum of 0.580" valve lift.

Specifications

SKU 26906CS-KIT
Barcode # 036584394211
Brand COMP CAMS
Spring Top Outside Diameter 1.077
Valve Spring Type Beehive
Max Lift 0.580
Includes Retainers Yes
Includes Locks Yes
Includes Spring Seats Yes
Includes Valve Seals Yes
Spring Bottom Inside Diameter 0.860
Spring Bottom Outside Diameter 1.282
Spring Top Inside Diameter 0.655
Seat Height 1.800
Valve Seal Outer Diameter 0.600
Valve Seal Type Steel Jacketed Viton
Locator Thickness 0.0600
Locator Outer Diameter 1.300
Locator Inner Diameter 0.510
Coil Bind Height 1.181
Seat Pressure 92
Retainer Material Chromemoly Steel

Reviews

Be The First To Review This Product!

Help other Total Performance users shop smarter by writing reviews for products you have purchased.

Write a product review
