SKU: 11-207-3

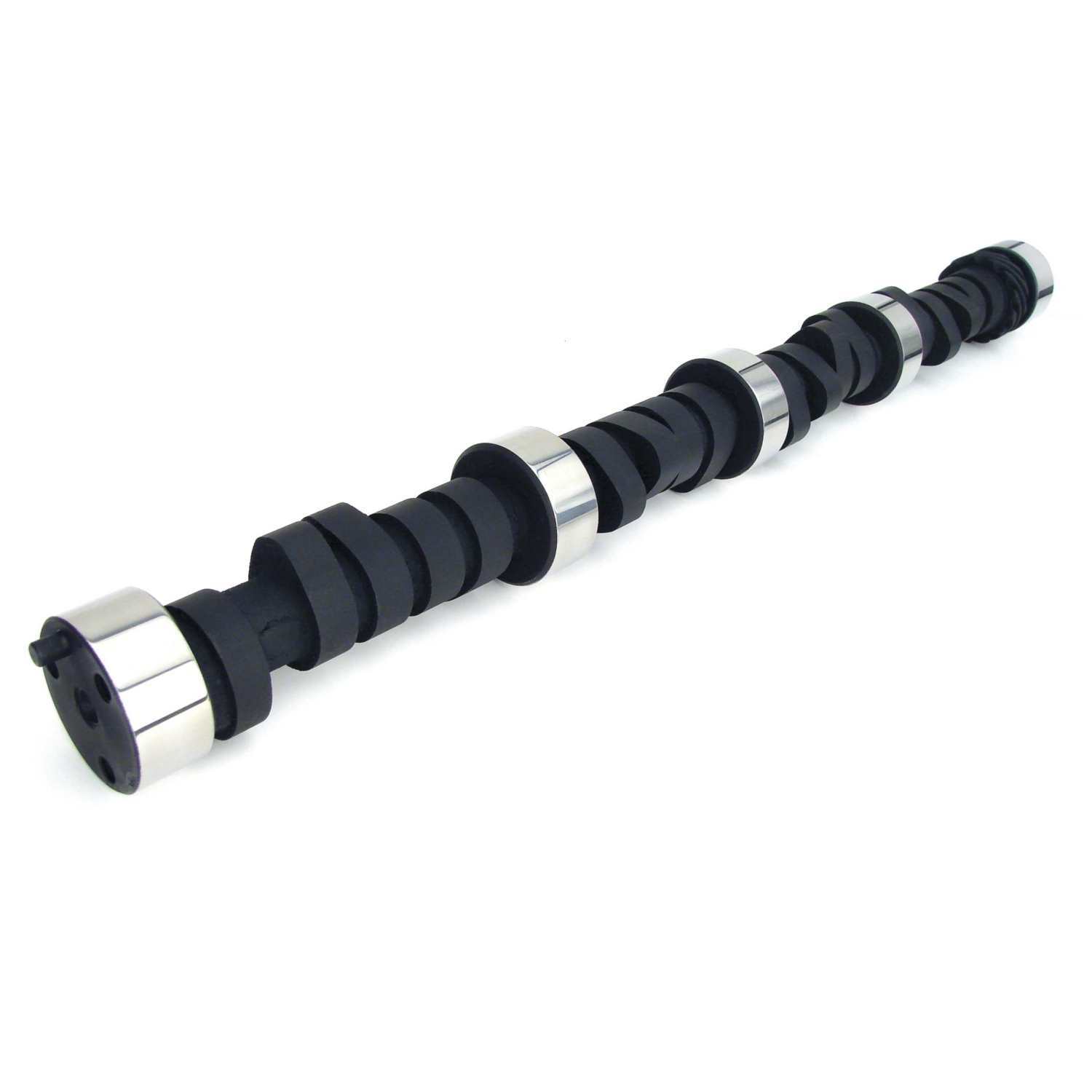

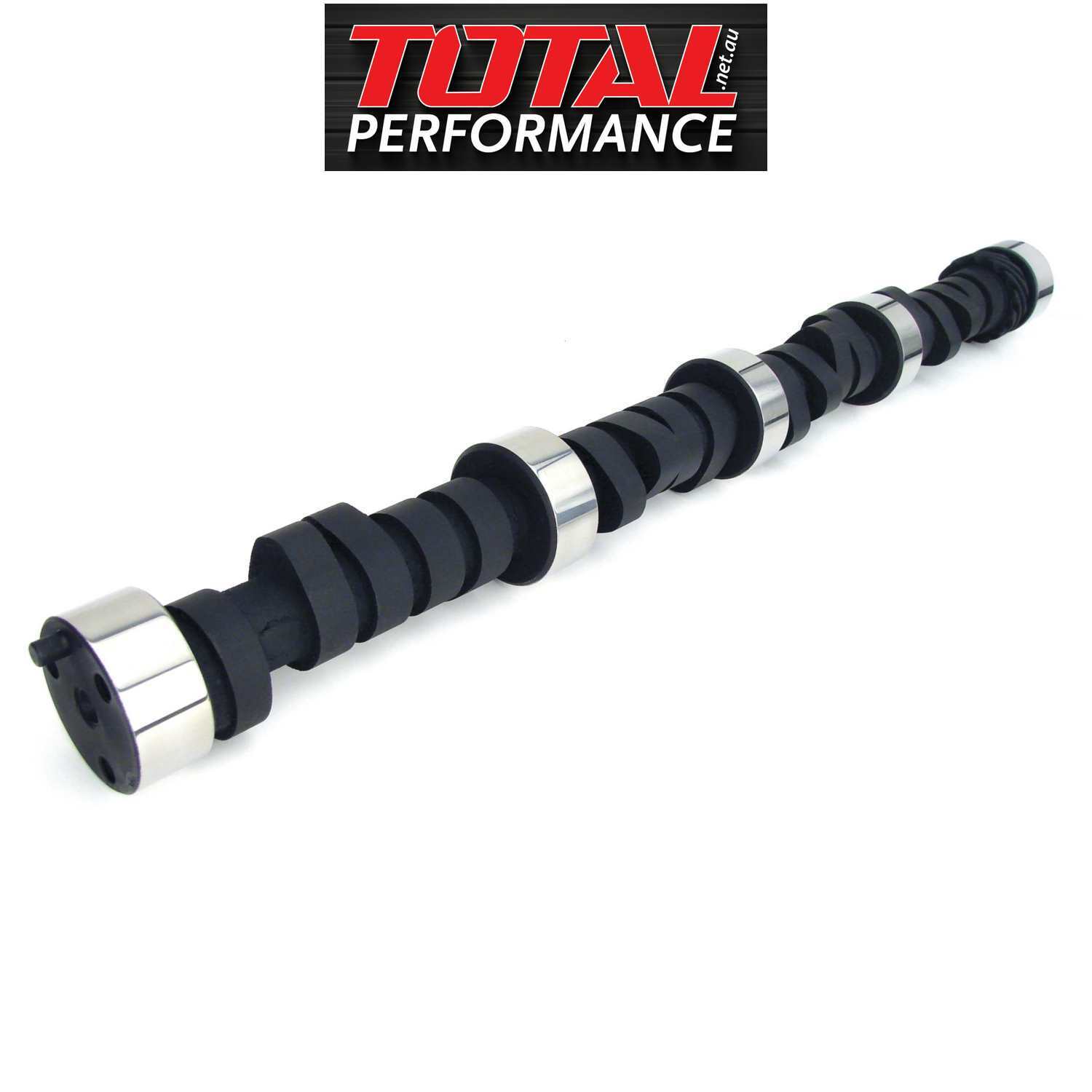

11-207-3 Magnum 224/224 Hydraulic Flat Cam for Chevrolet Big Block 396-454

$312.31

or 4 payments of $78.08 with Info

In Stock

Description

Good for daily driven street machine, works with stock converter, likes headers. 396c.i. needs 3.55-3.73 gear and 1800+ stall. Slight rough idle.

Specifications

SKU 11-207-3
Barcode # 036584520221
Brand COMP CAMS
Lifters Included No
Camshaft Series Magnum
Exhaust Duration At .050 Inch Lift 224
Advertised Exhaust Duration 270
intake valve lift 0.51
Camshaft Gear Attachment 3-Bolt
Basic Operating Rpm Range 1,500-5,800
Lobe Separation 110
Cam Type Hydraulic Flat Tappet
Lifter Type Hydraulic Flat Tappet
Valve Springs Required Yes
Grind Number 270H
Intake Duration At .050 Inch Lift 224
Advertised Intake Duration 270
Exhaust Valve Lift 0.51
Camshaft Material Cast Iron
