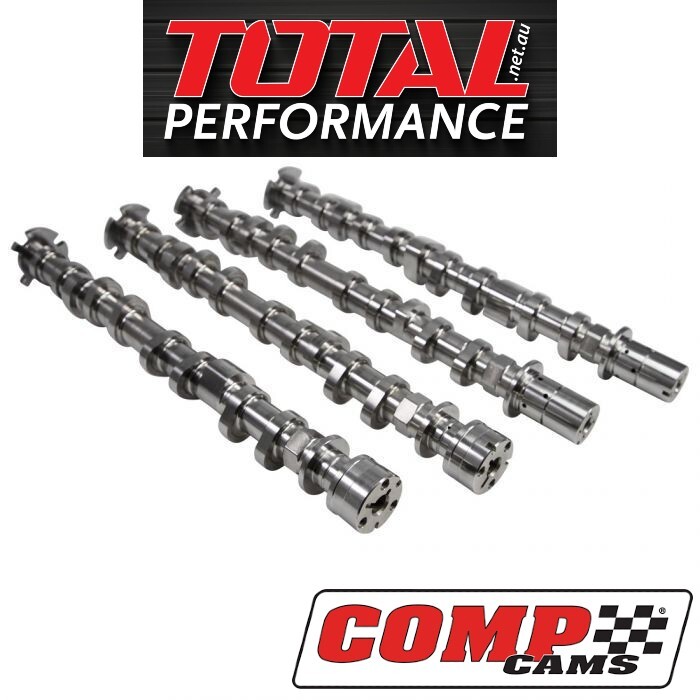

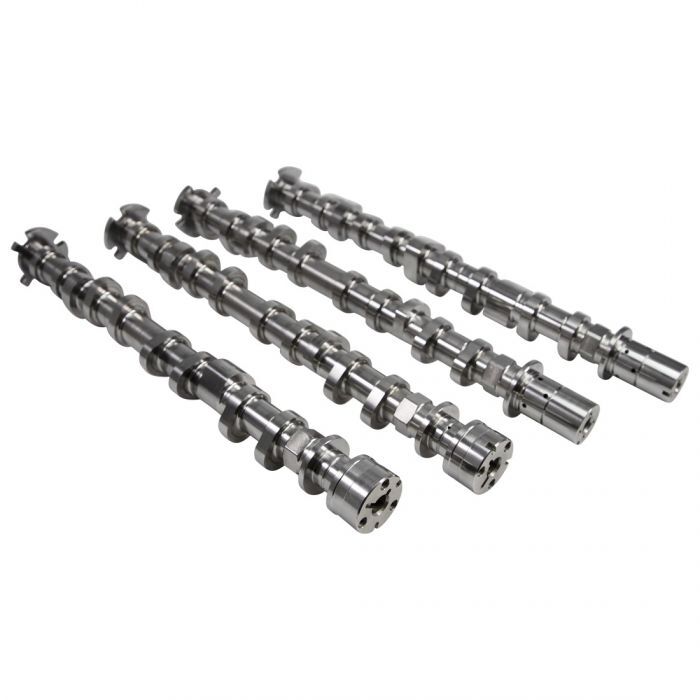

COMP CAMS 433560 Blower + Turbo Stage 1 Camshafts 2018+ Ford 5.0 Coyote V8 MUSTANG

** FREE SHIPPING ON ORDERS OVER $200 **

Ford Coyote Blower / Turbo Stage 1 Camshafts 2018+ Ford 5.0 GEN 3 Coyote V8 MUSTANG

Description

Stage 1

XFI™ Blower/Turbo 232/238 Hydraulic Roller Finger Follower DOHC Cams for 2018+ Ford 5.0L Coyote. Optimized w/ higher lift for Part #26001 spring kits, allowing more RPM and added exhaust for forced induction. Valve springs required.

Engine Family: Ford Coyote 5.0L DOHC Modular 4 Valve 8 Cylinder (2018+)

RPM Operating Range: 2,000-7,900

Cam Type: Hydraulic Roller Finger Follower

Lifter Style: Hydraulic Roller Finger Follower

Camshaft Series: Blower/Turbo

Stage: 1

Valve Springs Required: Yes

Camshaft Material: Billet Steel

Advertised Intake Duration: 280

Advertised Exhaust Duration: 294

Intake Duration at .050 Inch Lift: 232

Exhaust Duration at .050 Inch Lift: 238

Intake Valve Lift: 0.58

Exhaust Valve Lift: 0.58

Lobe Separation: 126

Specifications

SKU	433560
Barcode #	036584402329
Brand	COMP CAMS
intake valve lift	0.58
Exhaust Valve Lift	0.58
Advertised Exhaust Duration	294
Advertised Intake Duration	280
Cam Type	Hydraulic Roller Finger Follower
Exhaust Duration At .050 Inch Lift	238
Intake Duration At .050 Inch Lift	232
Lobe Separation	126
Camshaft Series	Blower and Turbo
Basic Operating Rpm Range	2,000-7,900
Valve Springs Required	Yes
Camshaft Material	Billet Steel
Individual Cam Pt #s Included	433-561-11LE, 433-562-11LI, 433-563-11RE, 433-564-11RI
Stage	1
